Sprängskisser för Suzuki DF70A, DF80A, DF90A, DF100B (E01/E11) 2020-2023 [DF90A_E11_023]
Läs mer
Läs mindre
Parts Pilot
Vevaxel
Referensnr. DF90A_E11_023 4

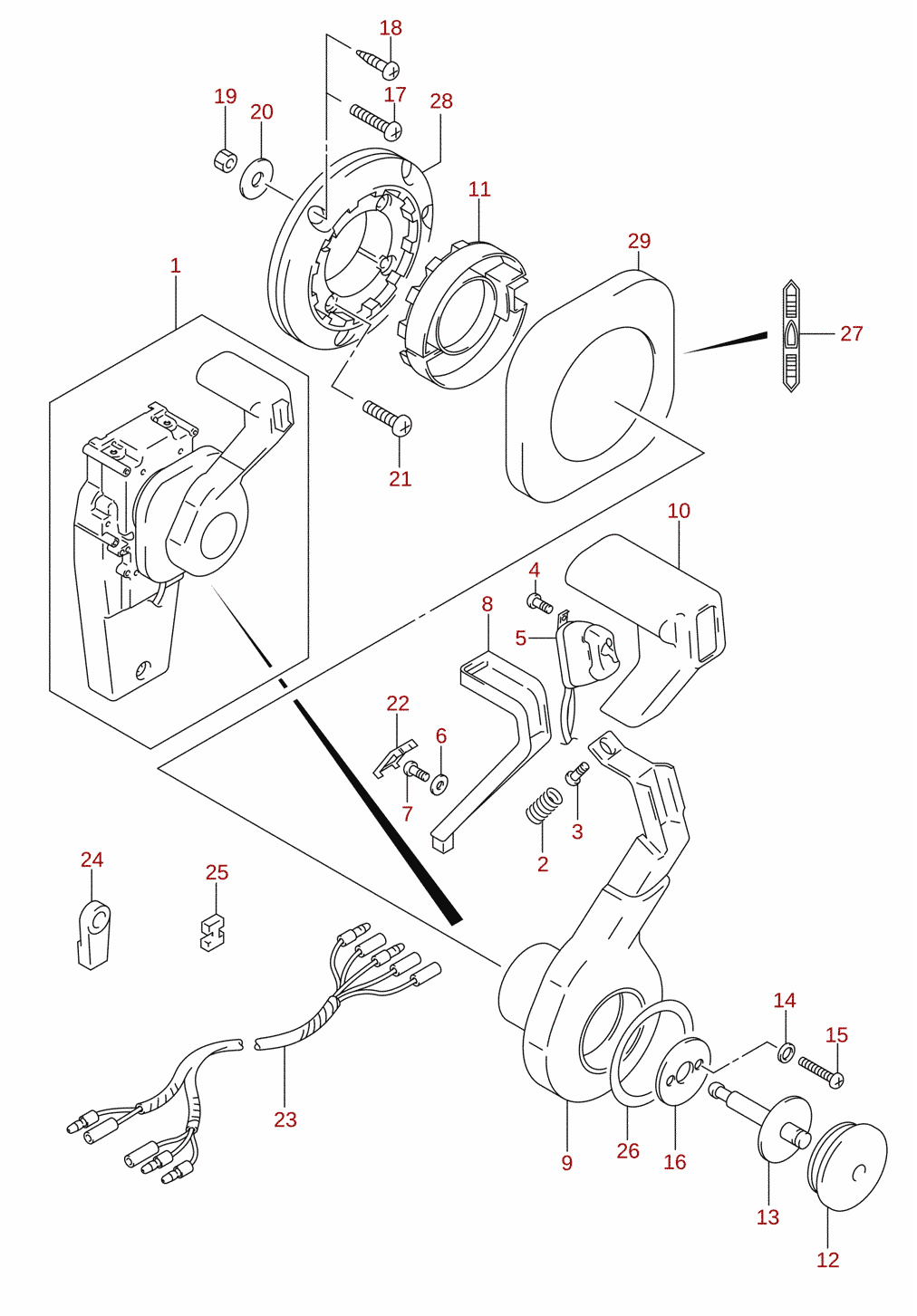

Dolt reglage (1) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 95
Givare (DF100B, DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 29

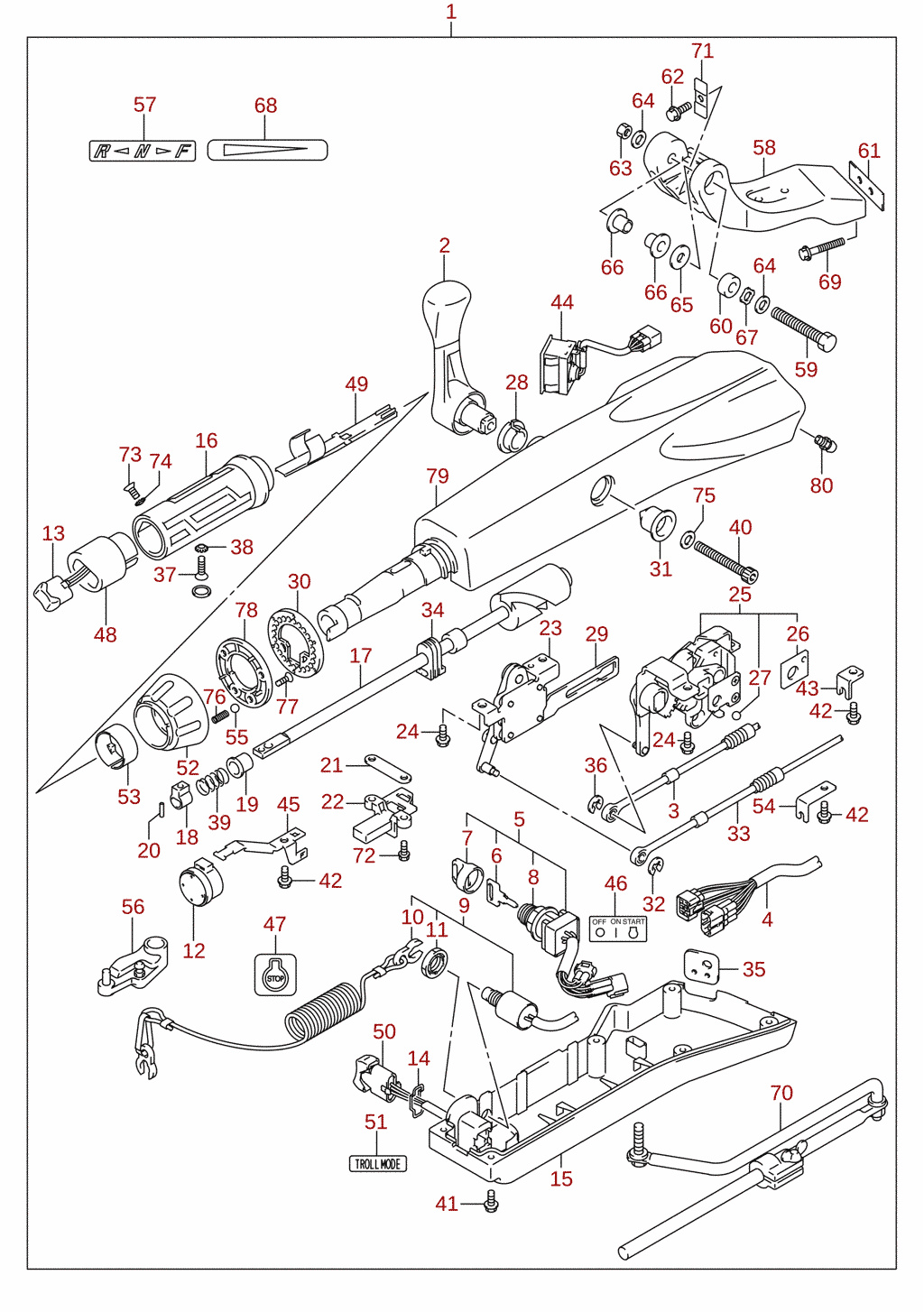

Styrkult (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 113

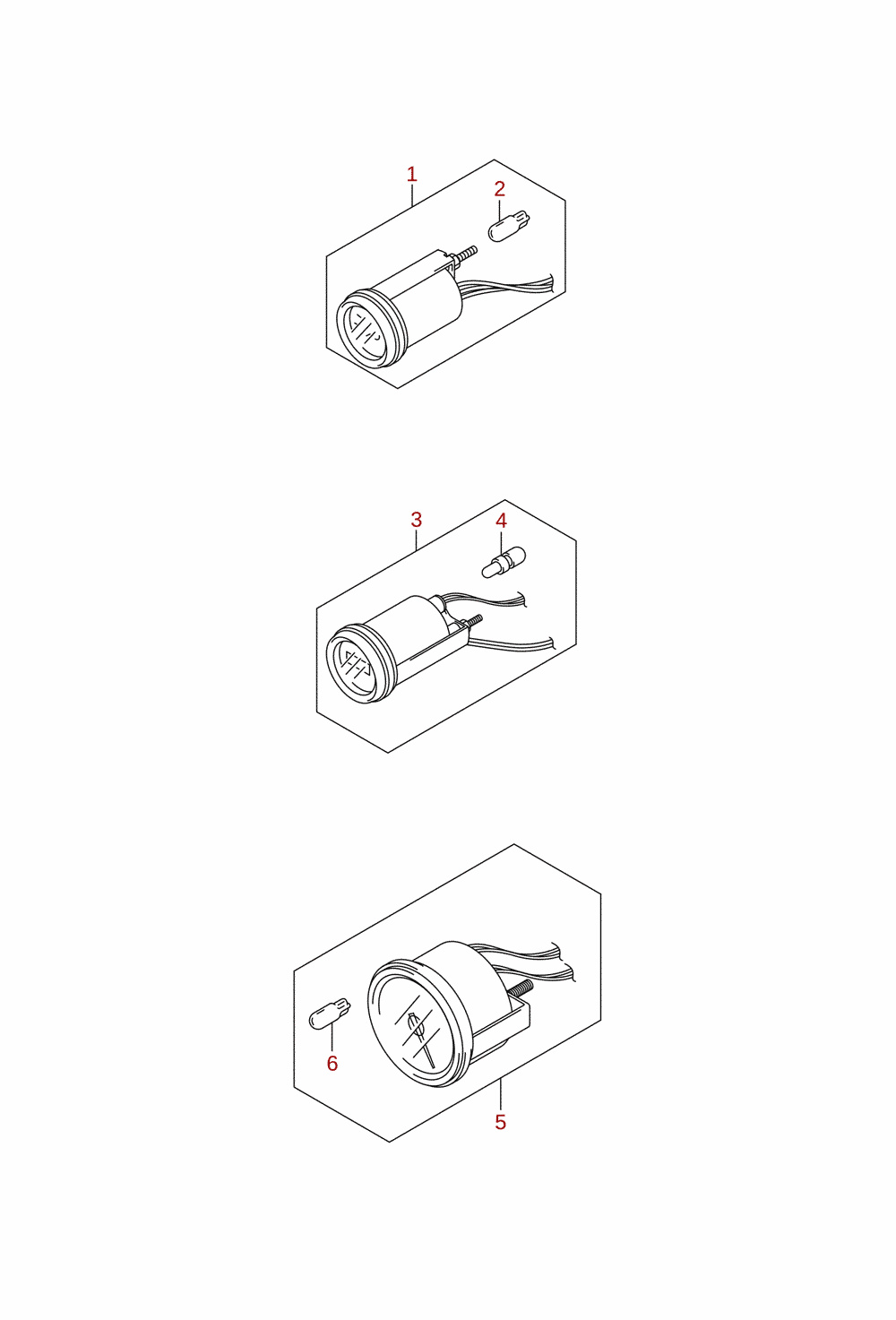

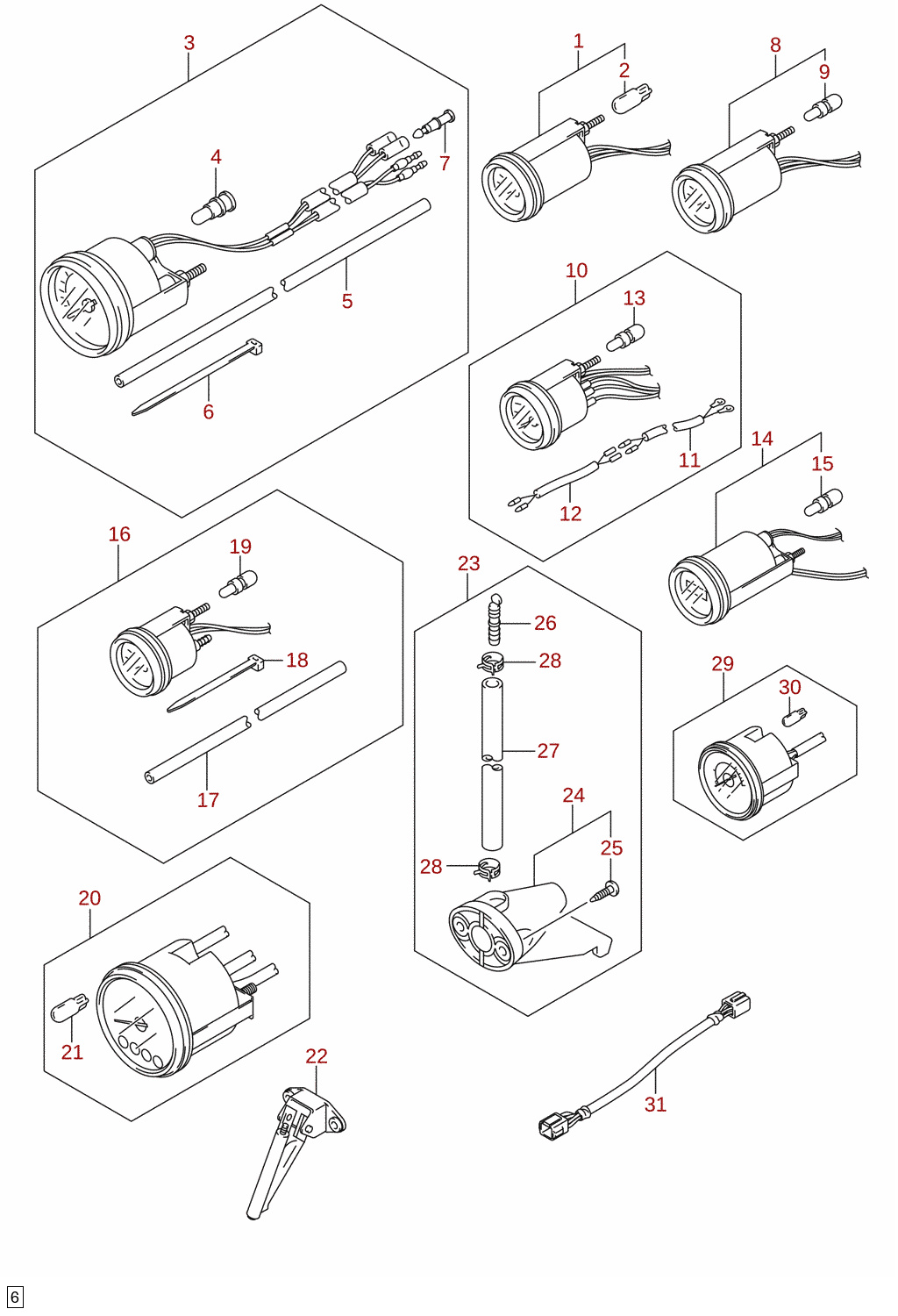

Instrument (DF100B, DF70A, DF80A, DF90A)
Referensnr. DF90A_E11_023 84

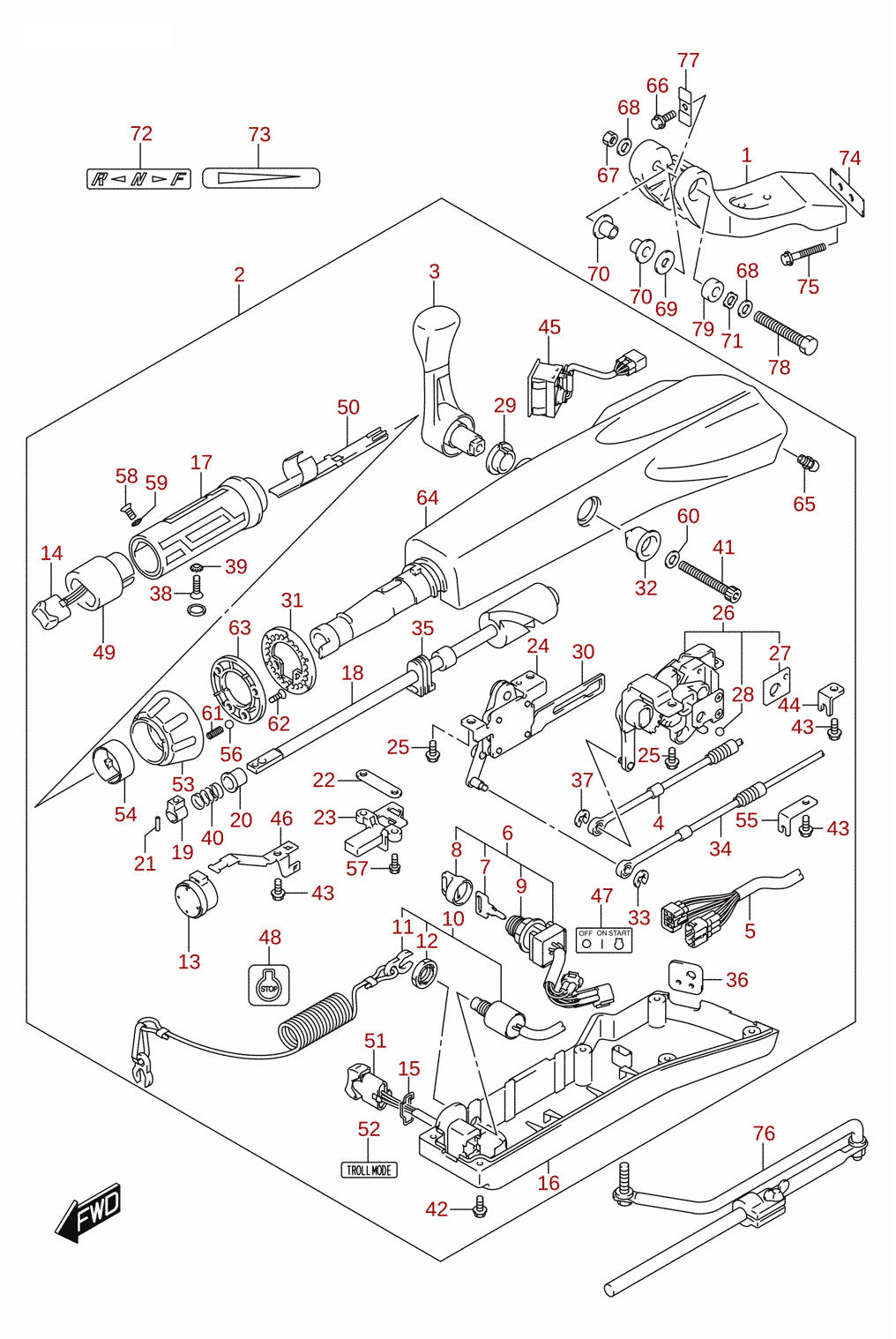

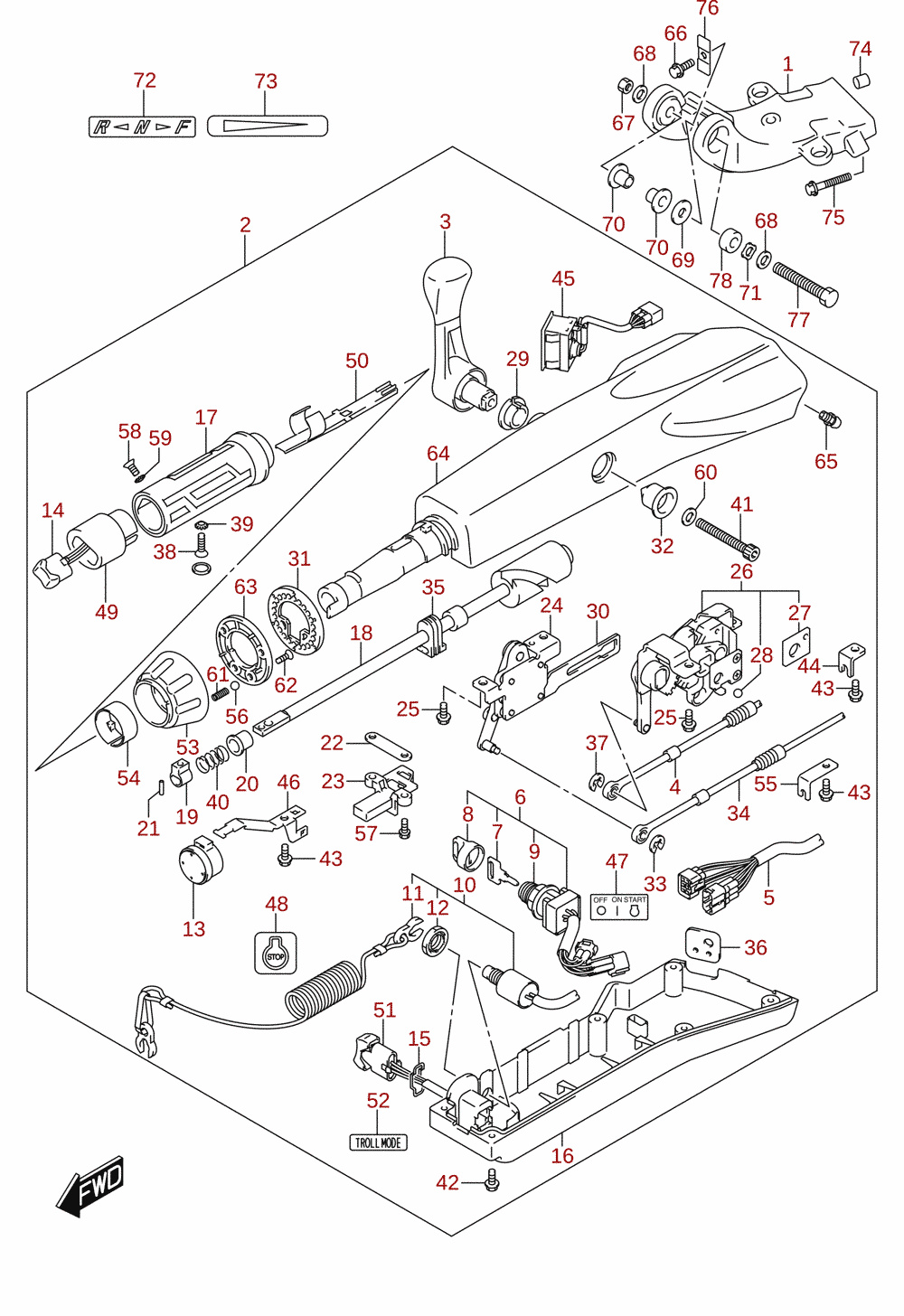

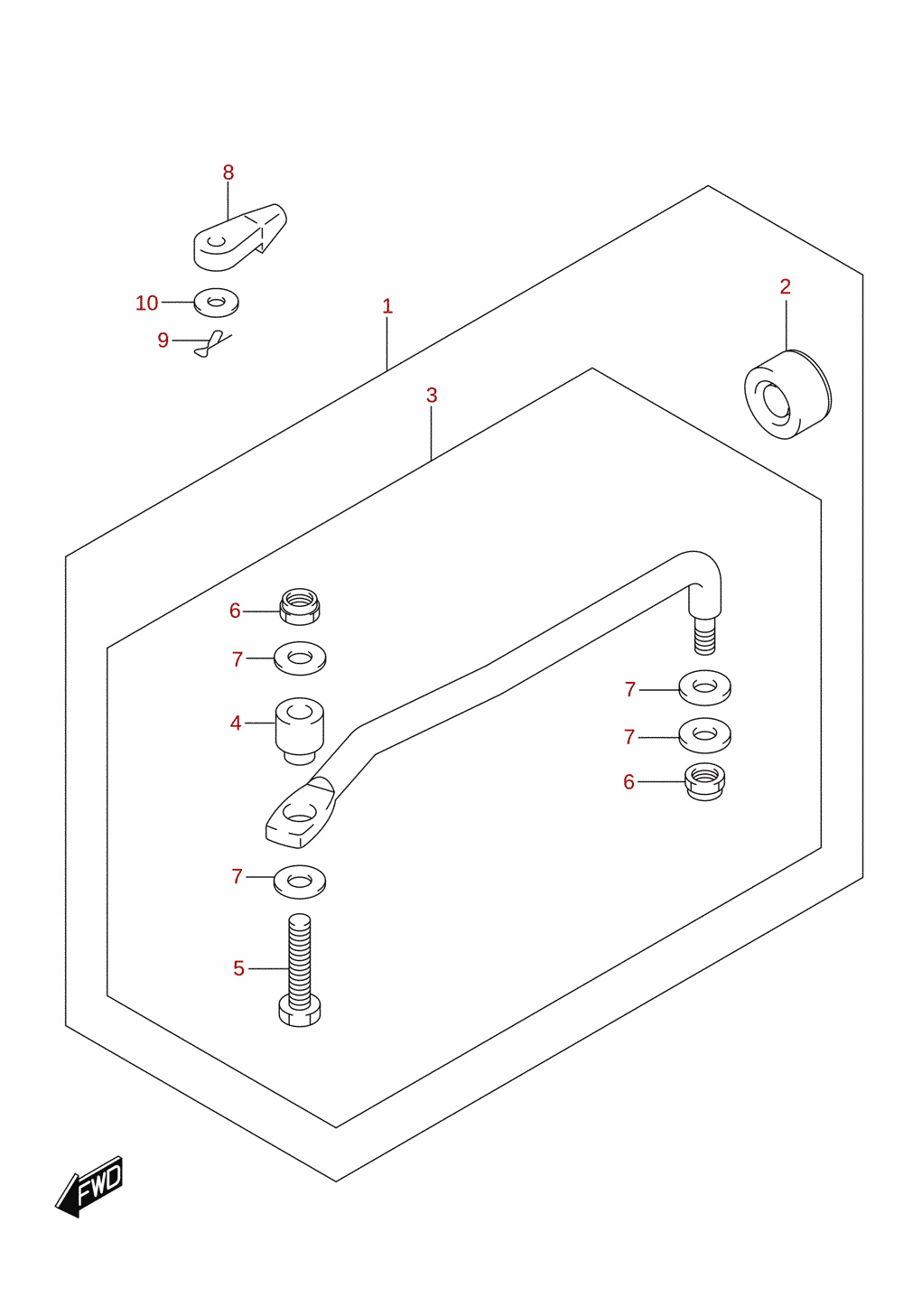

Styrkult (DF70ATH, DF90ATH) 1/2
Referensnr. DF90A_E11_023 81

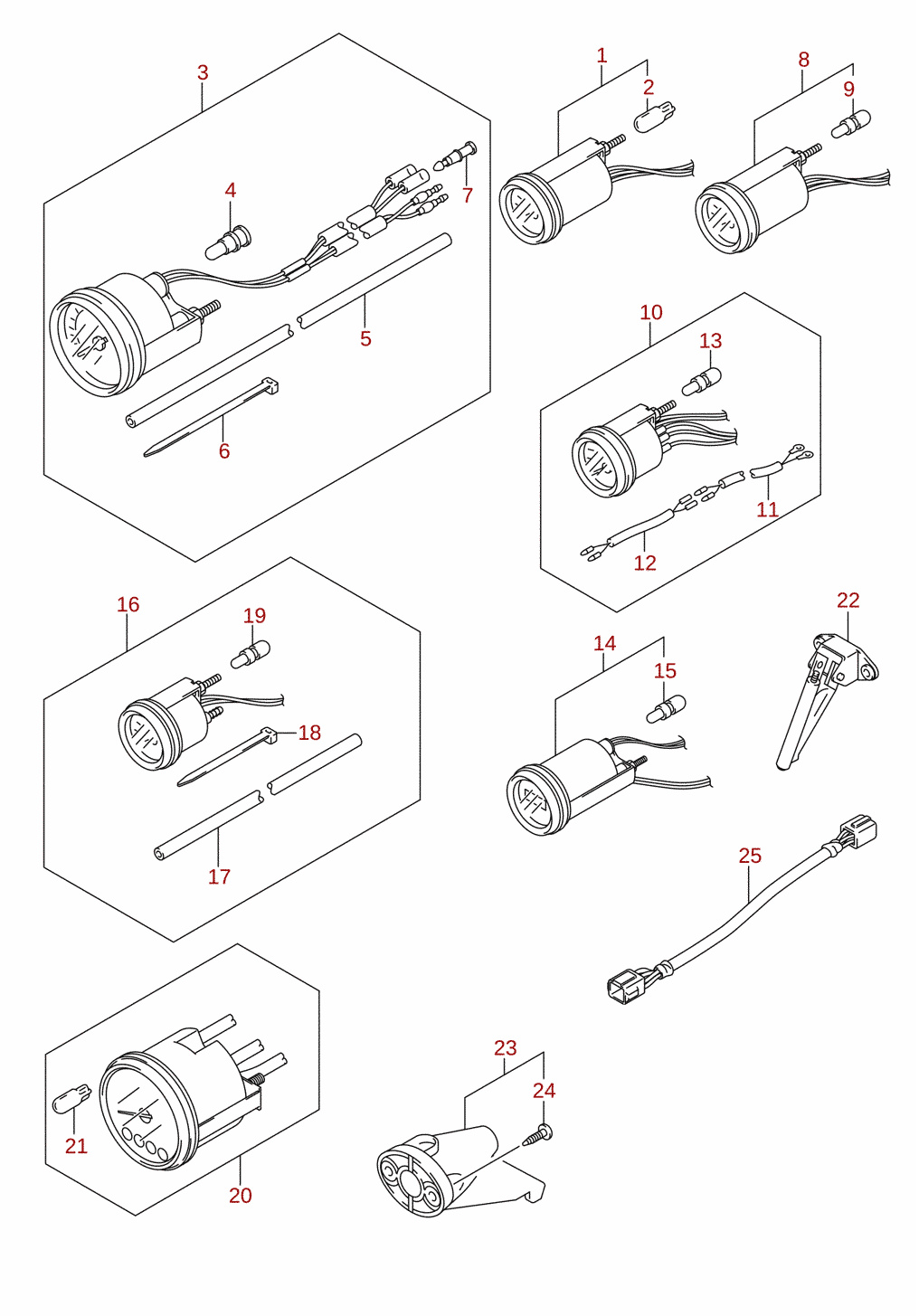

Instrument (DF70ATH, DF90ATH) (tillval) 2/2
Referensnr. DF90A_E11_023 89

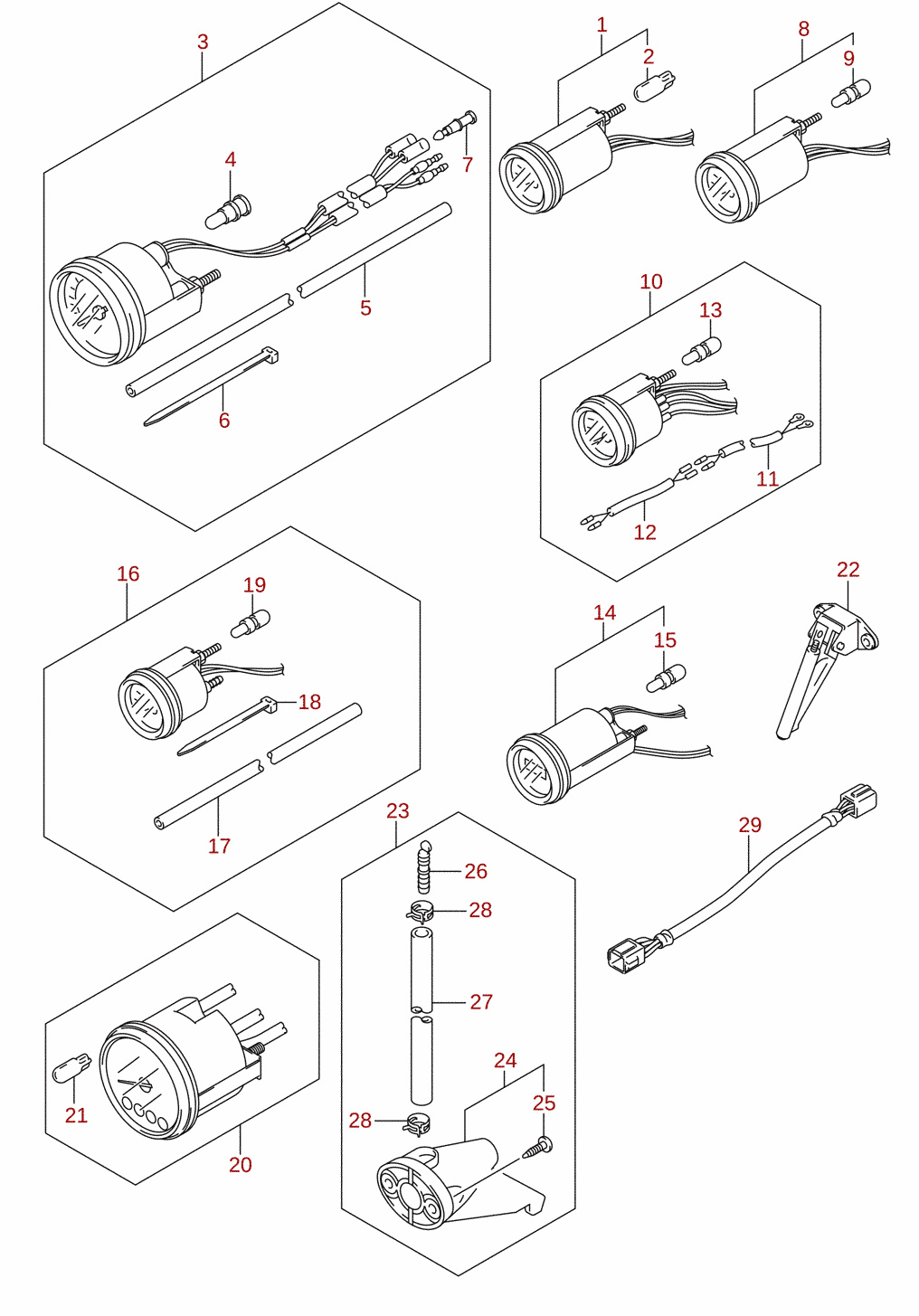

Instrument (DF70ATH, DF90ATH) (tillval) 1/2
Referensnr. DF90A_E11_023 88

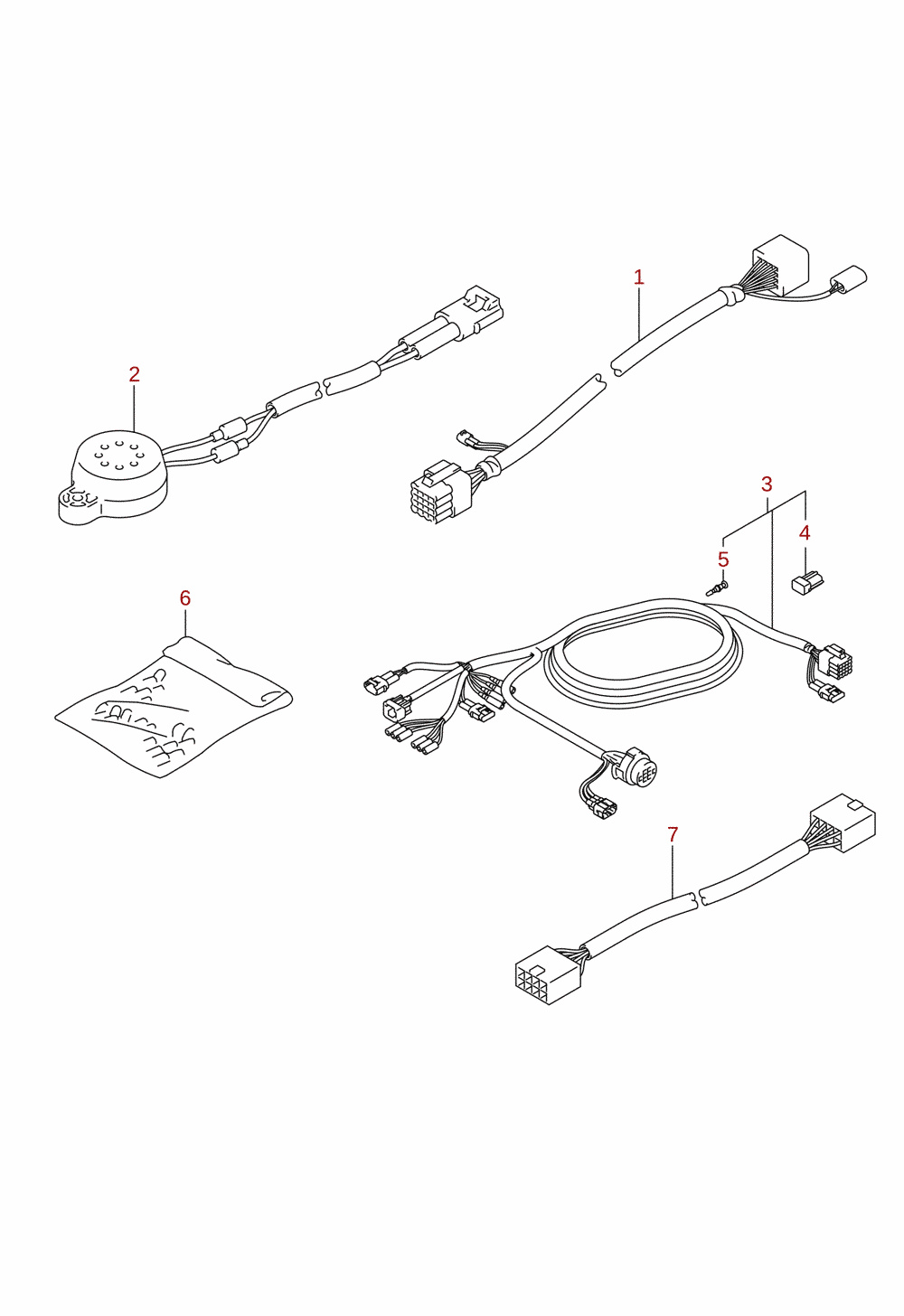

Kabelstam (2023) (DF70A, DF75A, DF90A) (tillval)
Referensnr. DF90A_E11_023 103
PTT-motor 1/2
Referensnr. DF90A_E11_023 54

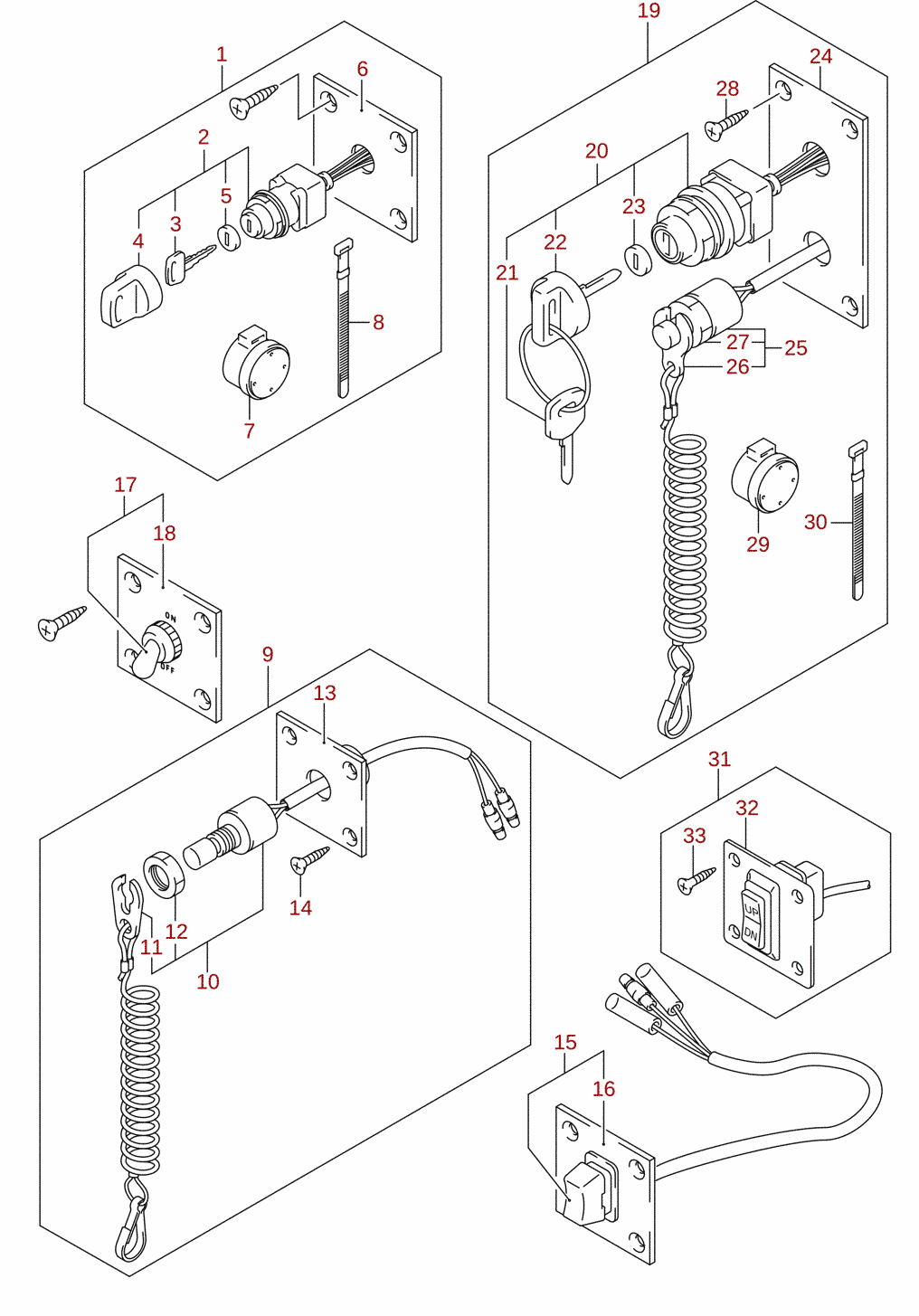

Brytare (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 107

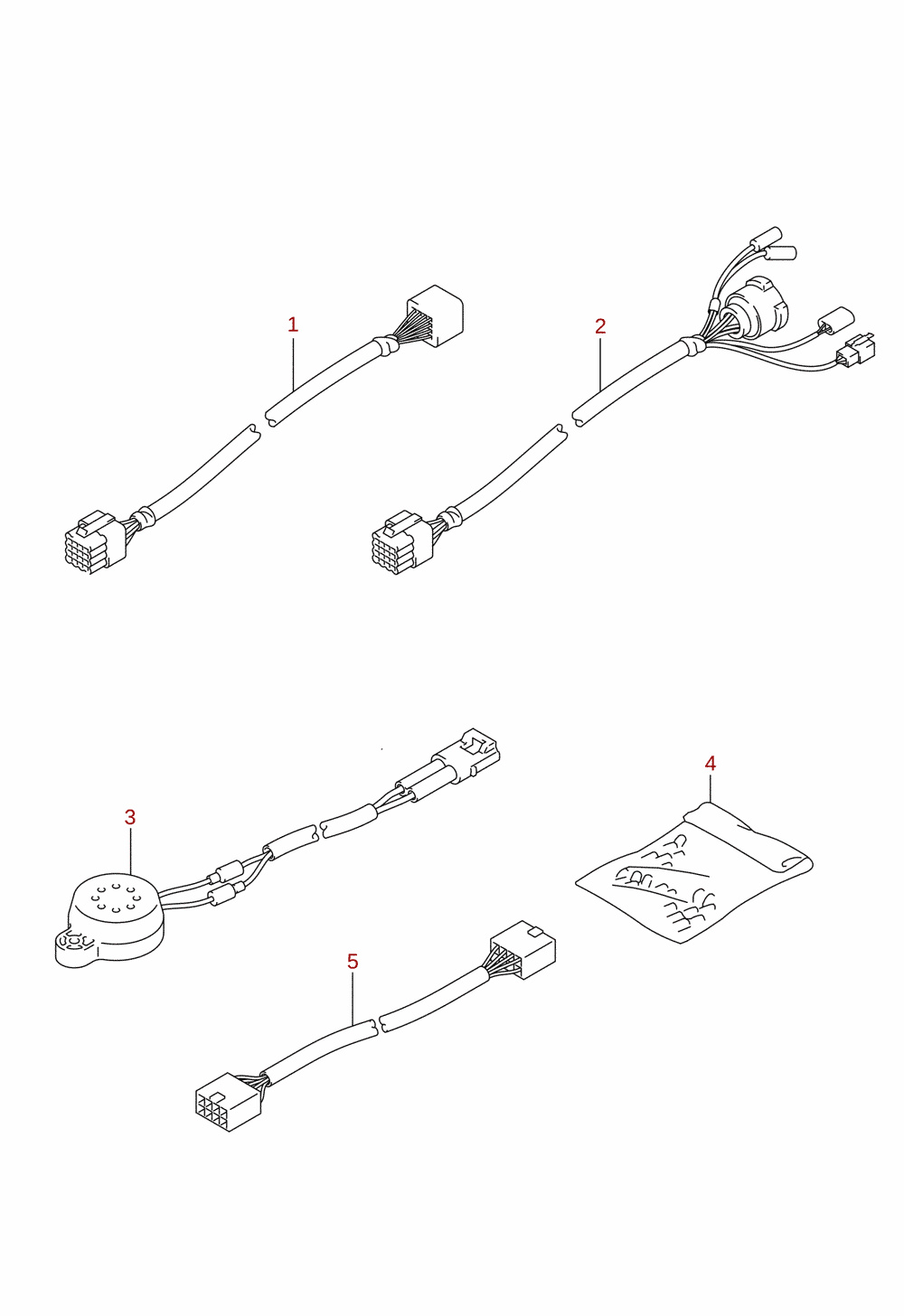

Kabelstam (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 98

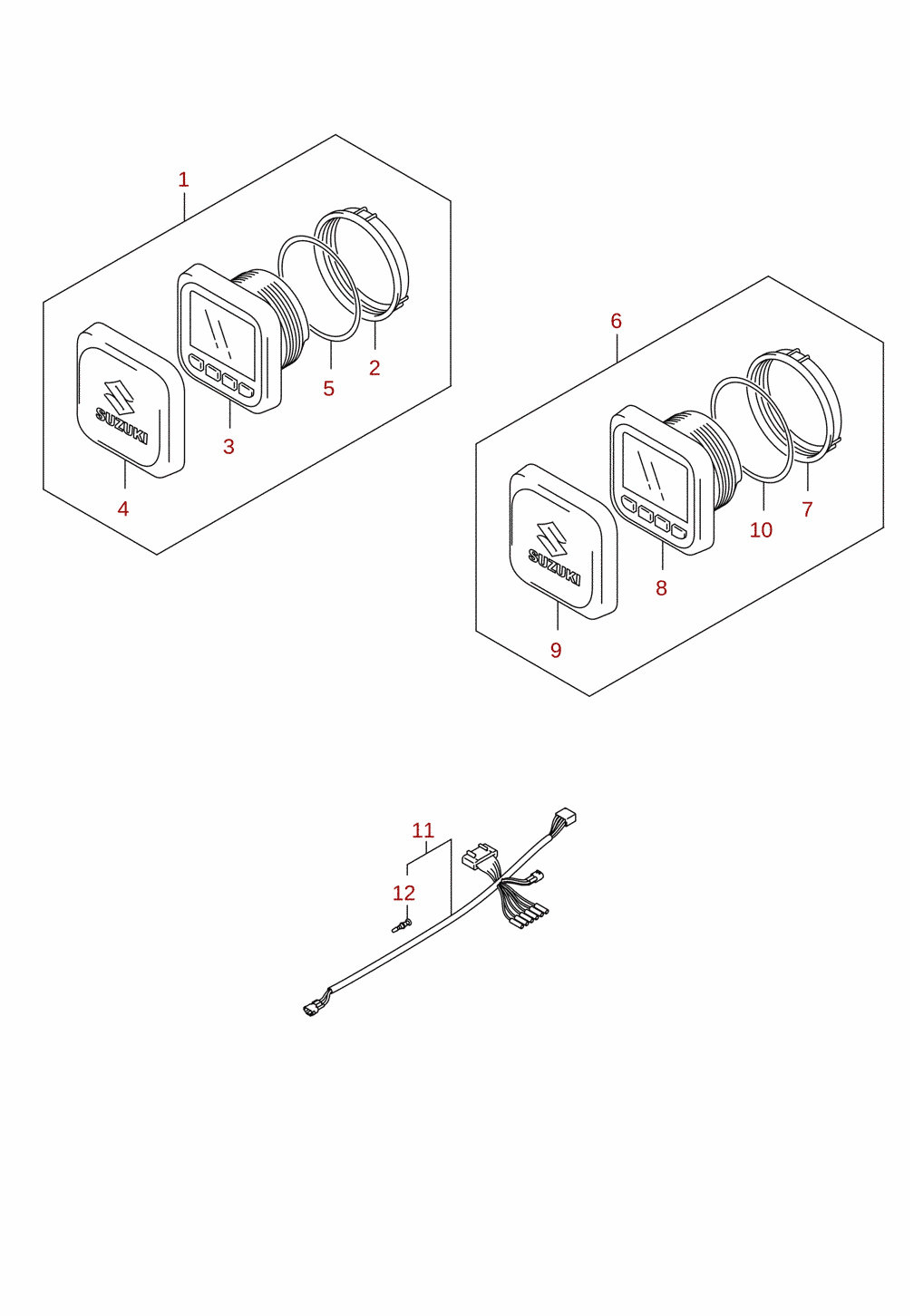

Multifunktionsinstrument (1) (DF100B, DF70A, DF75A, DF80A, DF90A, DF90AWQH) (tillval)
Referensnr. DF90A_E11_023 119

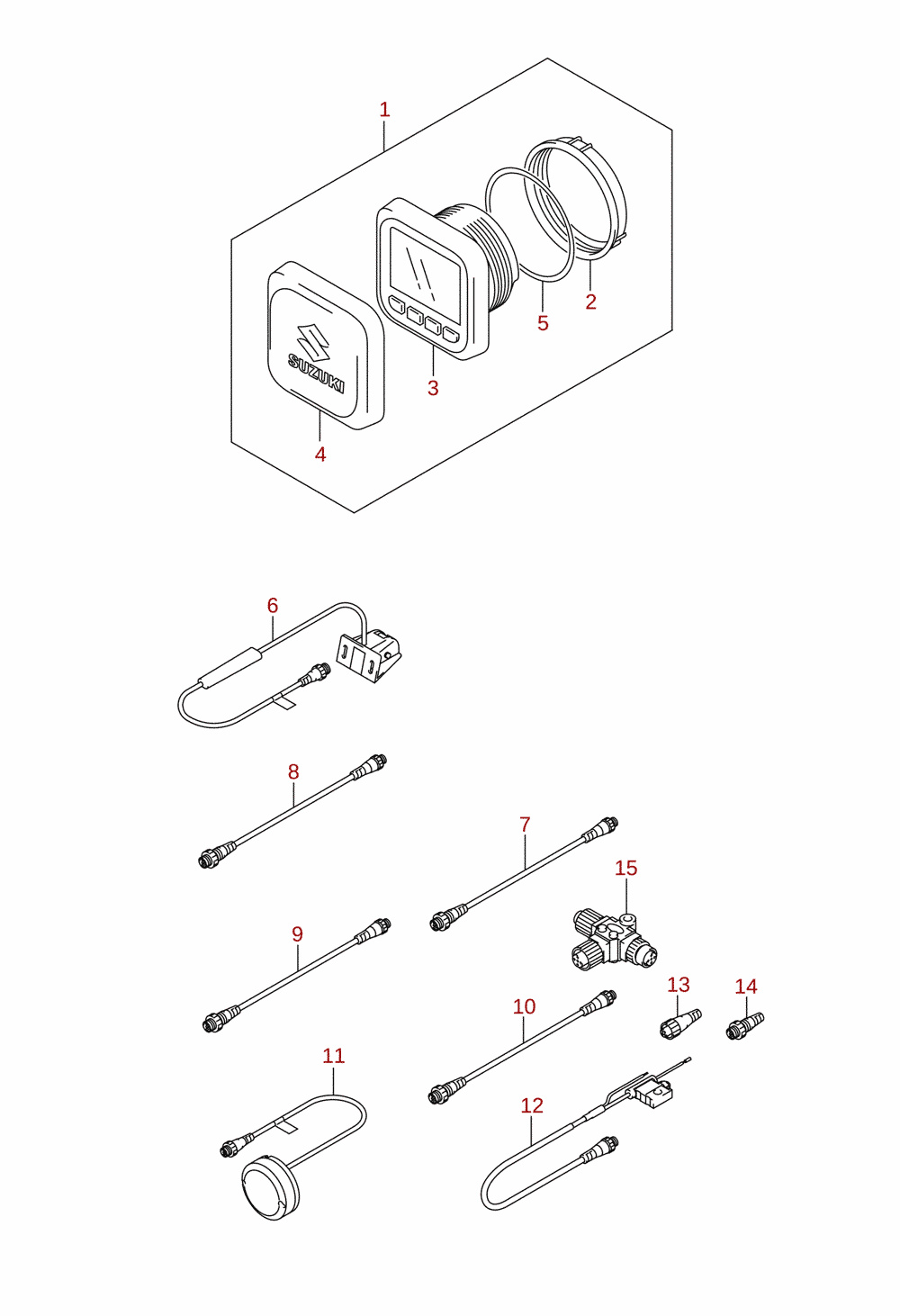

Multifunktionsinstrument (DF70ATH, DF90ATH) (tillval) 1/2
Referensnr. DF90A_E11_023 116
Kamaxel (DF75A, DF80A)
Referensnr. DF90A_E11_023 7

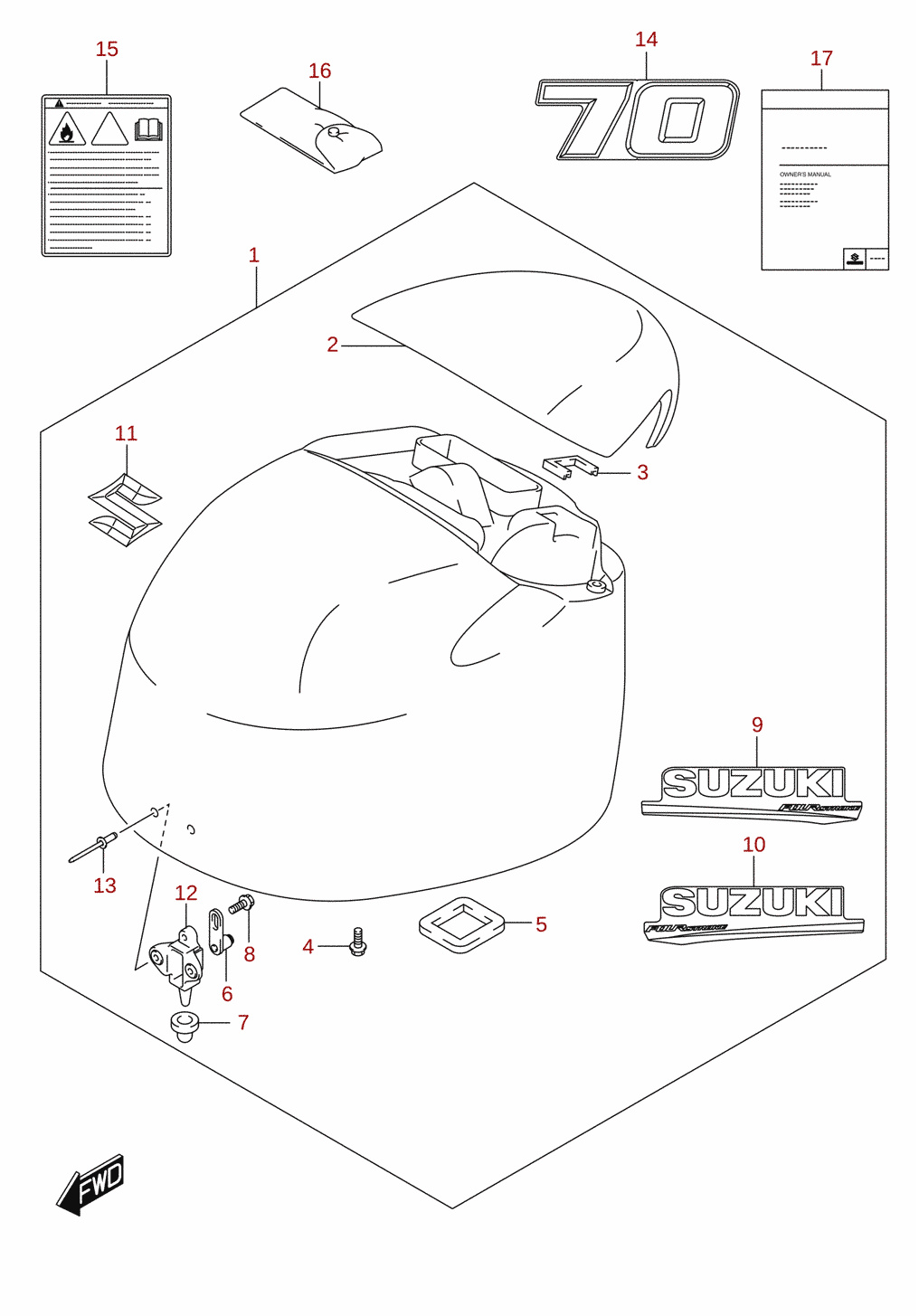

Motorkåpa (2020) (DF70)
Referensnr. DF90A_E11_023 65

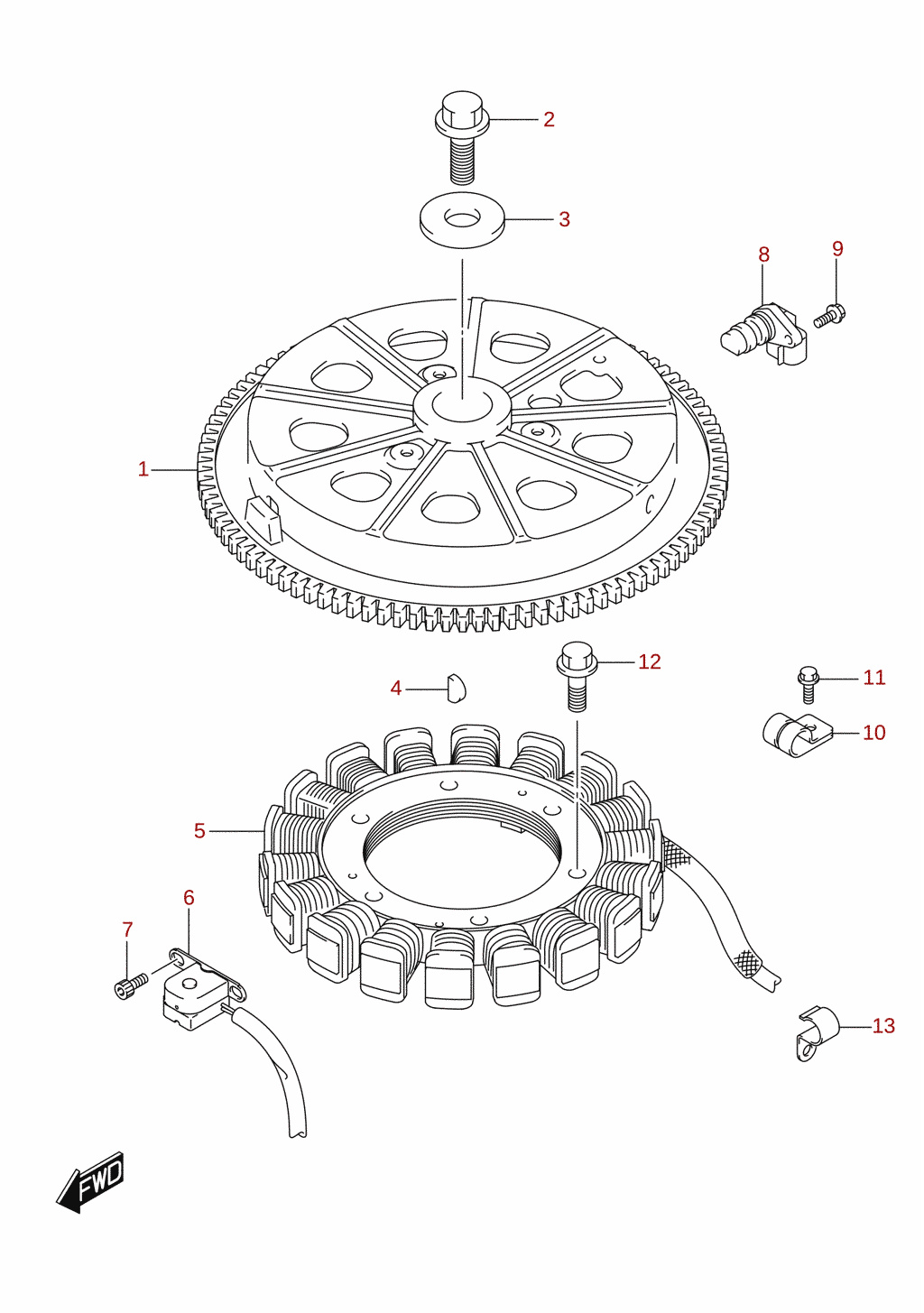

Magnet / generator
Referensnr. DF90A_E11_023 27

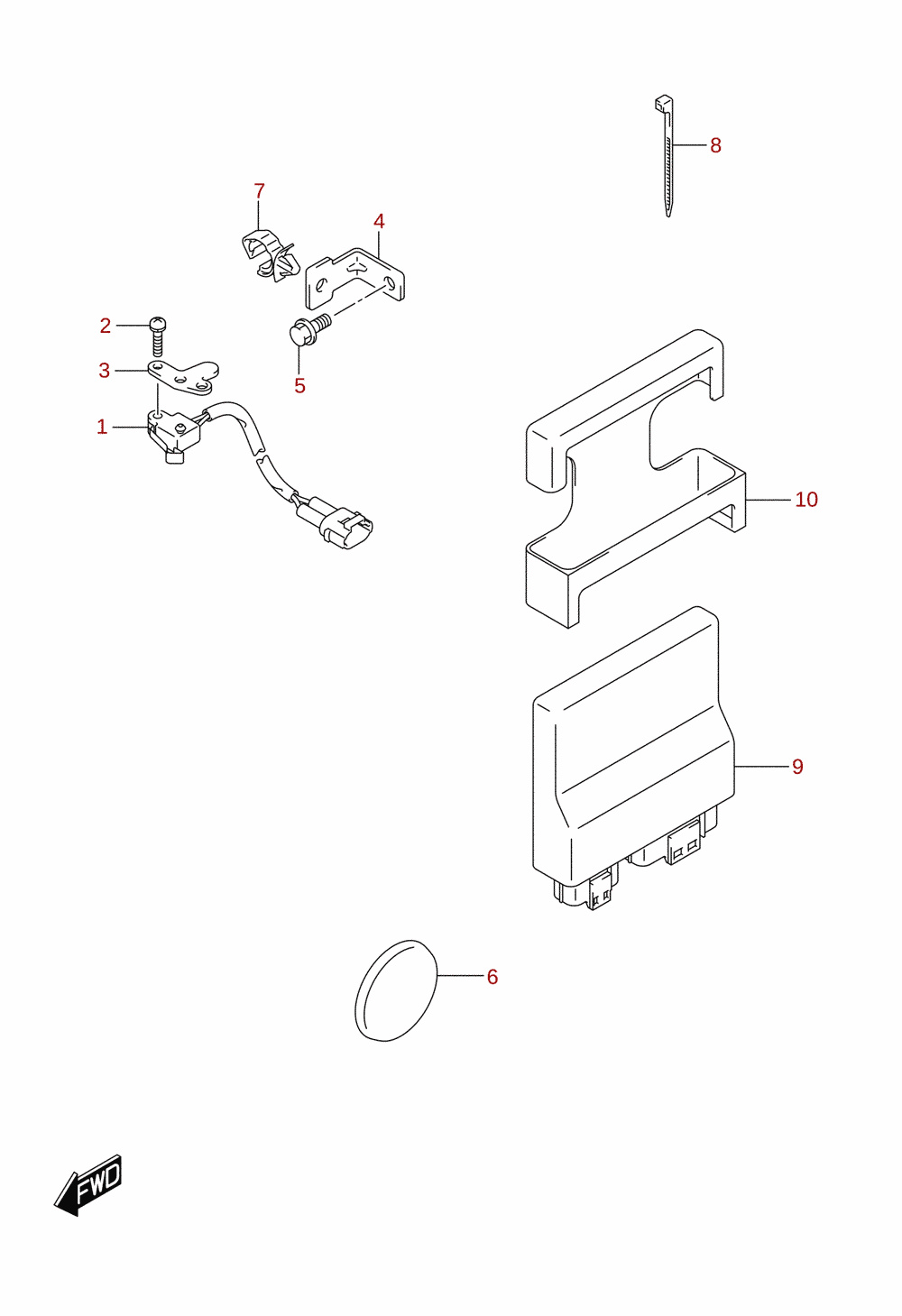

PTT-brytare / motorstyrenhet (DF90AWQH)
Referensnr. DF90A_E11_023 41

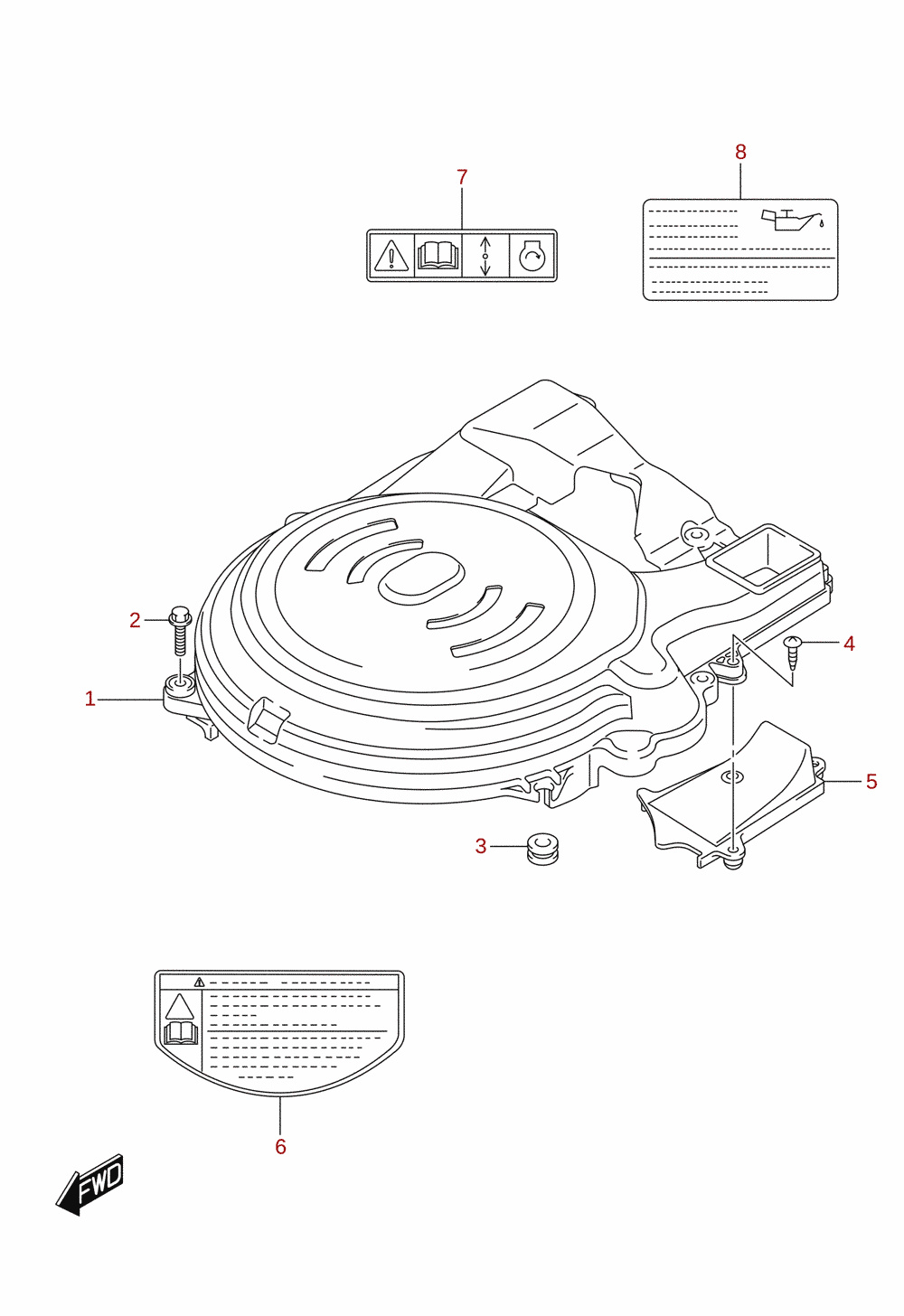

Kåpa för startkrans
Referensnr. DF90A_E11_023 11

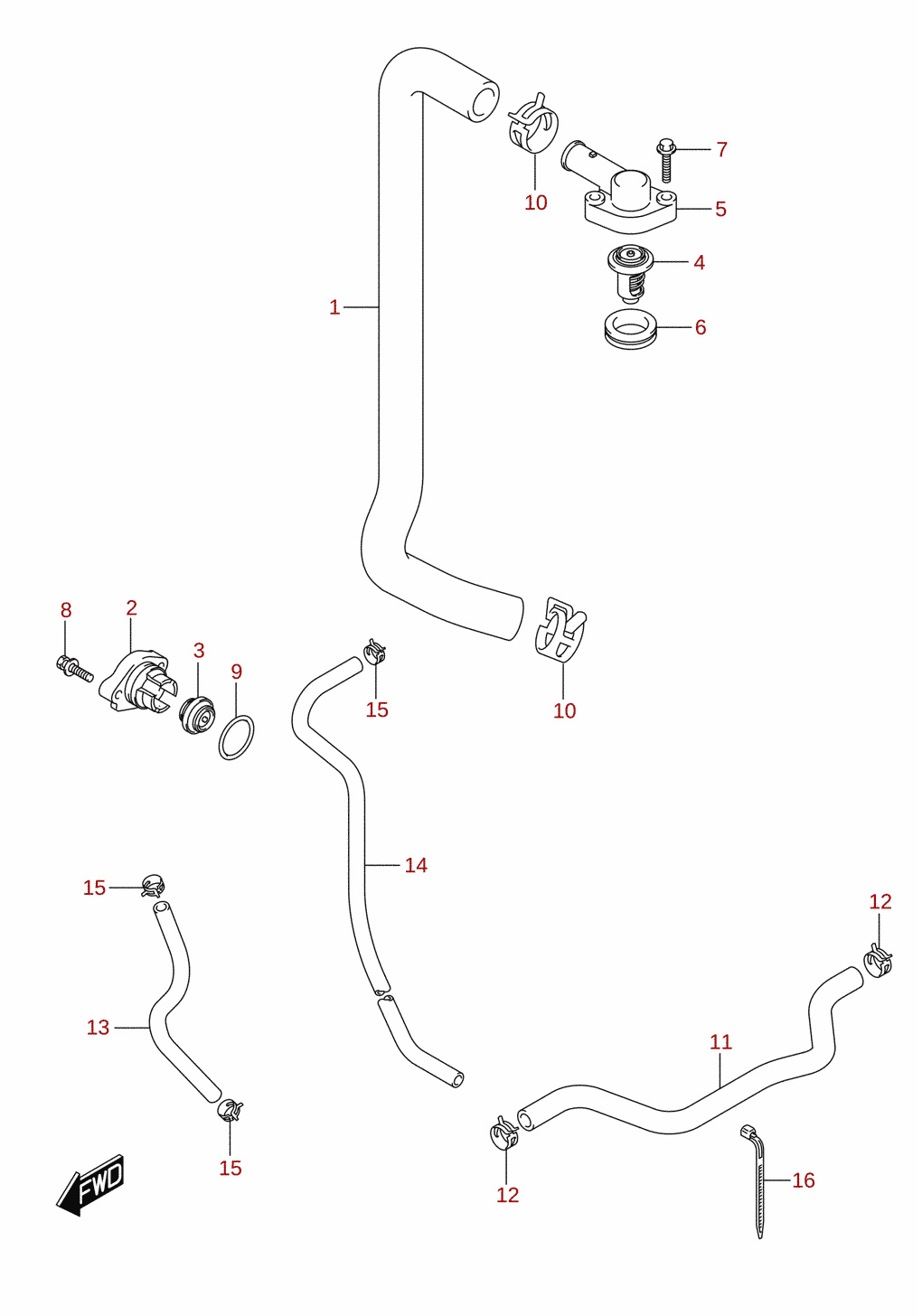

Termostat
Referensnr. DF90A_E11_023 19

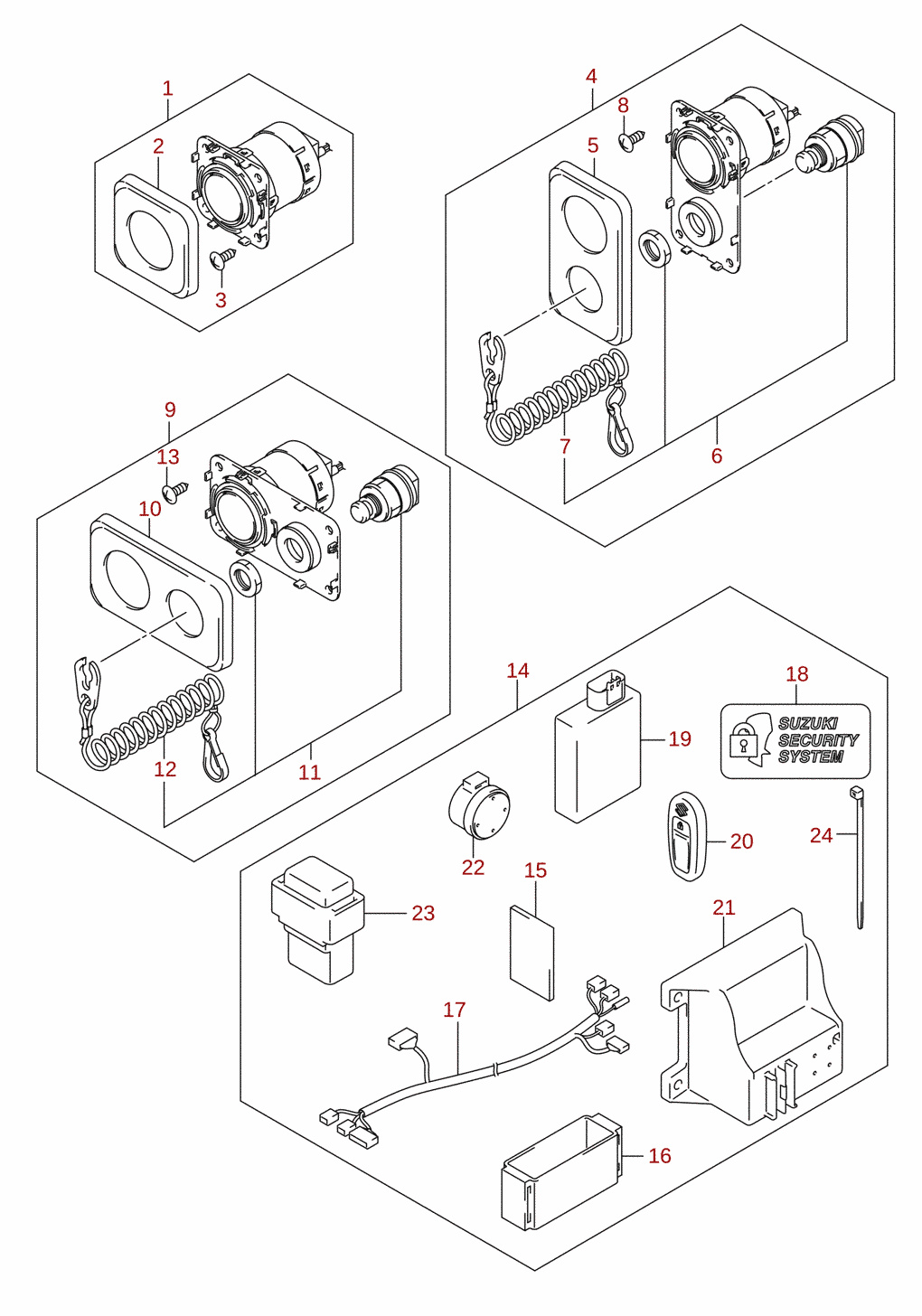

Nyckelfri start (2023) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 110

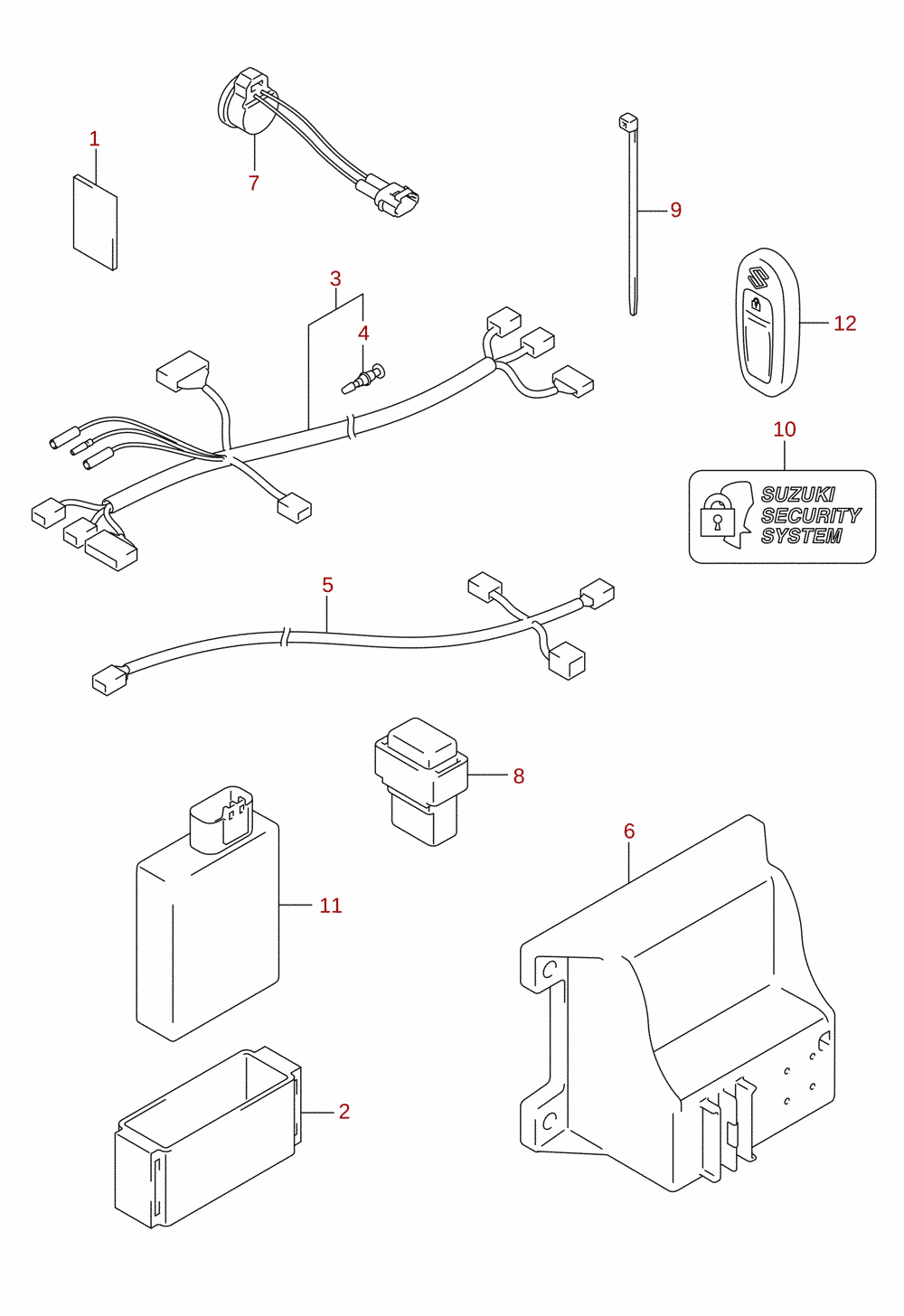

Nyckelfri start (DF100B, DF70A, DF70A, DF75A, DF80A, DF90A, DF90A)
Referensnr. DF90A_E11_023 43

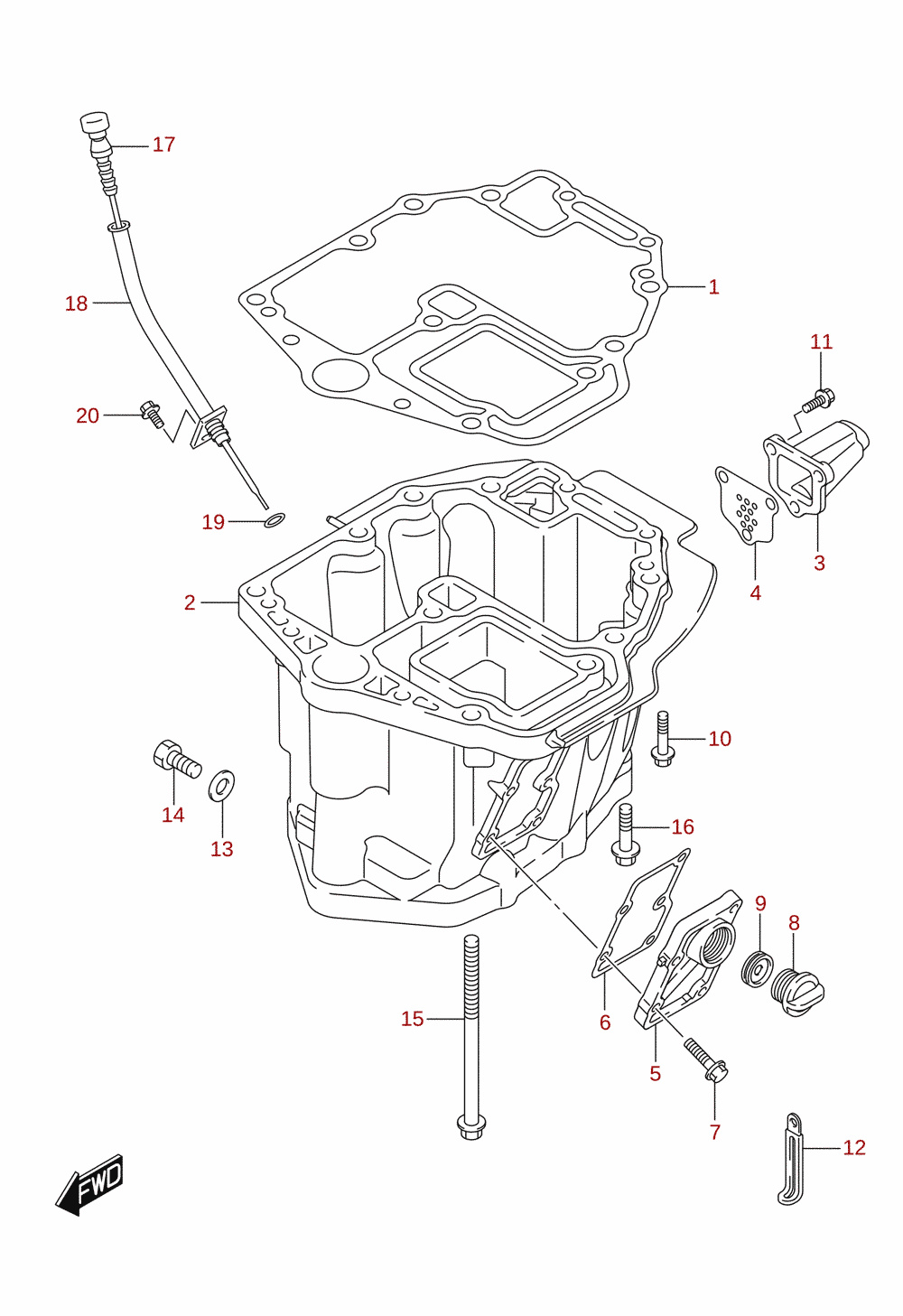

Oljetråg
Referensnr. DF90A_E11_023 22

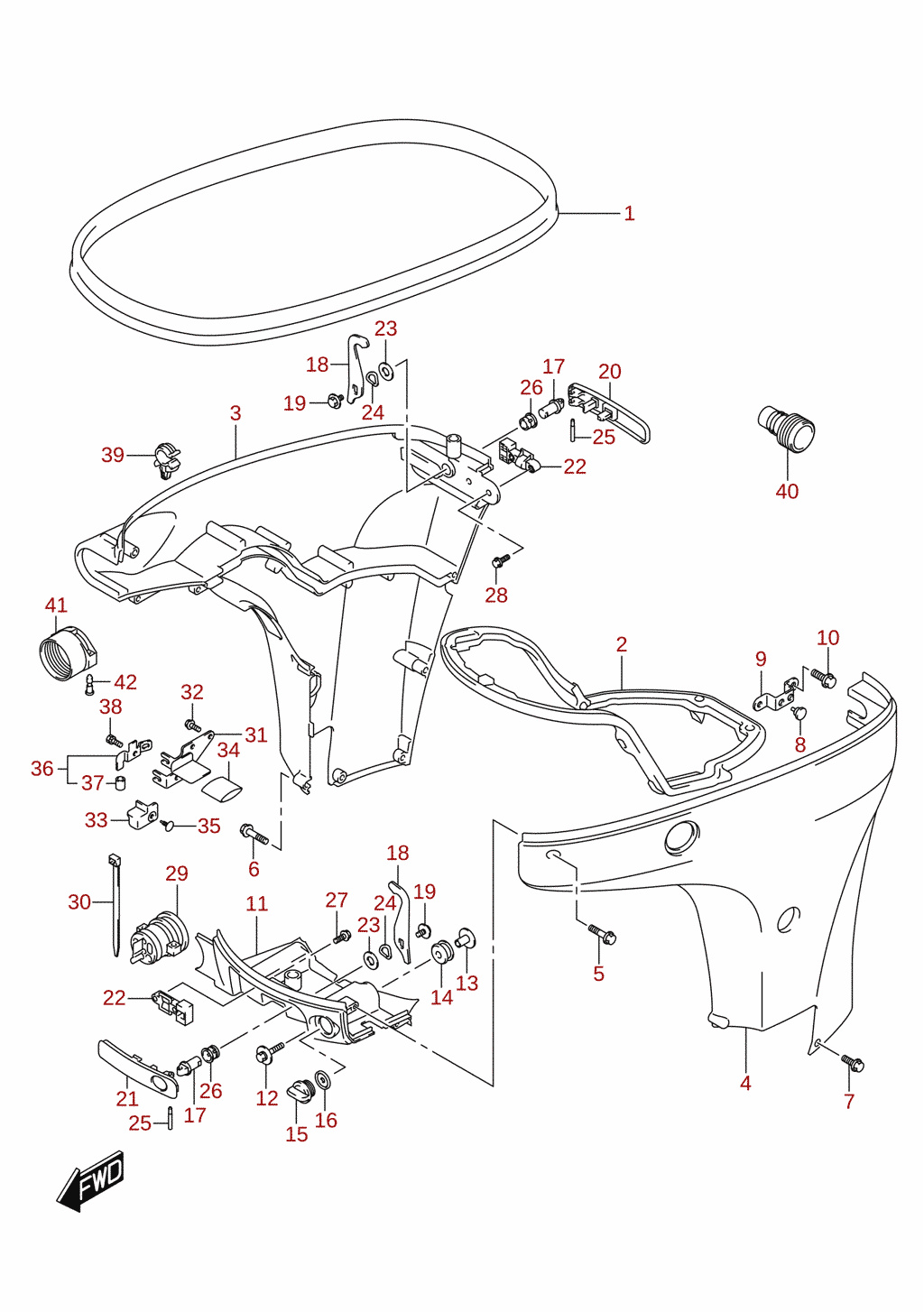

Sidokåpa (DF100B, DF70A, DF75A, DF80A, DF90A)
Referensnr. DF90A_E11_023 62

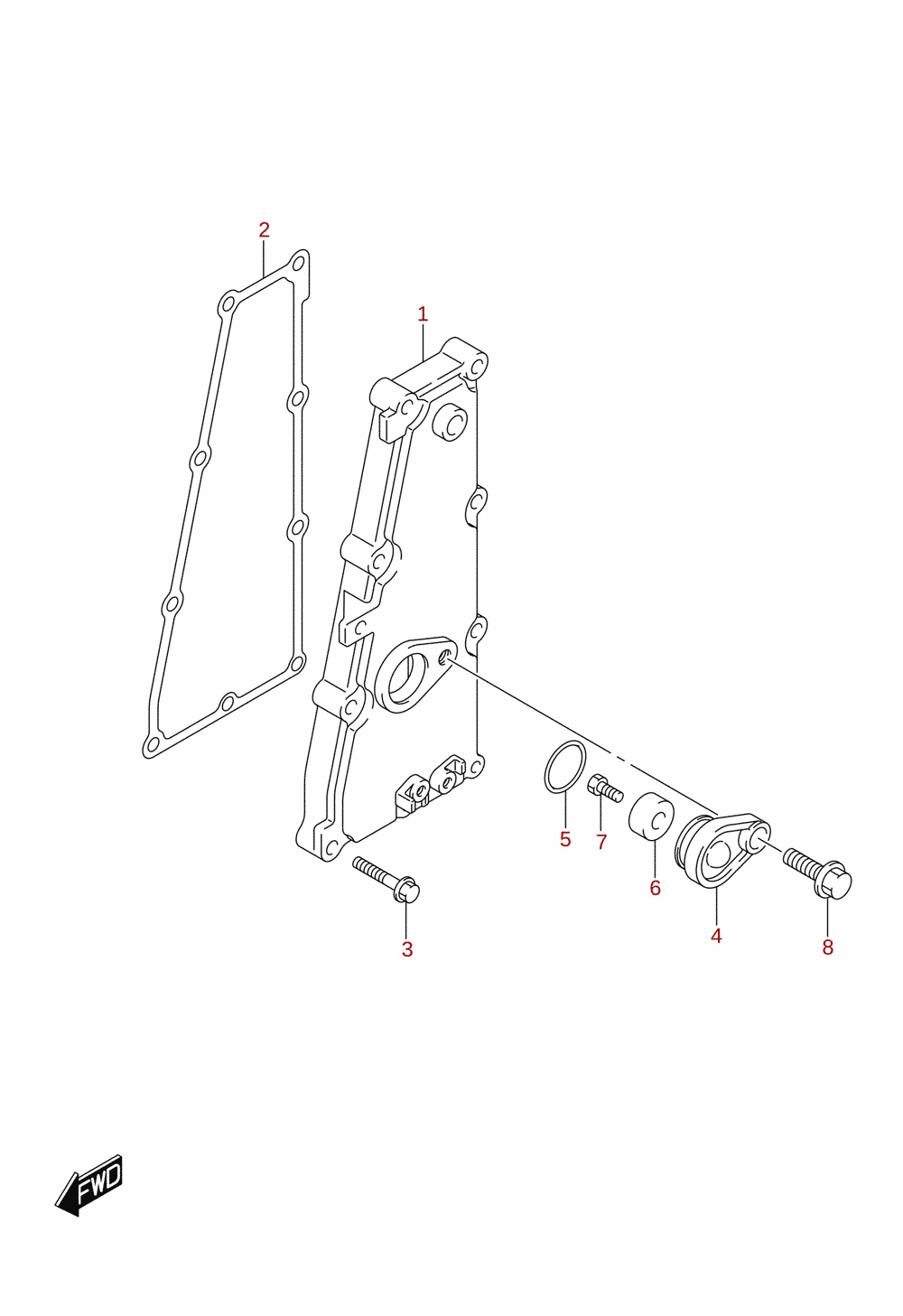

Avgaskåpa
Referensnr. DF90A_E11_023 12
Styrstag (DF70ATH, DF90ATH) 1/2
Referensnr. DF90A_E11_023 79

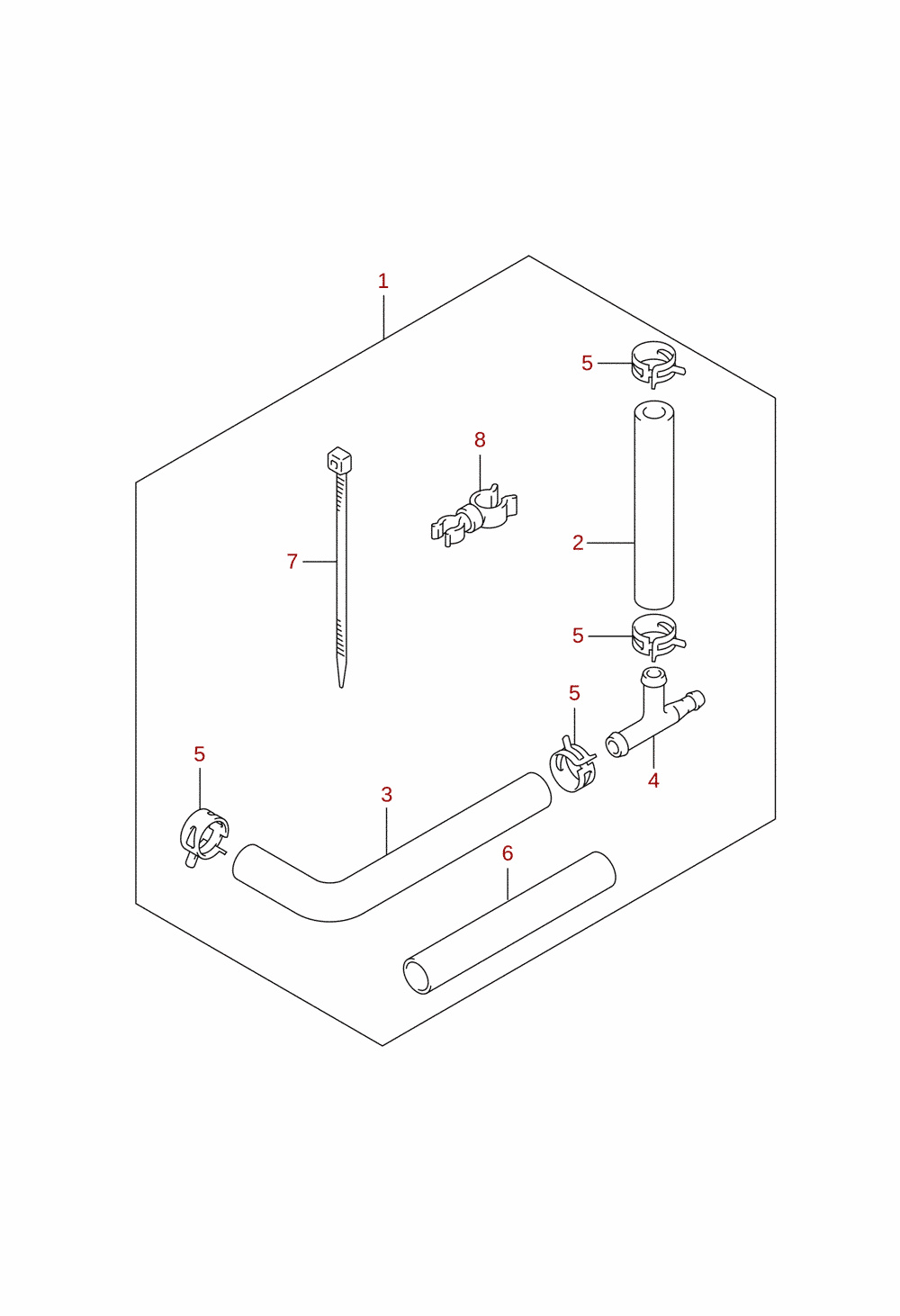

Delsats för vattentrycksmätare (tillval)
Referensnr. DF90A_E11_023 90

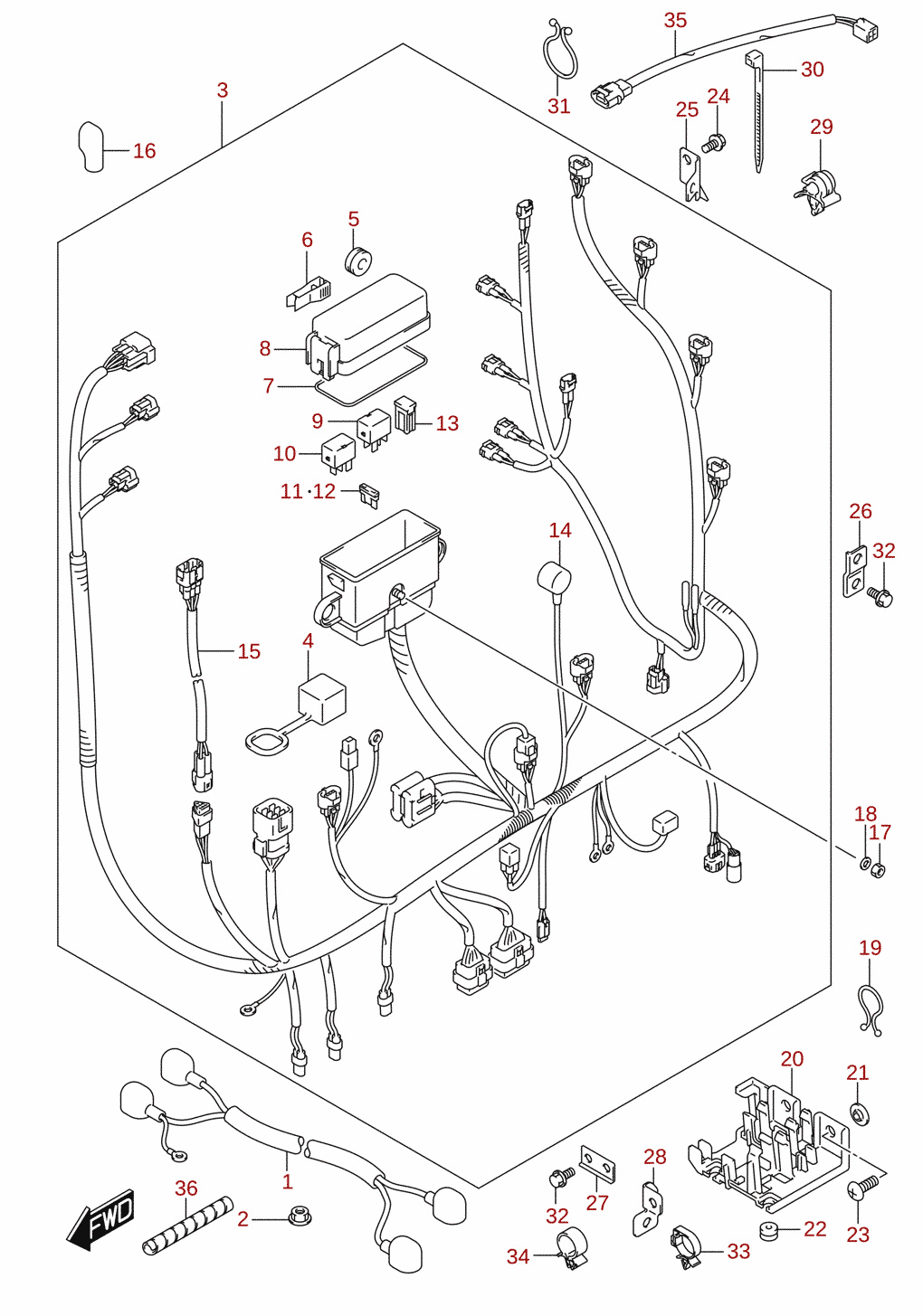

Kabelstam (DF100B) 2/2
Referensnr. DF90A_E11_023 38

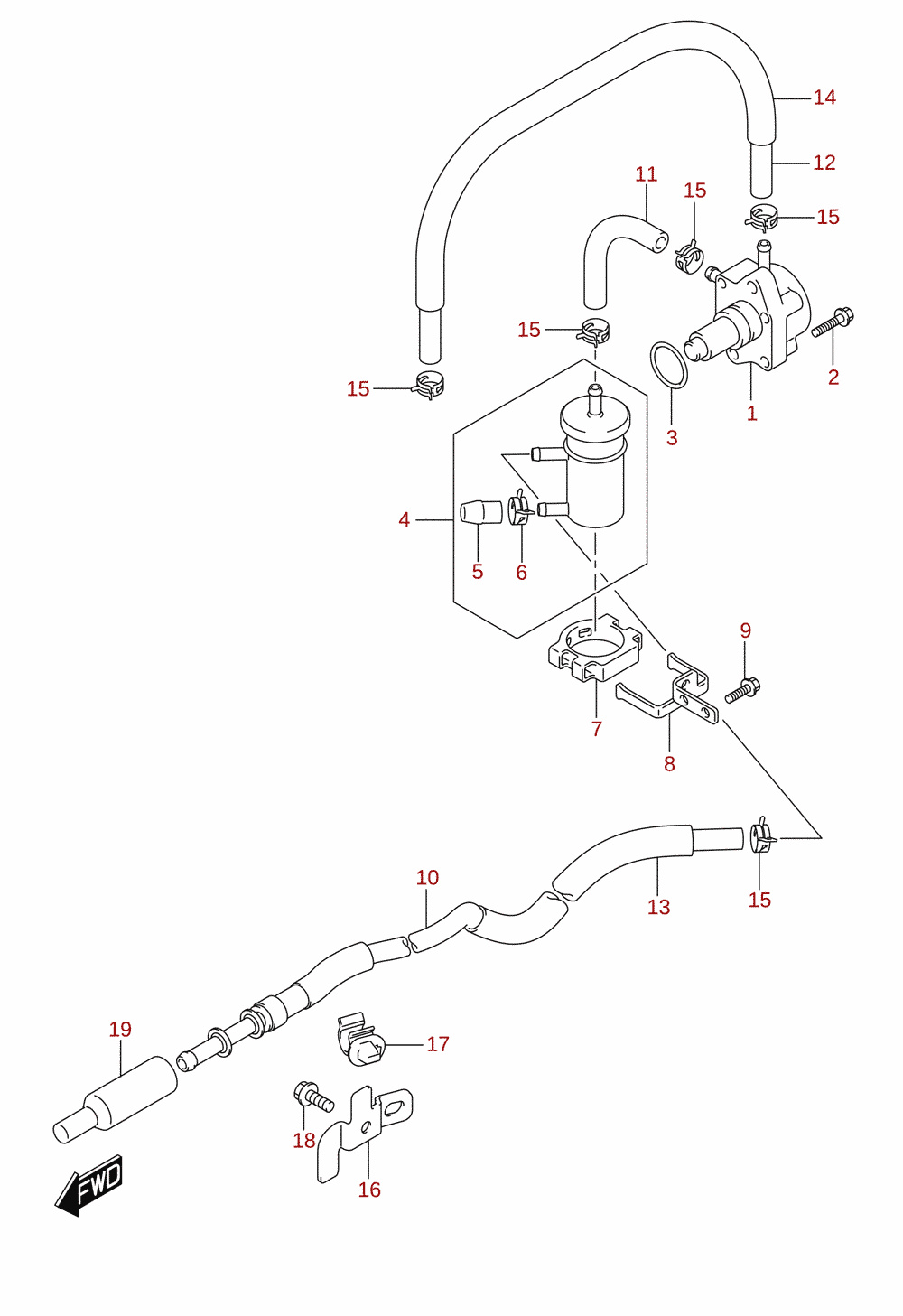

Bränslepump (2020) (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 15

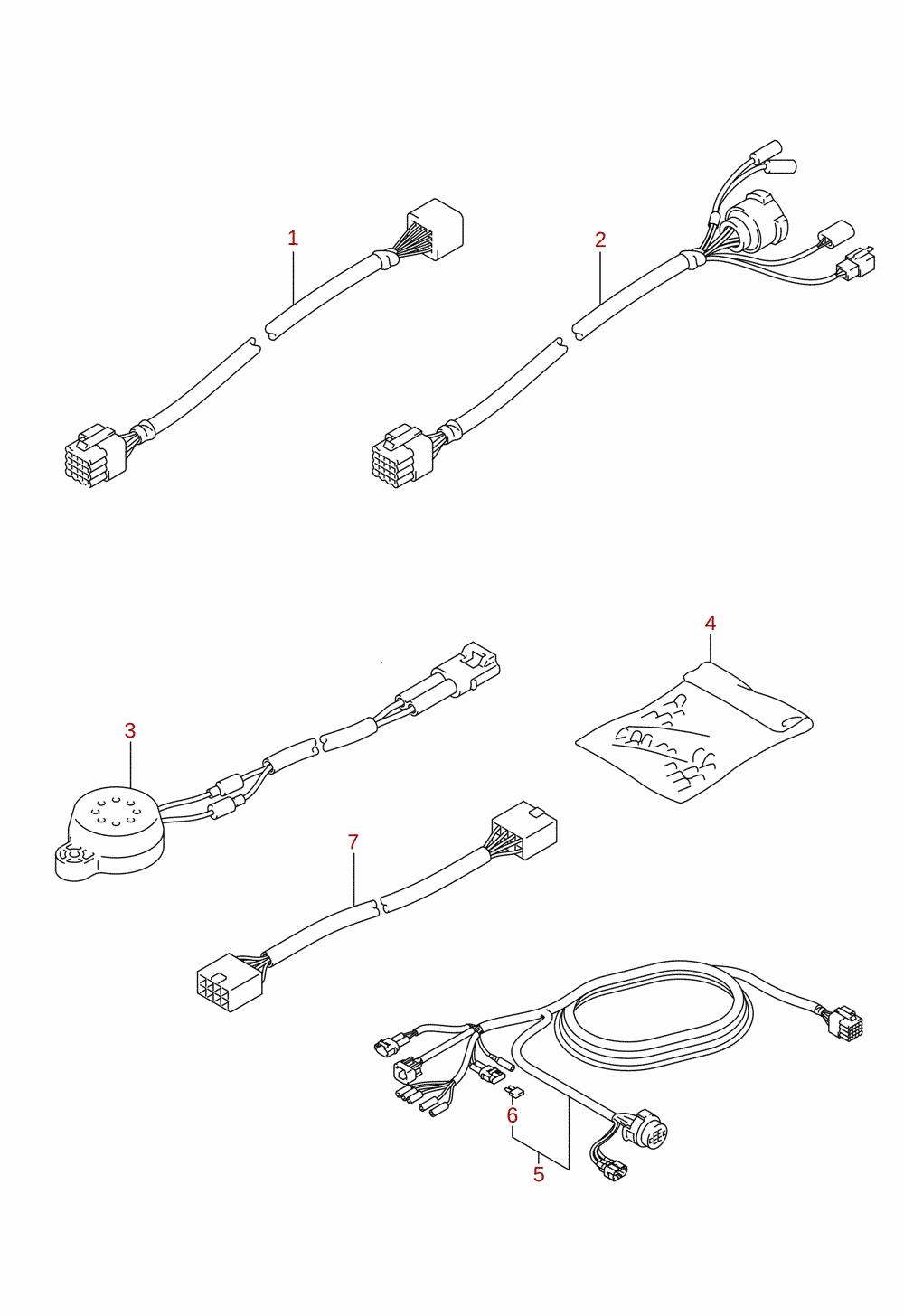

Kabelstam (DF70A, DF90A) (tillval)
Referensnr. DF90A_E11_023 101

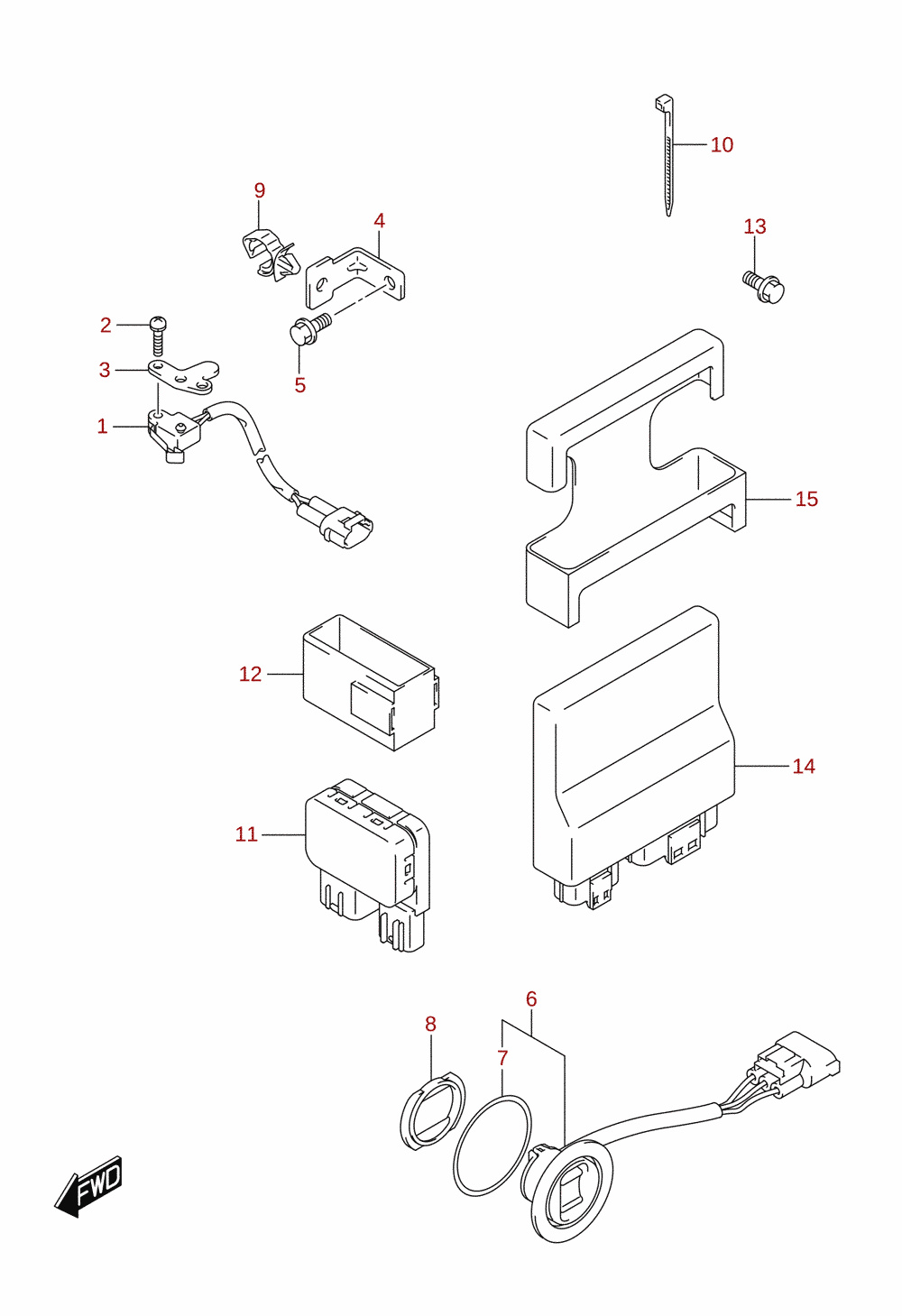

PTT-brytare / motorstyrenhet (DF100B, DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 39

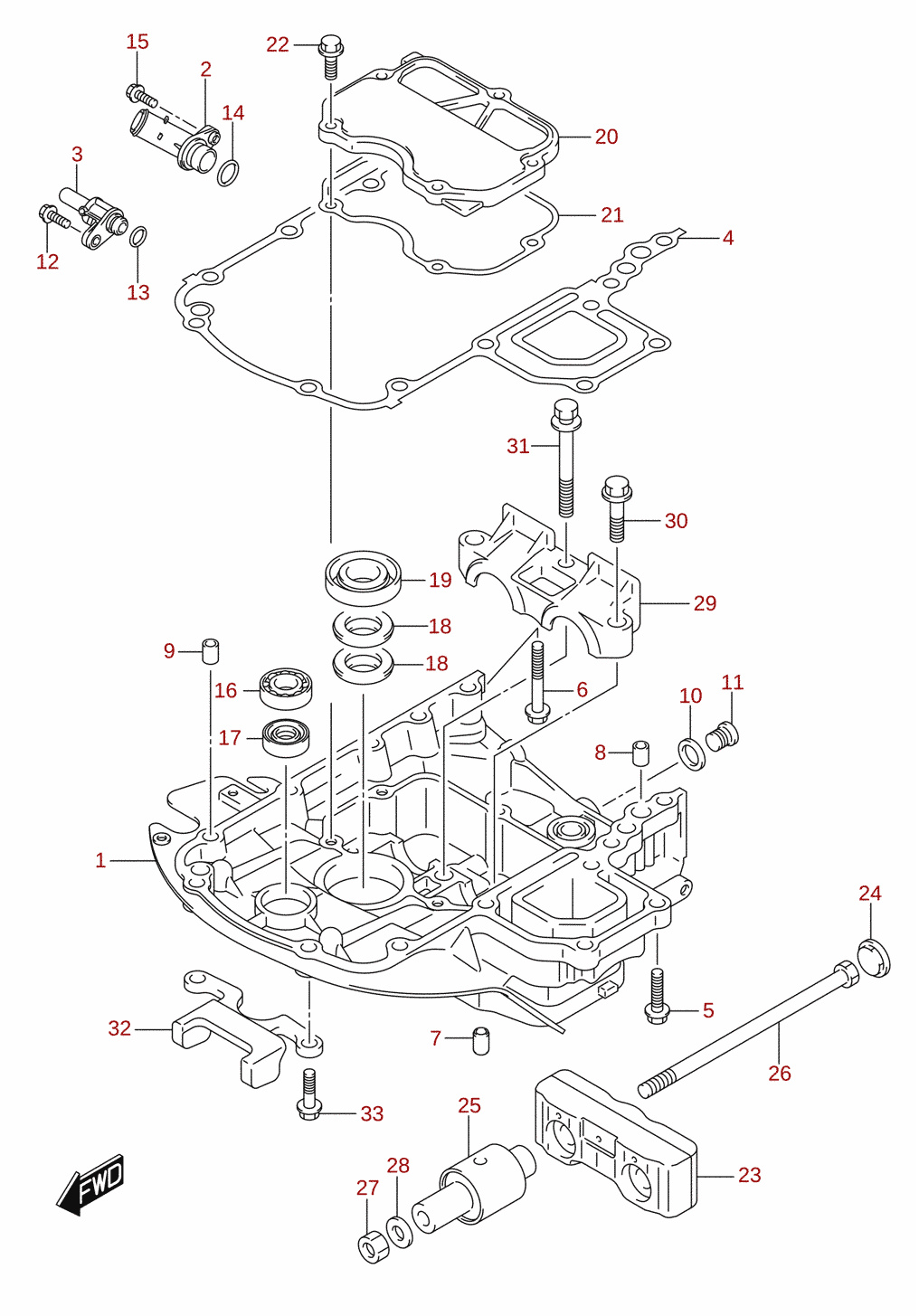

Motorhållare
Referensnr. DF90A_E11_023 56

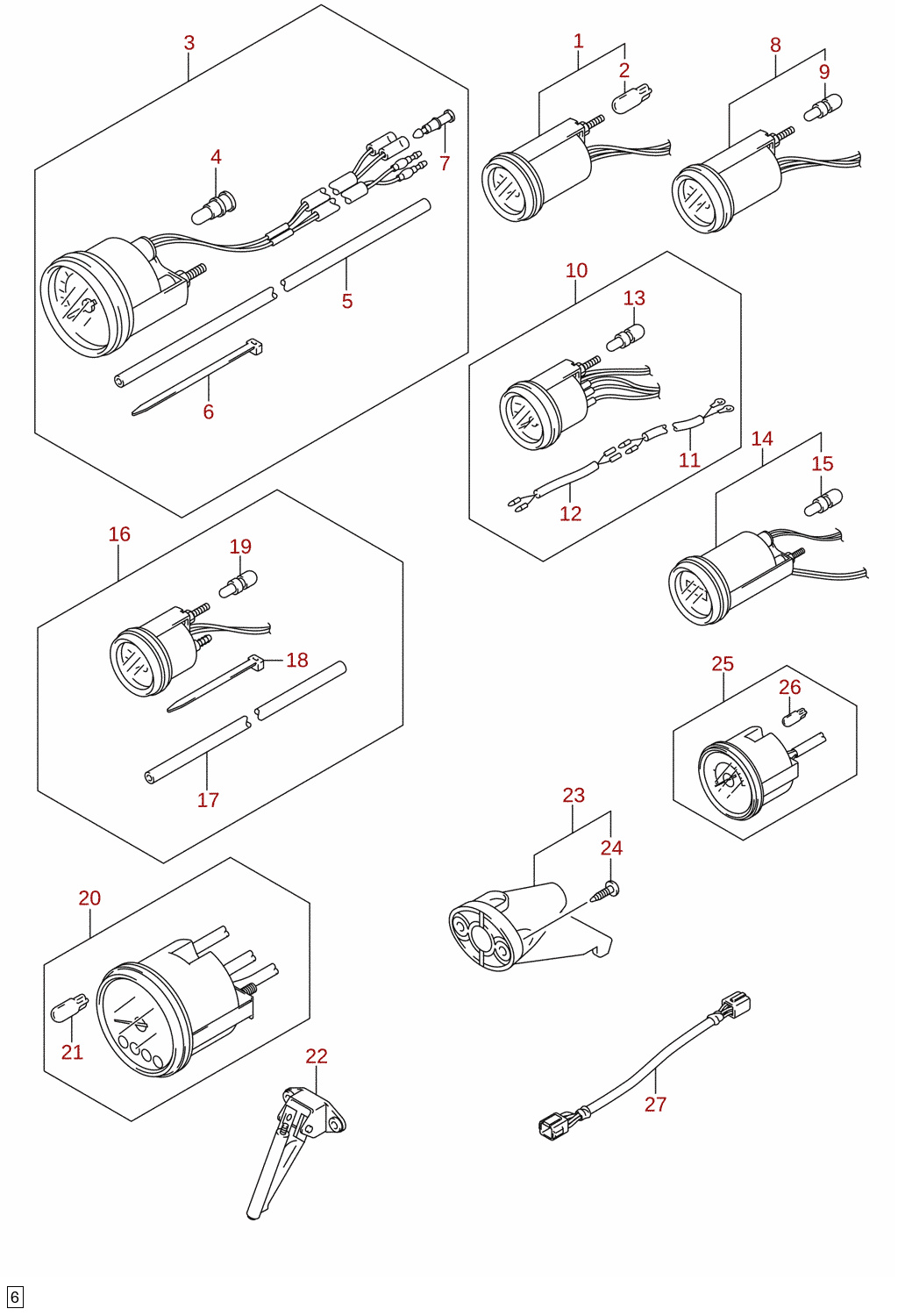

Instrument (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 87

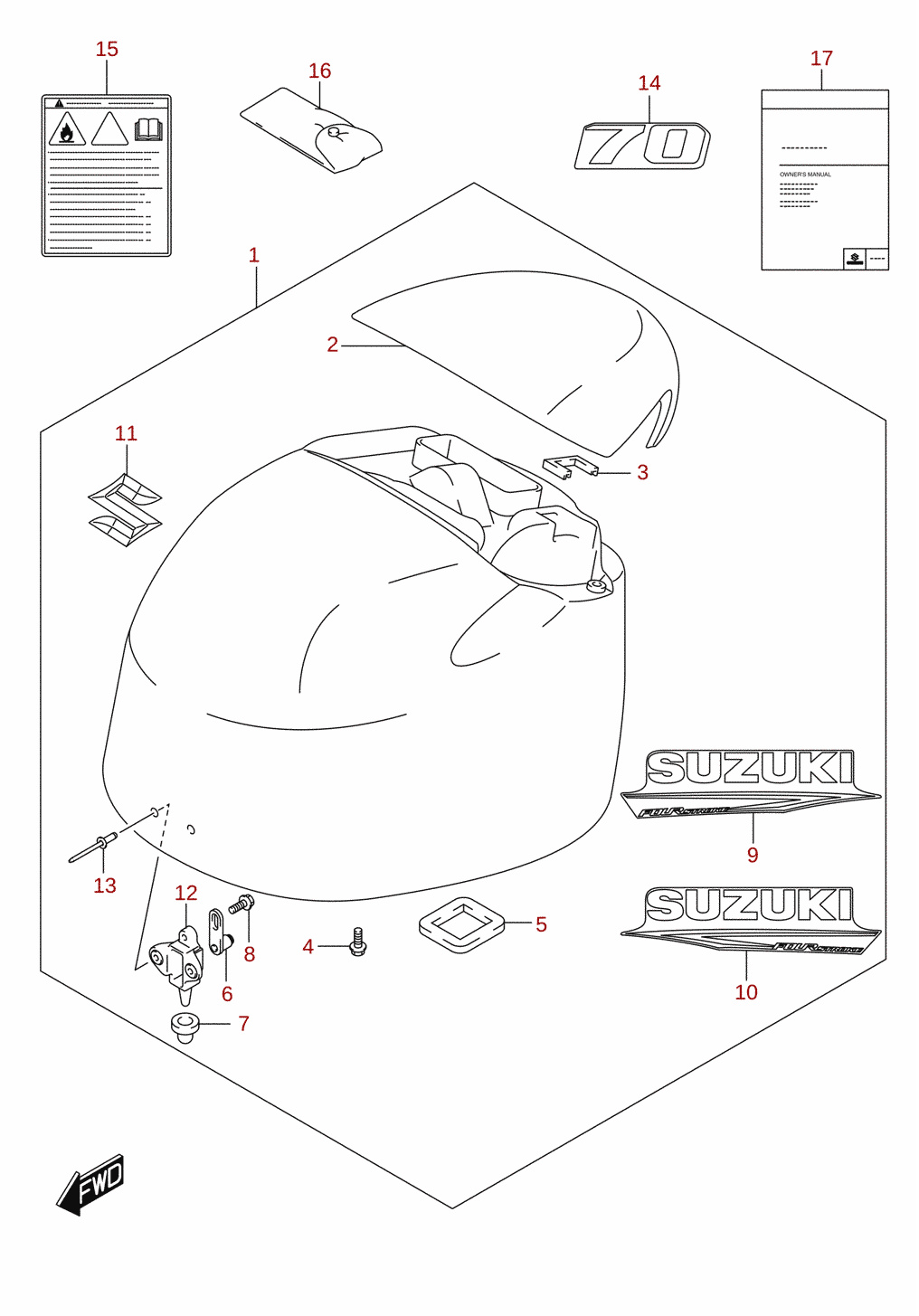

Motorkåpa (DF70)
Referensnr. DF90A_E11_023 66

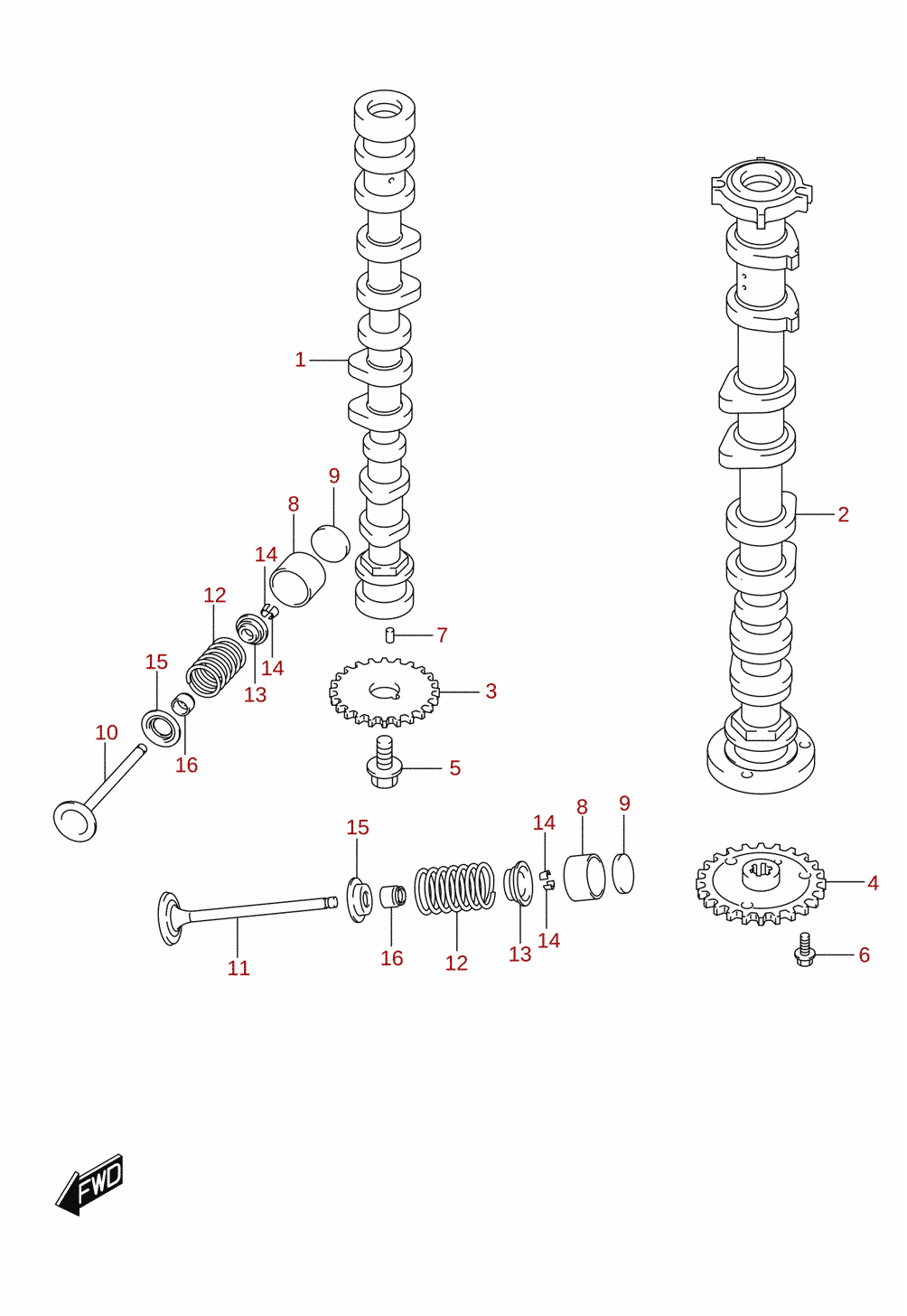

Kamaxel (DF70)
Referensnr. DF90A_E11_023 6

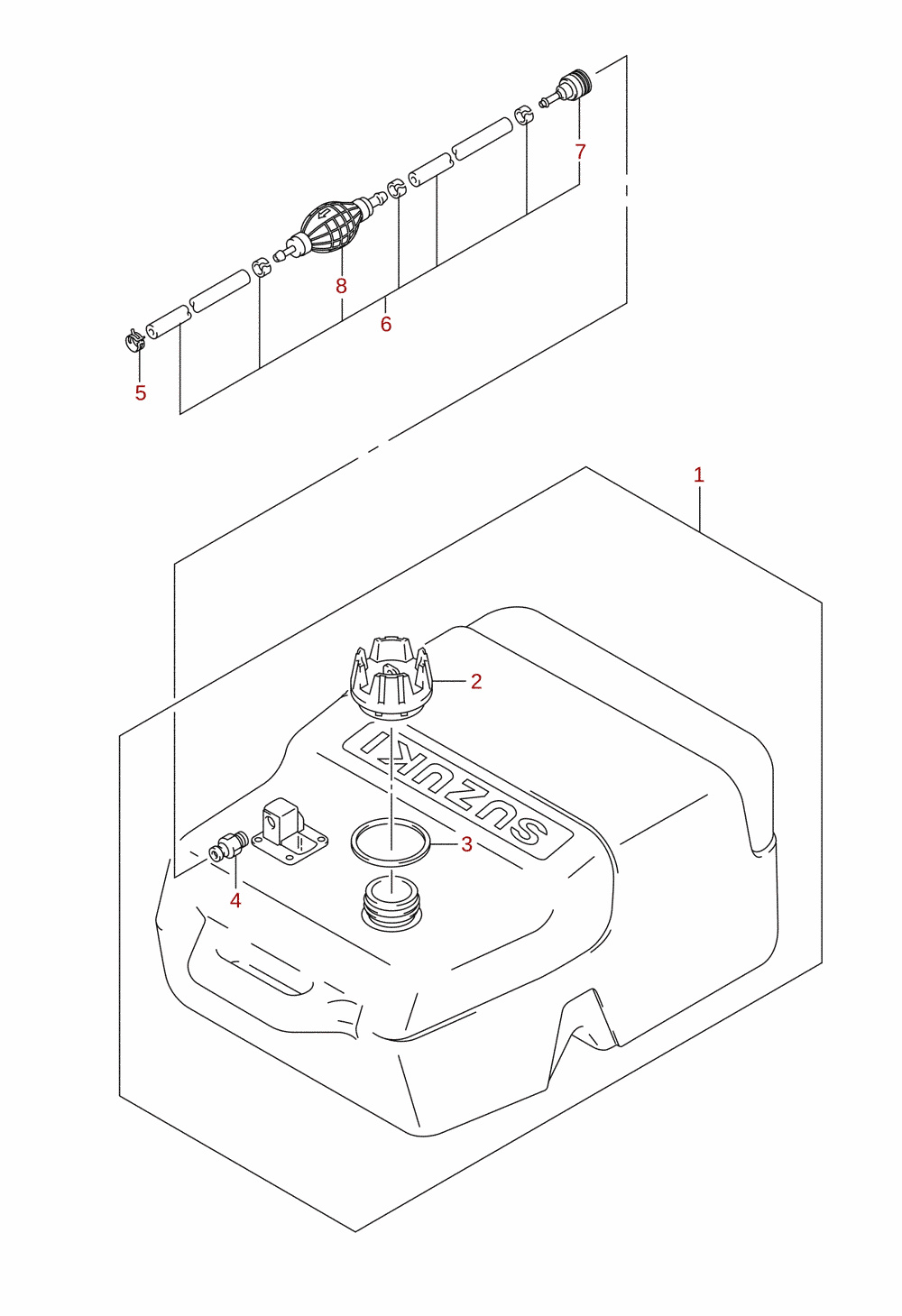

Bränsletank
Referensnr. DF90A_E11_023 76

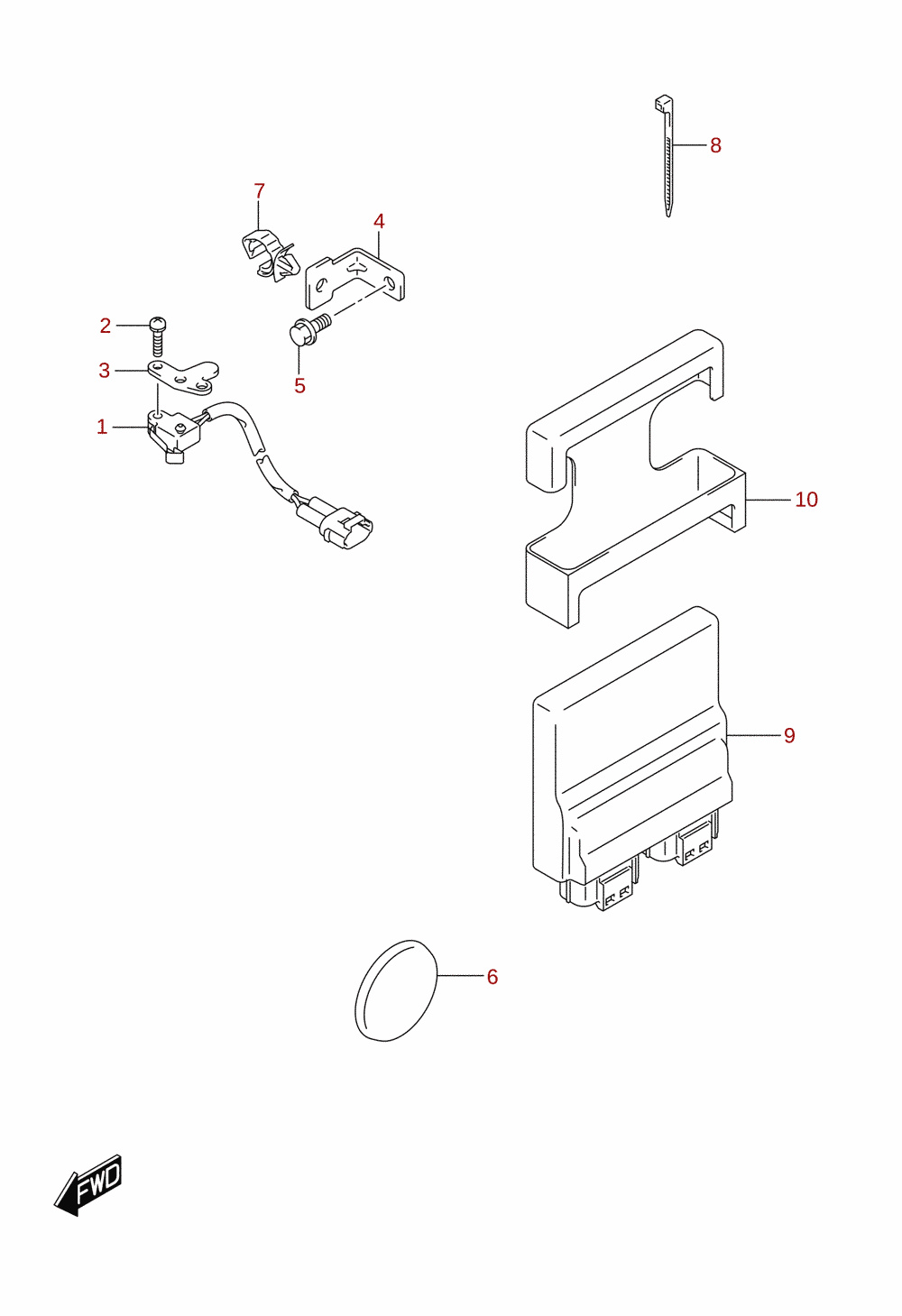

PTT-brytare / motorstyrenhet (2023) (DF90AWQH)
Referensnr. DF90A_E11_023 42

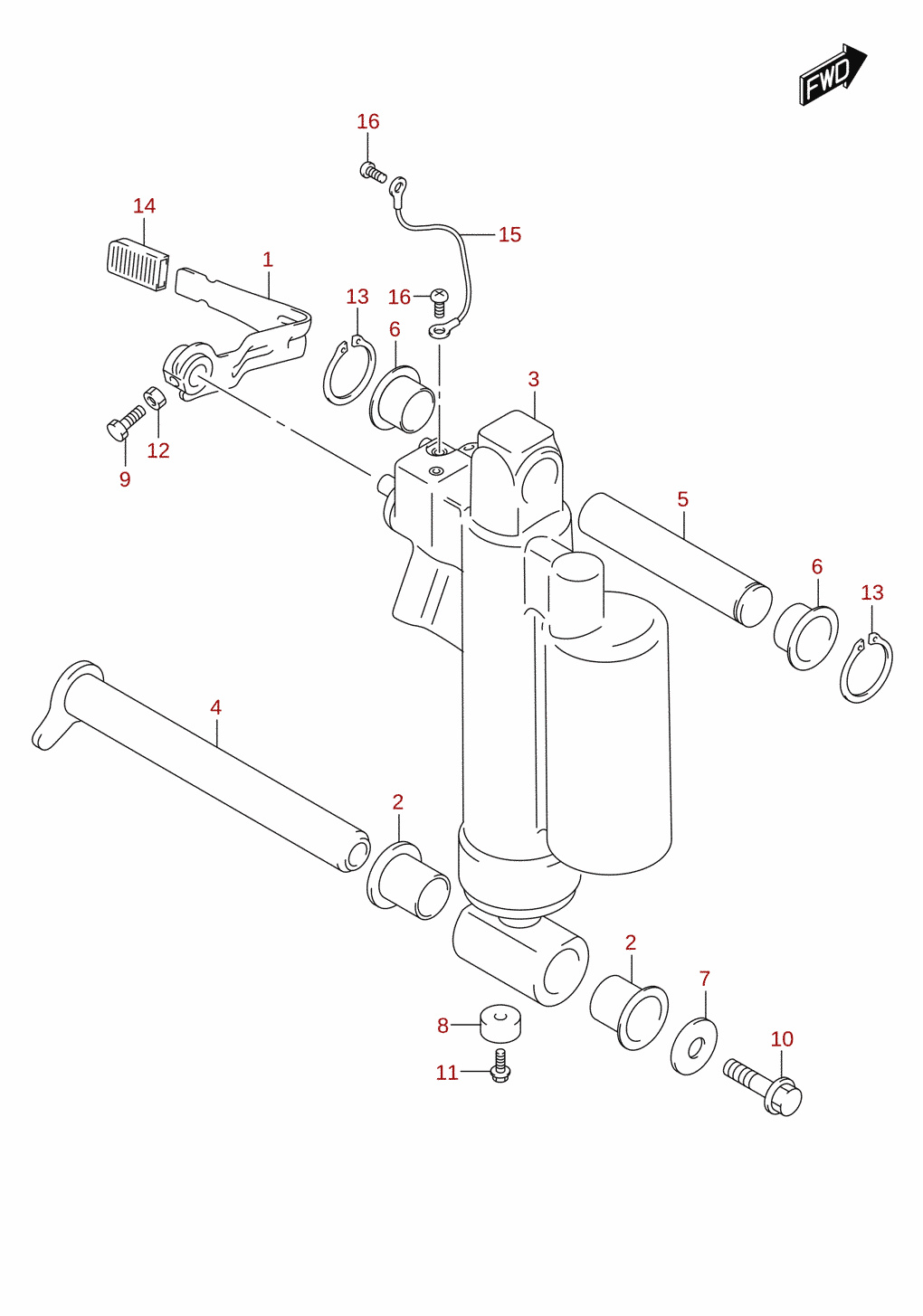

Gasfjäder (DF90AWQH)
Referensnr. DF90A_E11_023 53

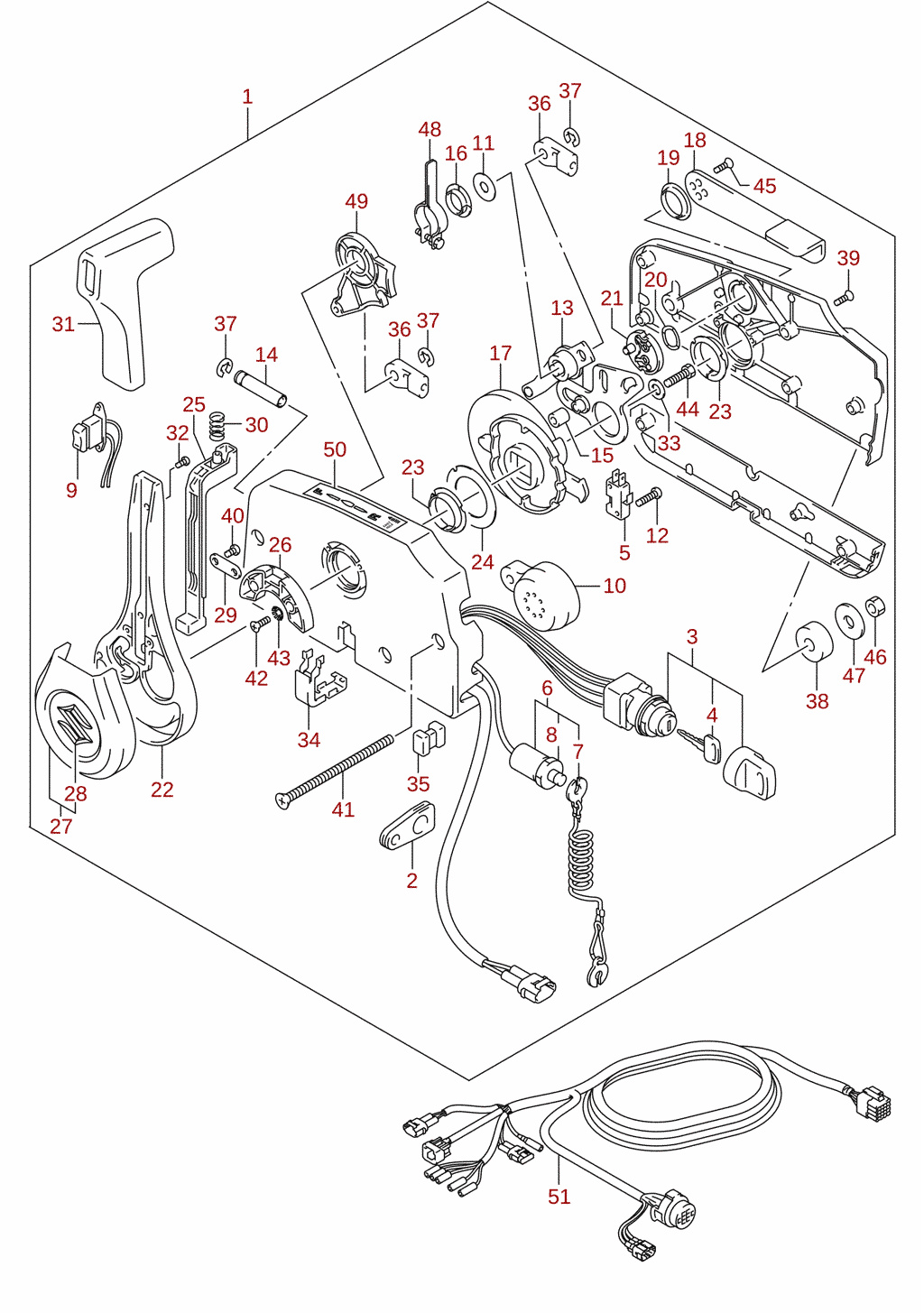

Reglage (2022) (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 92
PTT-brytare / motorstyrenhet (2023) (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 40

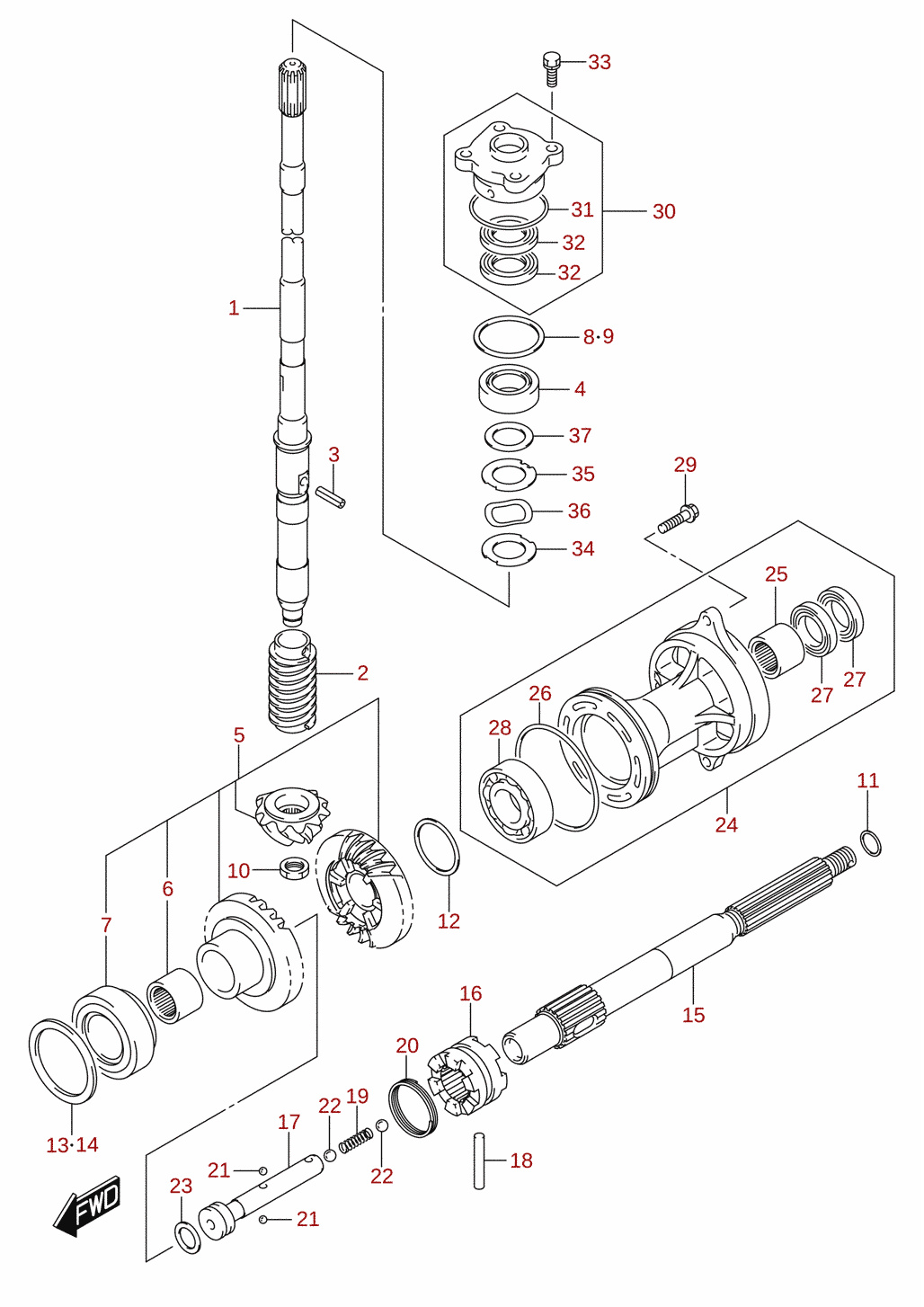

Transmission
Referensnr. DF90A_E11_023 25

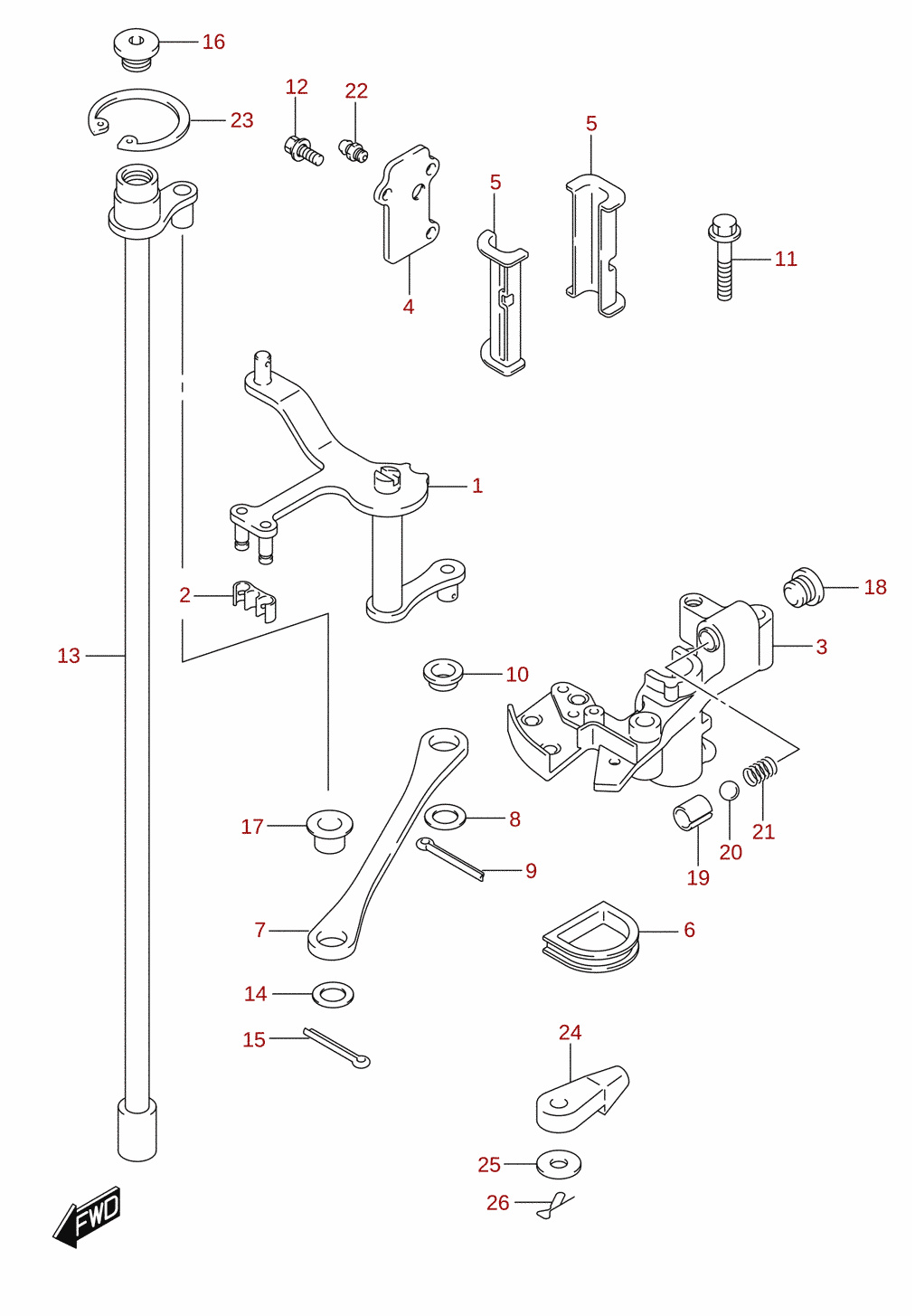

Kopplingsaxel
Referensnr. DF90A_E11_023 23

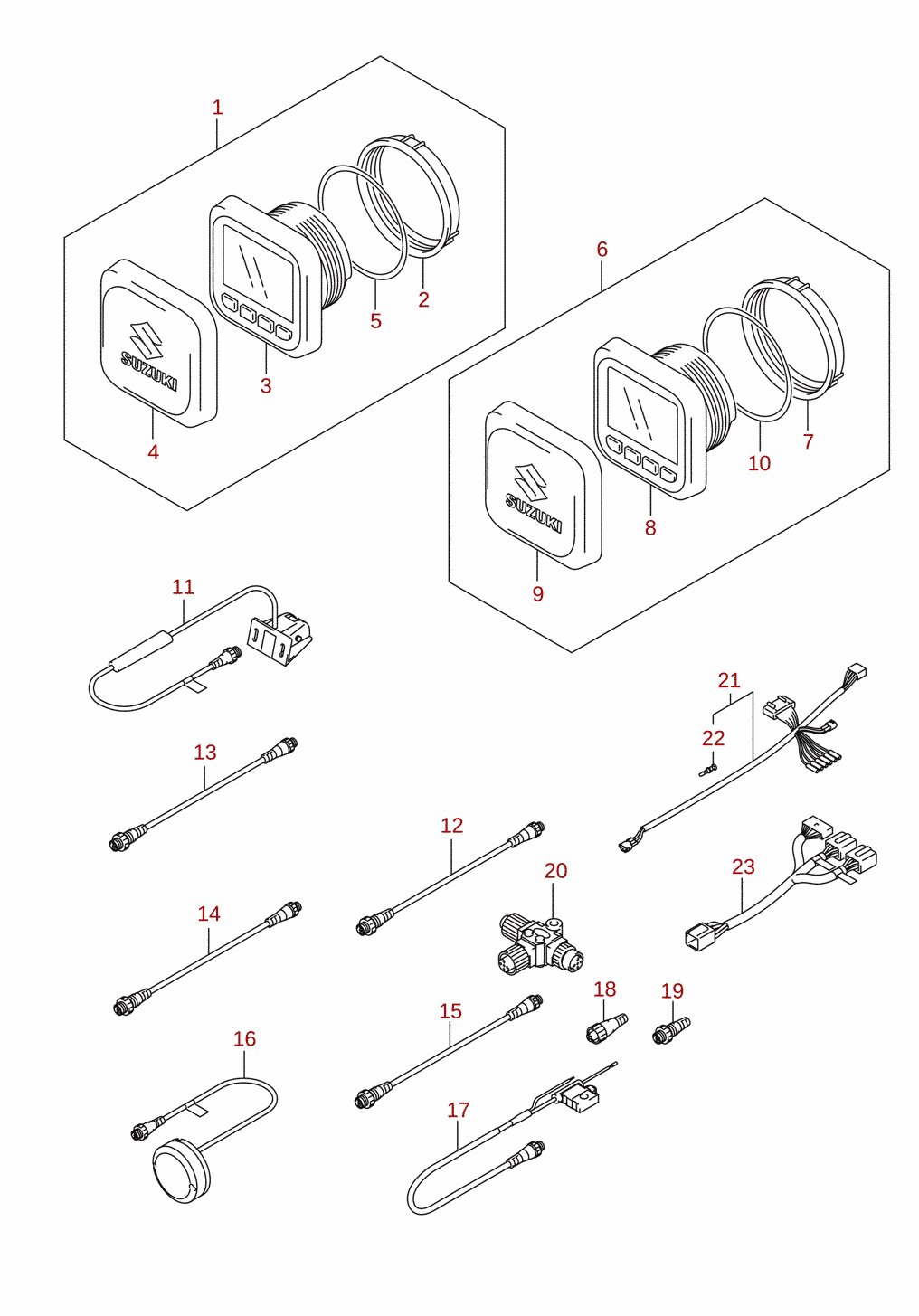

Multifunktionsinstrument (DF70ATH, DF90ATH) (tillval) 2/2
Referensnr. DF90A_E11_023 117

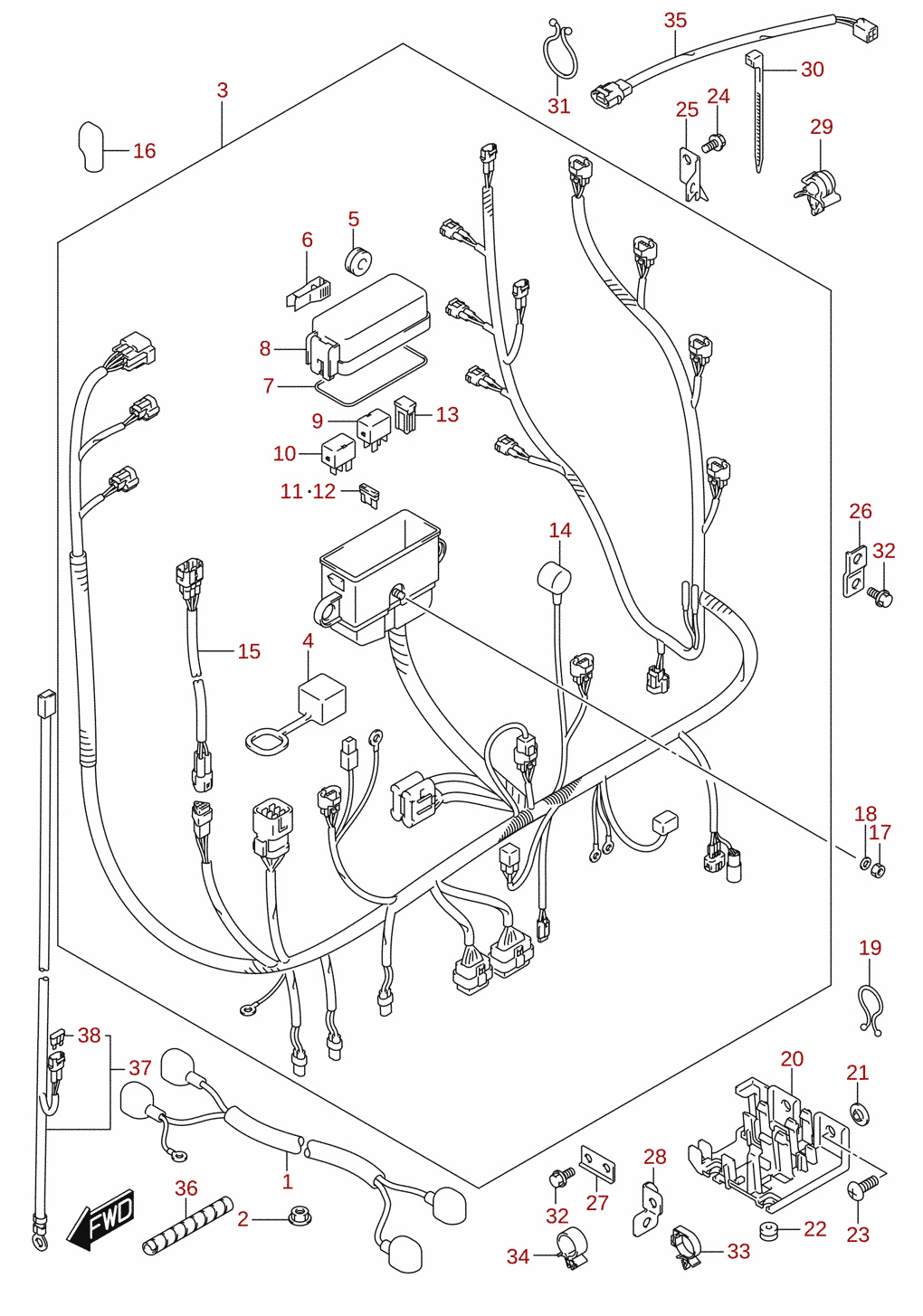

Kabelstam (2021) (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 34
Motorkåpa (2020) (DF80A)
Referensnr. DF90A_E11_023 68

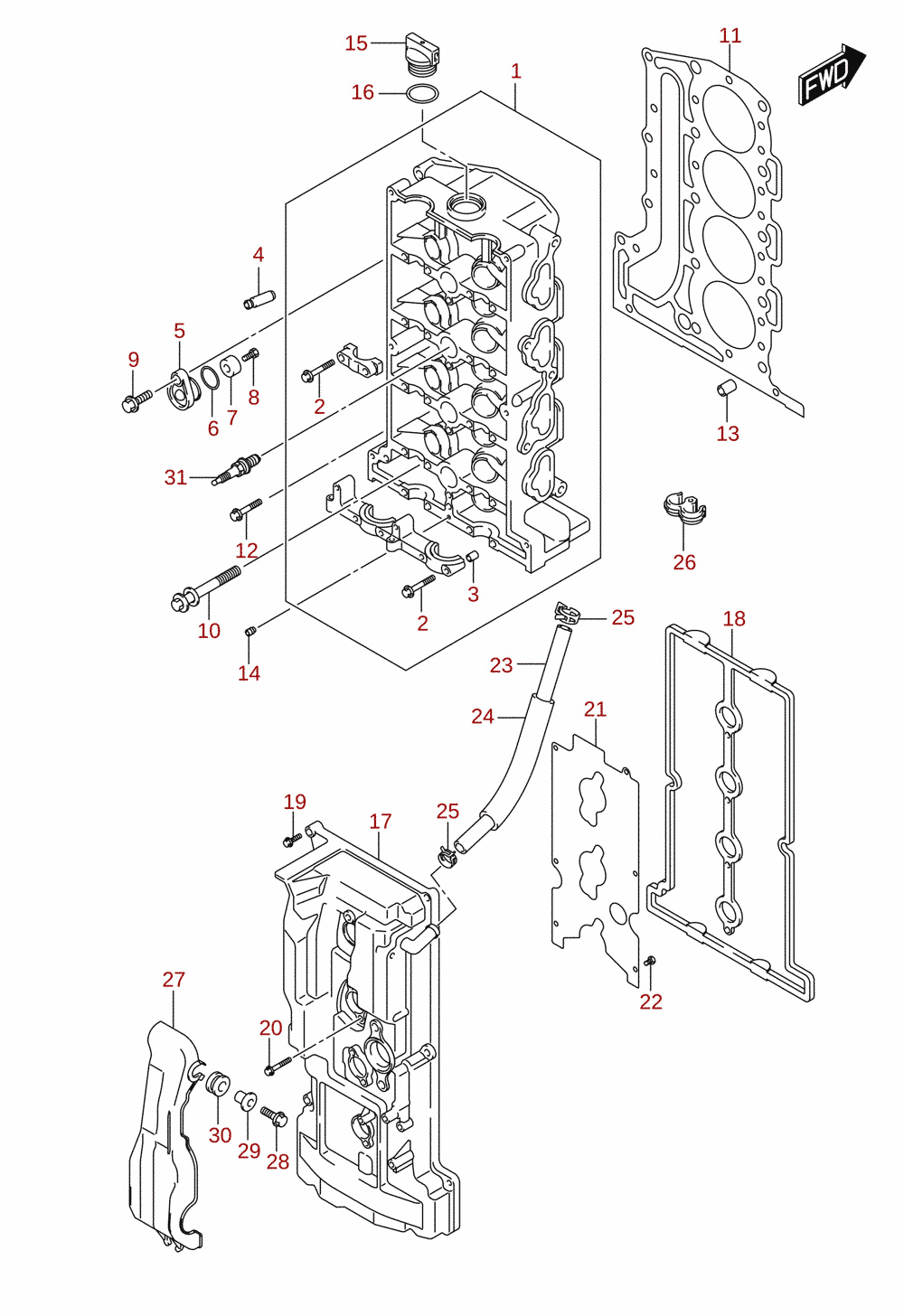

Topplock (2020) (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 0

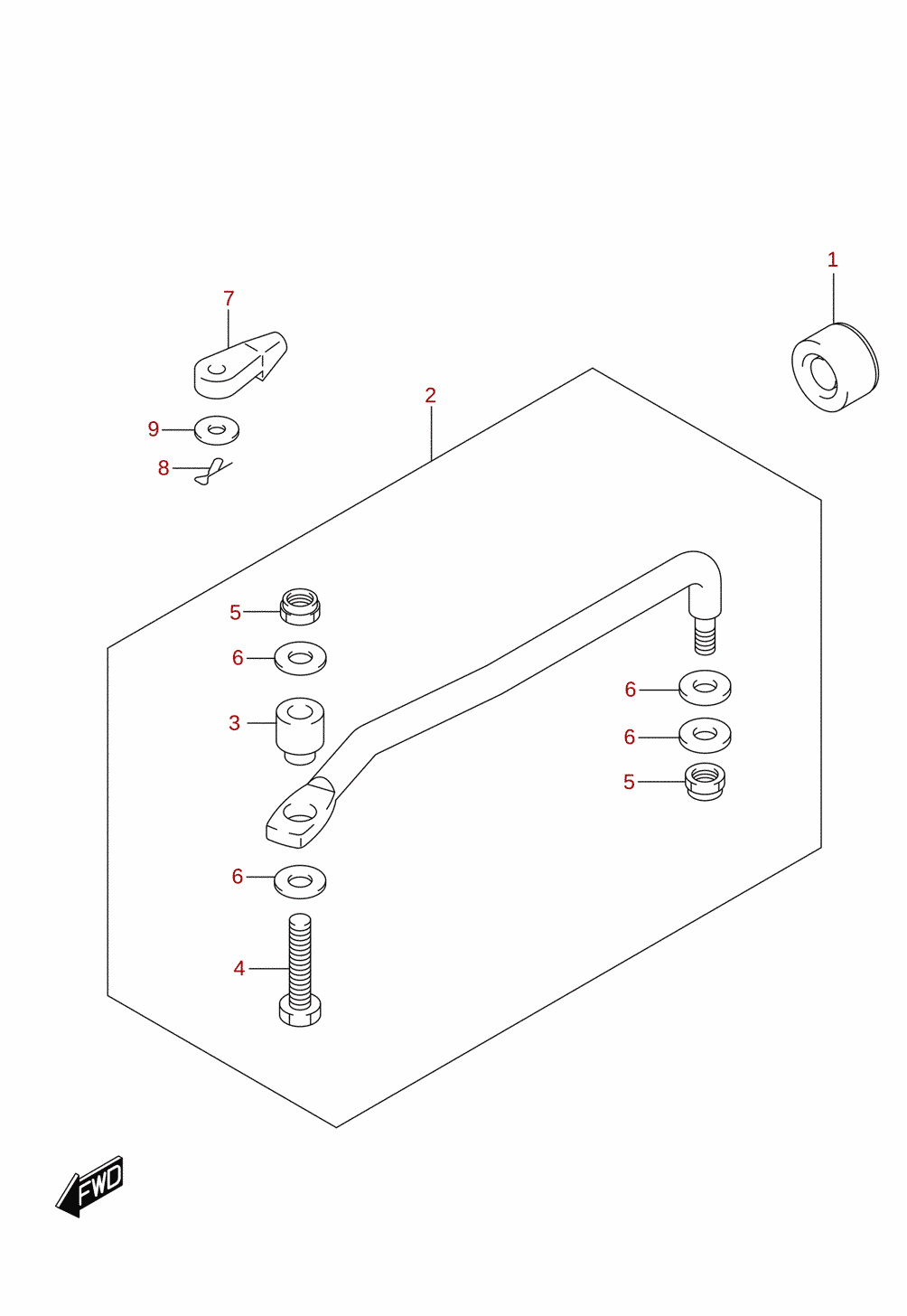

Styrstag (DF100B, DF70A, DF80A, DF90A)
Referensnr. DF90A_E11_023 77

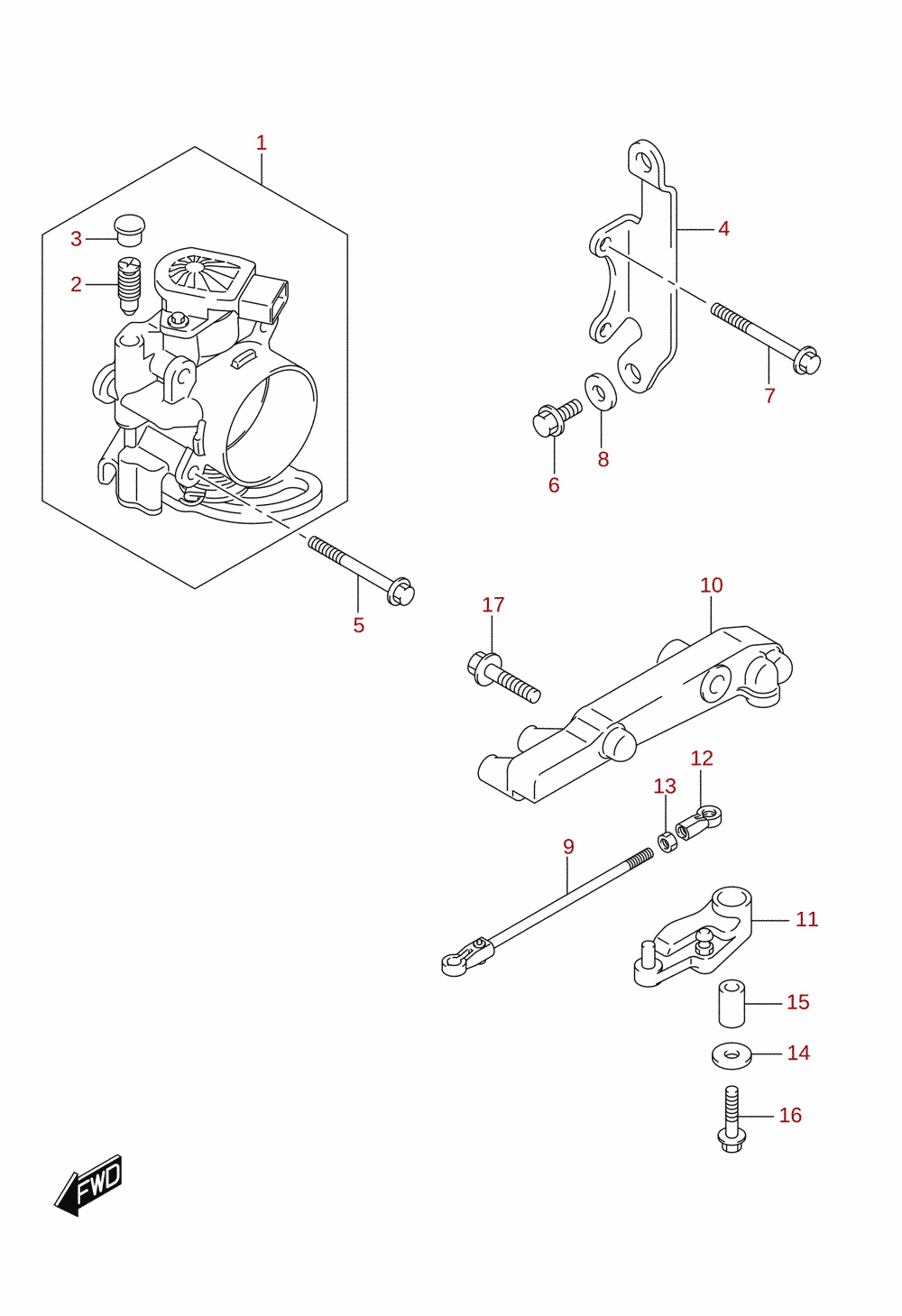

Gasspjällhus
Referensnr. DF90A_E11_023 20

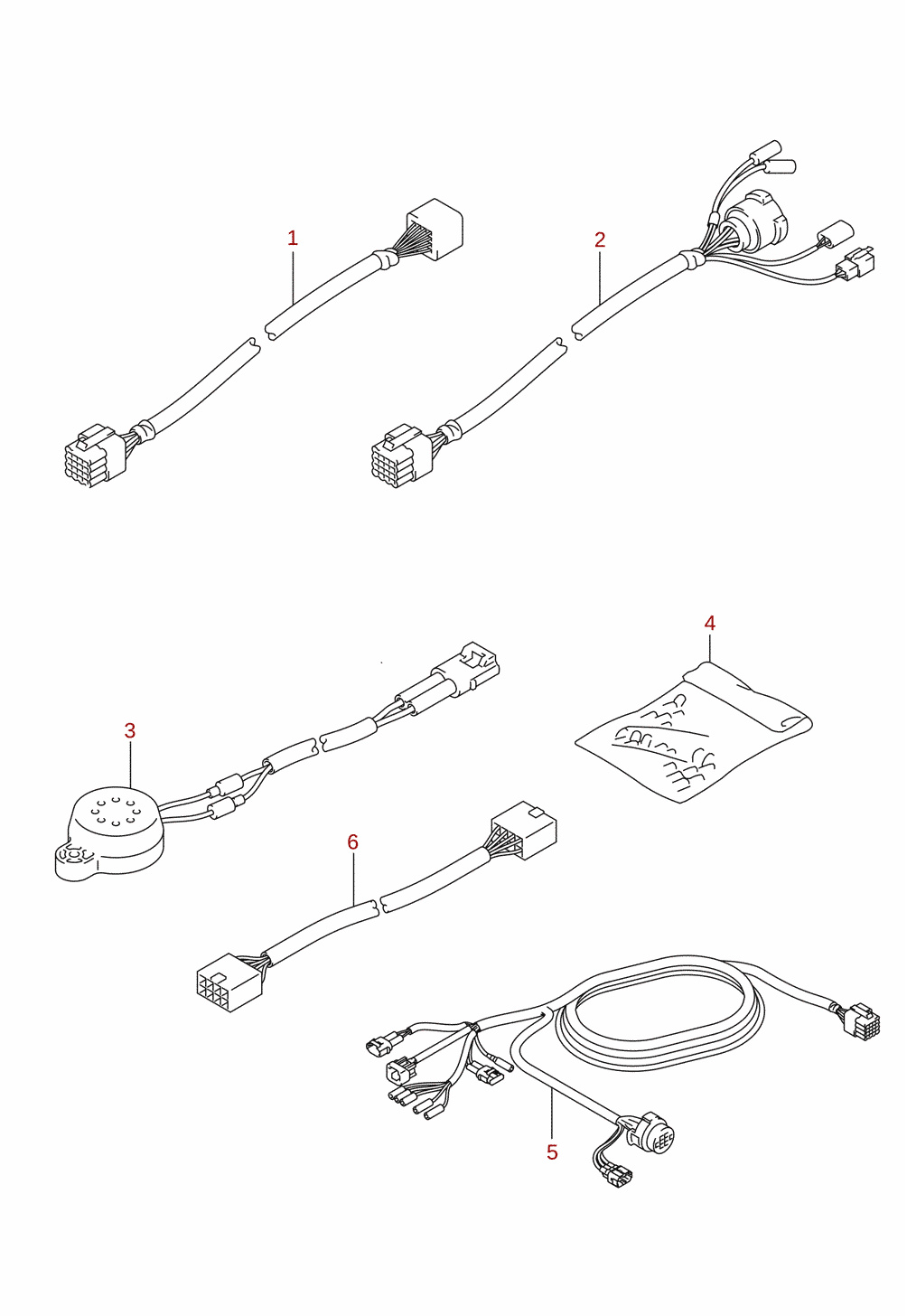

Kabelstam (2022) (DF70A, DF90A) (tillval)
Referensnr. DF90A_E11_023 102
Bränslepump (2020) (DF100B)
Referensnr. DF90A_E11_023 16

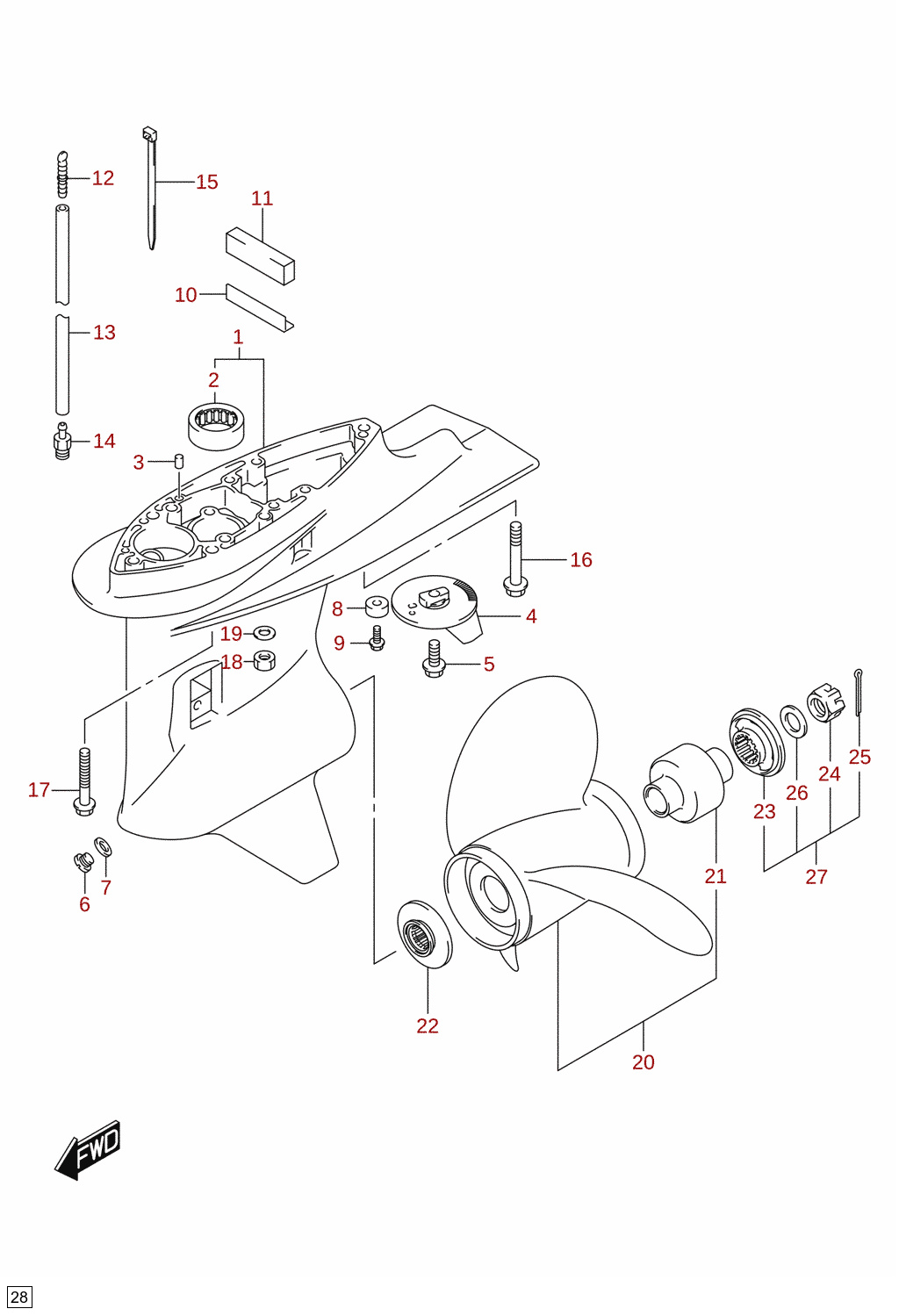

Växelhus (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 58

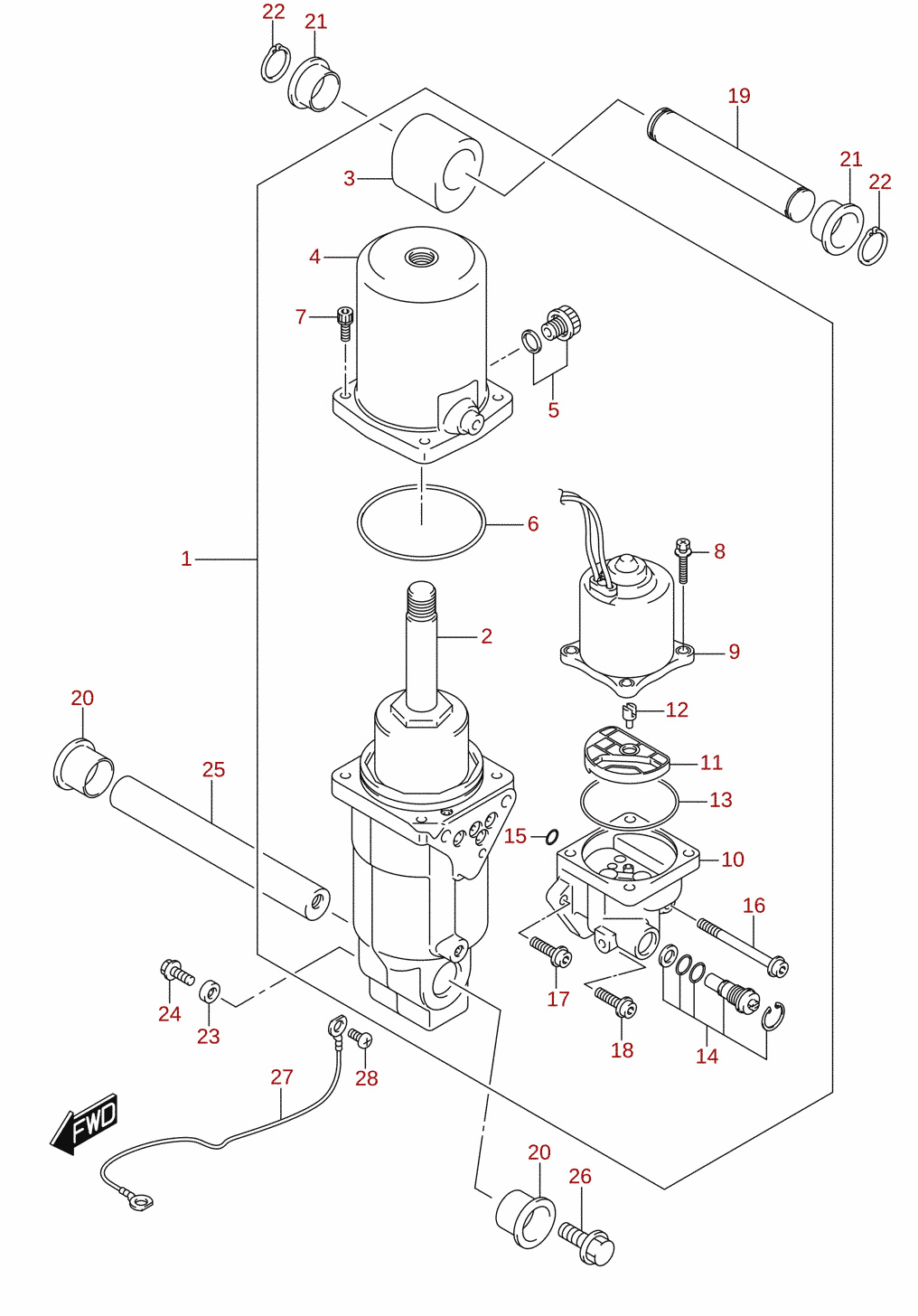

Trimcylinder 1/2
Referensnr. DF90A_E11_023 51

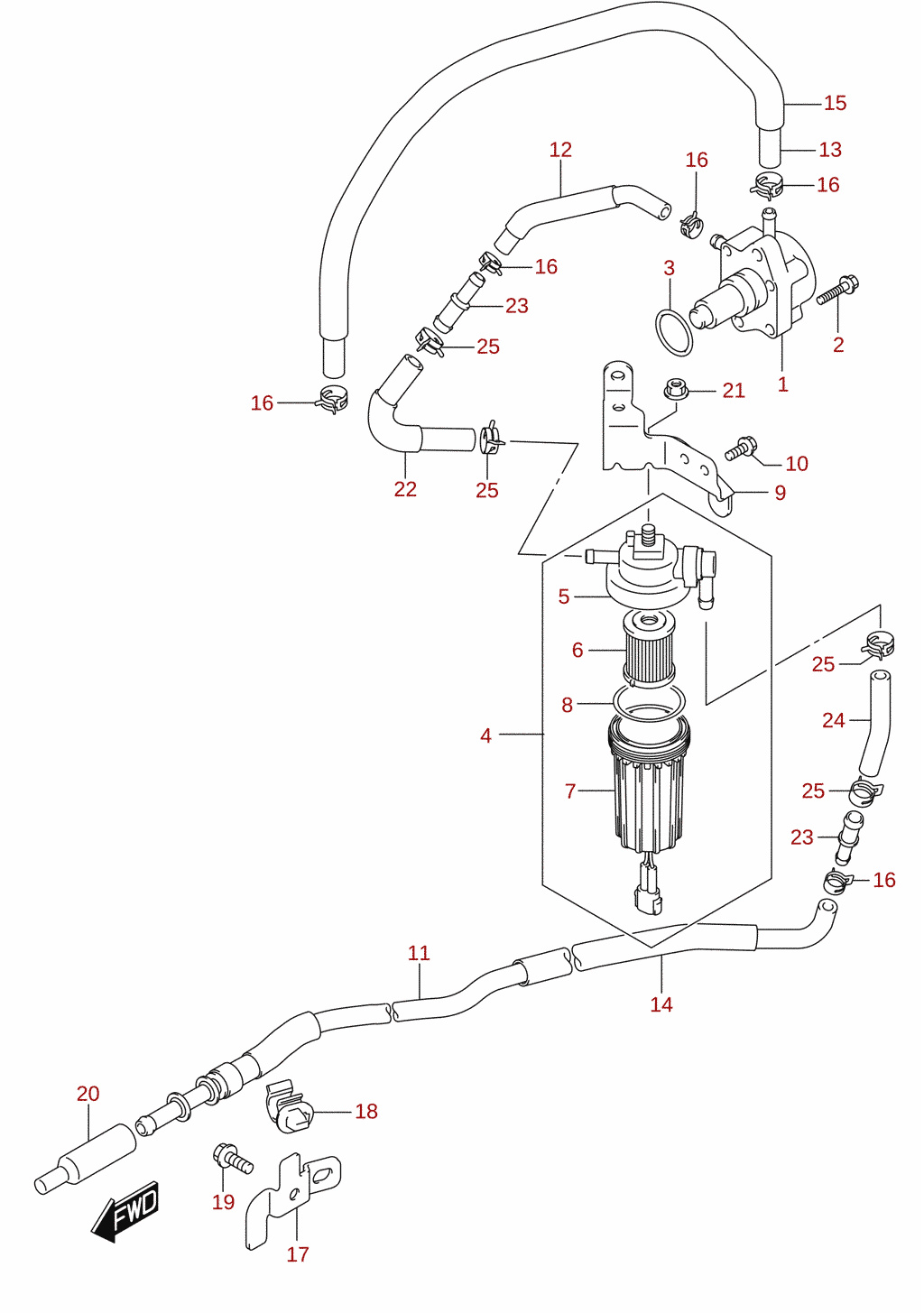

Bränslepump
Referensnr. DF90A_E11_023 17

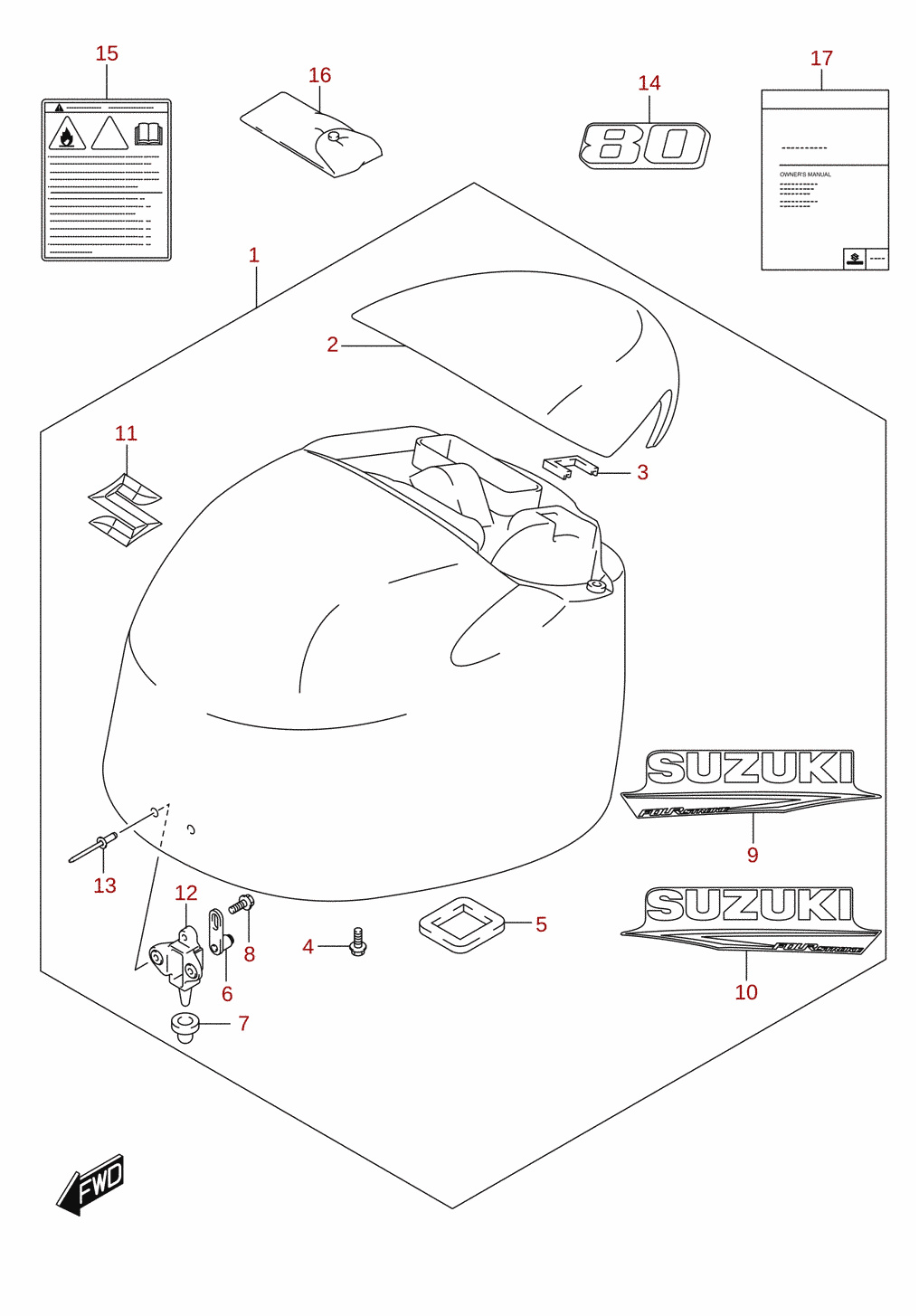

Motorkåpa (DF80A)
Referensnr. DF90A_E11_023 69

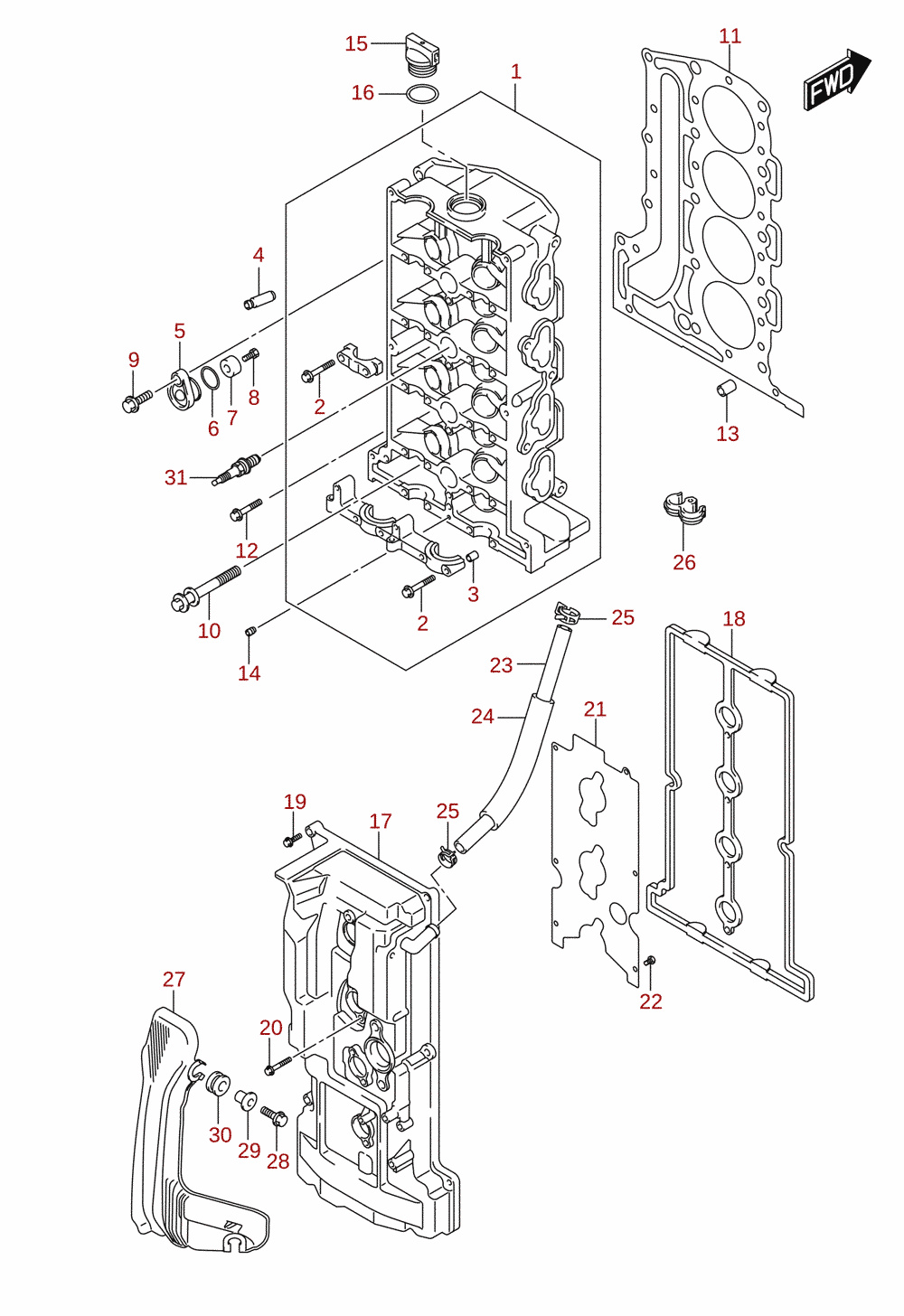

Topplock (DF100B, DF90AWQH)
Referensnr. DF90A_E11_023 2
Givare (DF90AWQH) 2/2
Referensnr. DF90A_E11_023 32

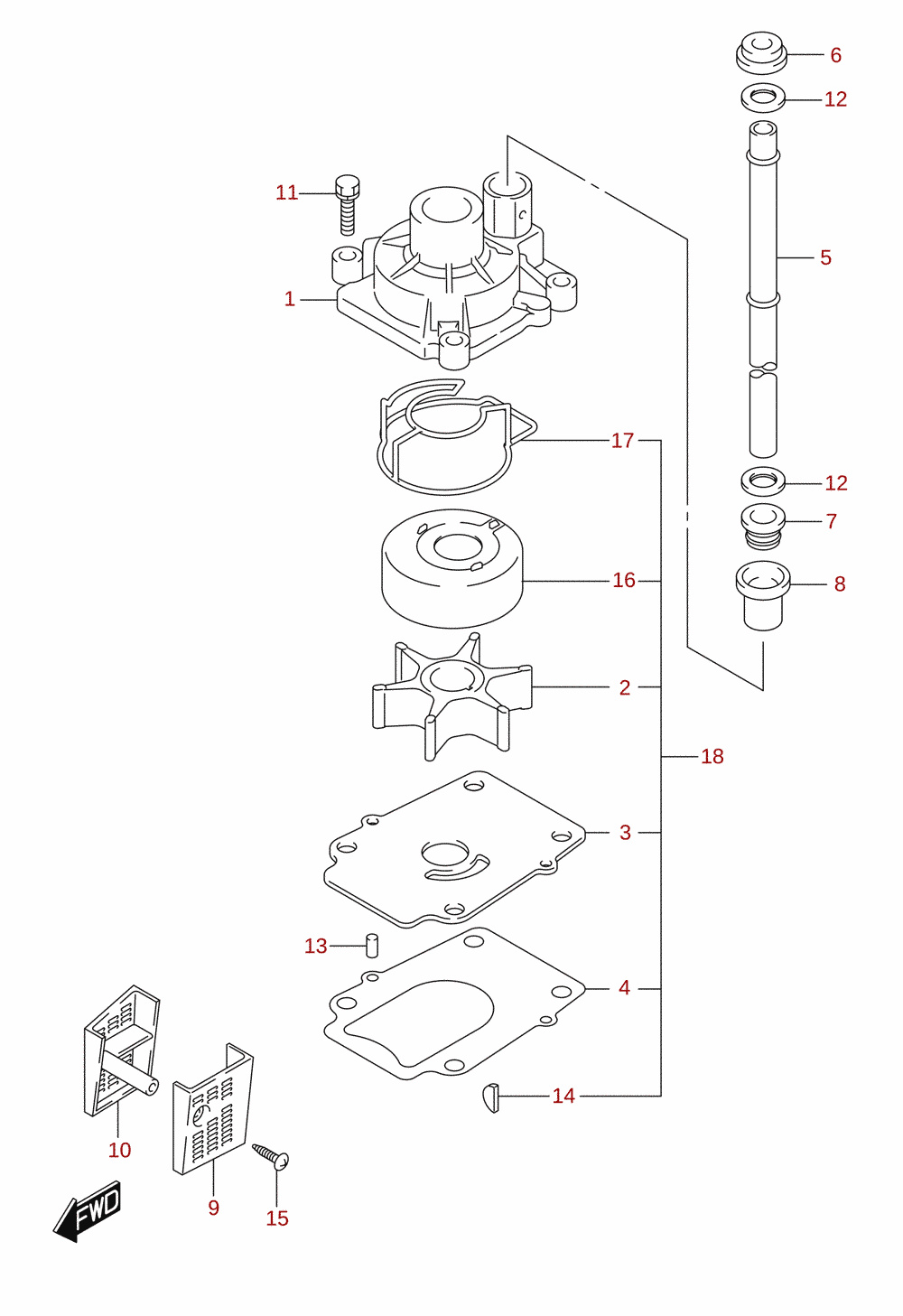

Vattenpump
Referensnr. DF90A_E11_023 18

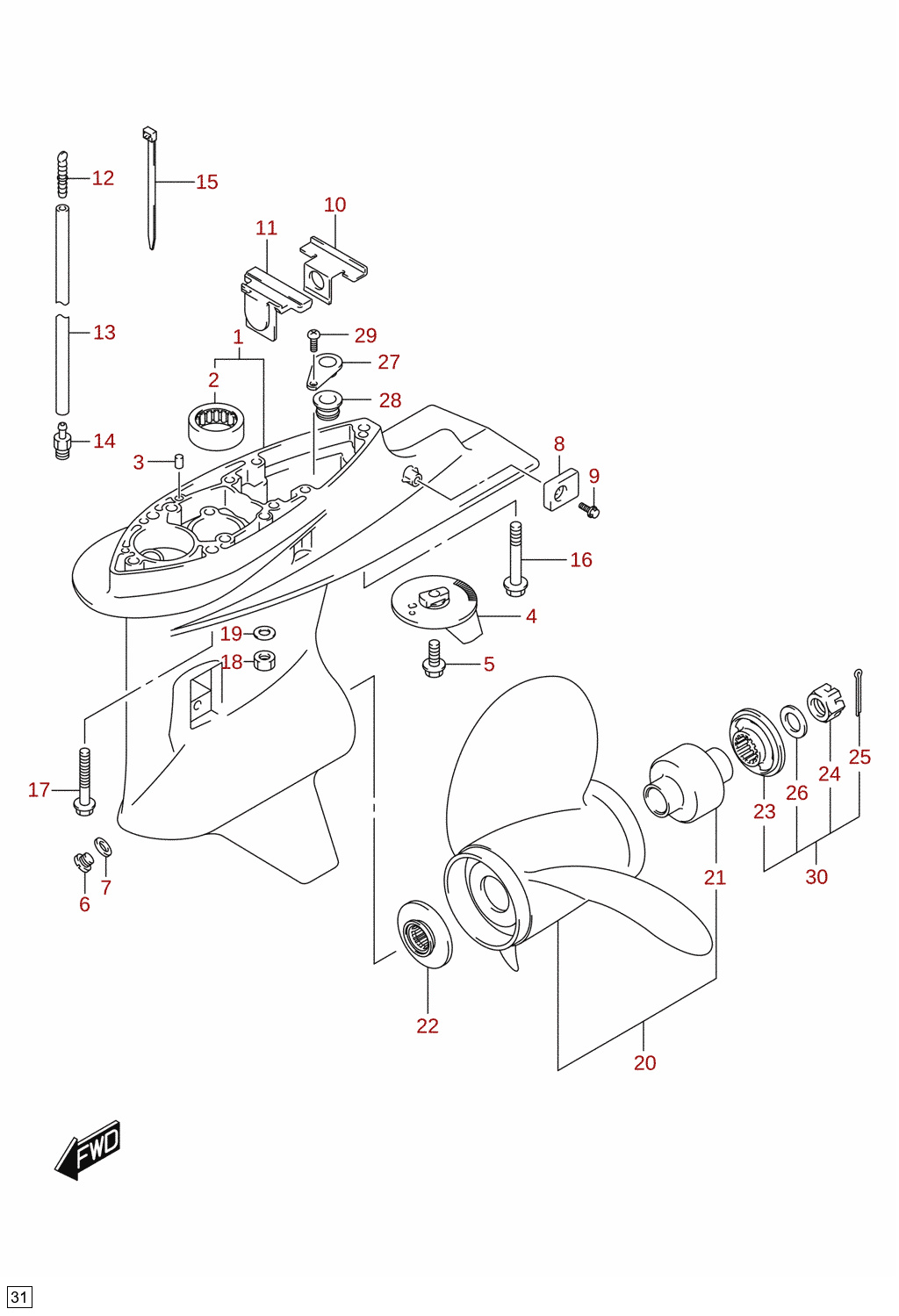

Växelhus (DF90AWQH)
Referensnr. DF90A_E11_023 60

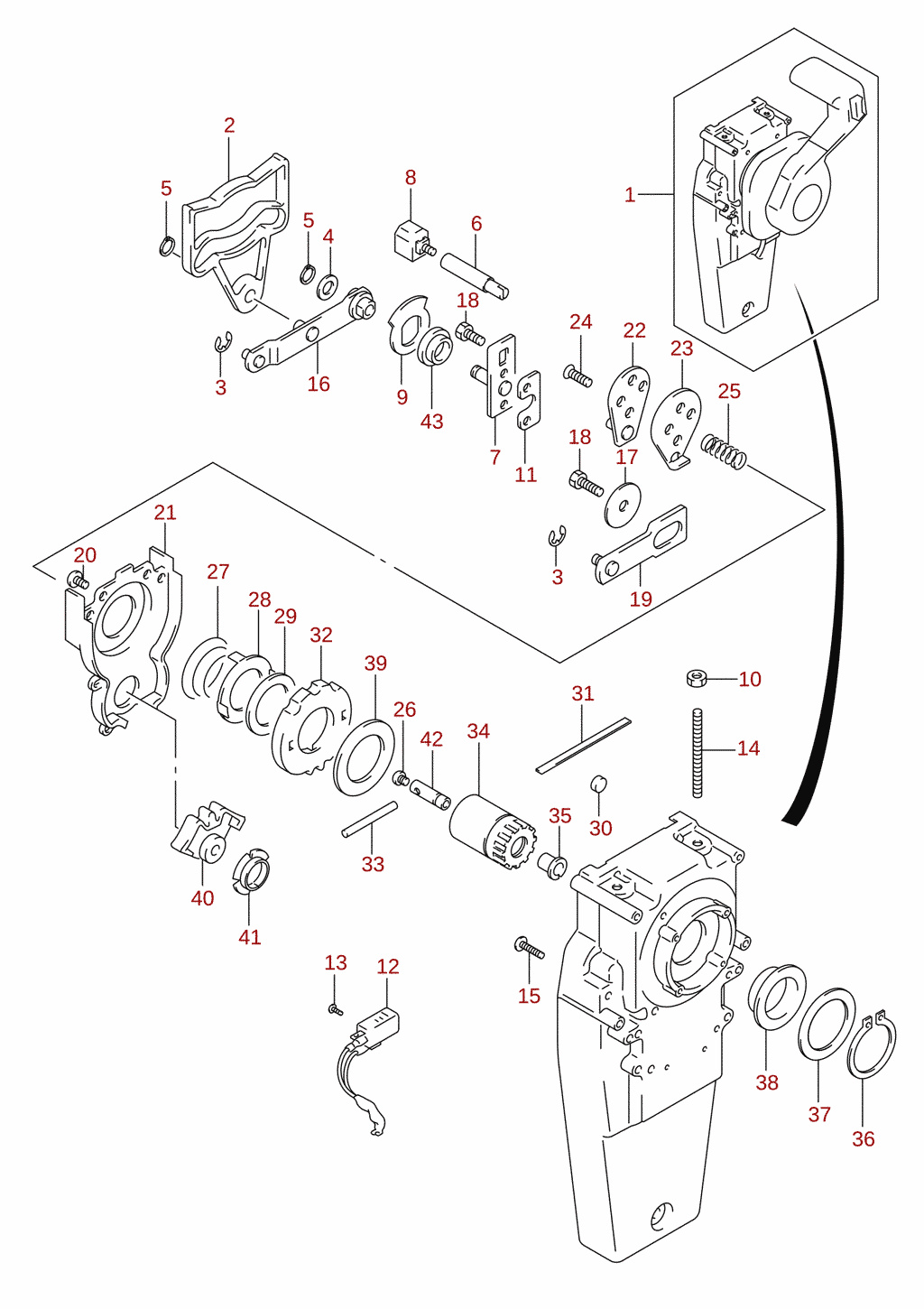

Dolt reglage (2) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 96
Kabelstam (2023) (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 100

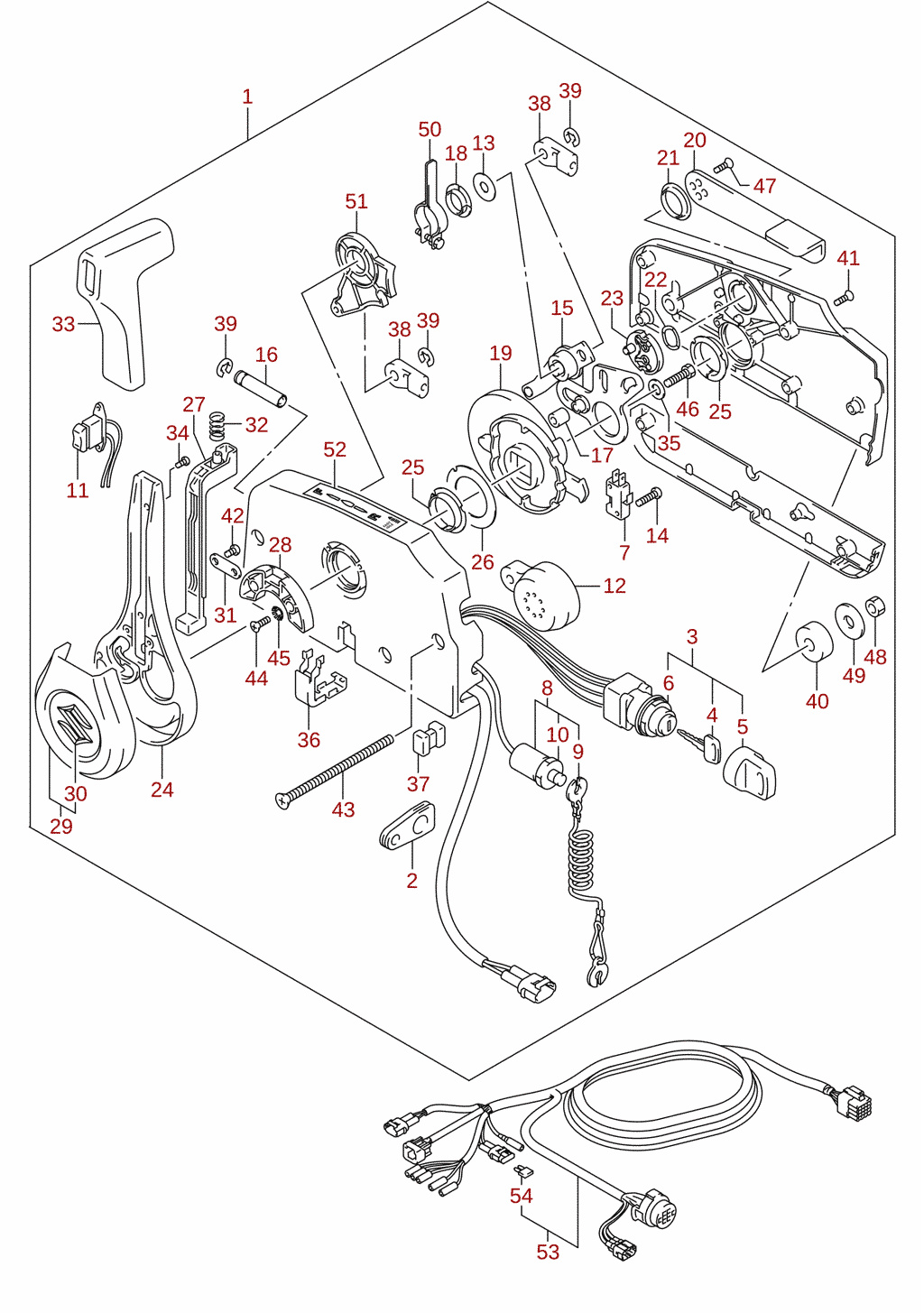

Reglage (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 91

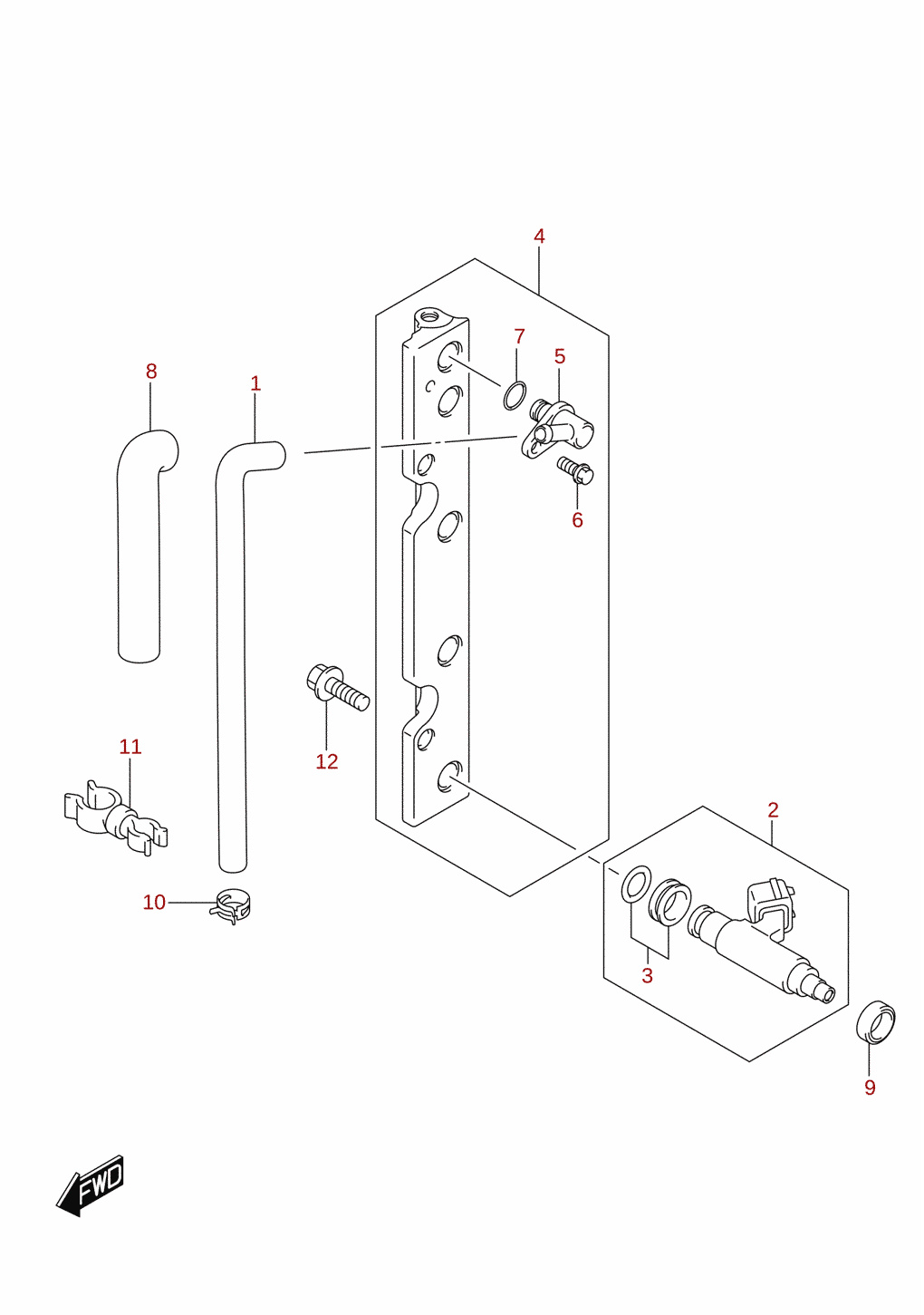

Bränsleinsprutare
Referensnr. DF90A_E11_023 14
Motorkåpa (DF75A)
Referensnr. DF90A_E11_023 67

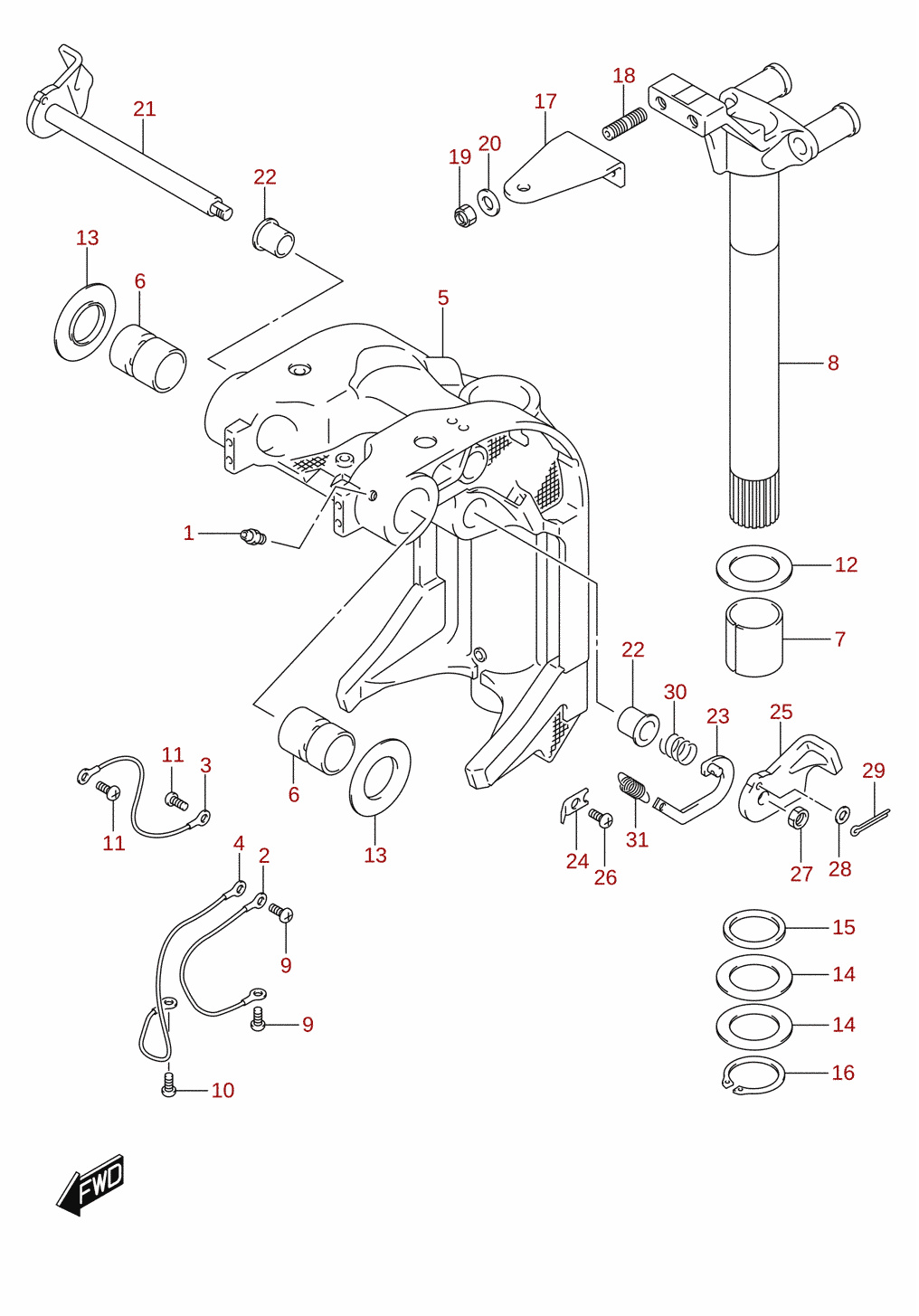

Svängfäste (DF100B, DF70A, DF80A, DF90A)
Referensnr. DF90A_E11_023 47

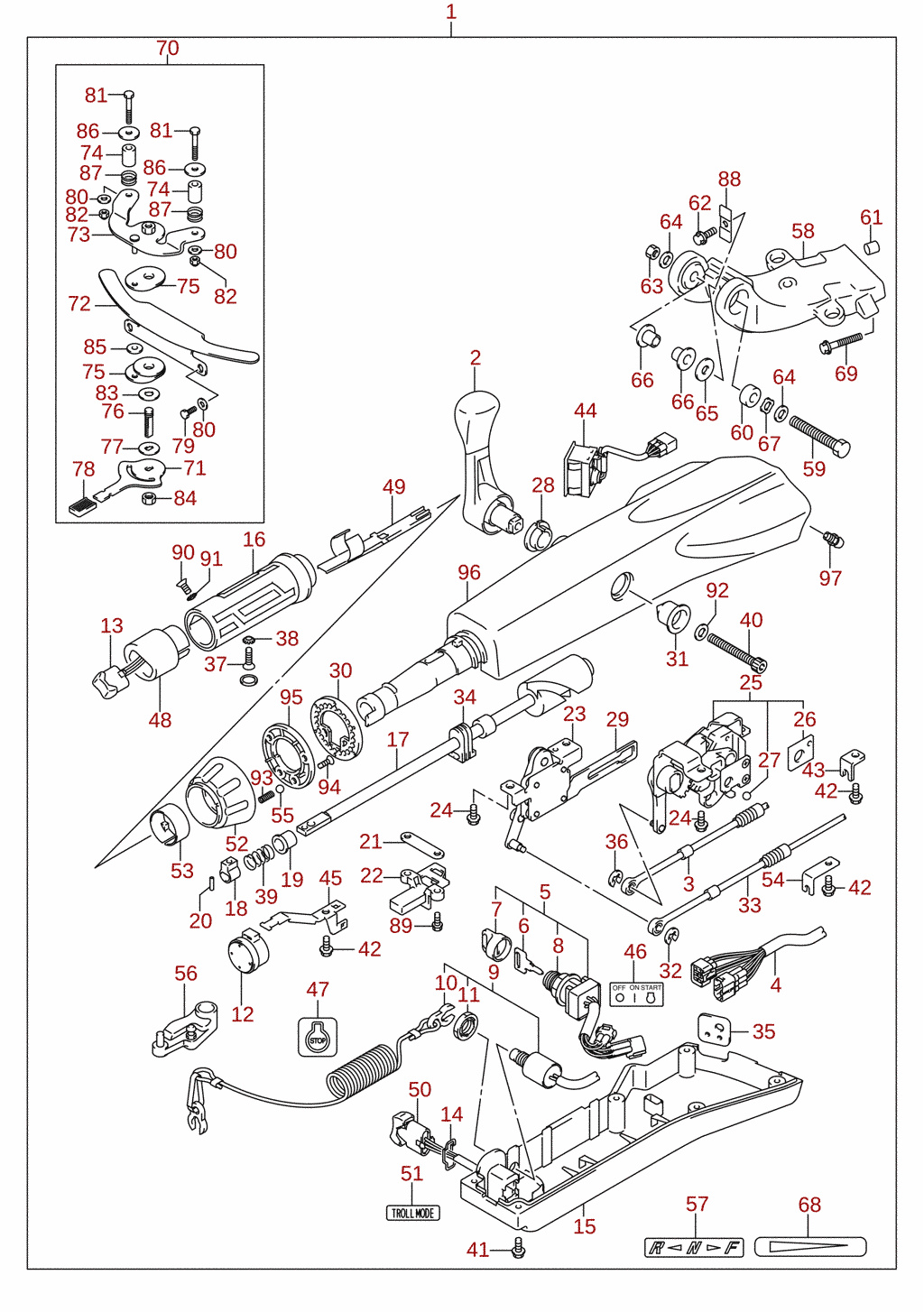

Styrkult (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 114

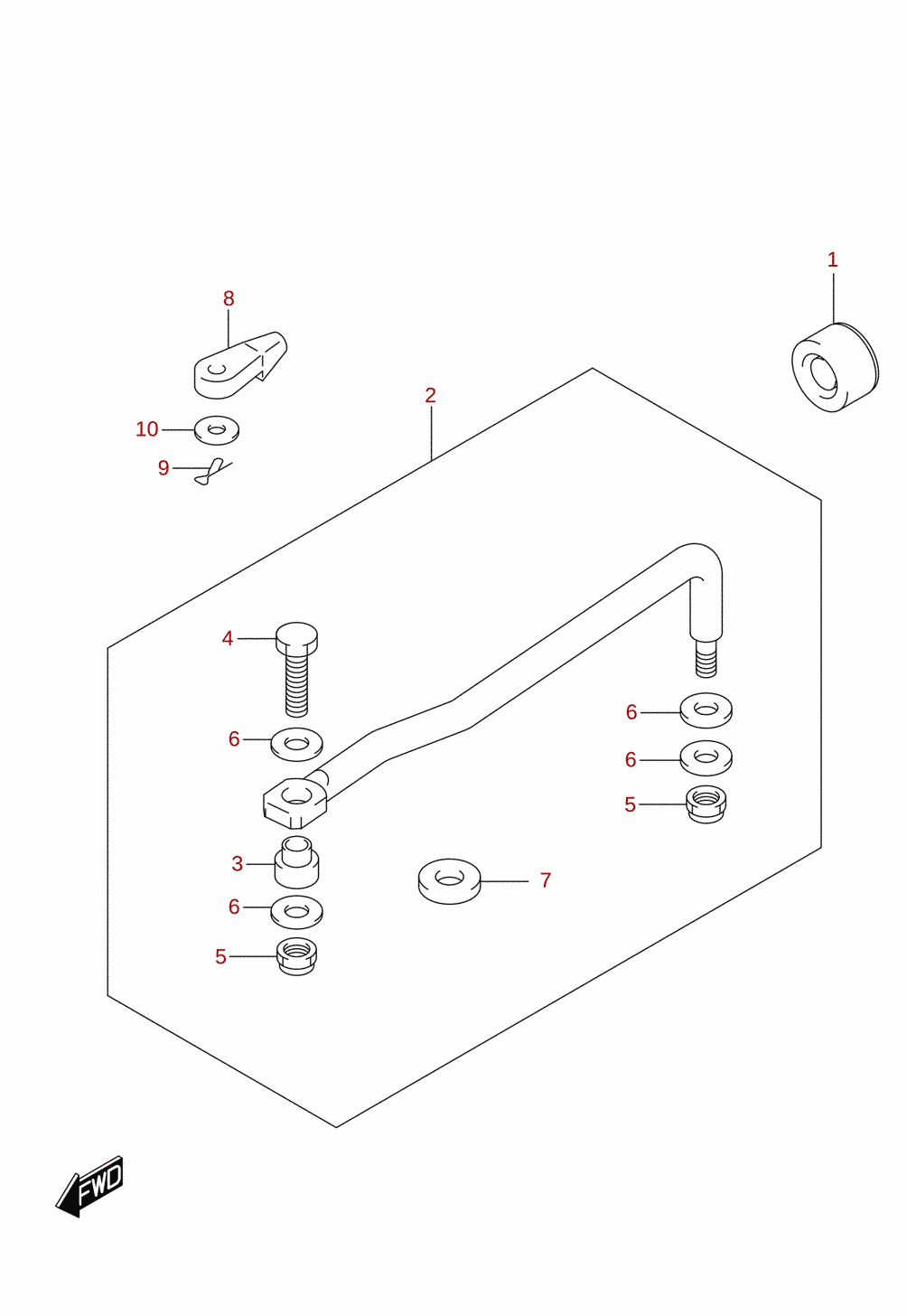

Styrstag (DF100B, DF70A, DF75A, DF80A, DF90A)
Referensnr. DF90A_E11_023 78

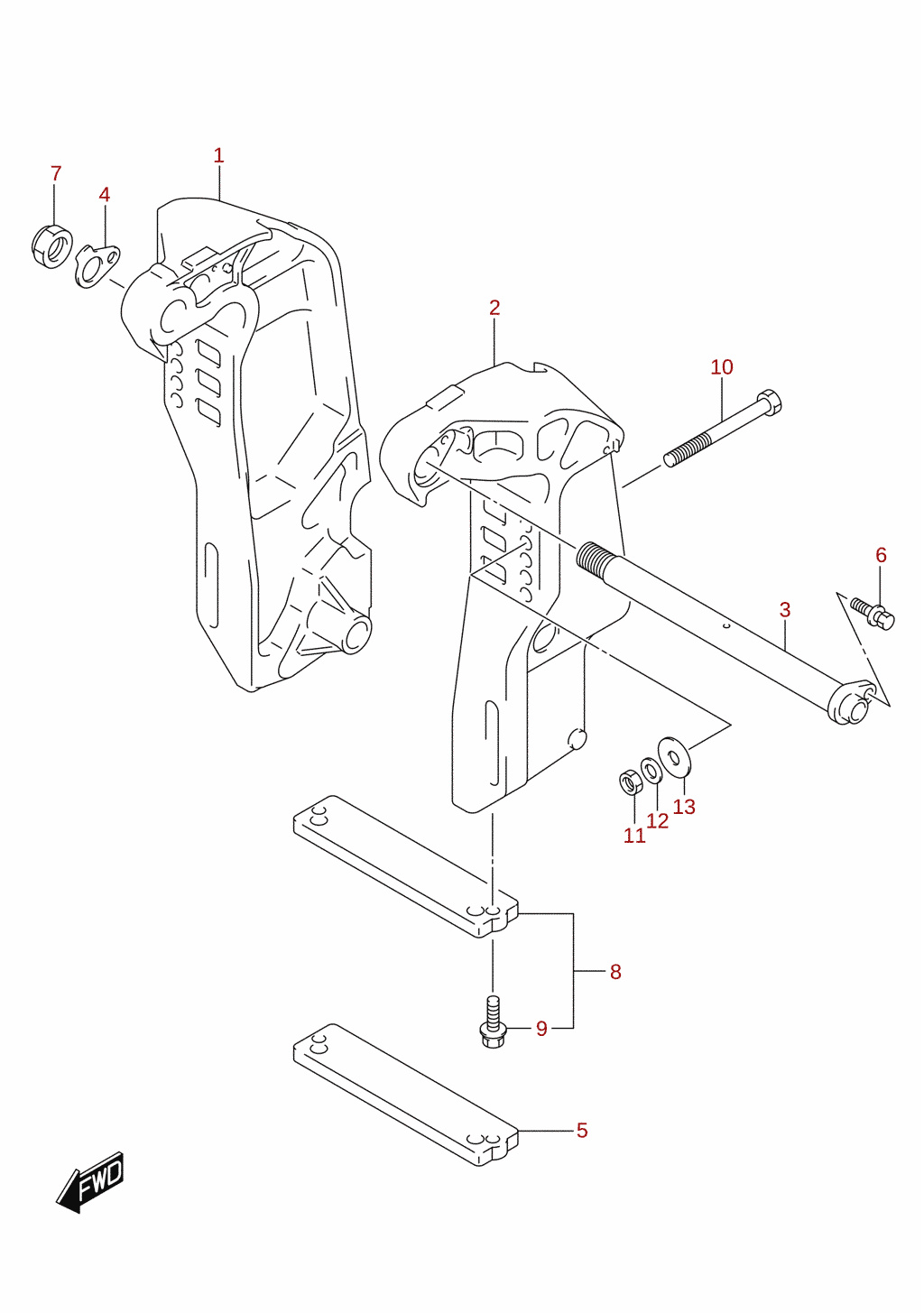

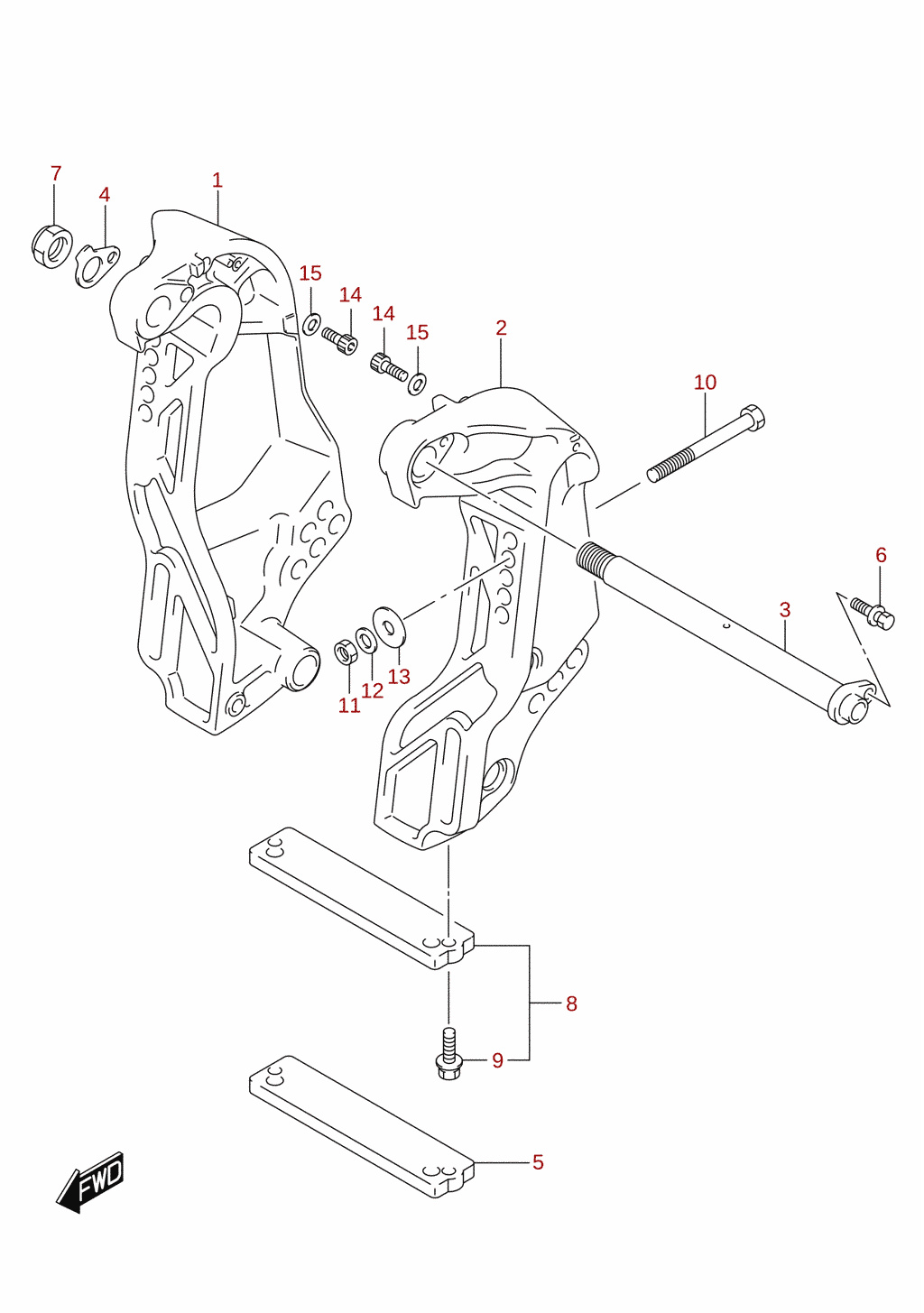

Akterspegelsfäste (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 45

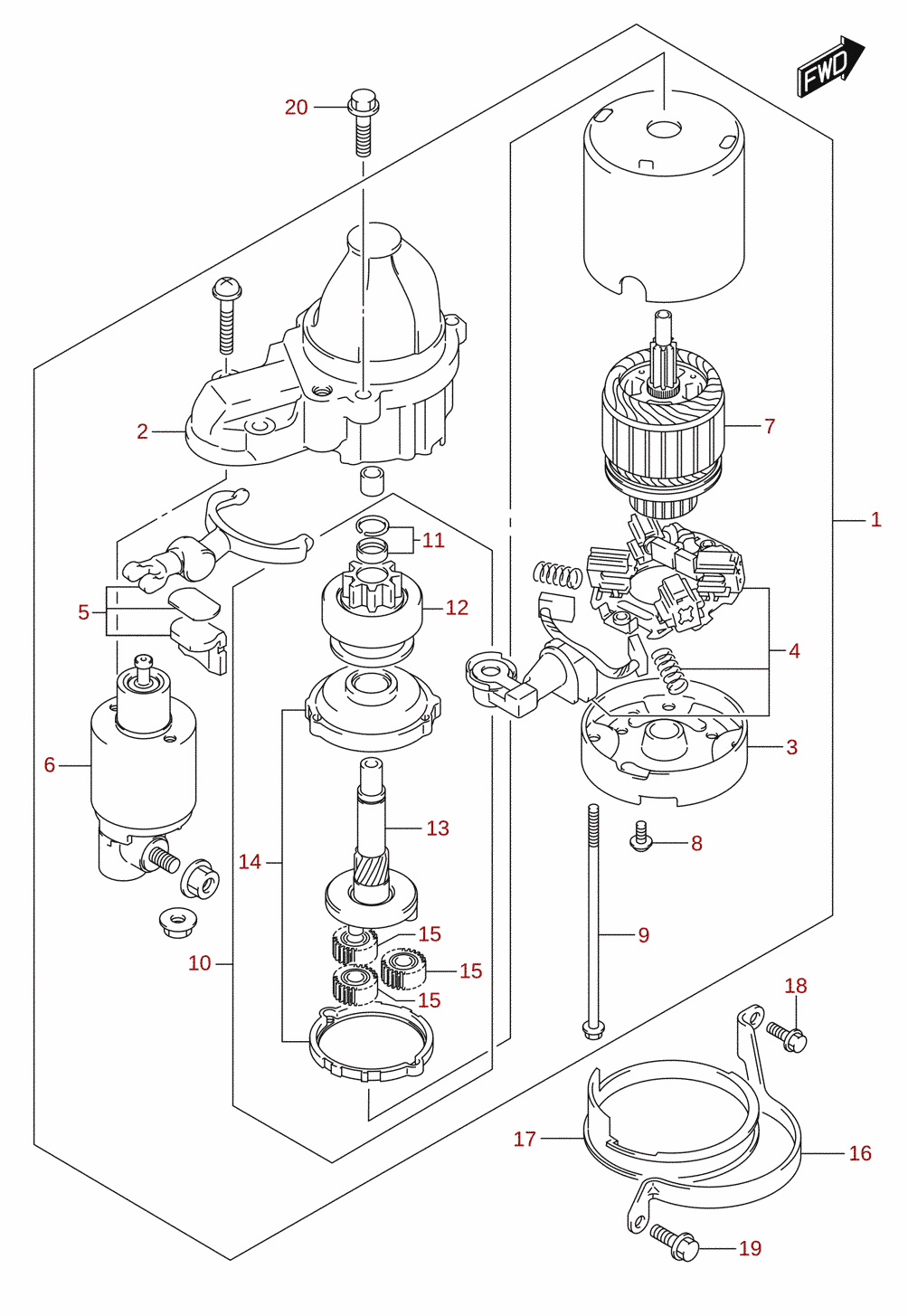

Startmotor
Referensnr. DF90A_E11_023 26

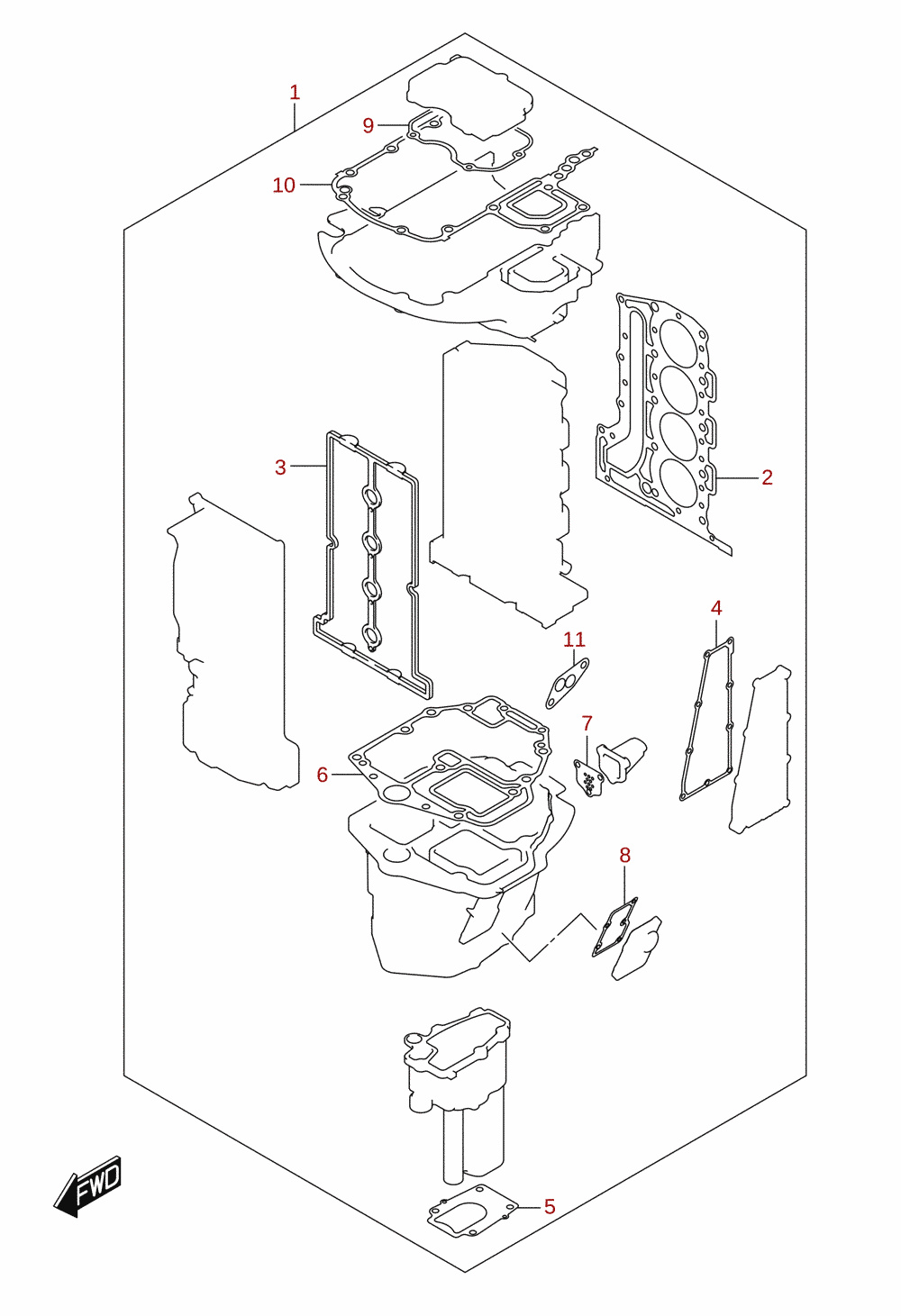

Packningssats (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH, DF90AWQH) (tillval)
Referensnr. DF90A_E11_023 115

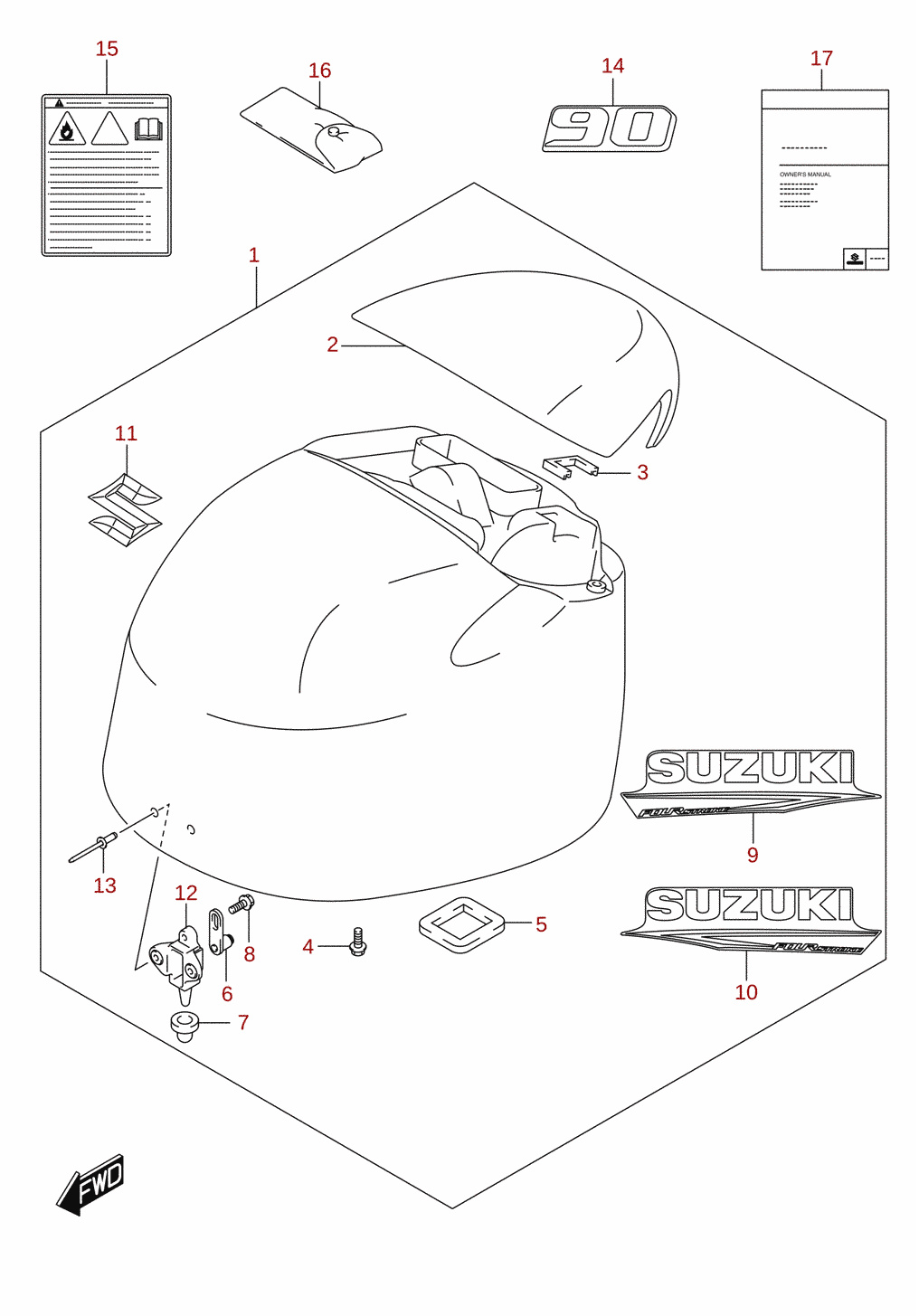

Motorkåpa (DF90)
Referensnr. DF90A_E11_023 71
Instrument (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 86

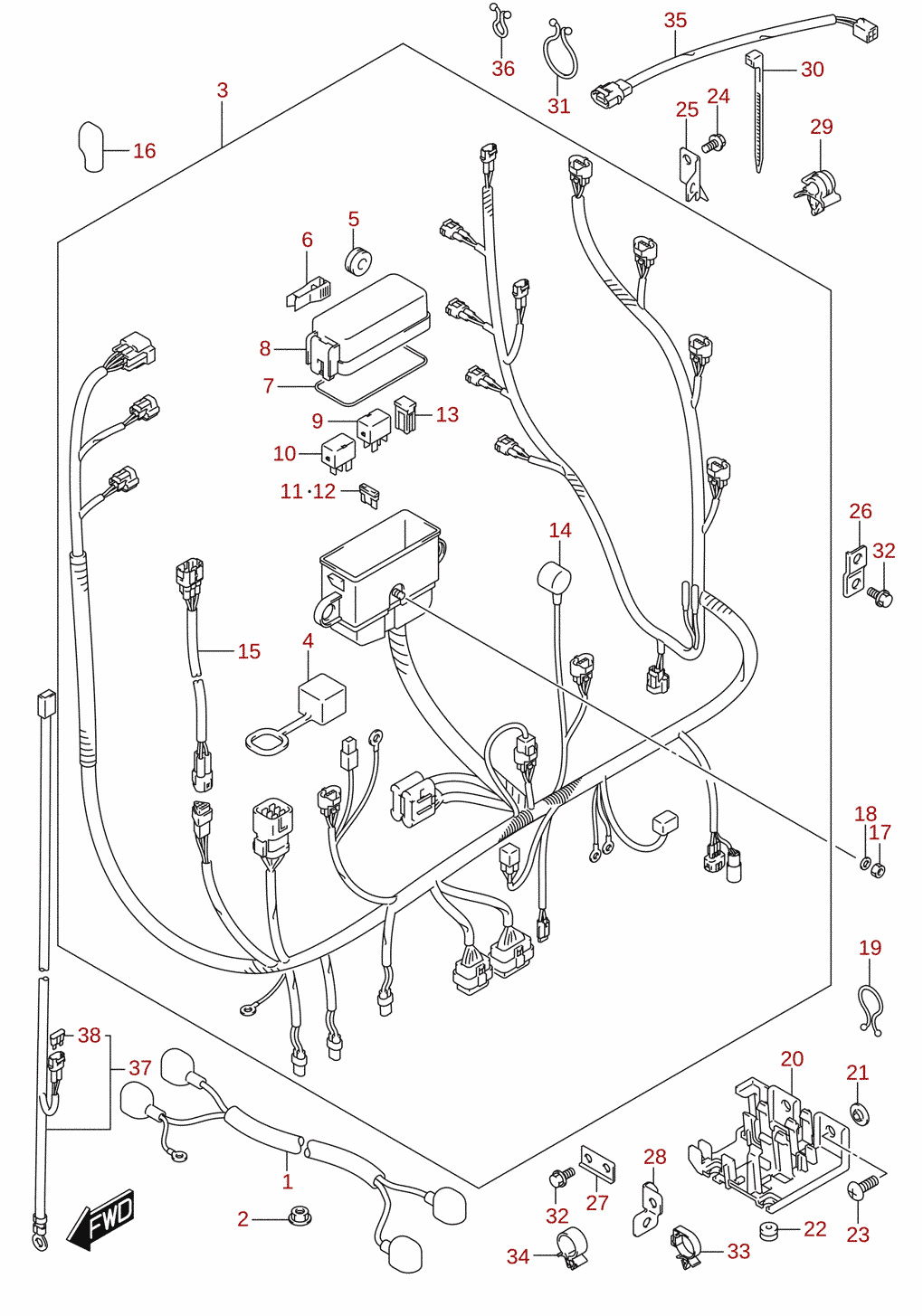

Kabelstam (2020) (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 33
Sidokåpa (DF70ATH, DF90ATH)
Referensnr. DF90A_E11_023 63

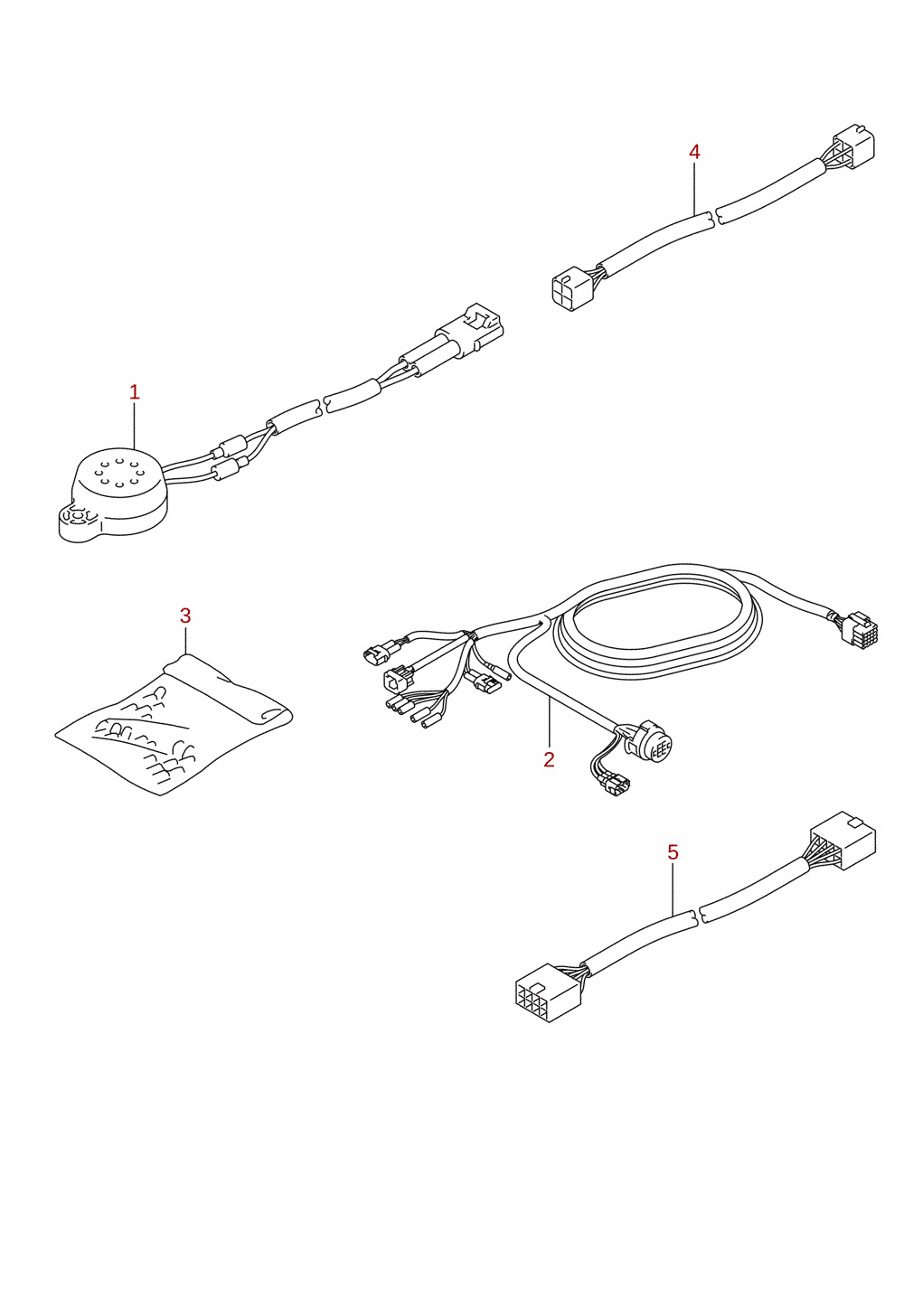

Kabelstam (2022) (DF70ATH, DF90ATH) (tillval)
Referensnr. DF90A_E11_023 105

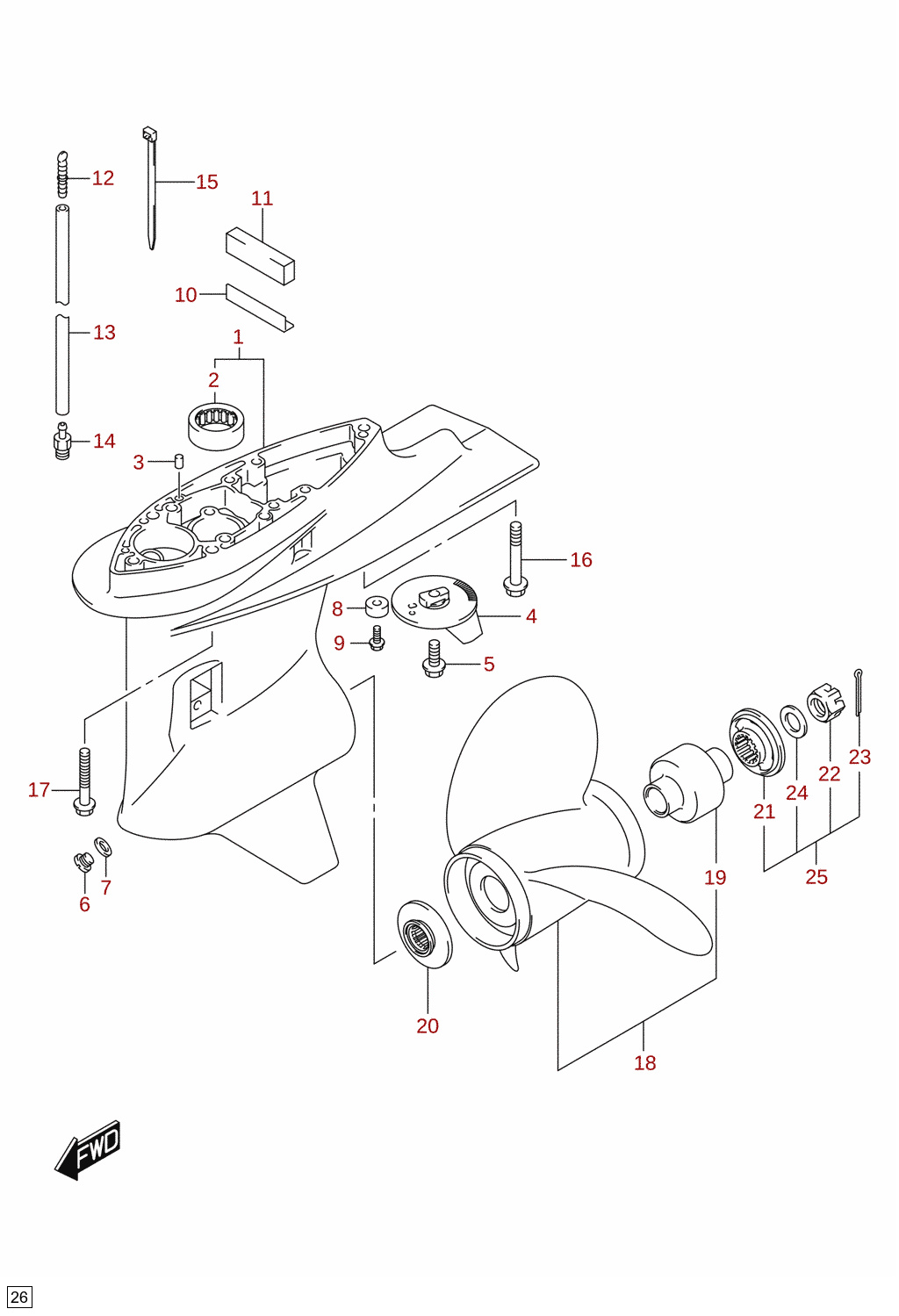

Växelhus (2020) (DF70ATH, DF90ATH)
Referensnr. DF90A_E11_023 59

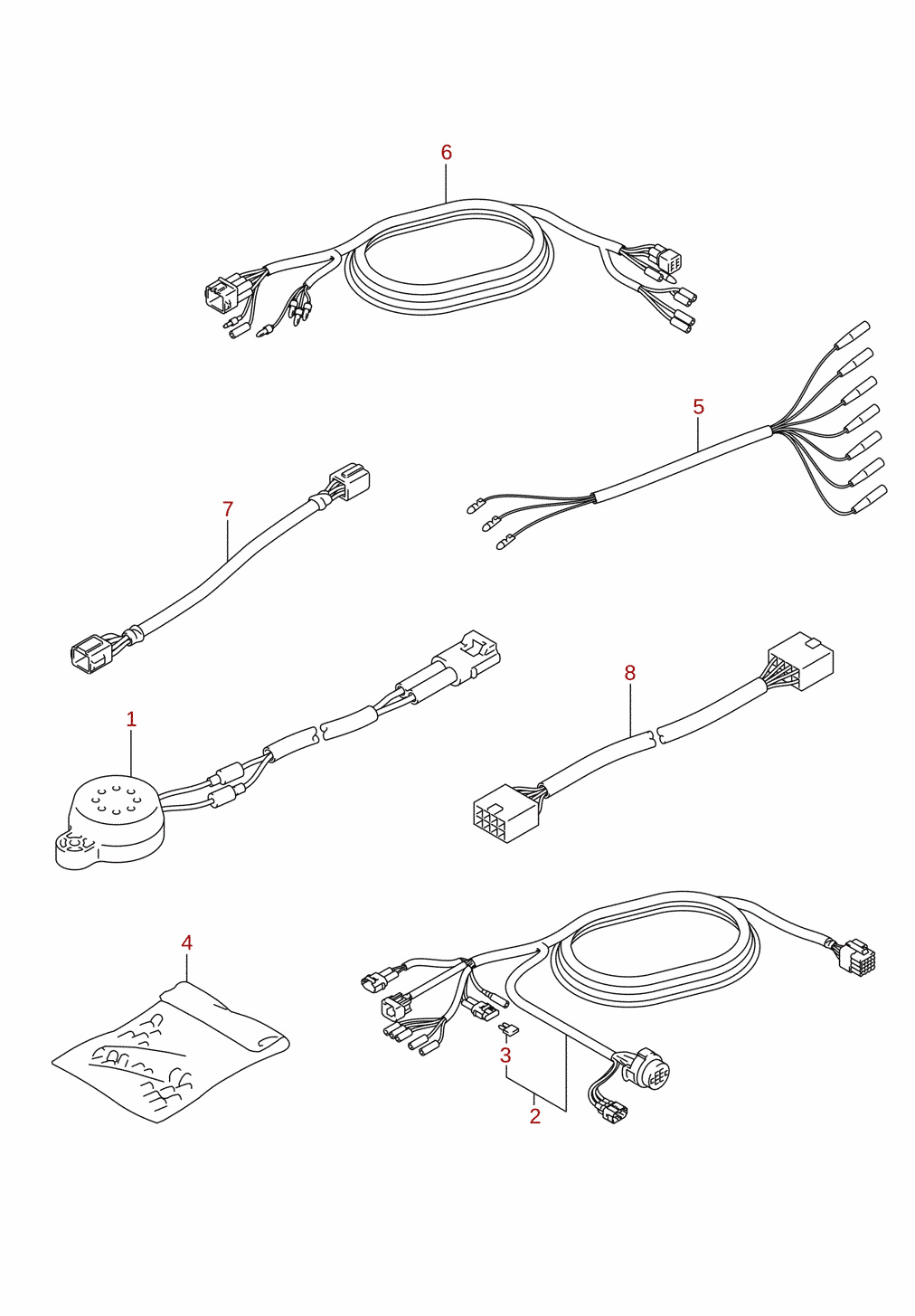

Kabelstam (DF70ATH, DF90ATH) (tillval)
Referensnr. DF90A_E11_023 104

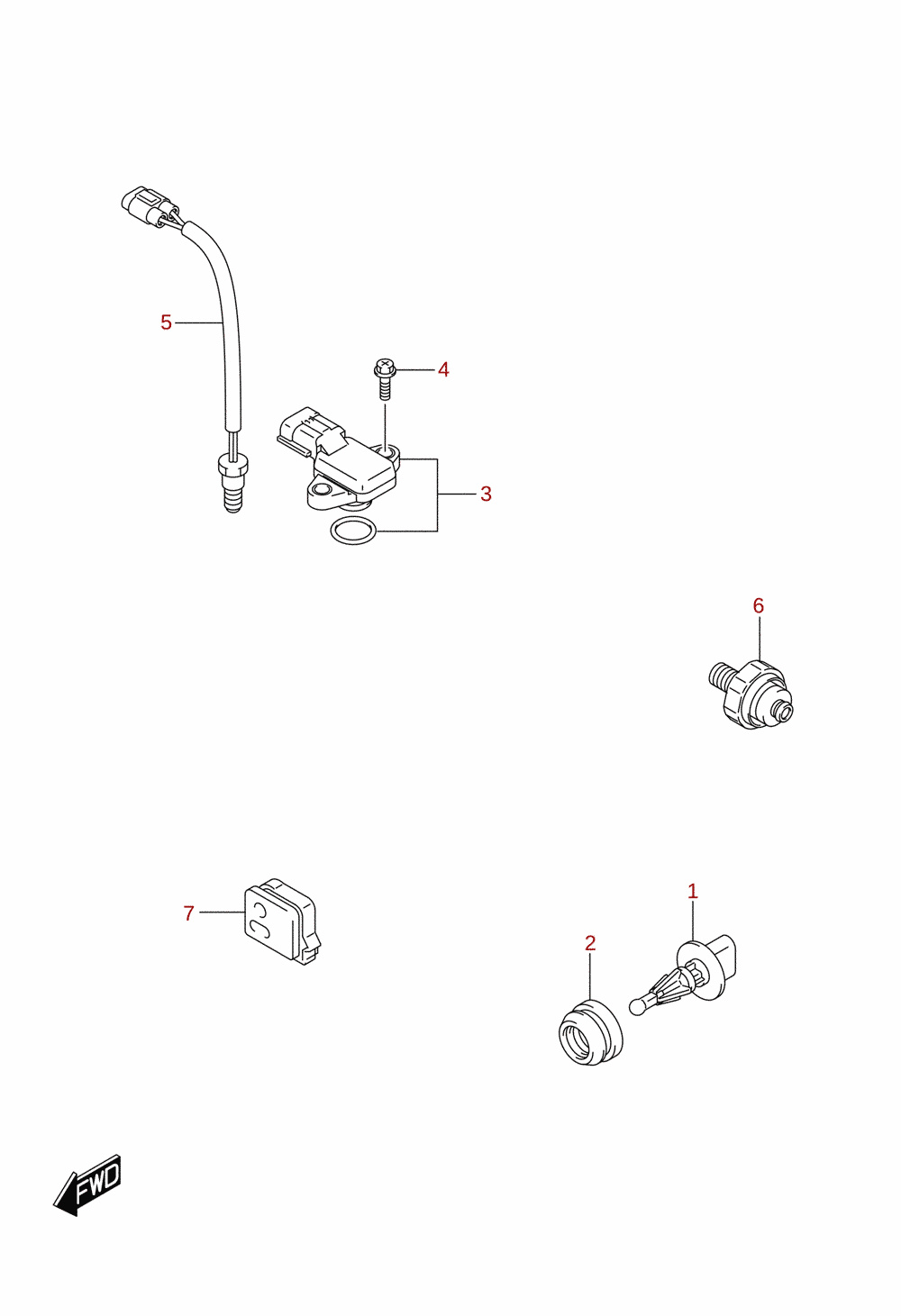

Givare (DF90AWQH) 1/2
Referensnr. DF90A_E11_023 31

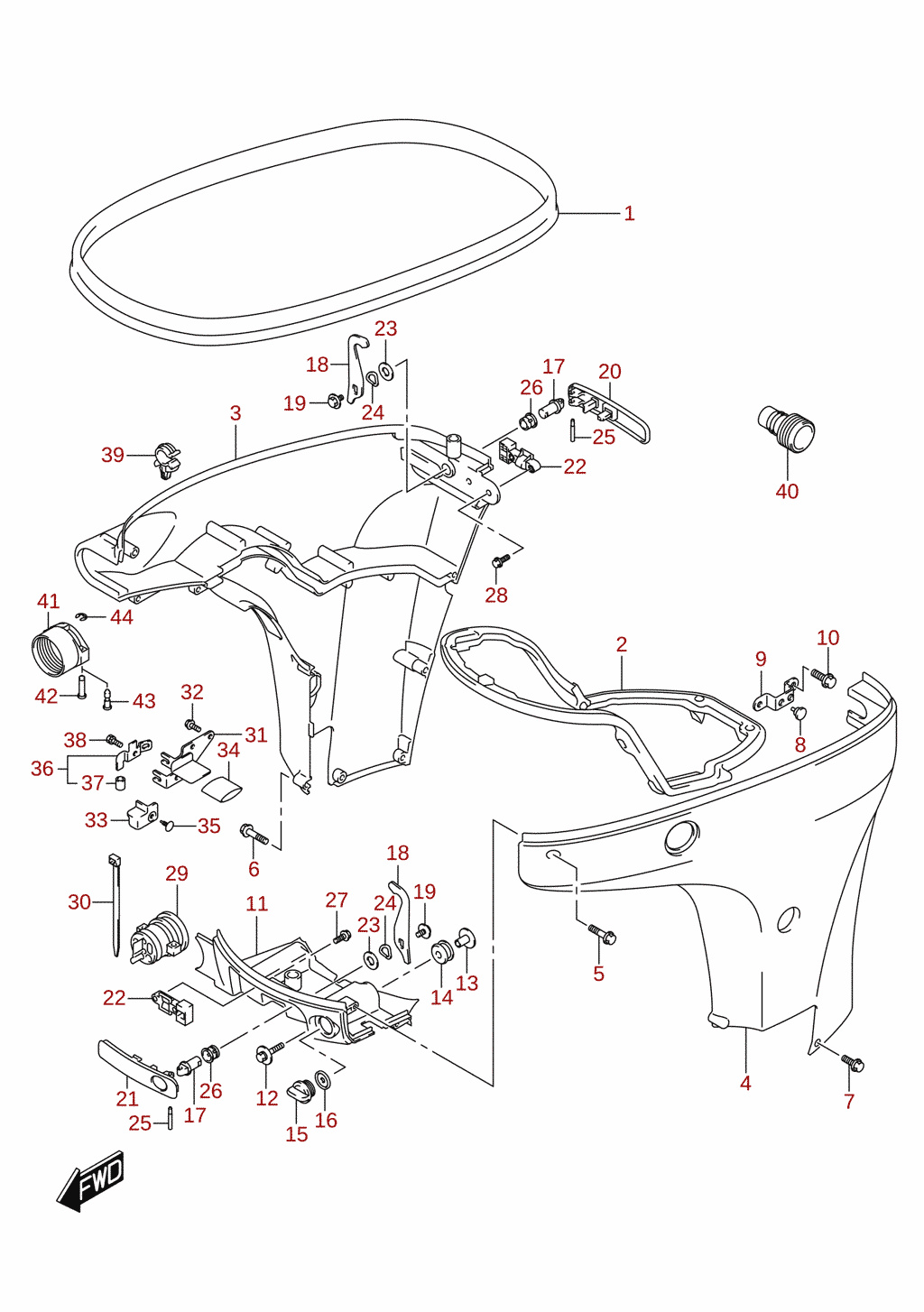

Sidokåpa (DF100B, DF70A, DF80A, DF90A)
Referensnr. DF90A_E11_023 61

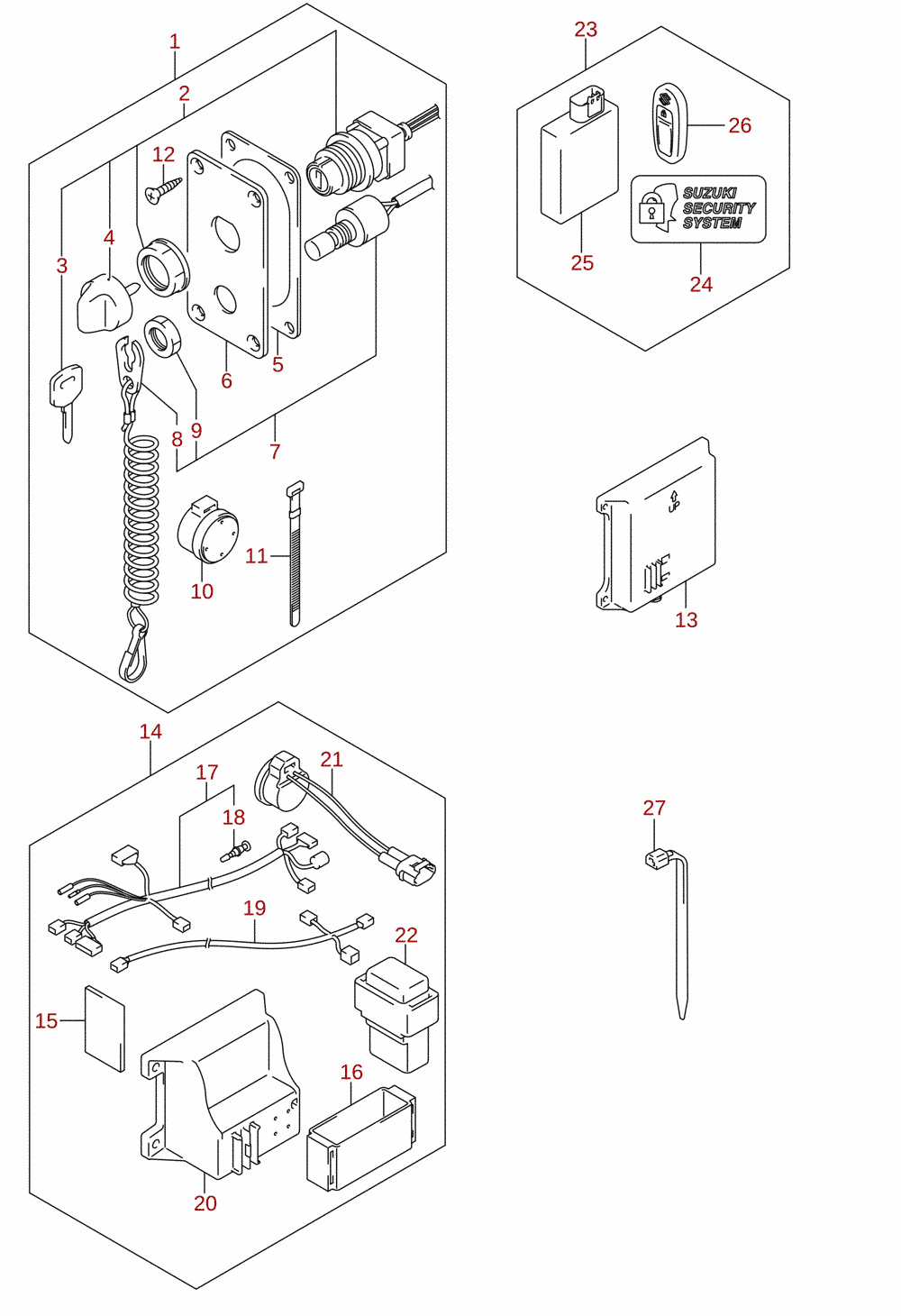

Nyckelfri start (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 109

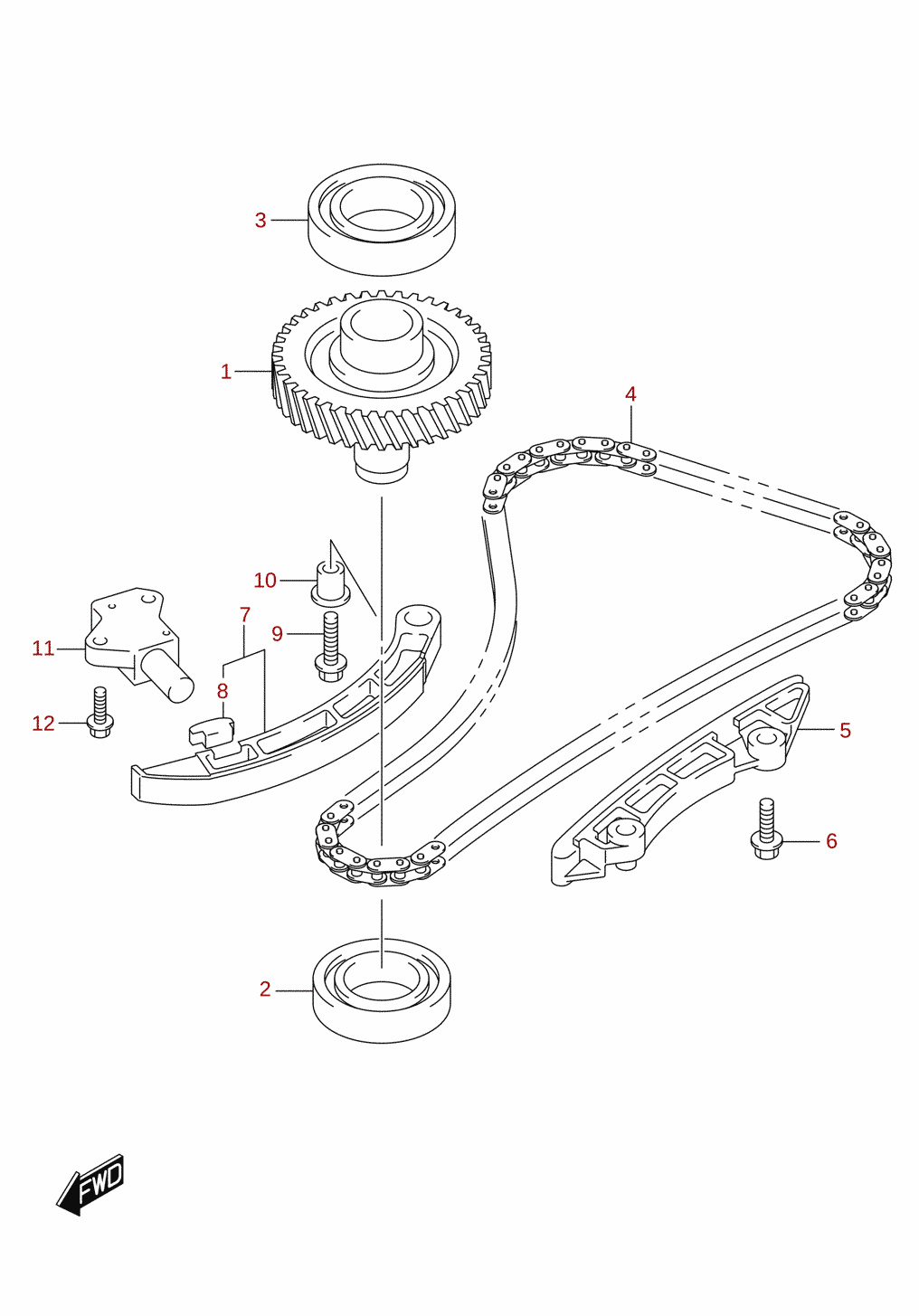

Kamkedja
Referensnr. DF90A_E11_023 5
Topplock (DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 1

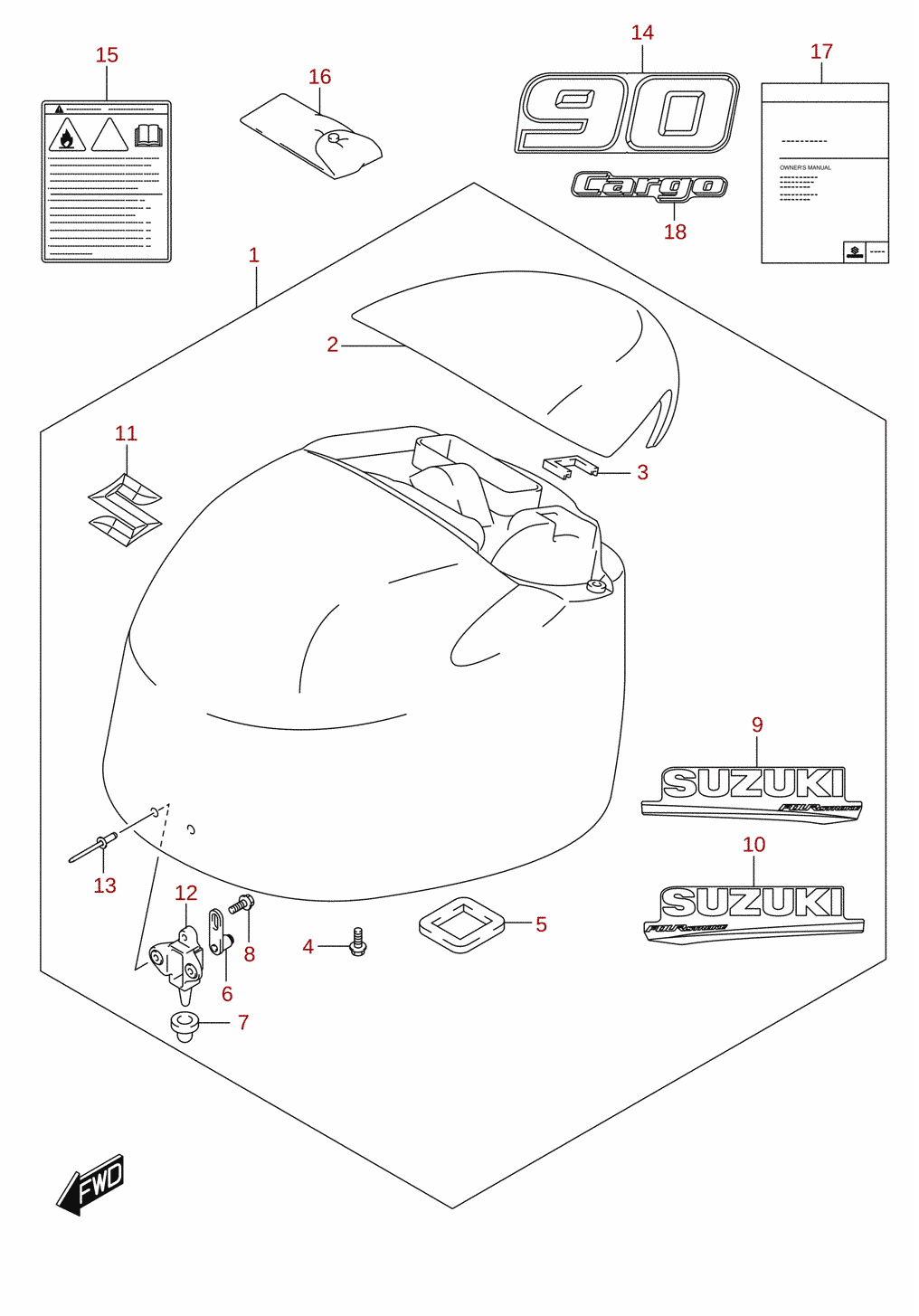

Motorkåpa (DF90AWQH)
Referensnr. DF90A_E11_023 72

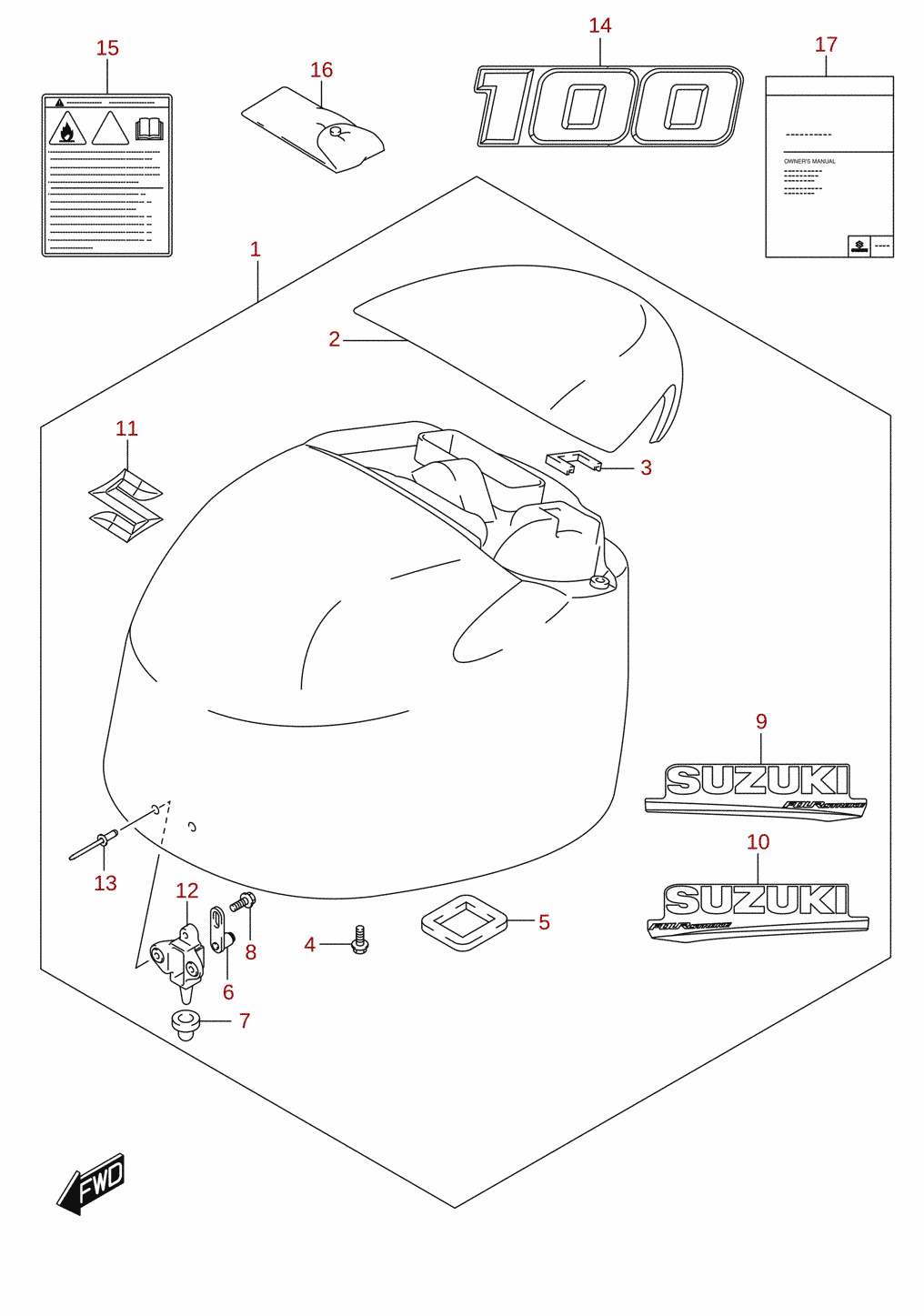

Motorkåpa (2020) (DF100B)
Referensnr. DF90A_E11_023 73

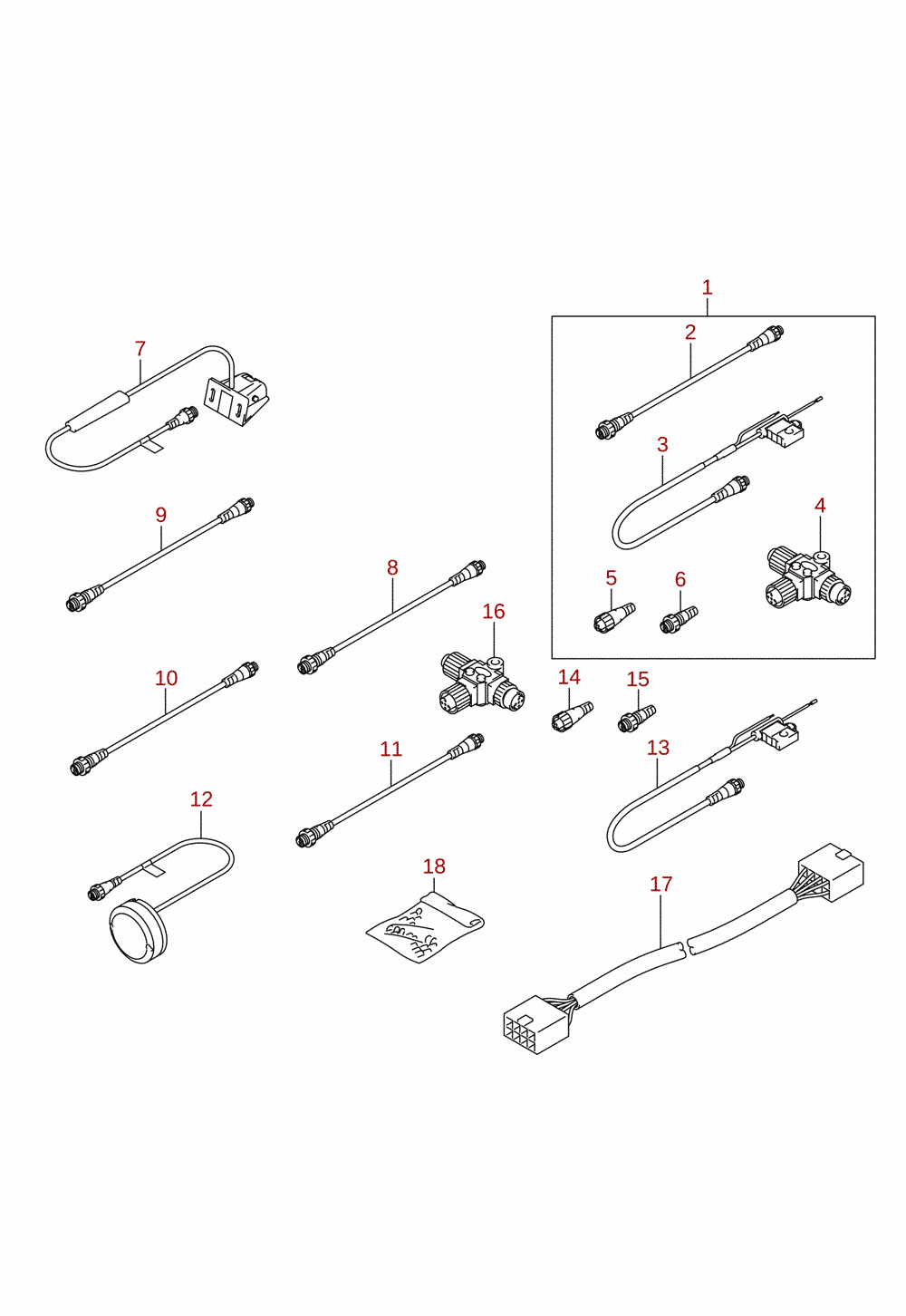

Multifunktionsinstrument (2) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 120

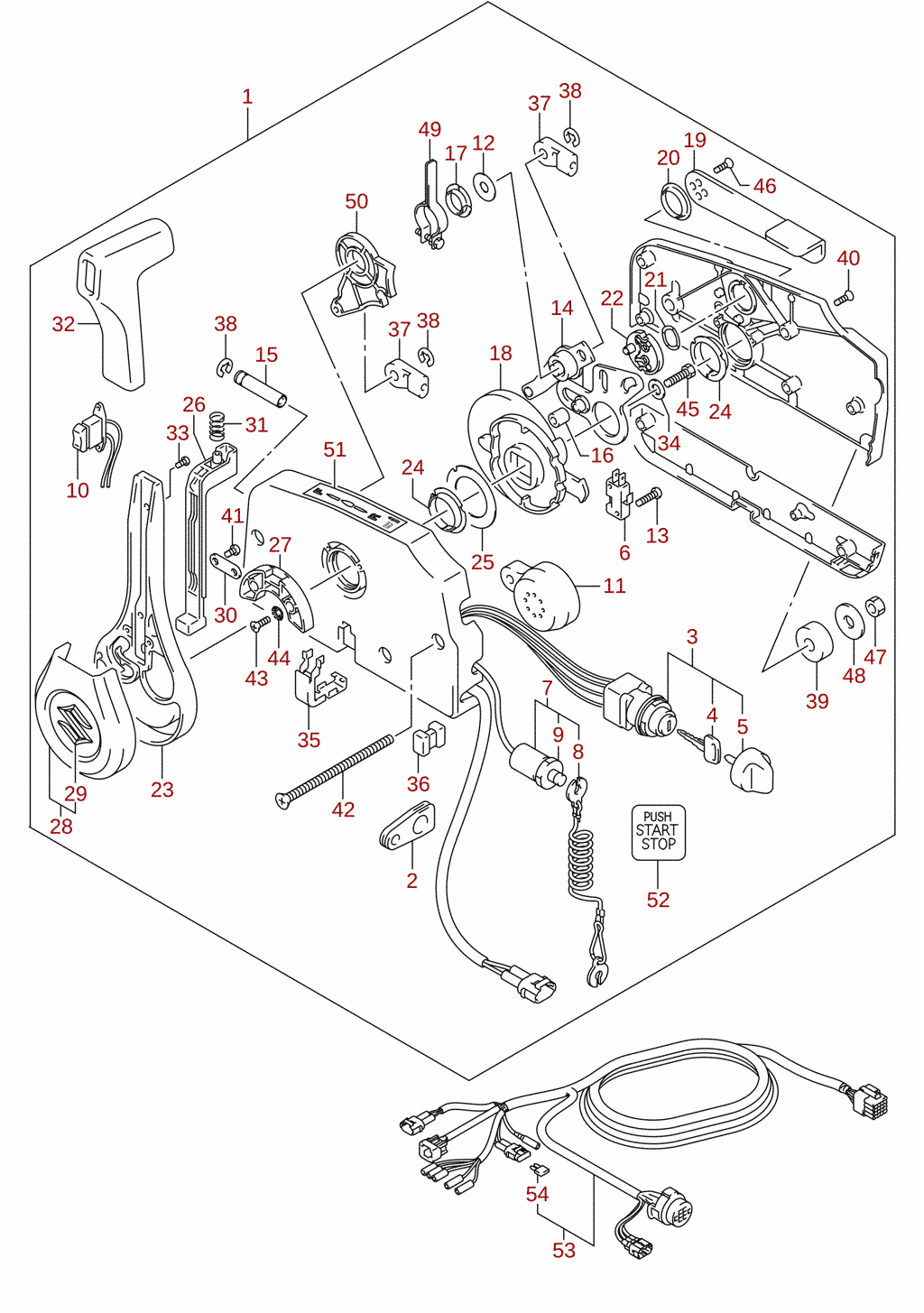

Reglage (tillval)
Referensnr. DF90A_E11_023 94

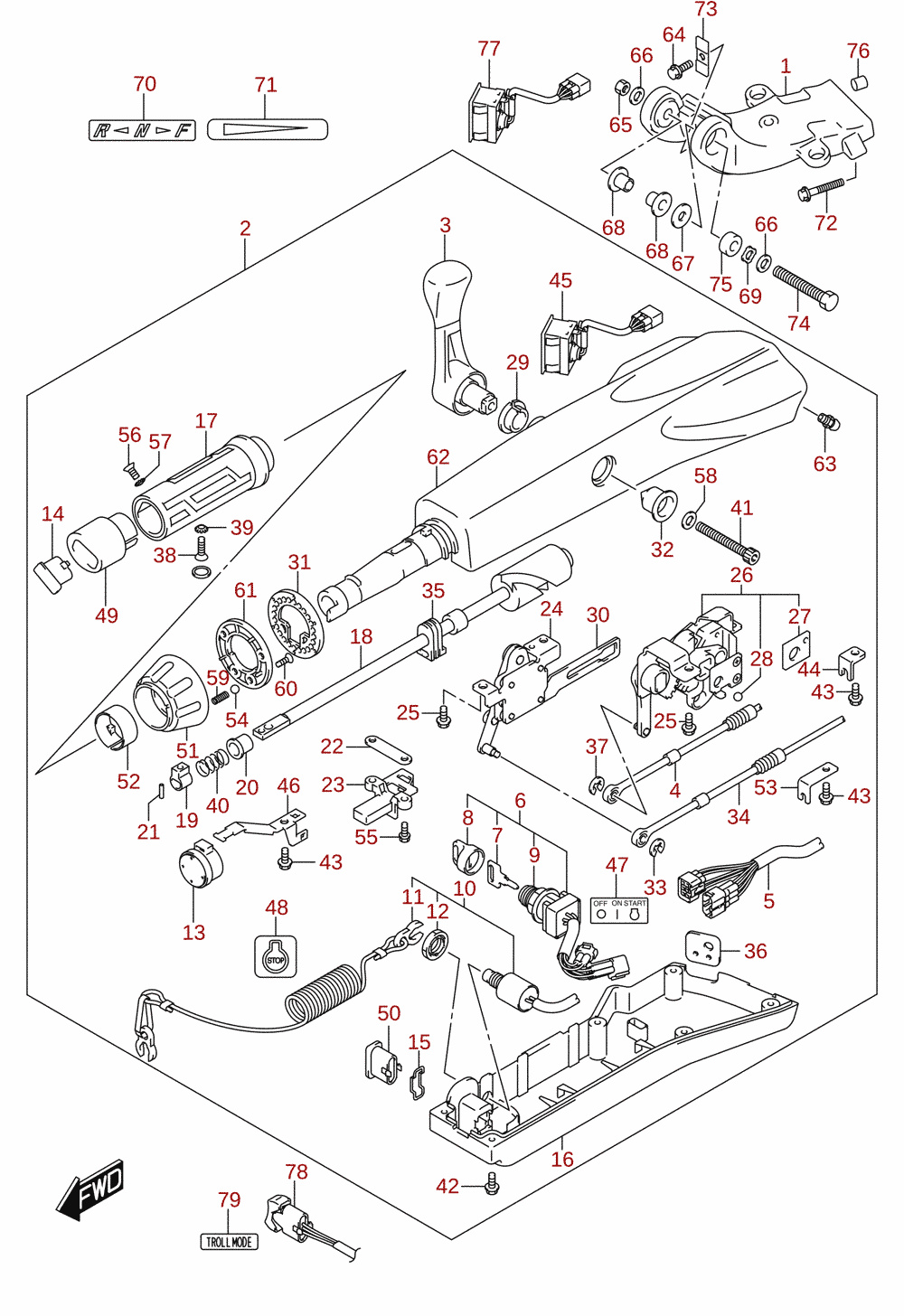

Styrkult (DF90AWQH)
Referensnr. DF90A_E11_023 83

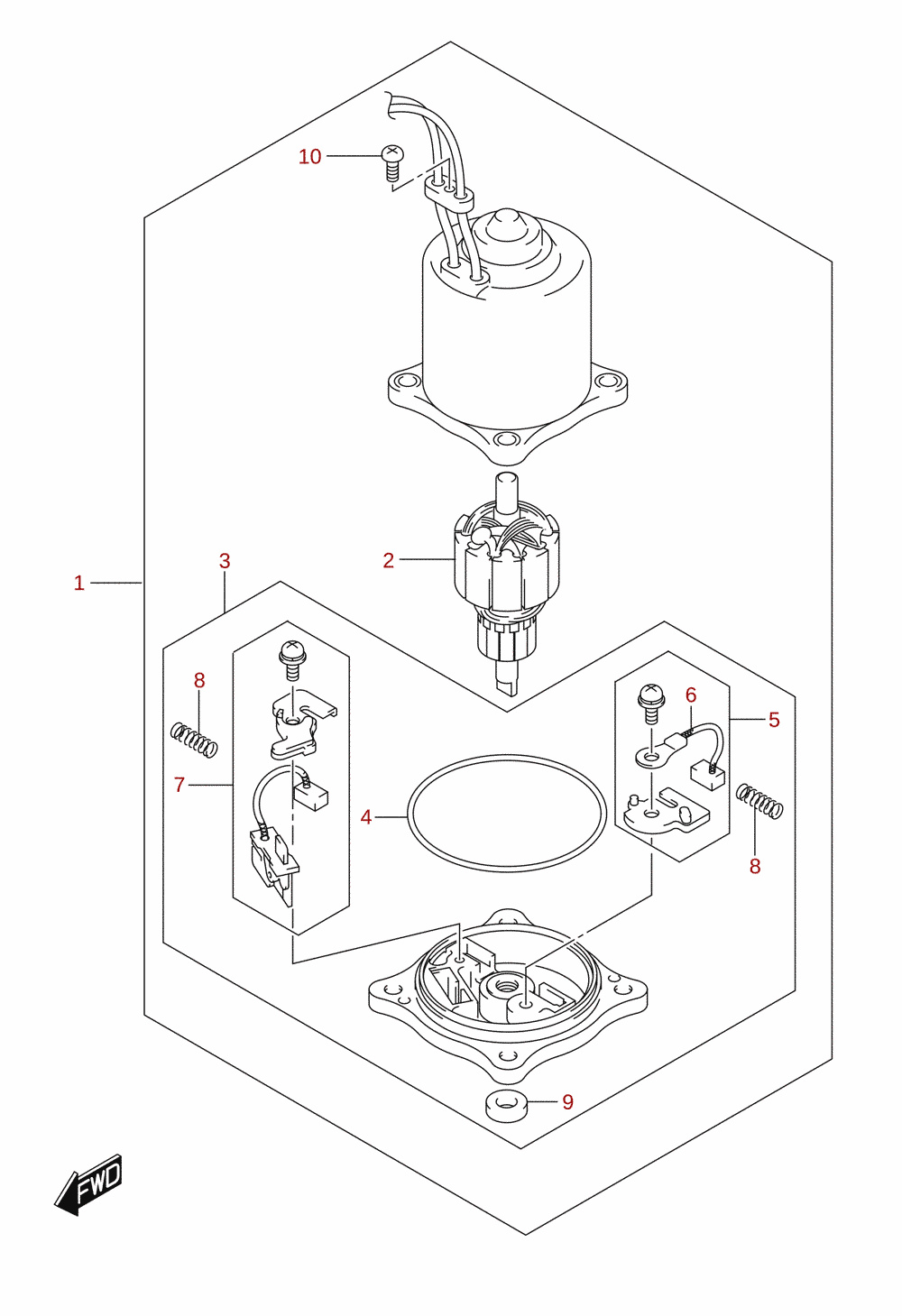

PTT-motor 2/2
Referensnr. DF90A_E11_023 55

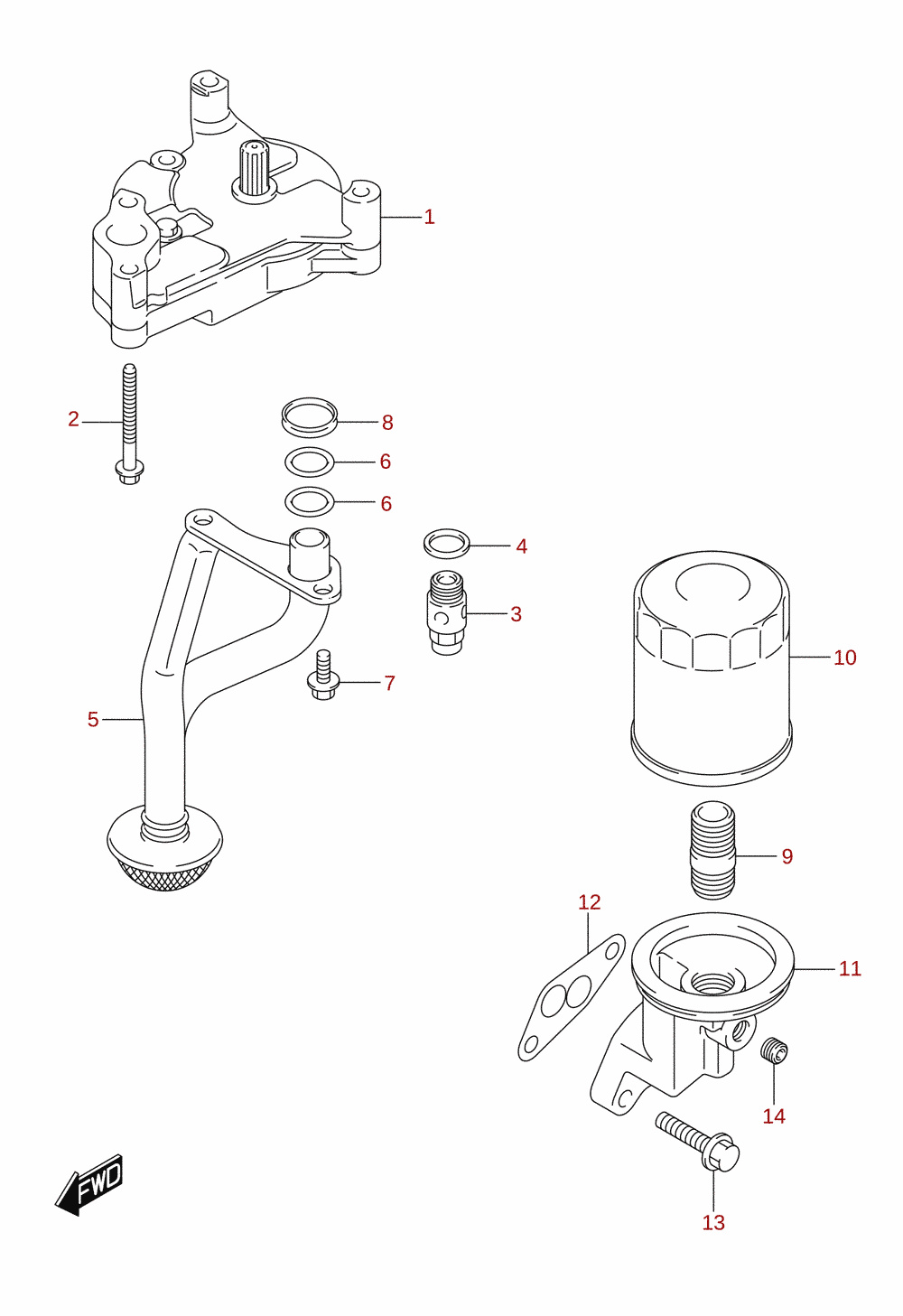

Oljepump
Referensnr. DF90A_E11_023 21

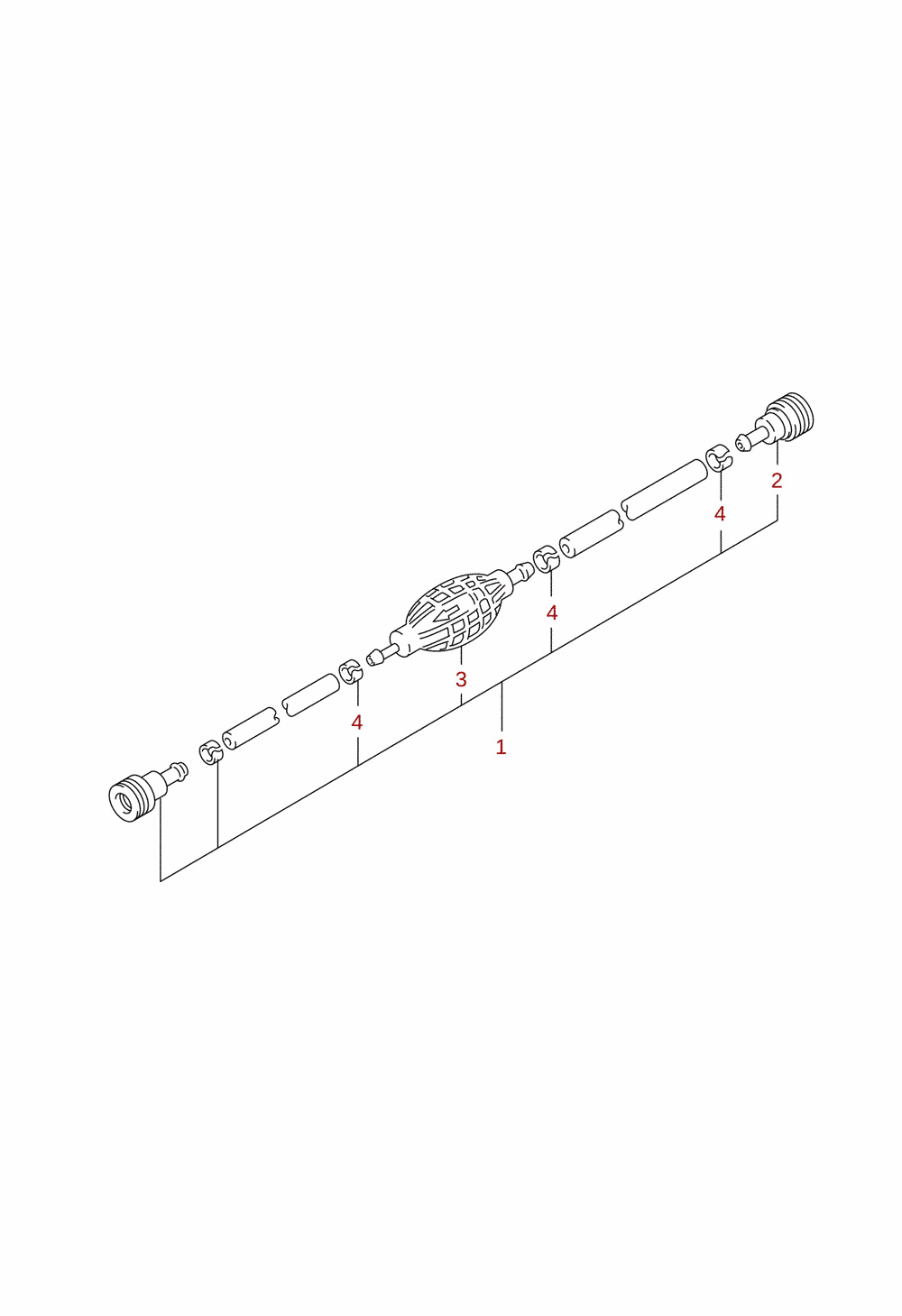

Bränsleslang (DF75A)
Referensnr. DF90A_E11_023 75

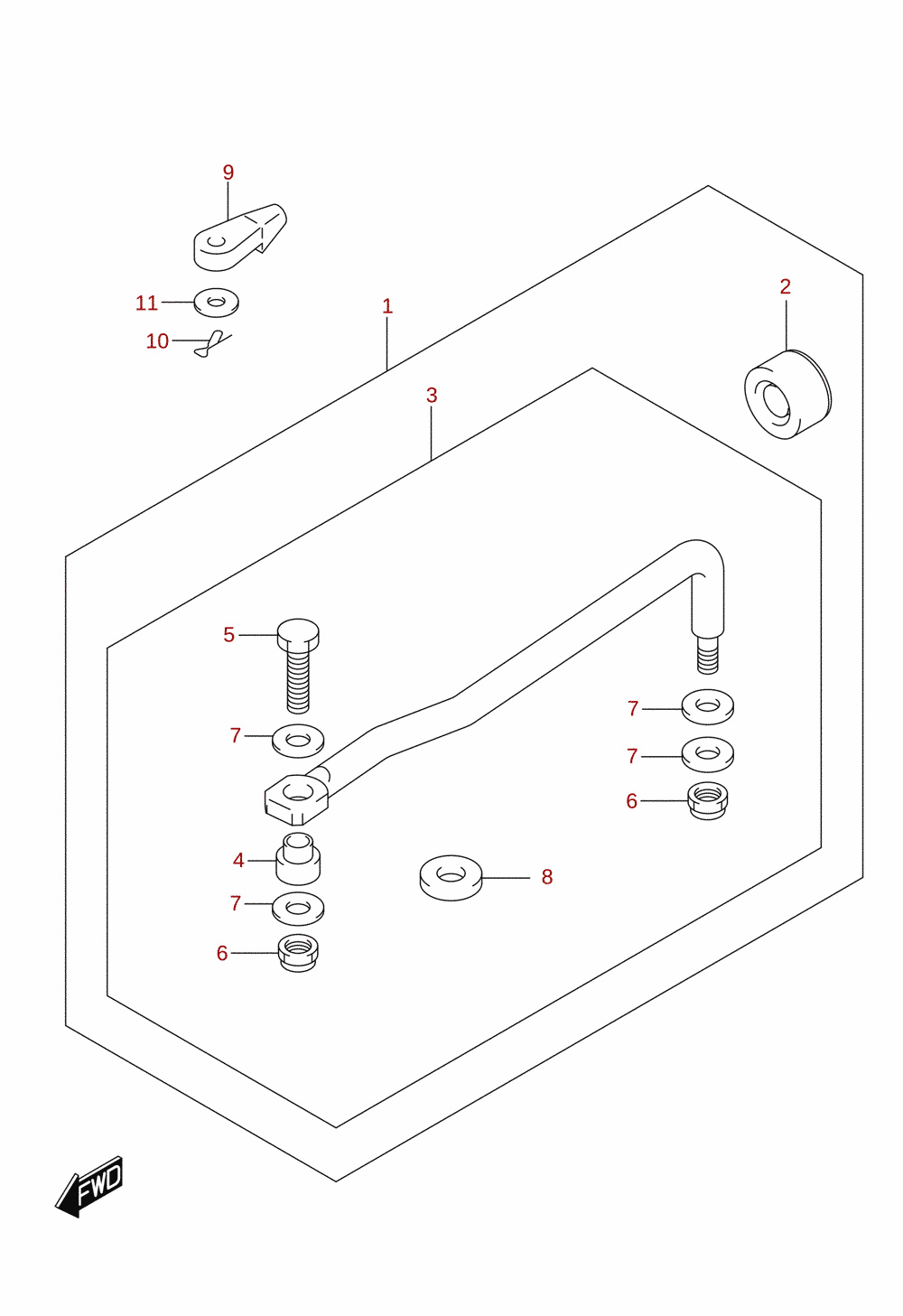

Styrstag (DF70ATH, DF90ATH) 2/2
Referensnr. DF90A_E11_023 80

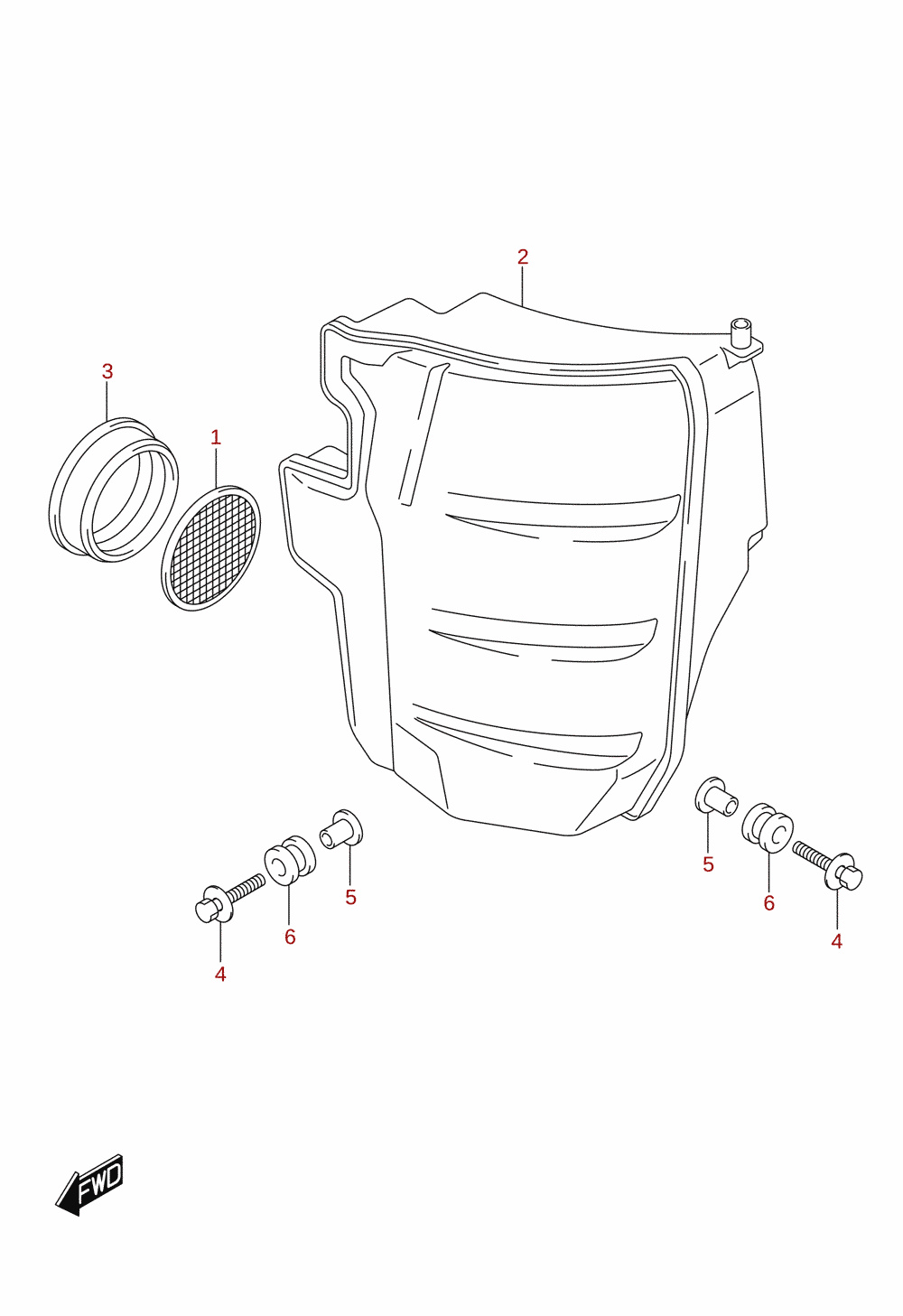

Insugsljuddämpare
Referensnr. DF90A_E11_023 10

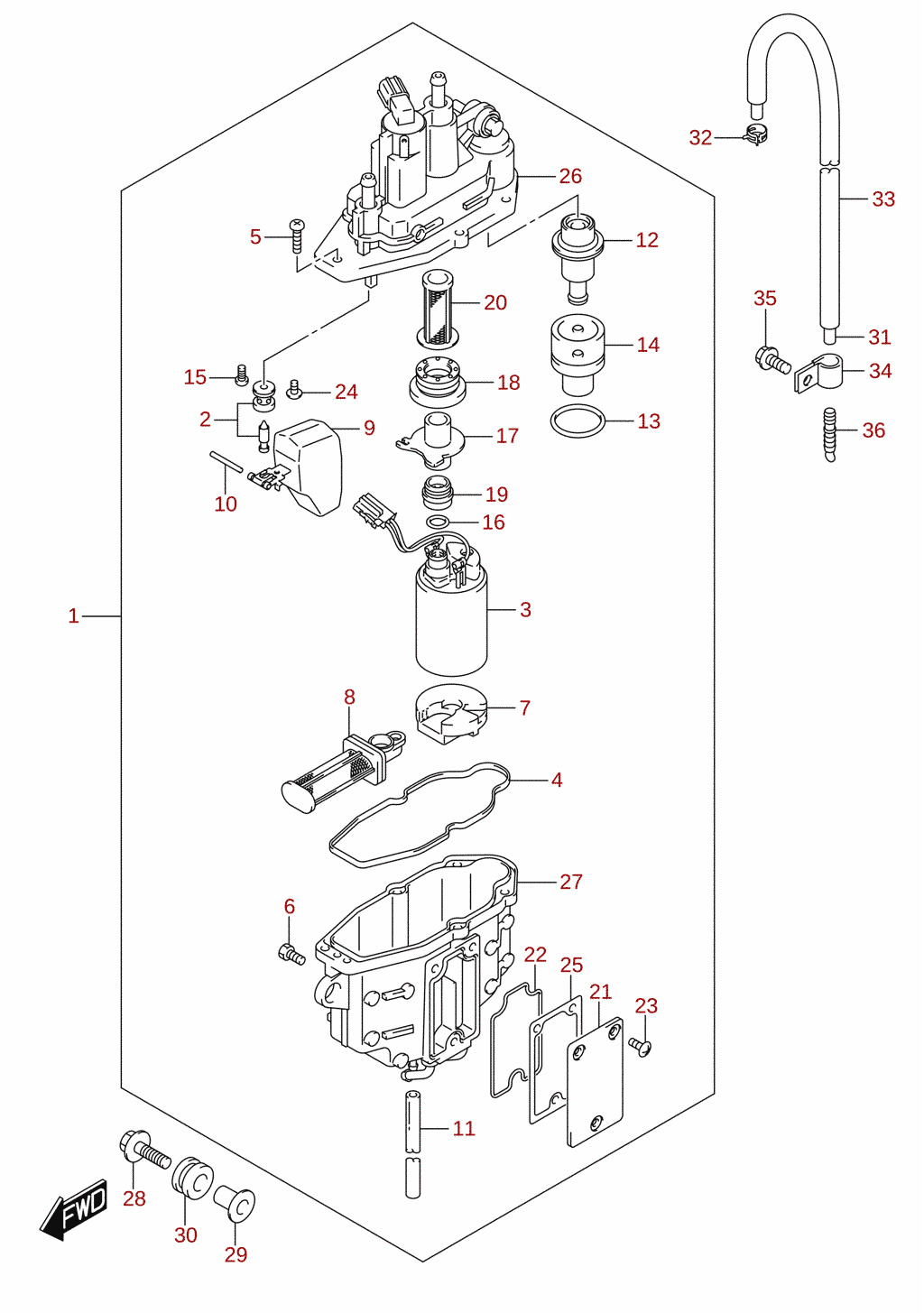

Bränsleångavskiljare
Referensnr. DF90A_E11_023 13

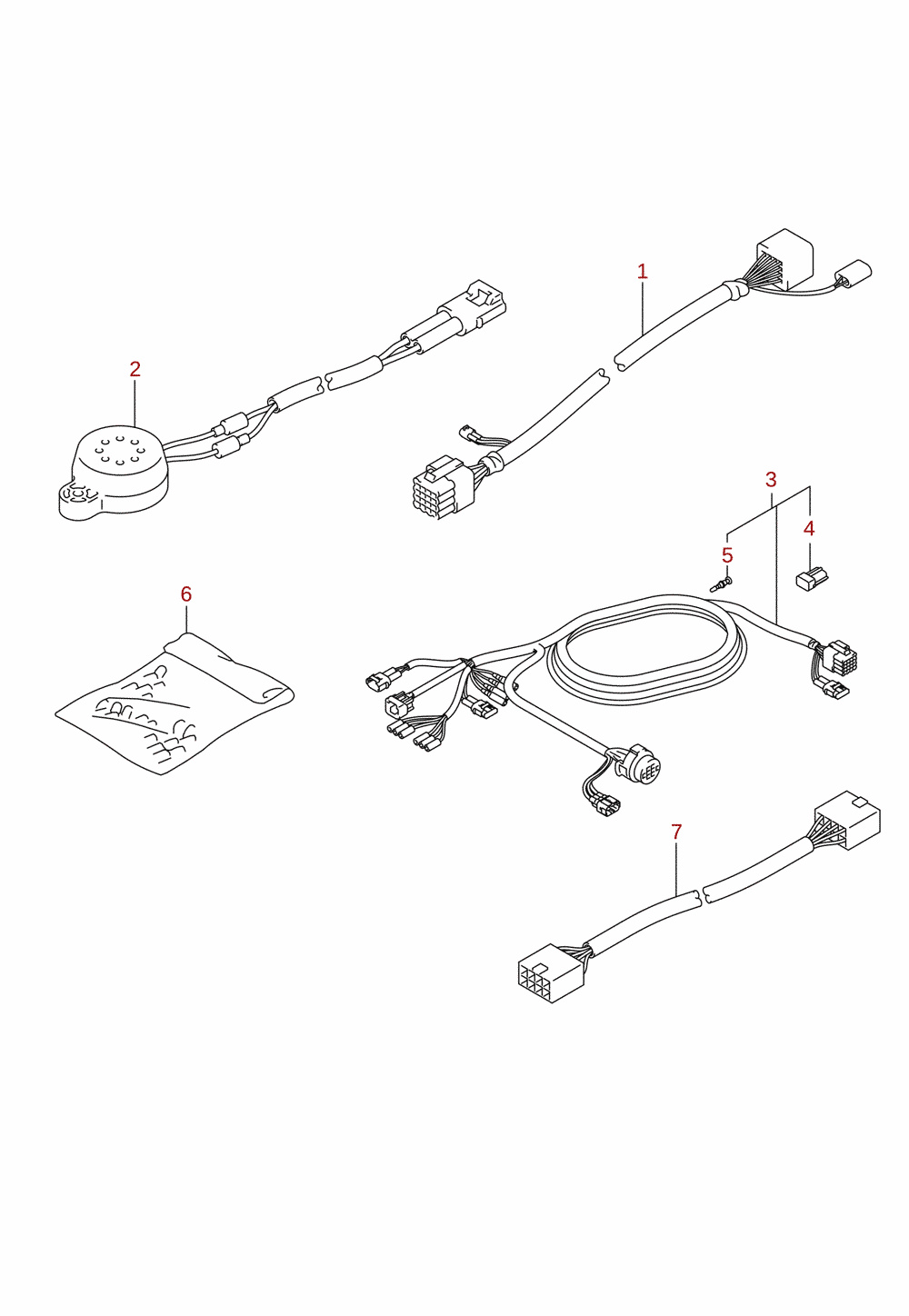

Kabelstam (2023) (DF70ATH, DF90ATH) (tillval)
Referensnr. DF90A_E11_023 106

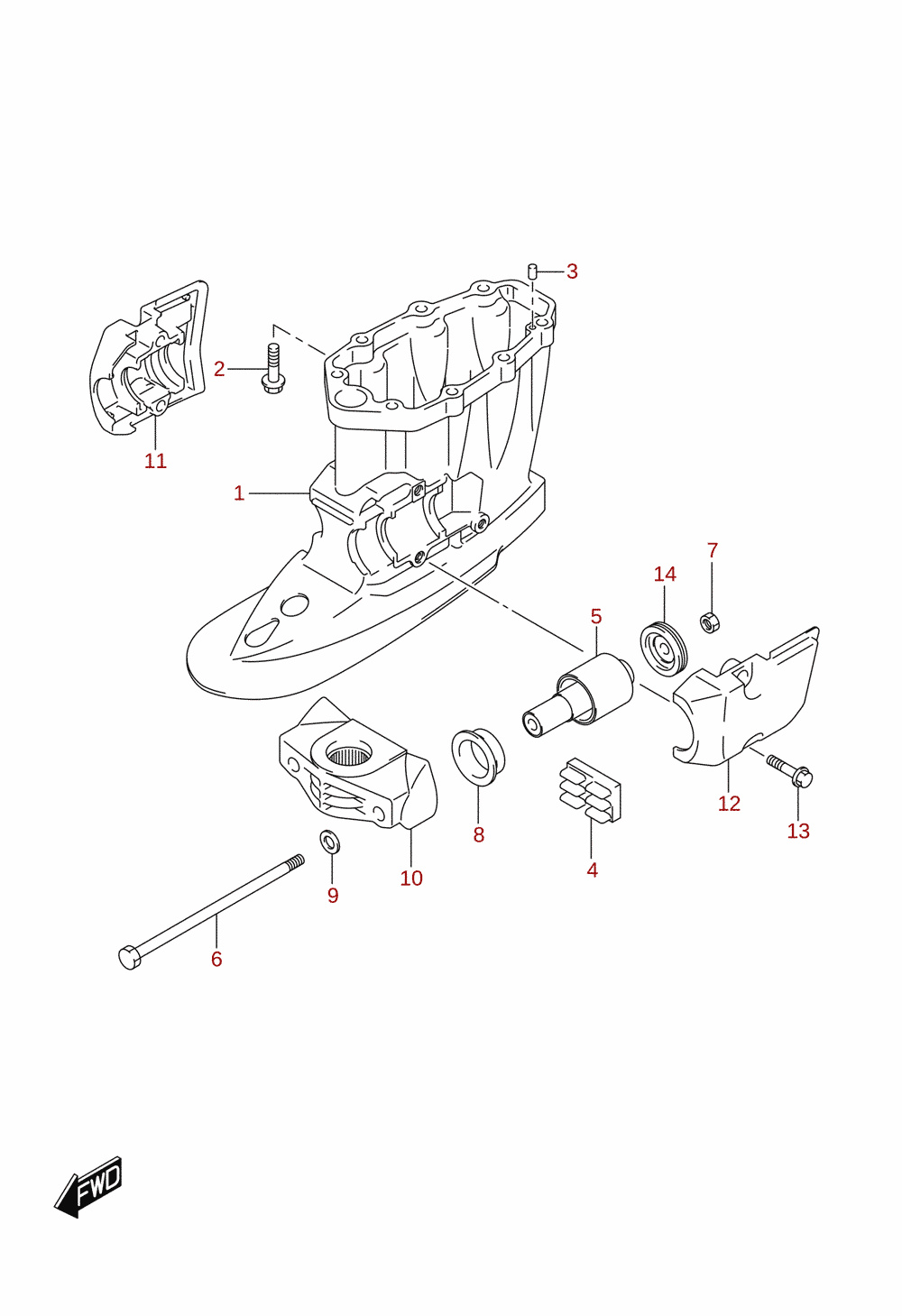

Drivaxelhus (DF70ATH, DF90ATH)
Referensnr. DF90A_E11_023 57

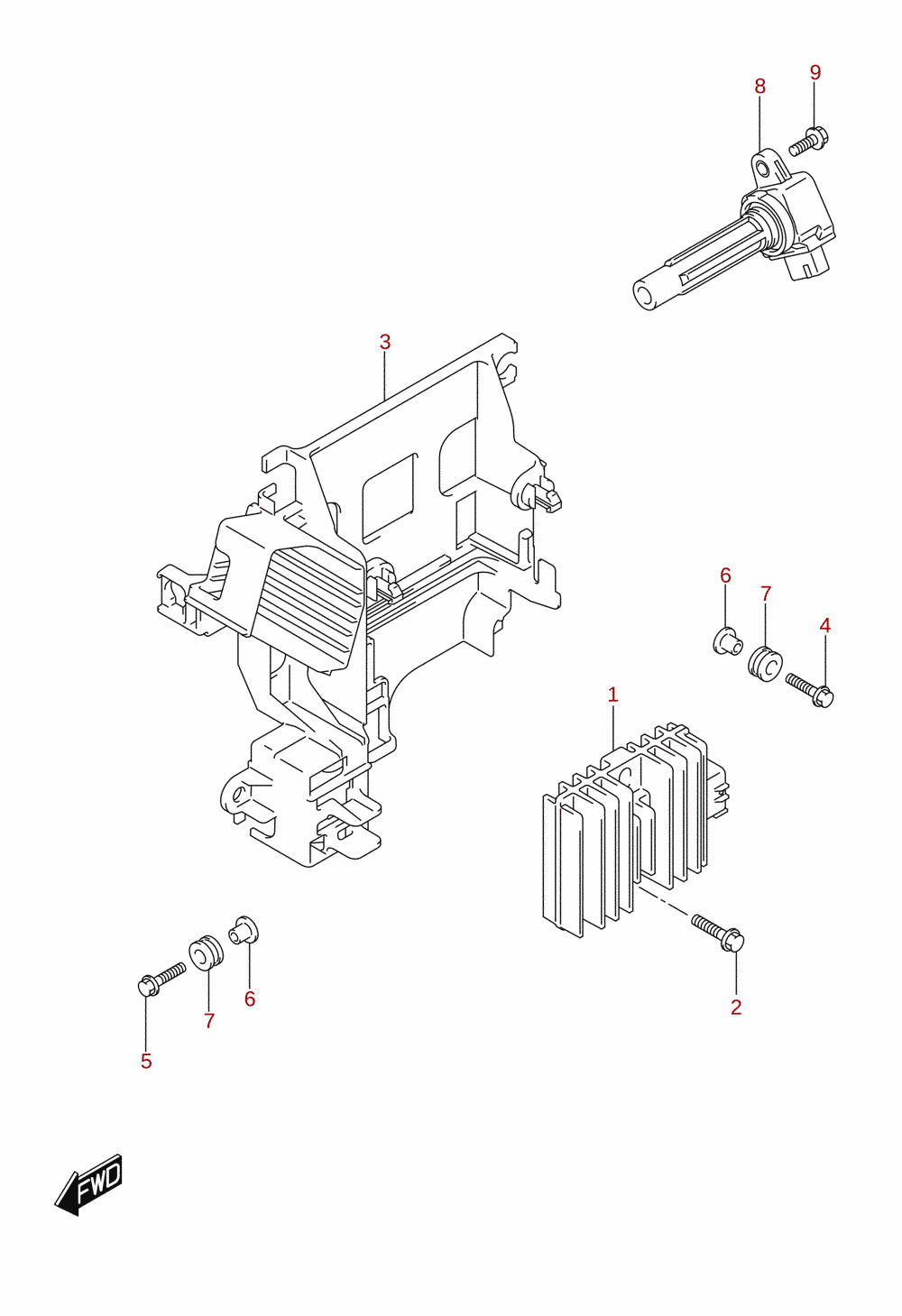

Likriktare / tändspole
Referensnr. DF90A_E11_023 28

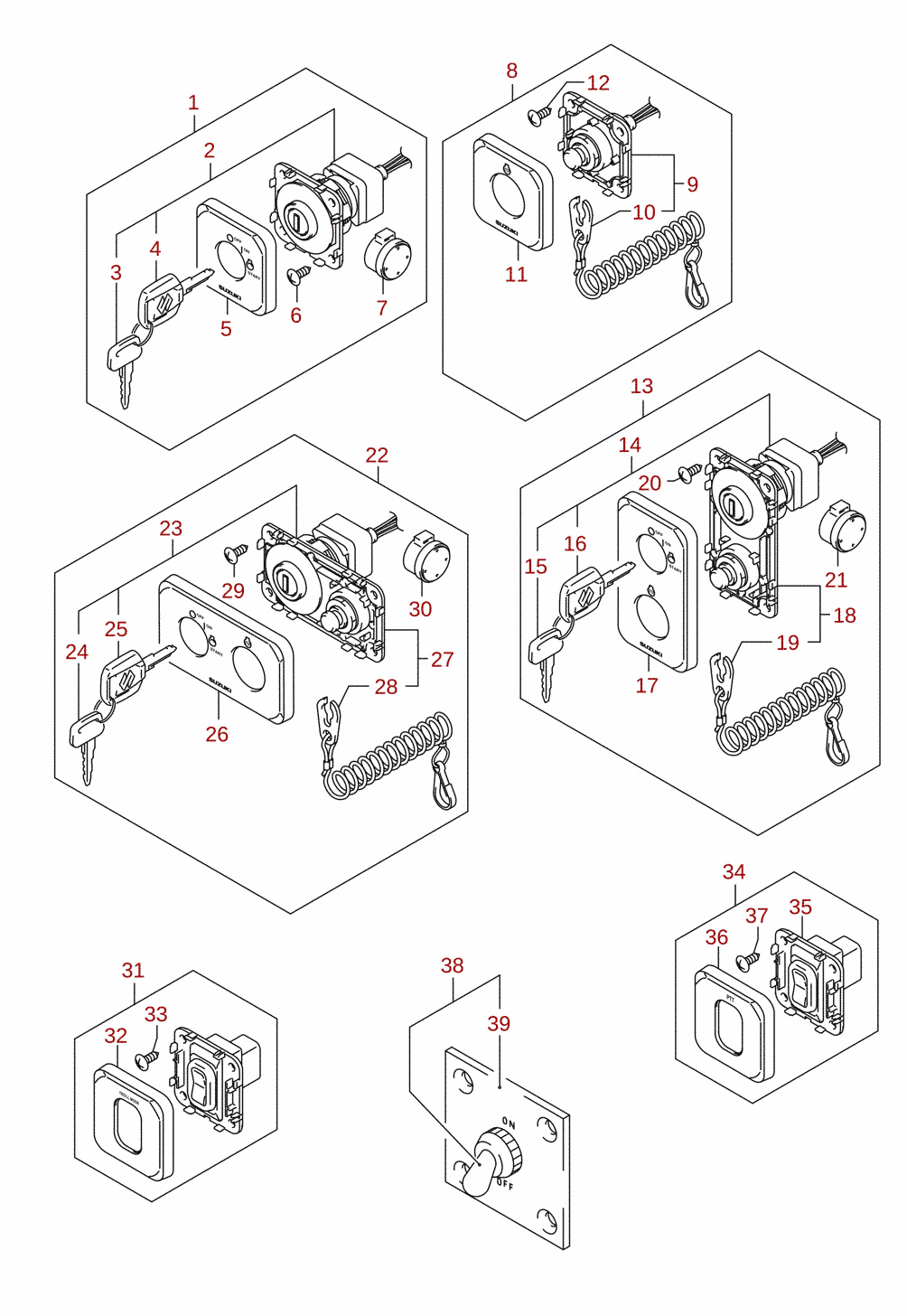

Brytare (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH) (tillval)
Referensnr. DF90A_E11_023 108

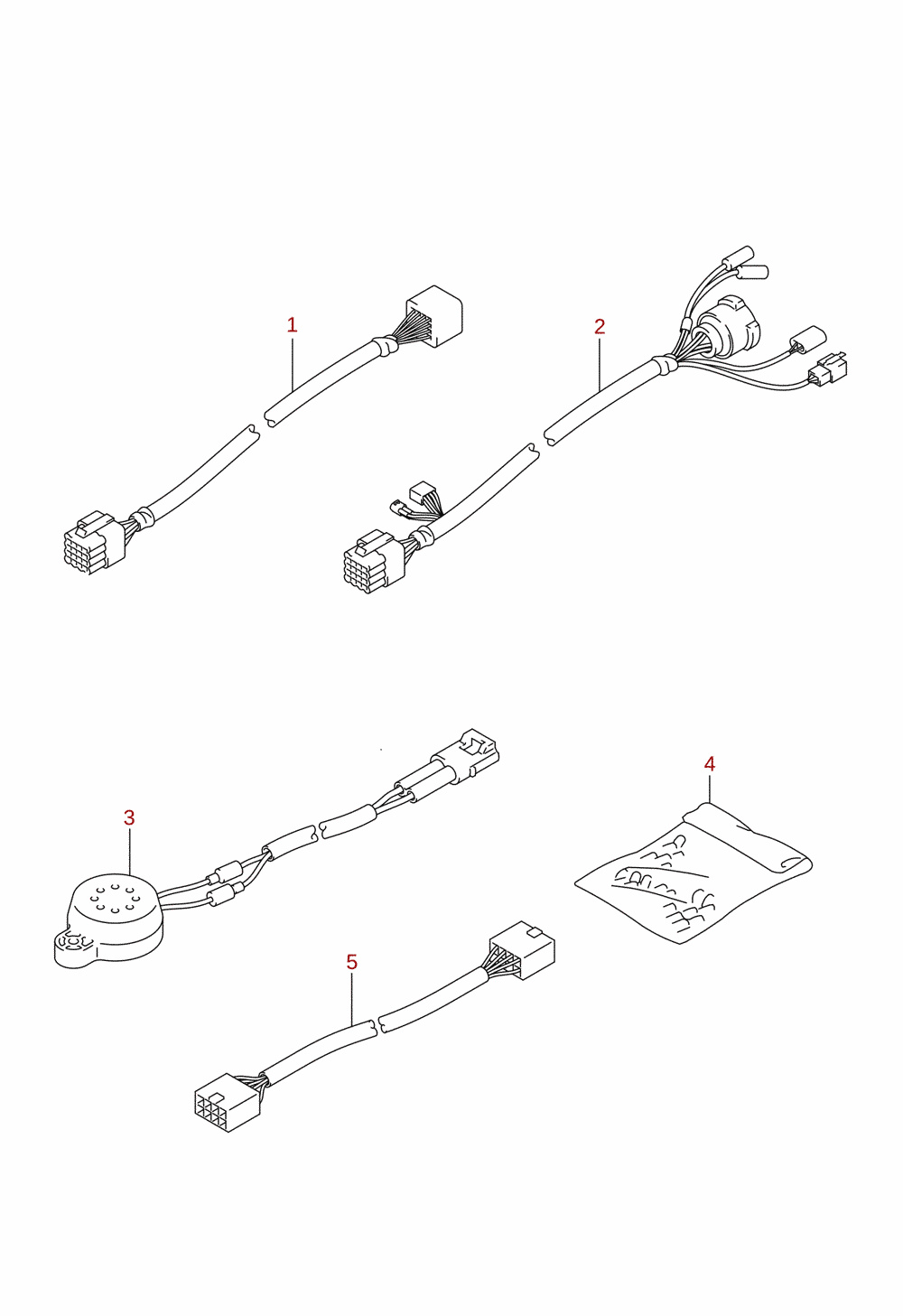

Kabelstam (2022) (DF100B, DF70A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 99

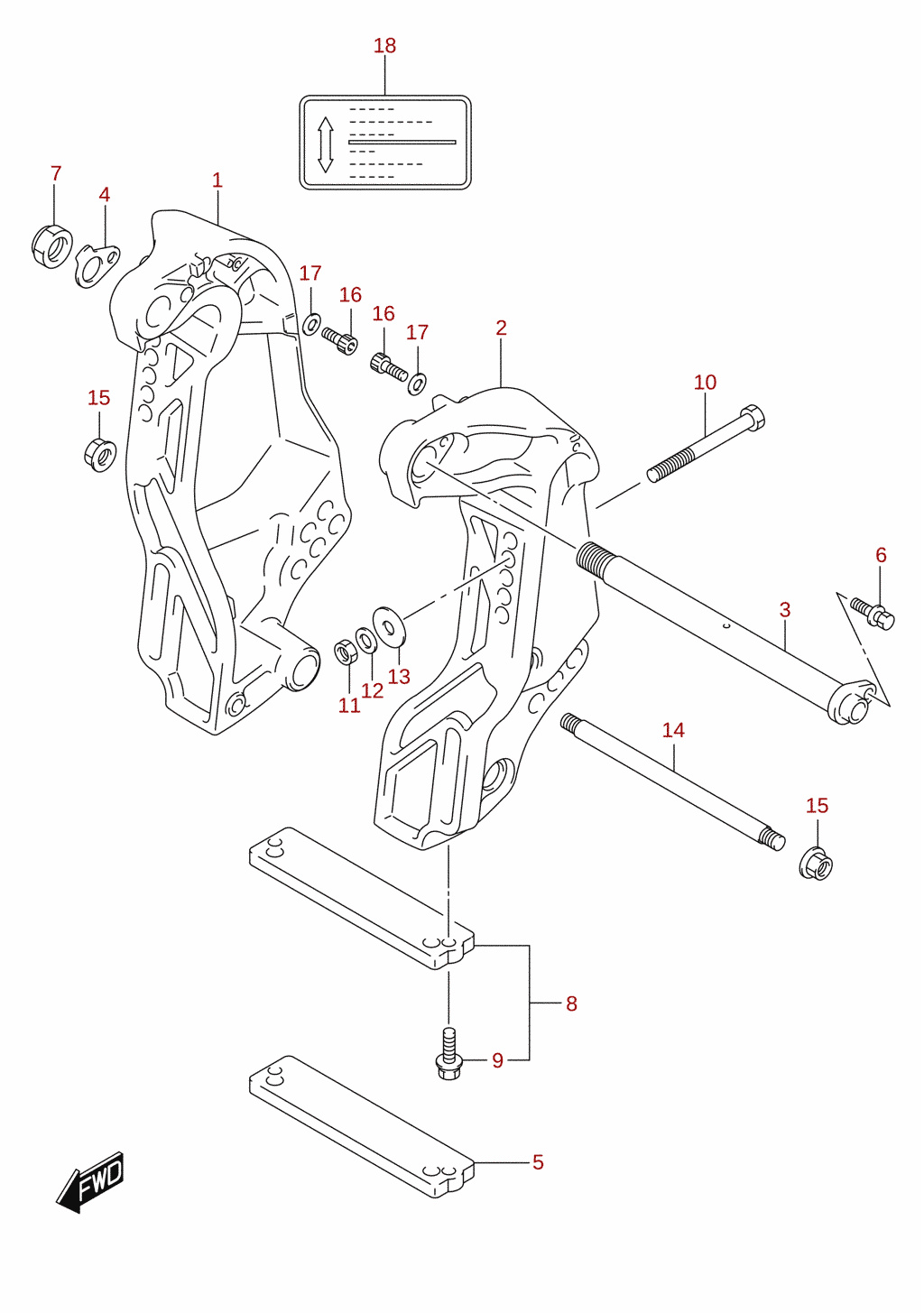

Akterspegelsfäste (DF90AWQH)
Referensnr. DF90A_E11_023 46

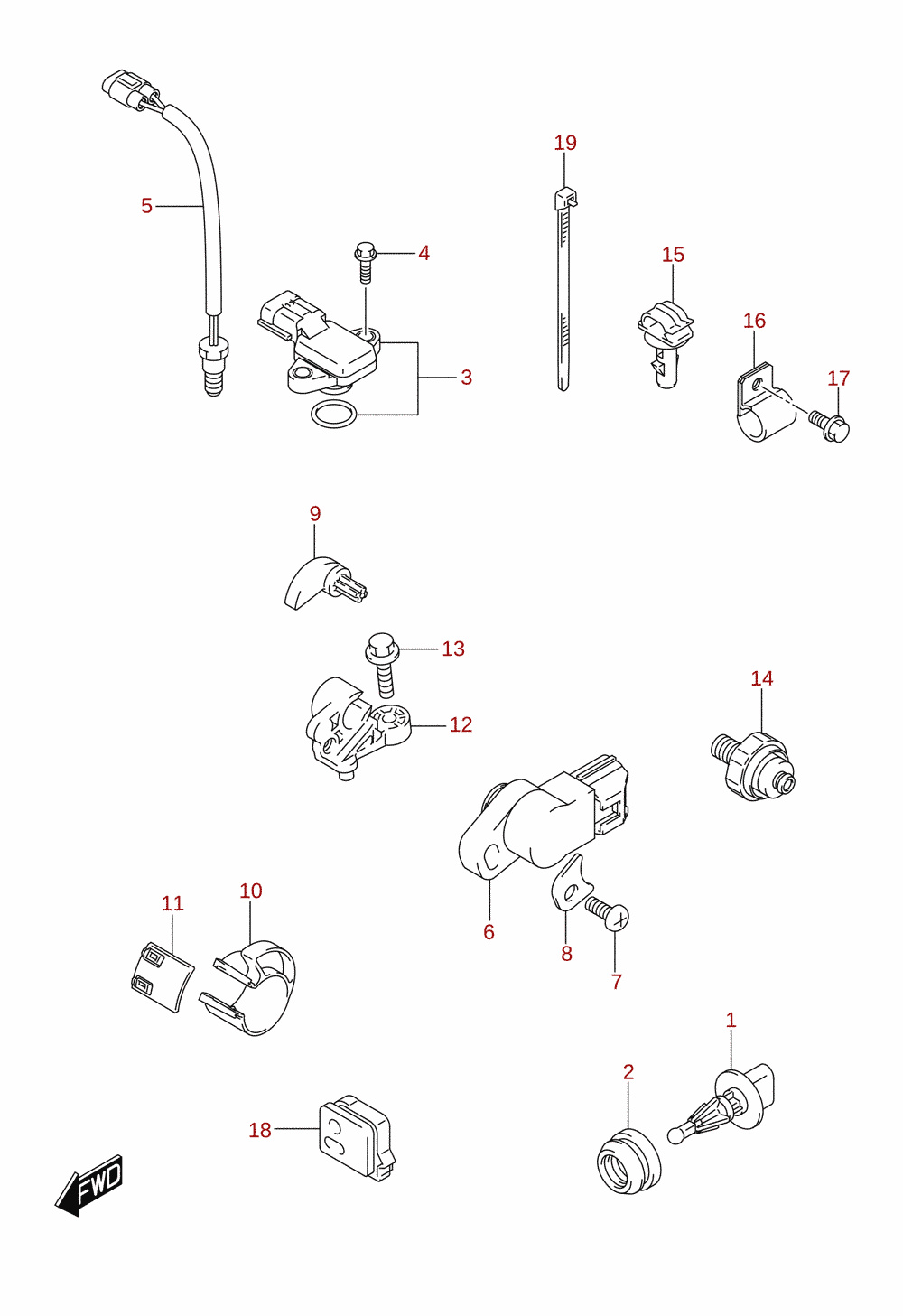

Givare (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 30

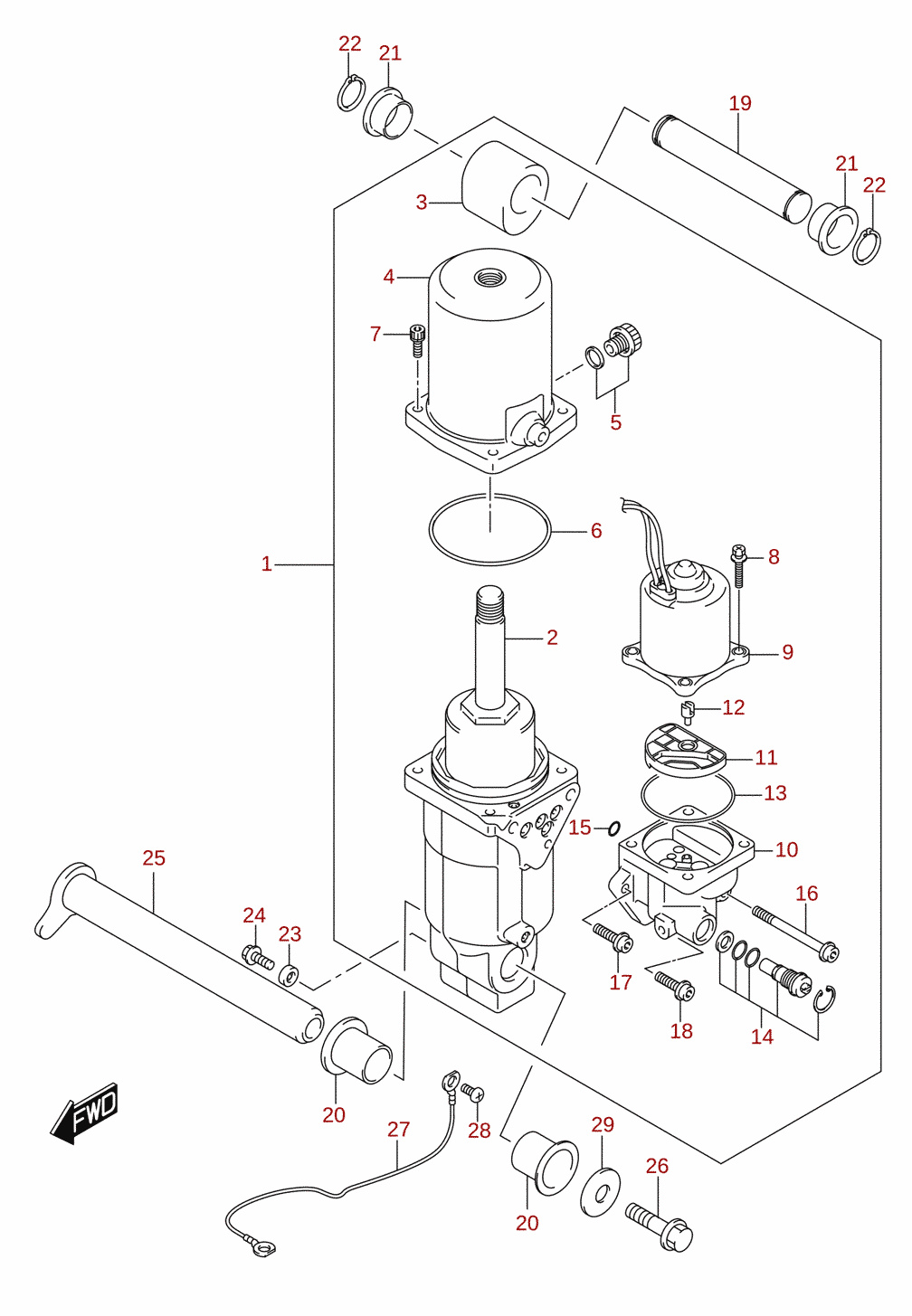

Trimcylinder 2/2
Referensnr. DF90A_E11_023 52

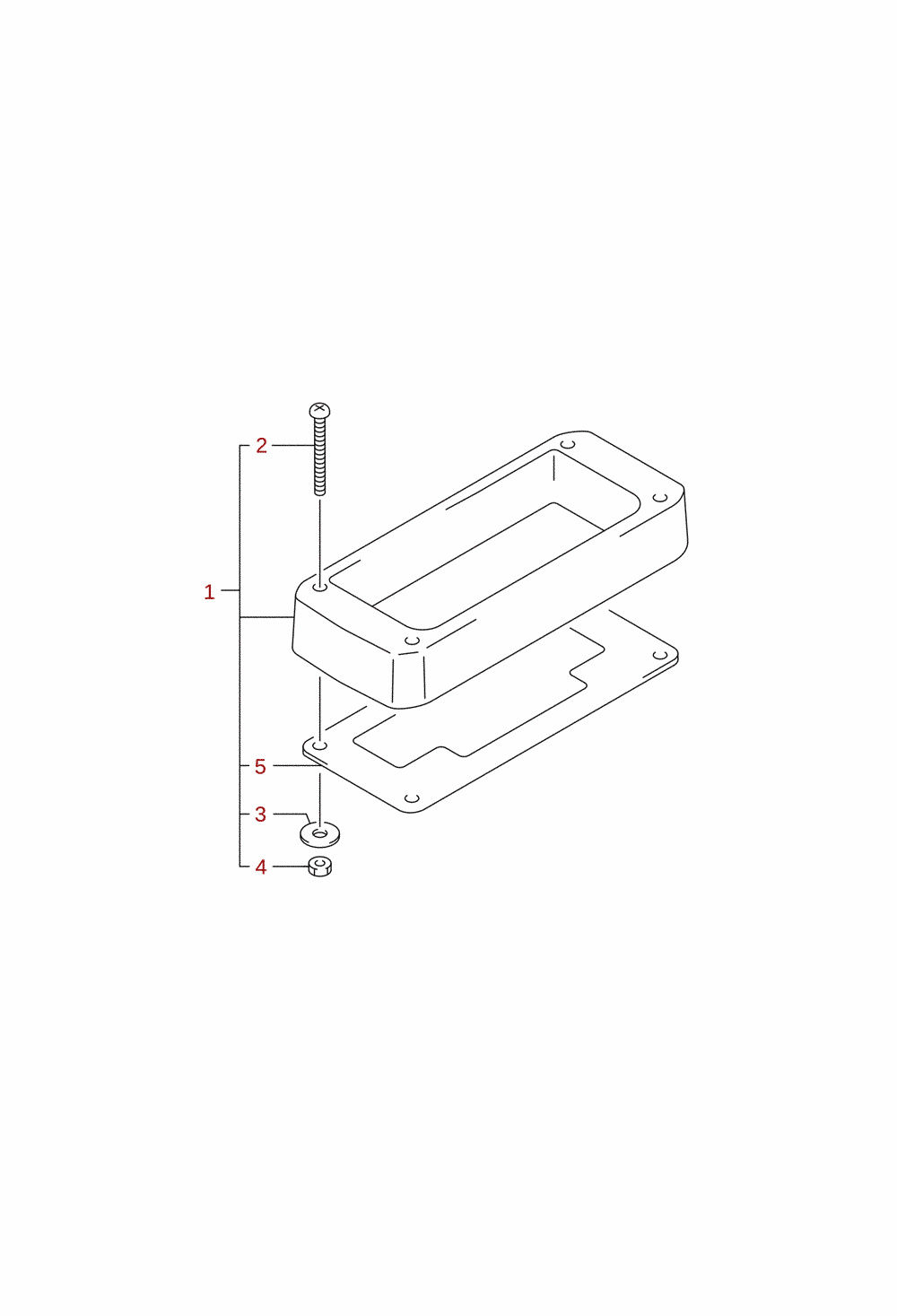

Distans för reglage (DF100B, DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH) (tillval)
Referensnr. DF90A_E11_023 97

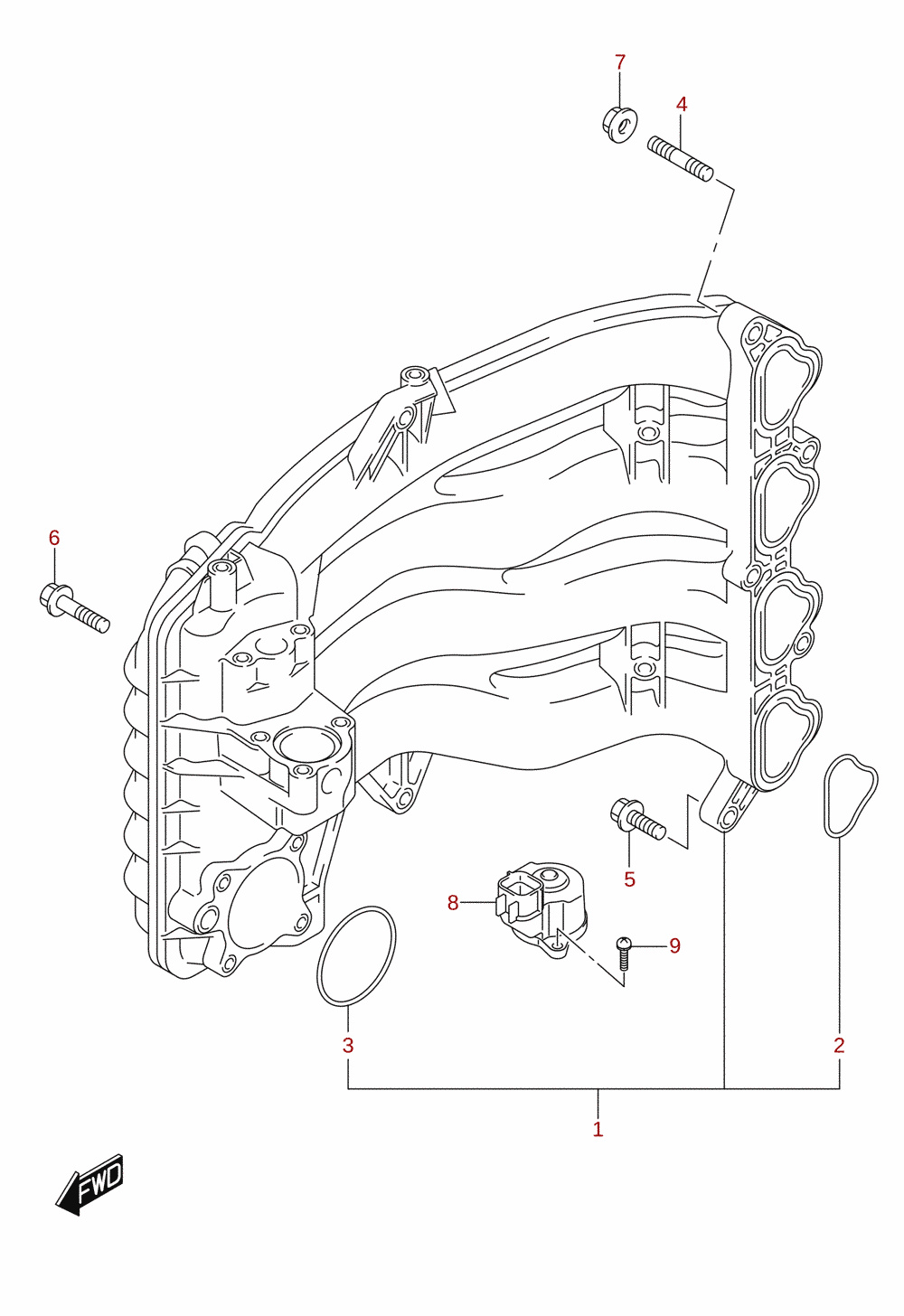

Insugningsrör
Referensnr. DF90A_E11_023 9

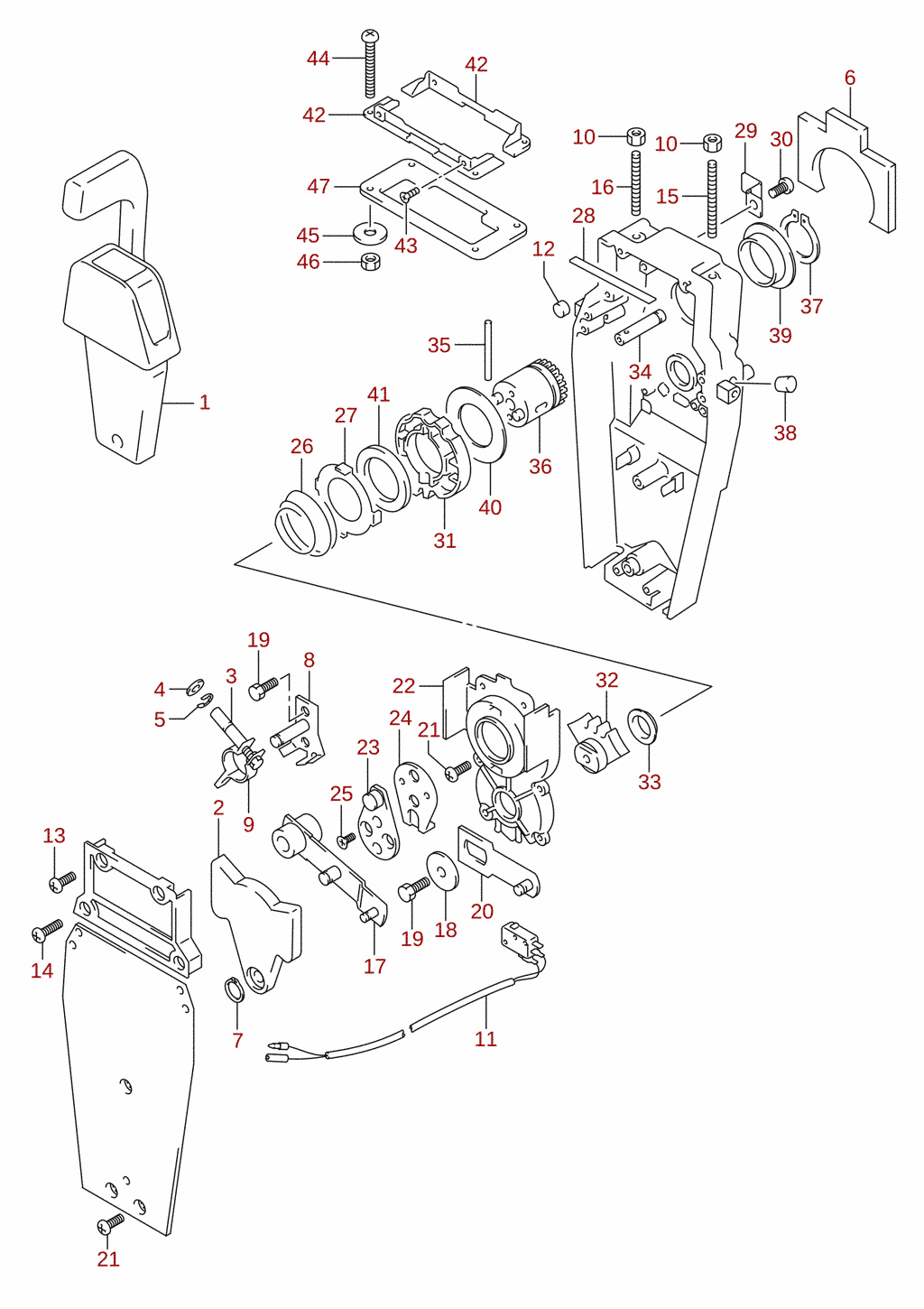

Reglage, enkelt (2) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 112

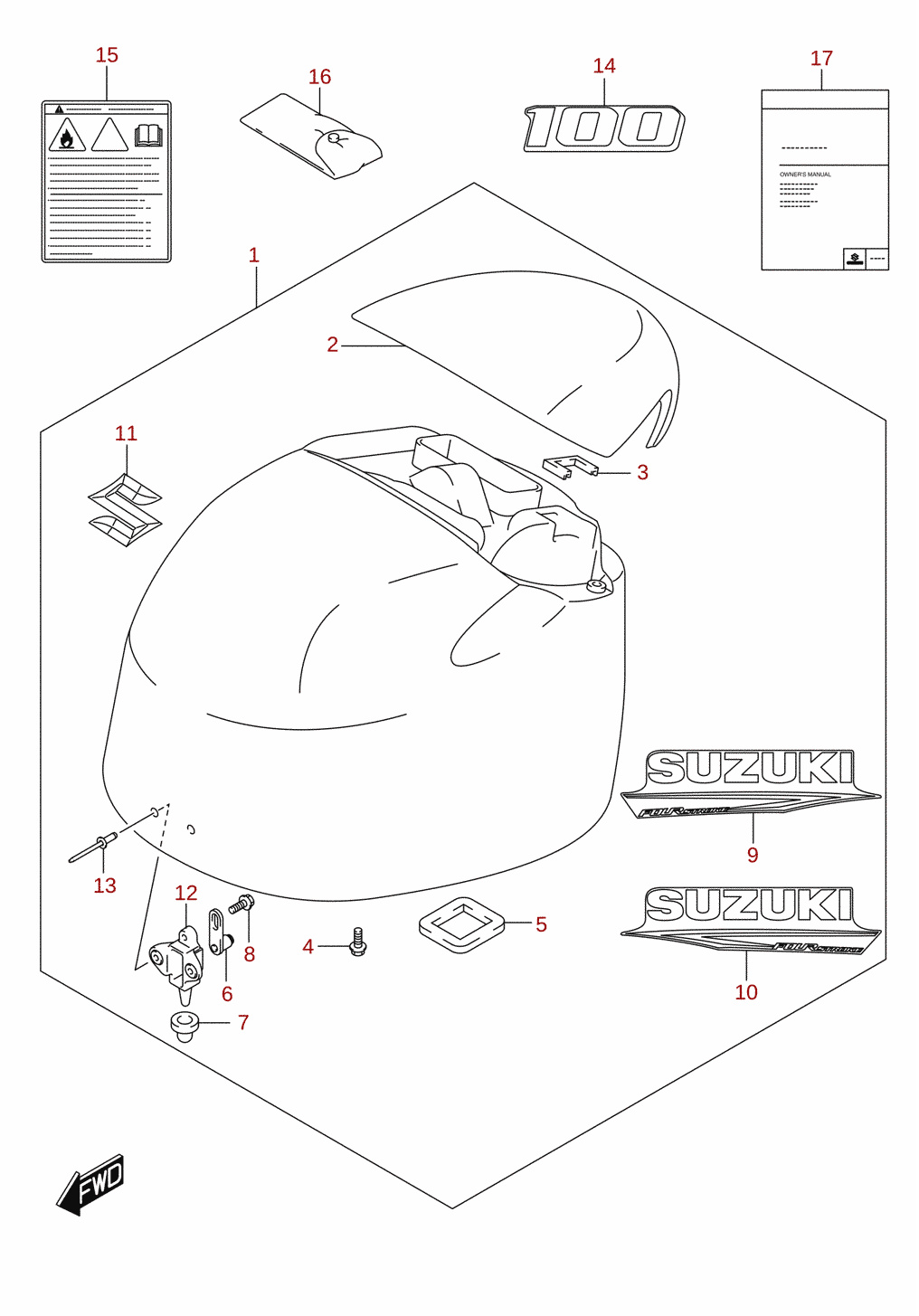

Motorkåpa (DF100B)
Referensnr. DF90A_E11_023 74

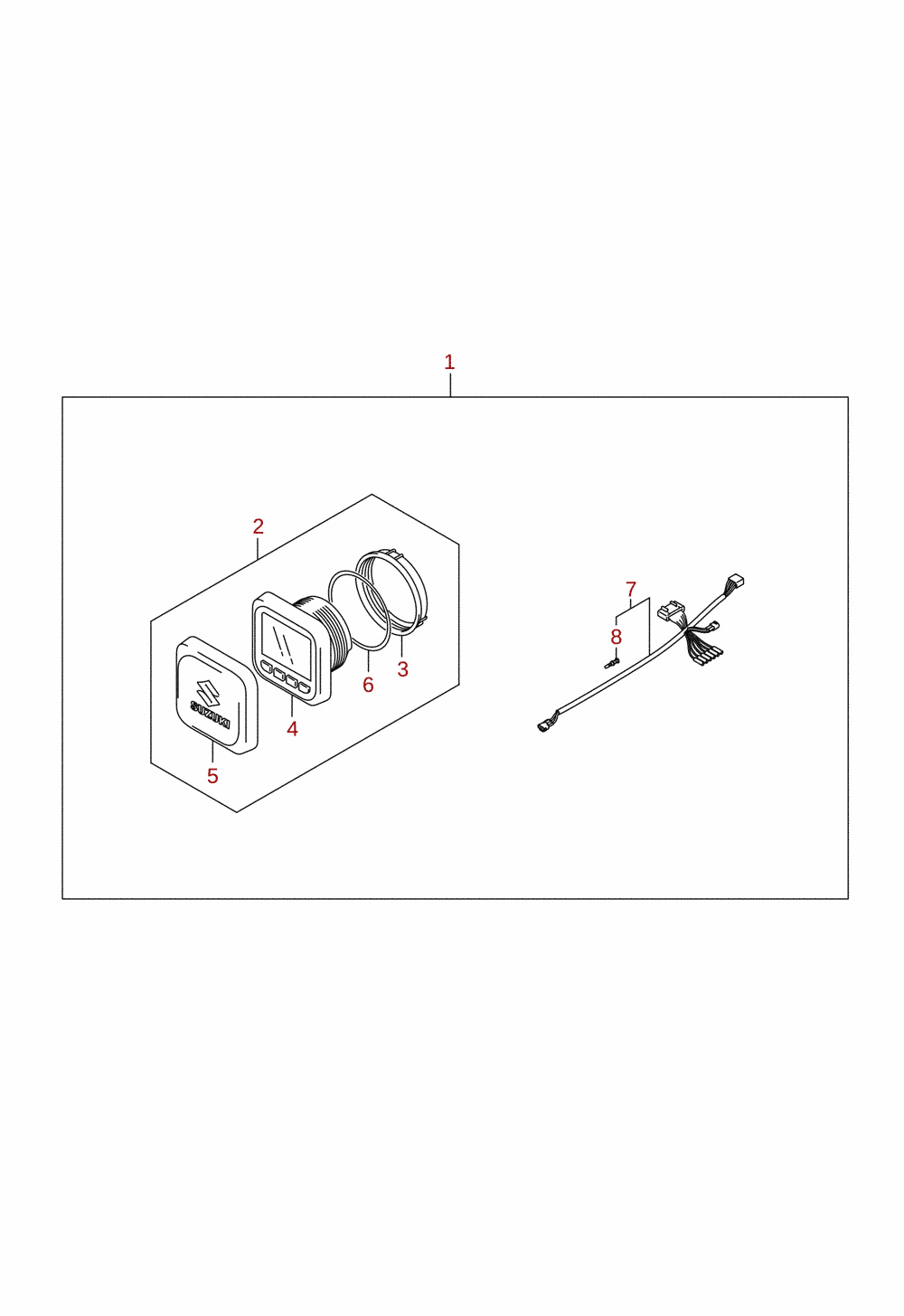

Multifunktionsinstrument (1) (DF100B, DF70A, DF80A, DF90A, DF90AWQH) (tillval)
Referensnr. DF90A_E11_023 118
Styrkult (DF70ATH, DF90ATH) 2/2
Referensnr. DF90A_E11_023 82

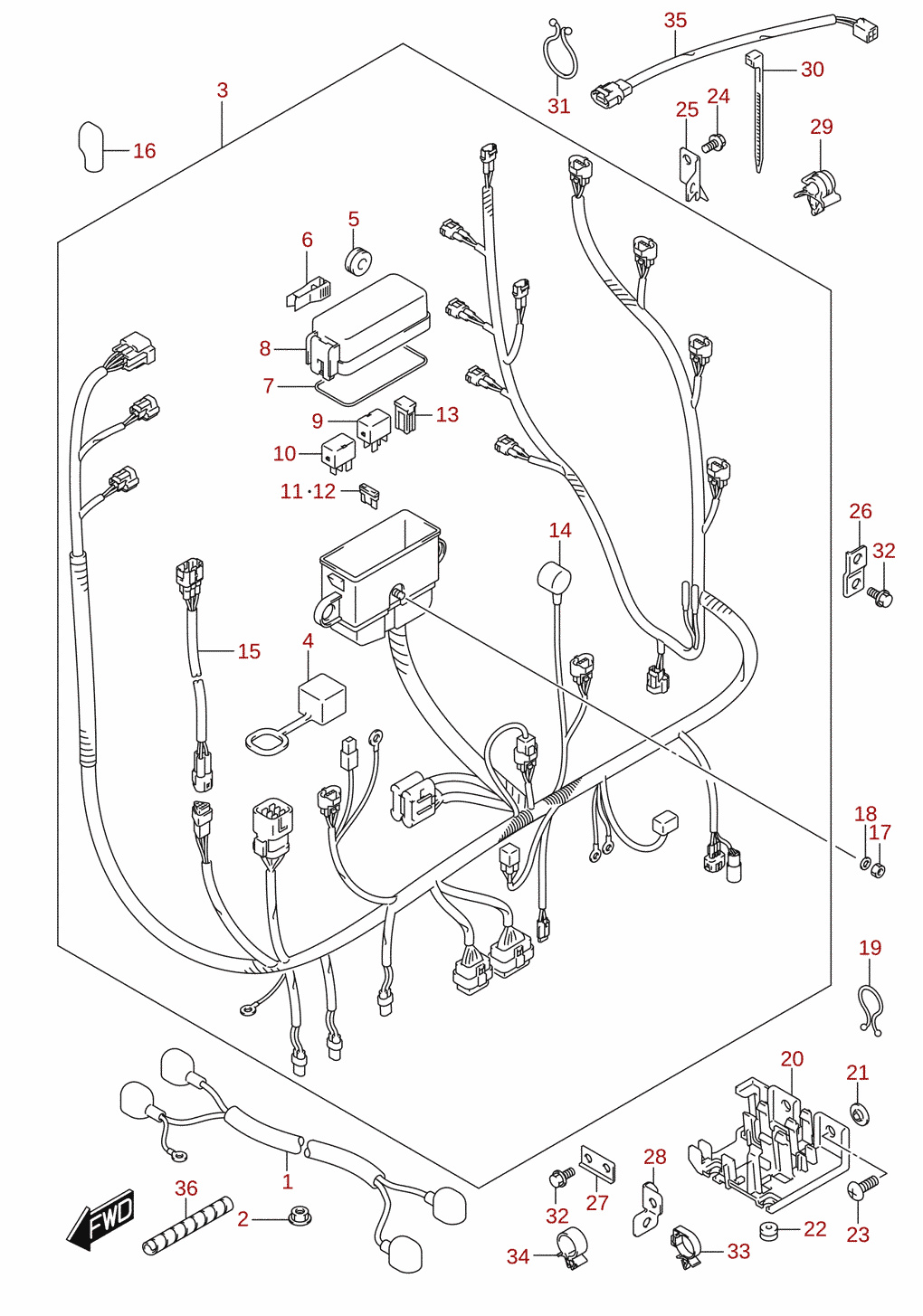

Kabelstam (DF70A, DF70ATH, DF75A, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 35

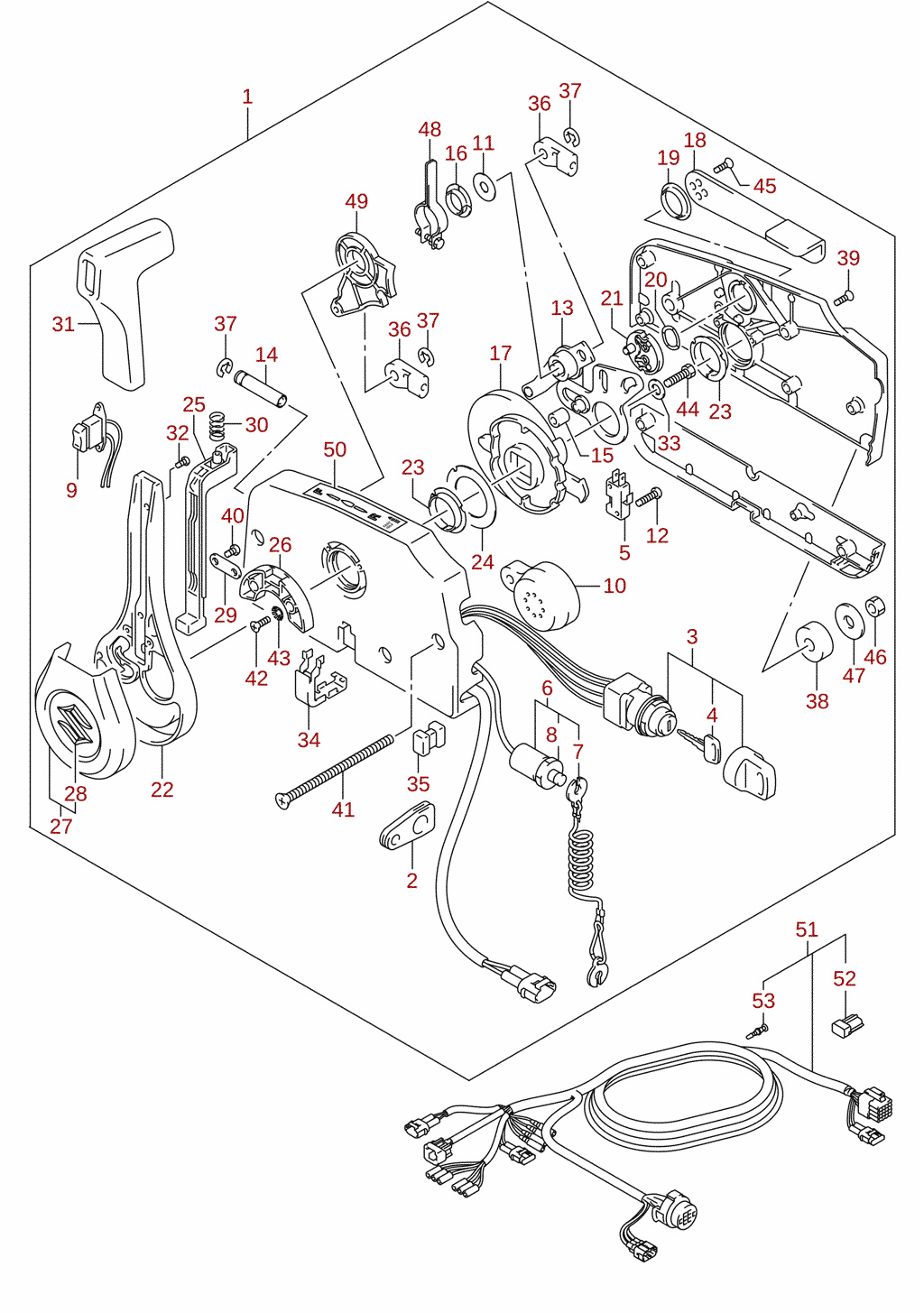

Reglage (2023) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 93
Motorkåpa (2020) (DF90)
Referensnr. DF90A_E11_023 70
Sidokåpa (DF90AWQH)
Referensnr. DF90A_E11_023 64

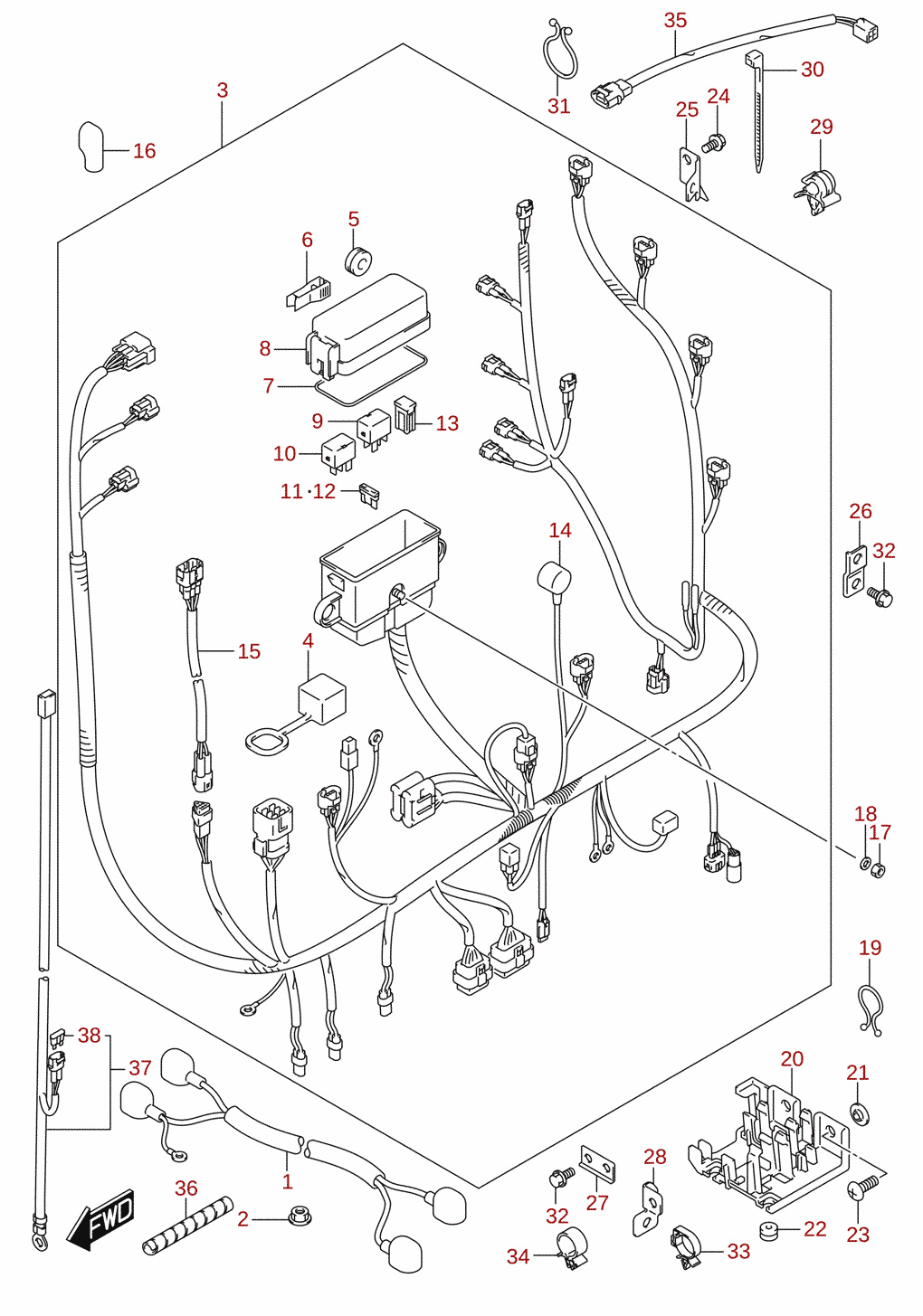

Kabelstam (DF100B) 1/2
Referensnr. DF90A_E11_023 37

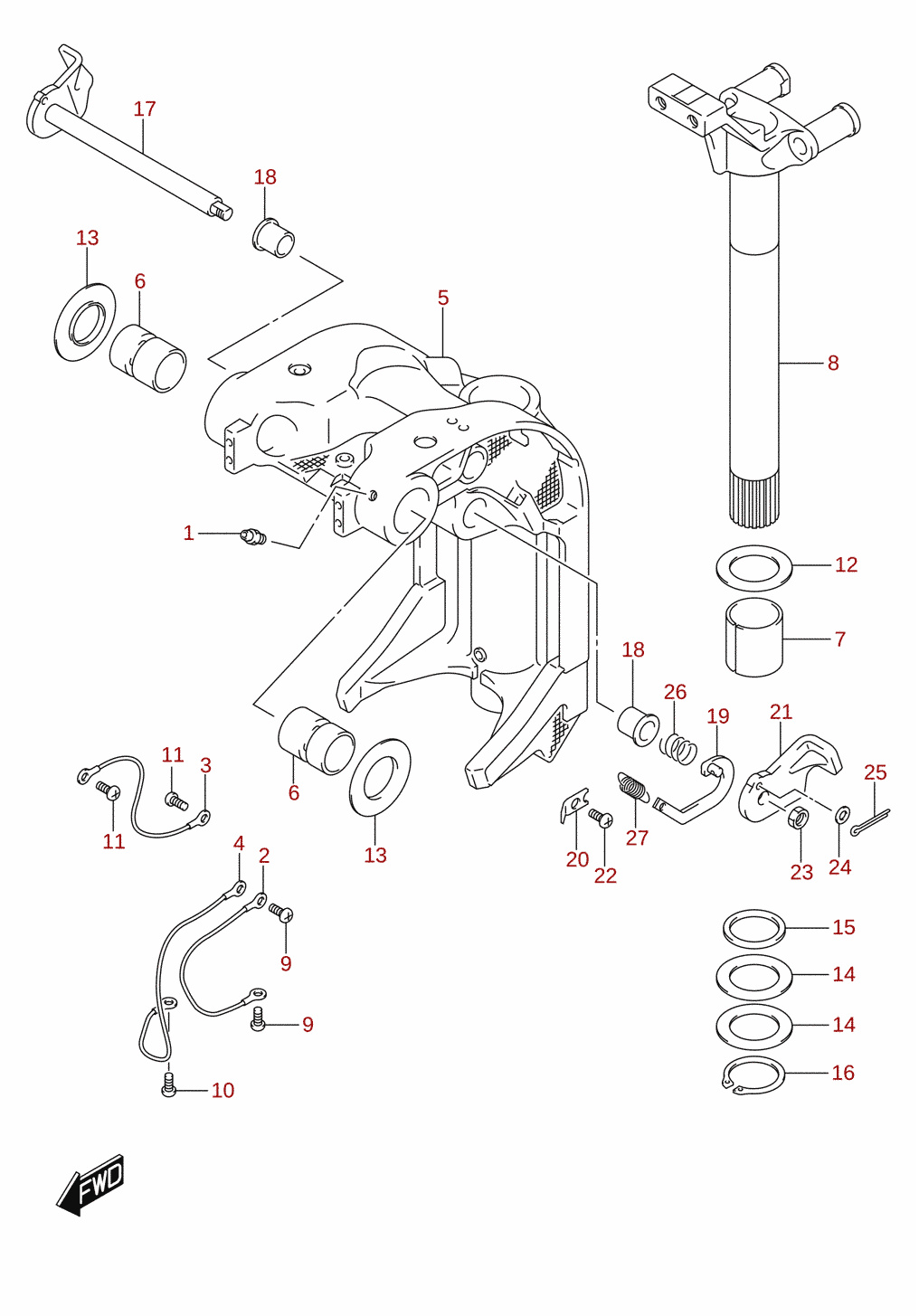

Svängfäste (DF70ATH, DF90ATH)
Referensnr. DF90A_E11_023 49

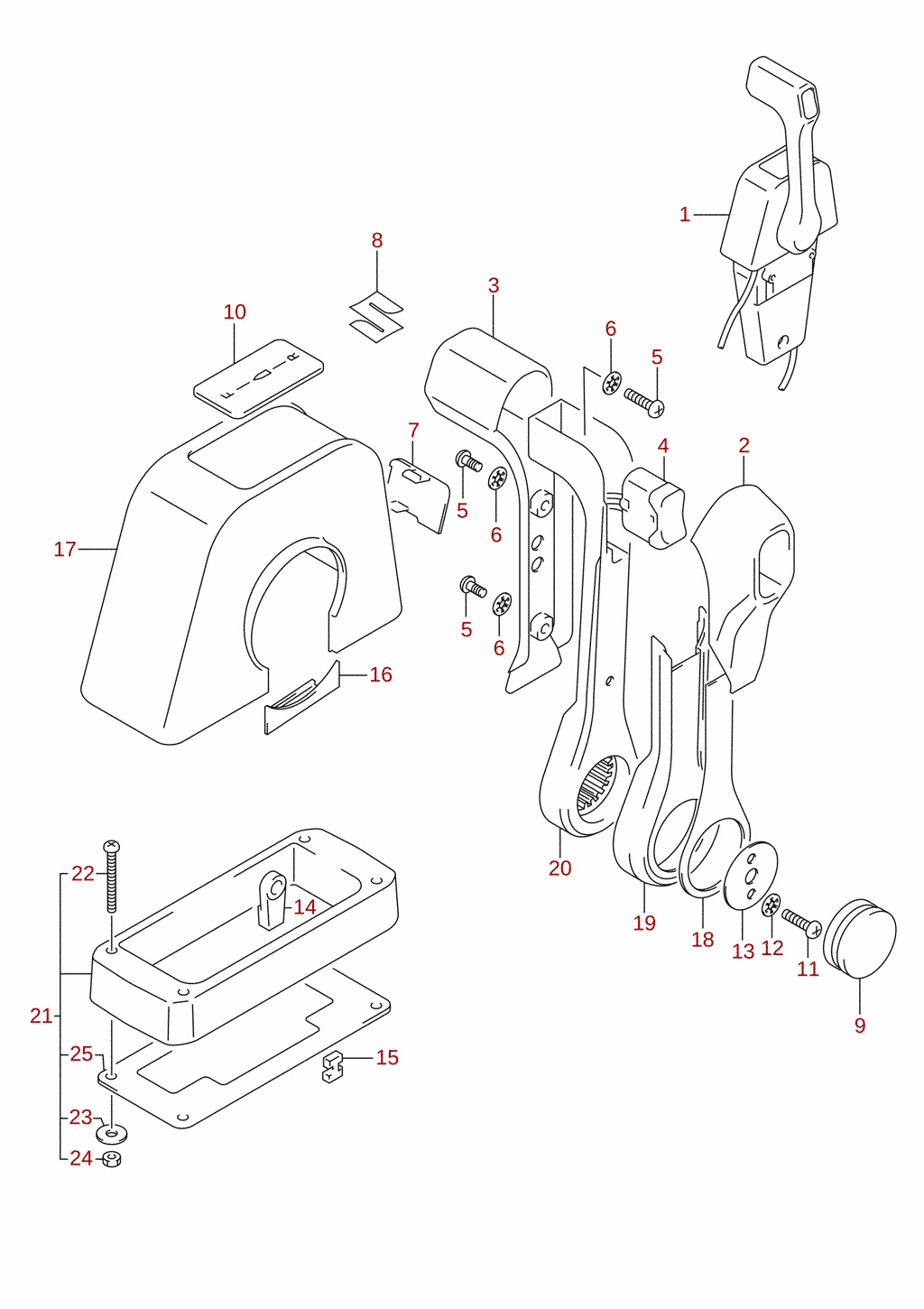

Reglage, enkelt (1) (DF100B, DF70A, DF75A, DF80A, DF90A) (tillval)
Referensnr. DF90A_E11_023 111

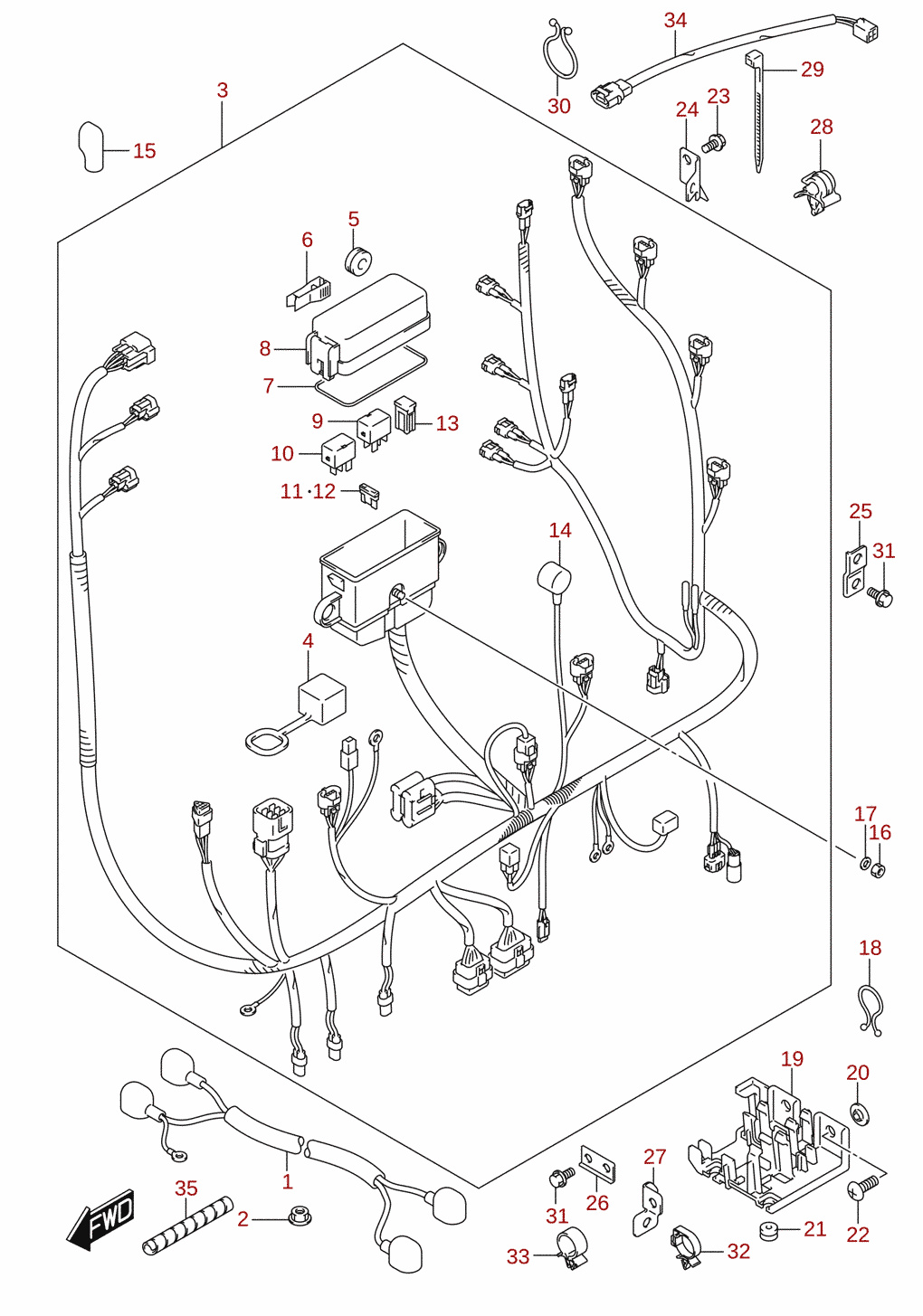

Kabelstam (DF90AWQH)
Referensnr. DF90A_E11_023 36

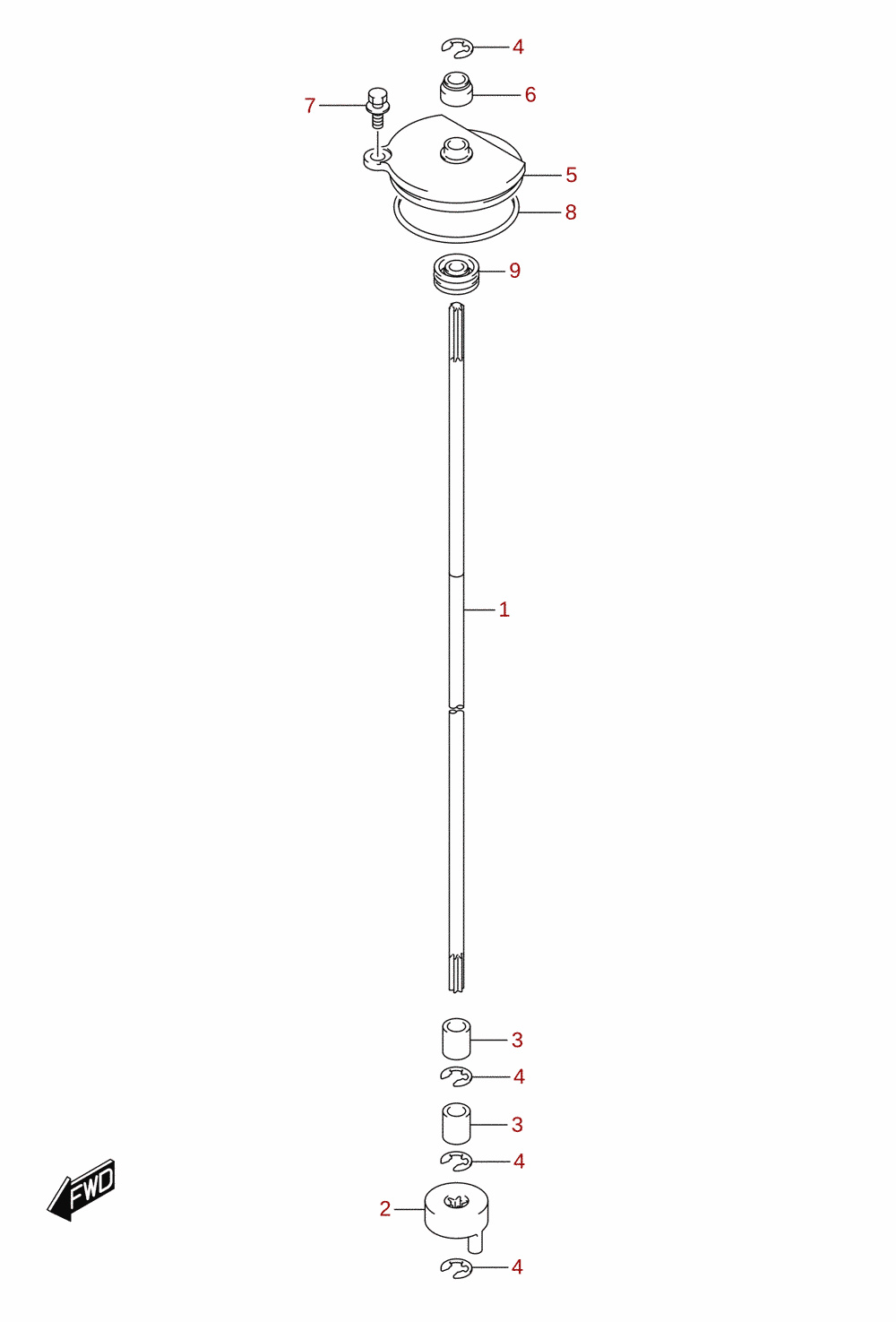

Kopplingsstång
Referensnr. DF90A_E11_023 24

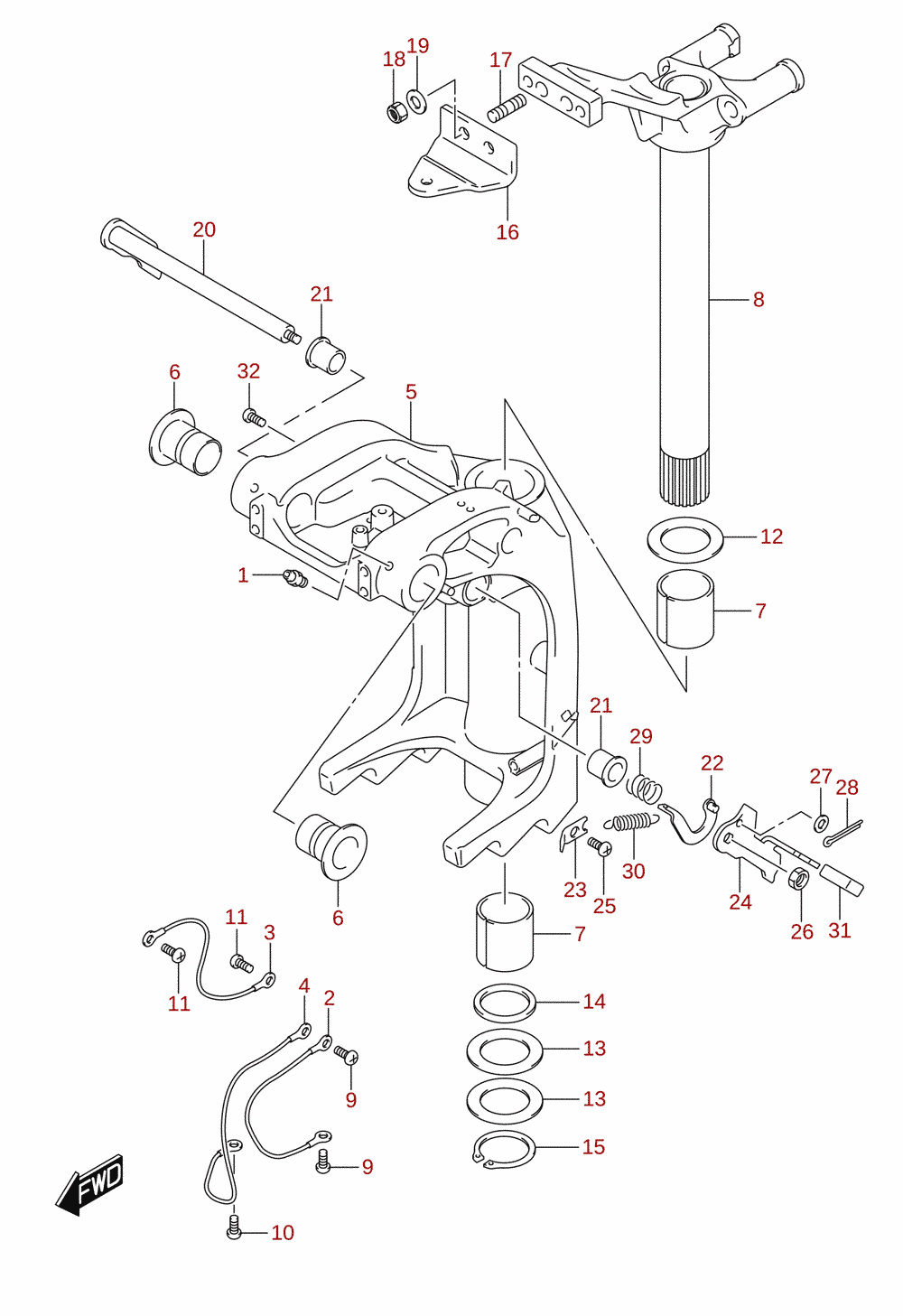

Svängfäste (DF100B, DF70A, DF75A, DF80A, DF90A)
Referensnr. DF90A_E11_023 48

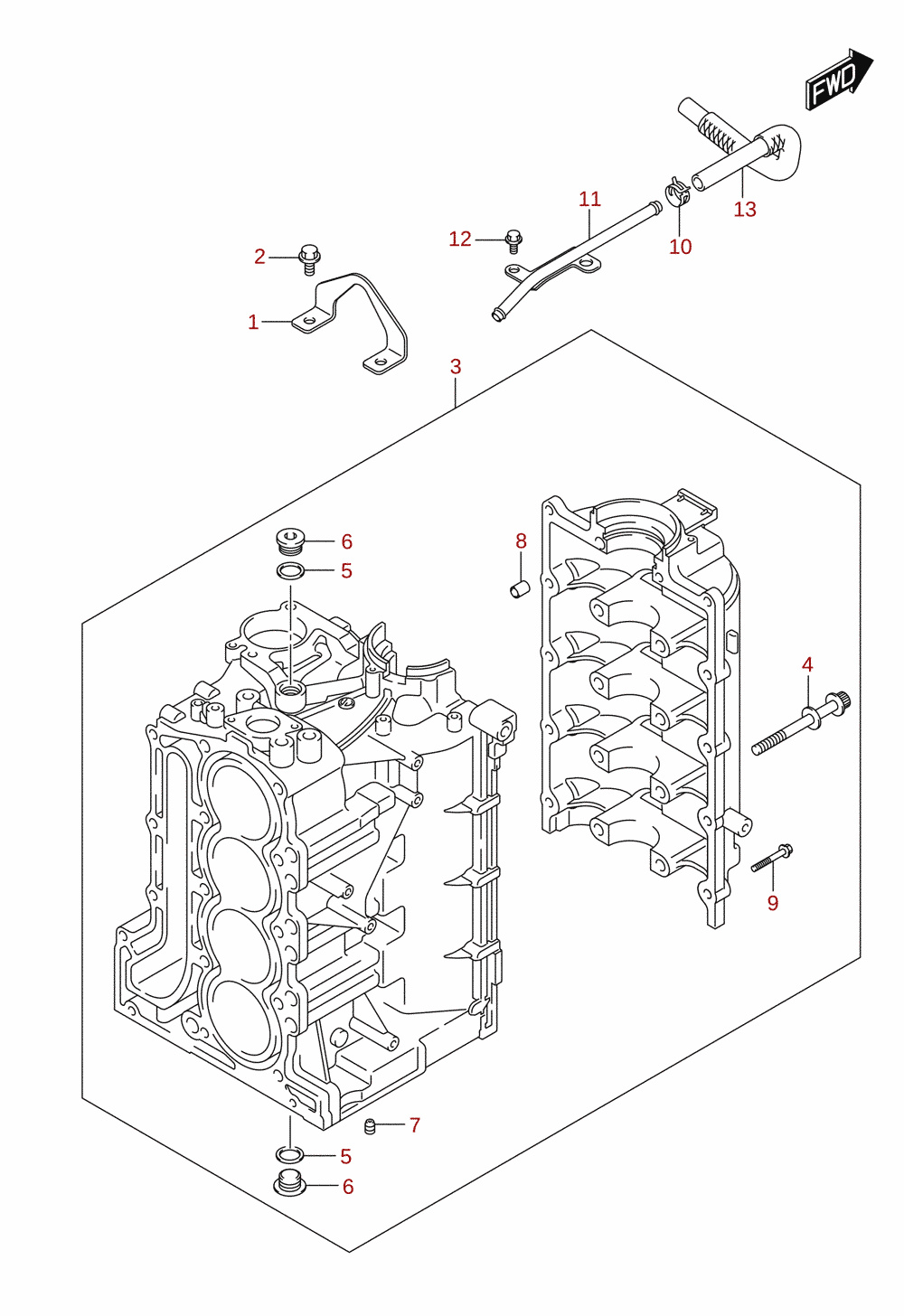

Cylinderblock
Referensnr. DF90A_E11_023 3

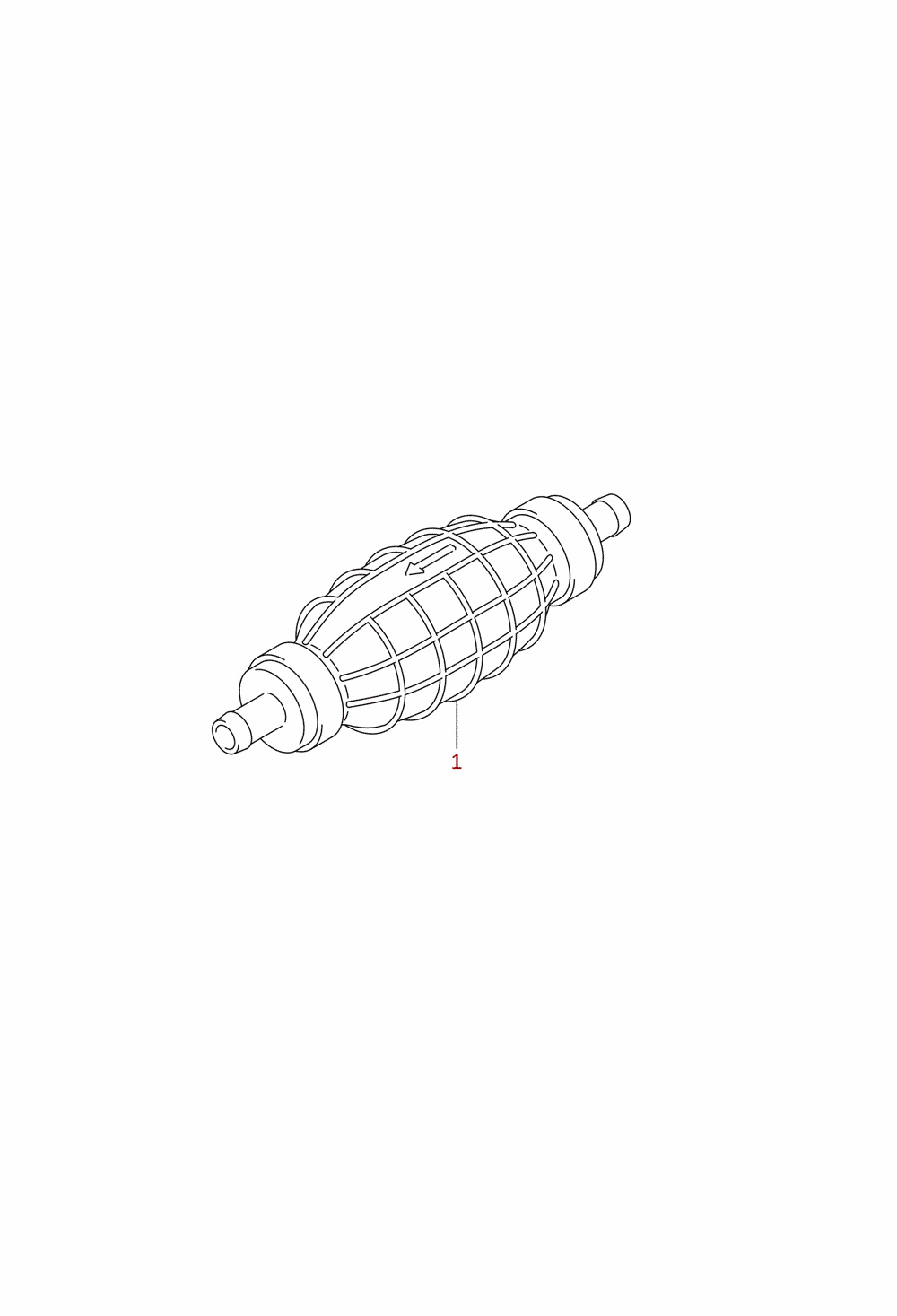

Bränslepumpboll
Referensnr. DF90A_E11_023 85
Kamaxel (DF100B, DF90A, DF90ATH, DF90AWQH)
Referensnr. DF90A_E11_023 8

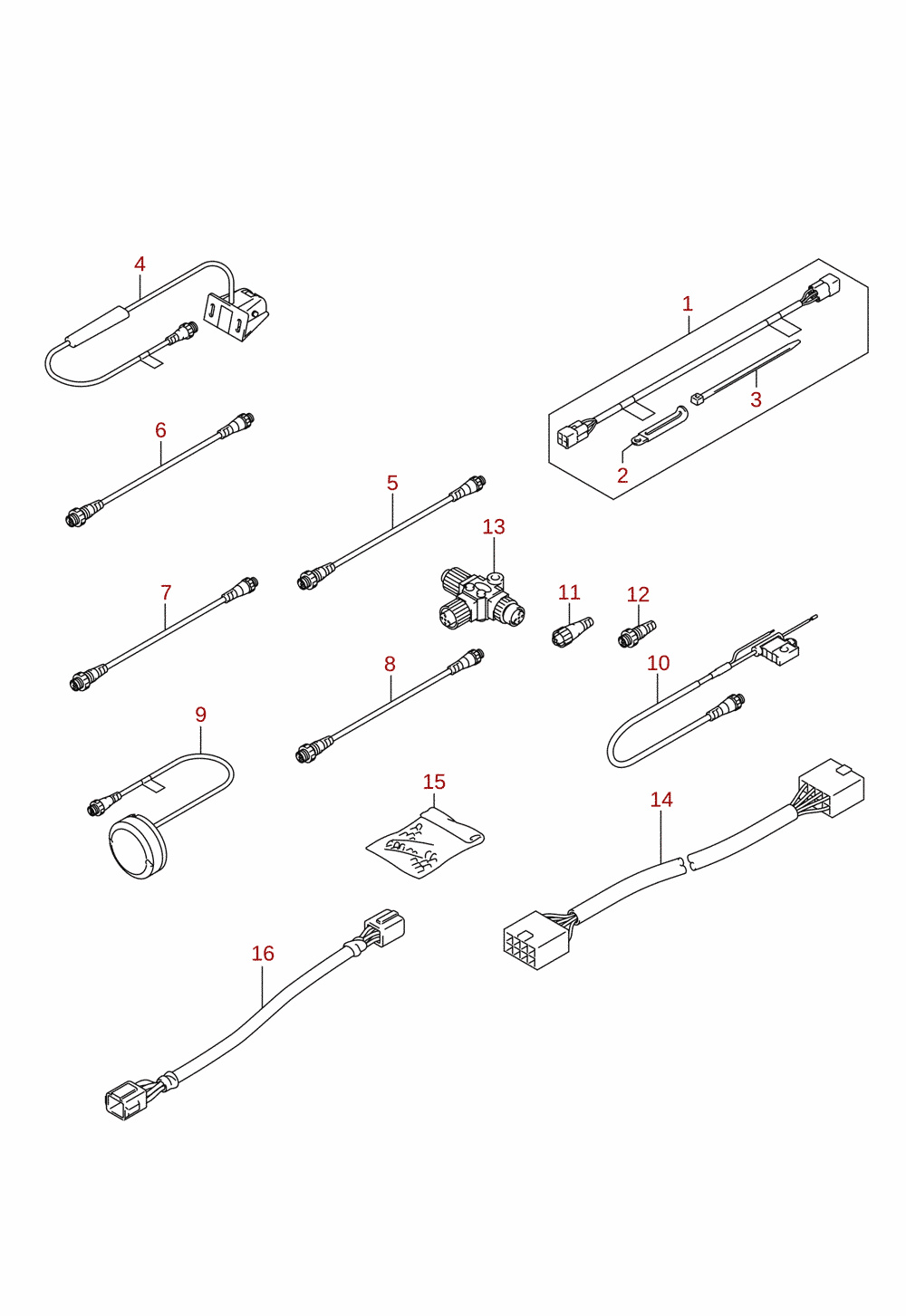

Multifunktionsinstrument (2) (DF90AWQH) (tillval)
Referensnr. DF90A_E11_023 121
Akterspegelsfäste (DF100B, DF70A, DF70ATH, DF80A, DF90A, DF90ATH)
Referensnr. DF90A_E11_023 44

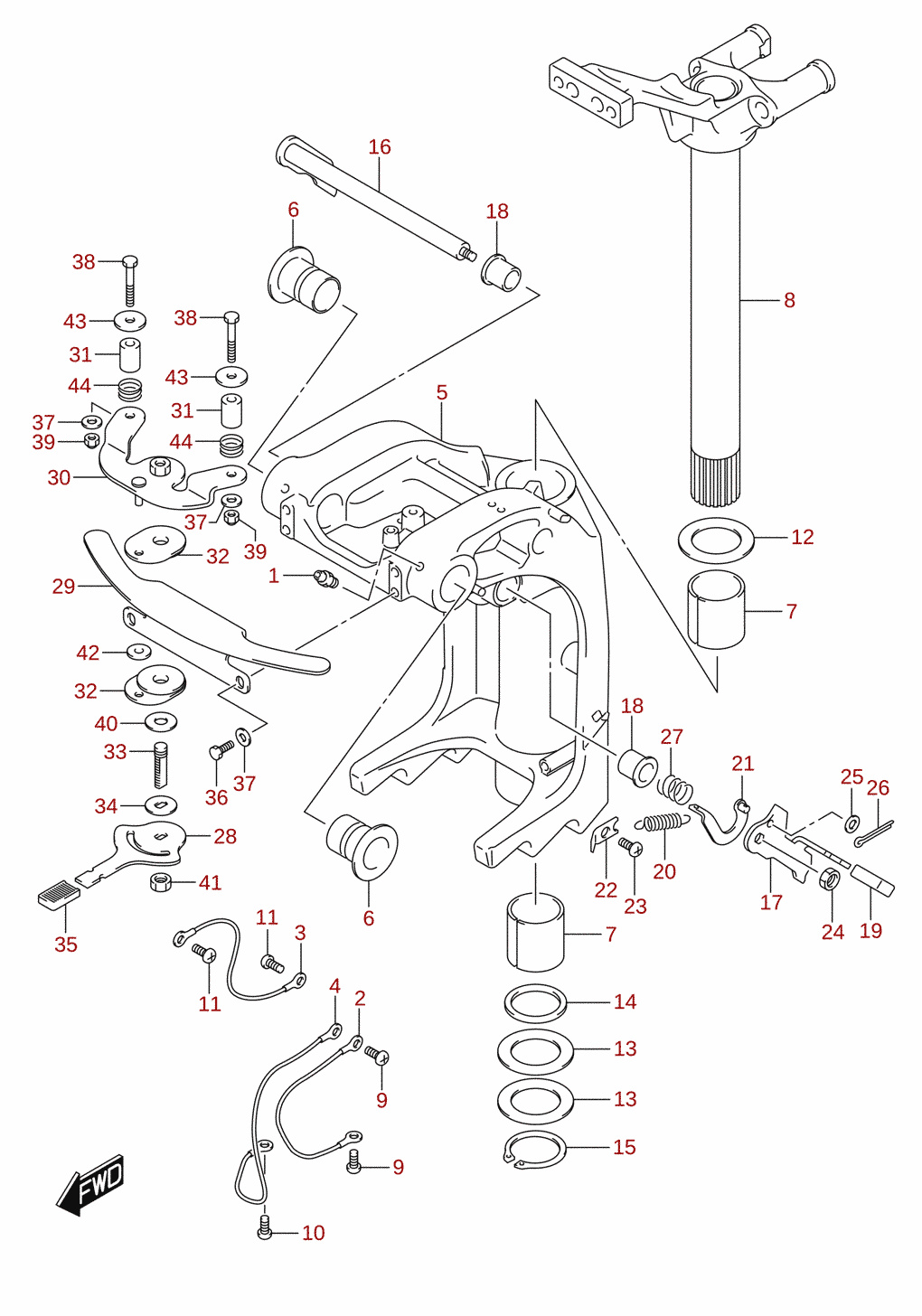

Svängfäste (DF70ATH, DF90ATH, DF90AWQH)
Referensnr. DF90A_E11_023 50
