Exploded views for Suzuki DF70A, DF80A, DF90A, DF100B (E01) 2019 [DF90A_E01_019]

Cylinder head (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)

Reference no. DF90A_E01_019 0

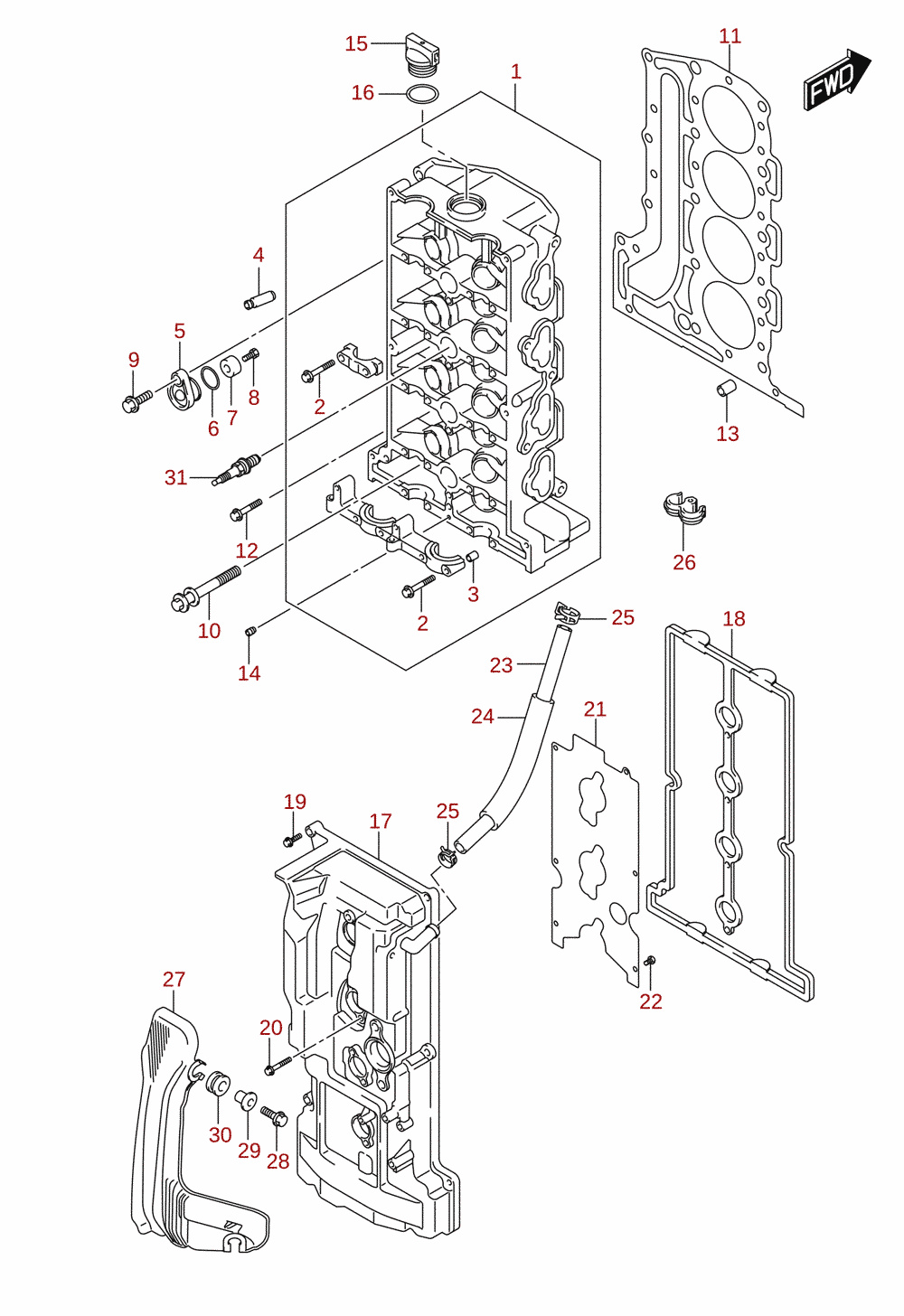

Cylinder head (DF100B)

Reference no. DF90A_E01_019 1

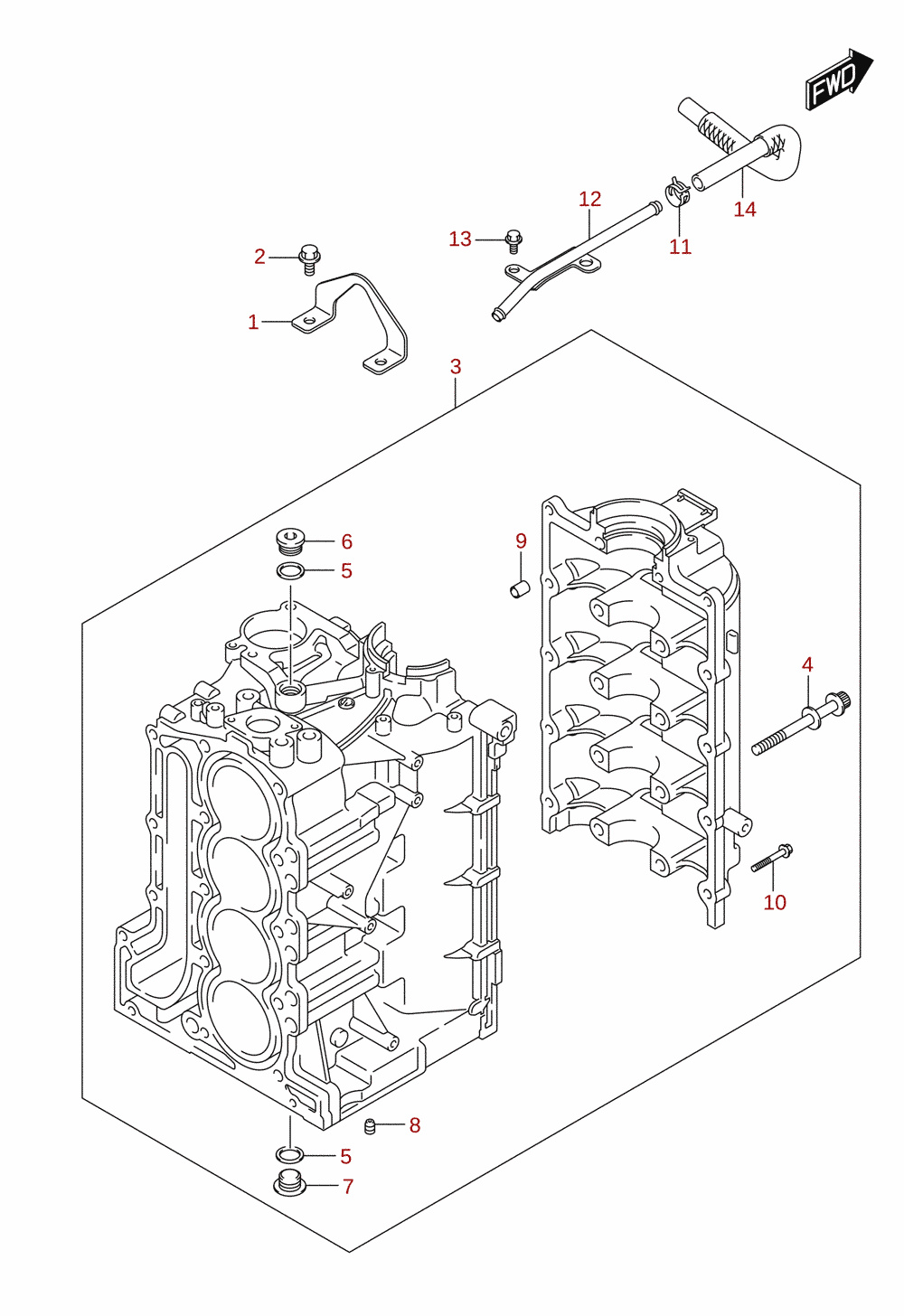

Cylinder block

Reference no. DF90A_E01_019 2

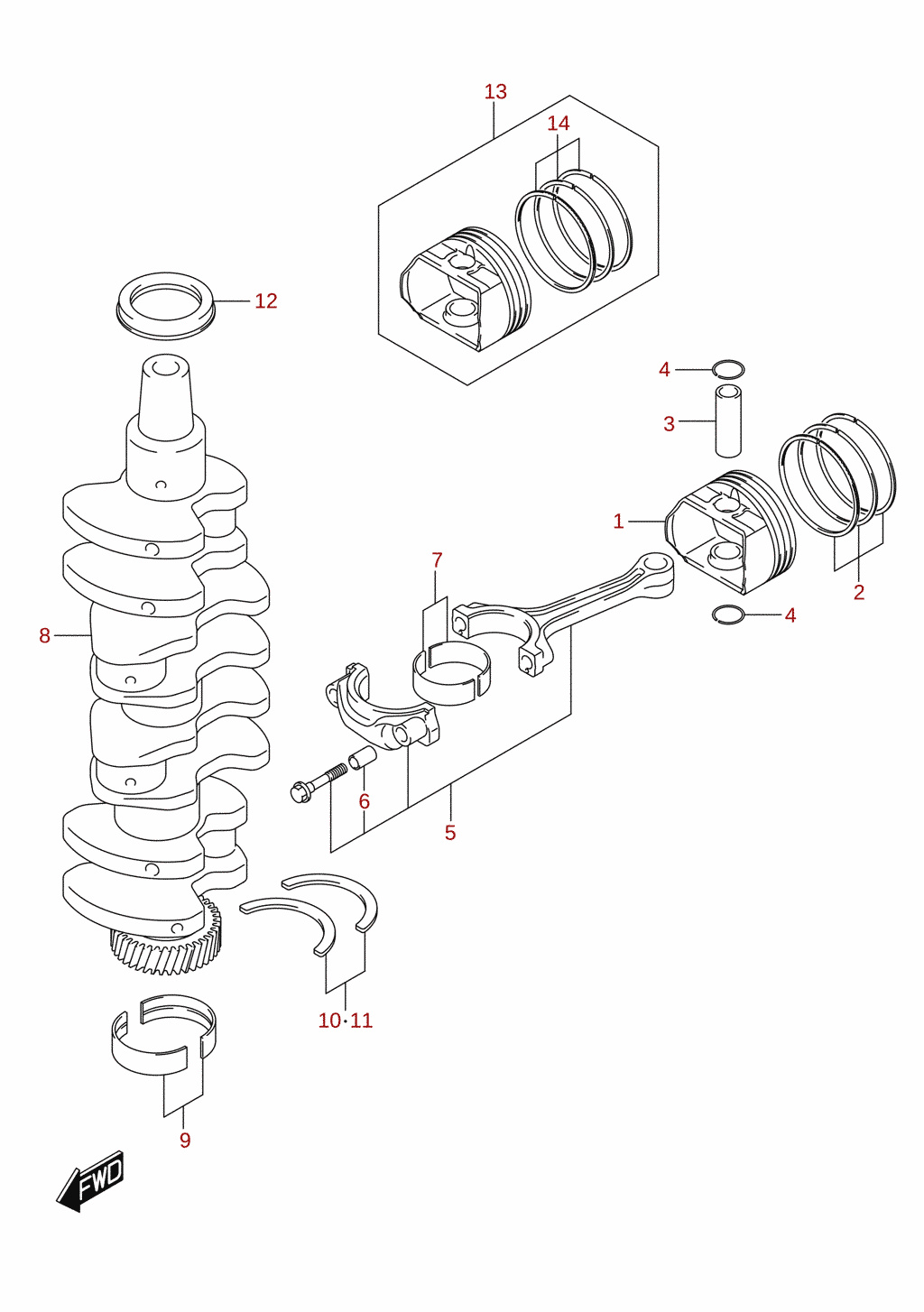

Crankshaft

Reference no. DF90A_E01_019 3

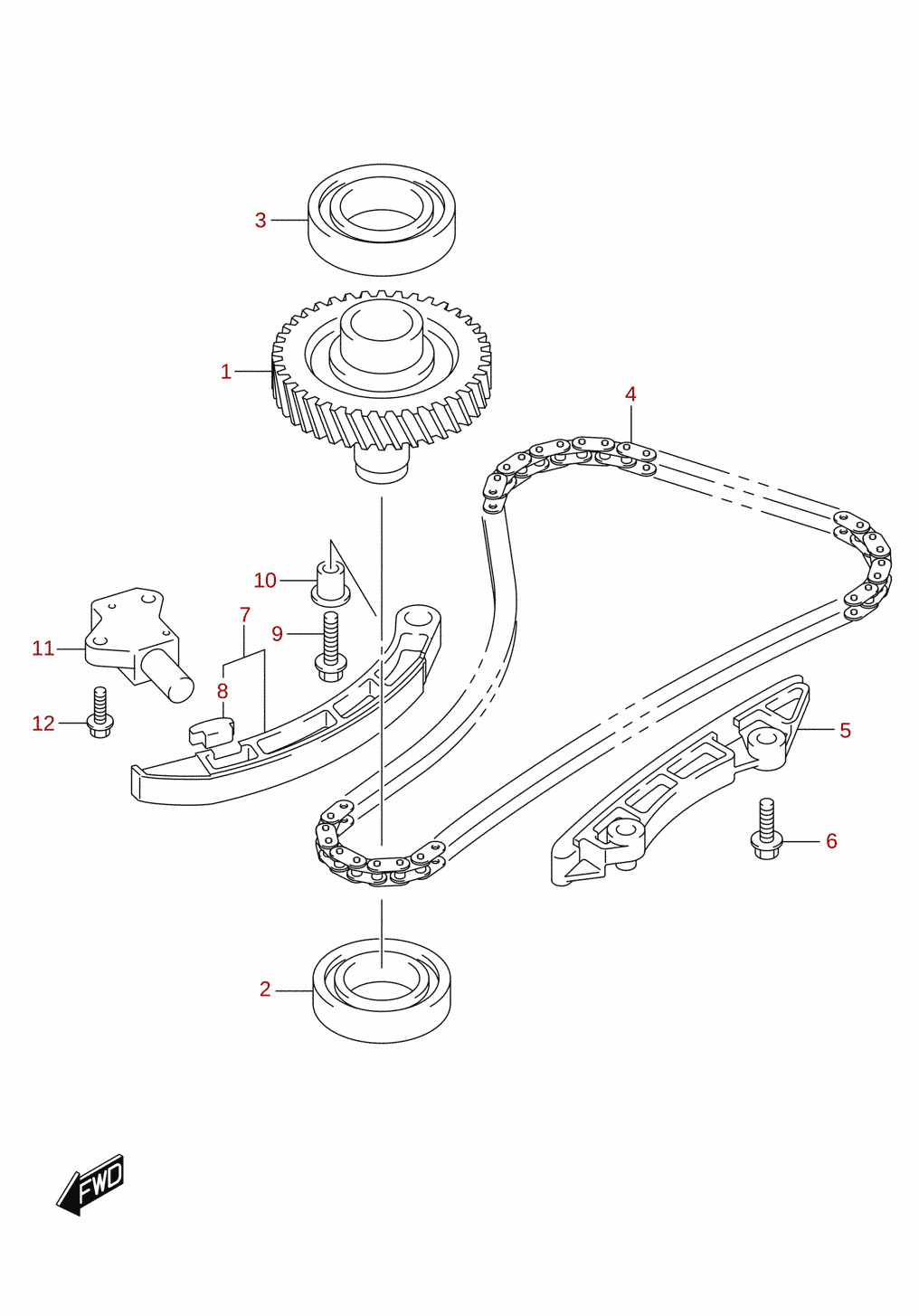

Timing chain

Reference no. DF90A_E01_019 4

Camshaft (DF70)

Reference no. DF90A_E01_019 5

Camshaft (DF80A)

Reference no. DF90A_E01_019 6

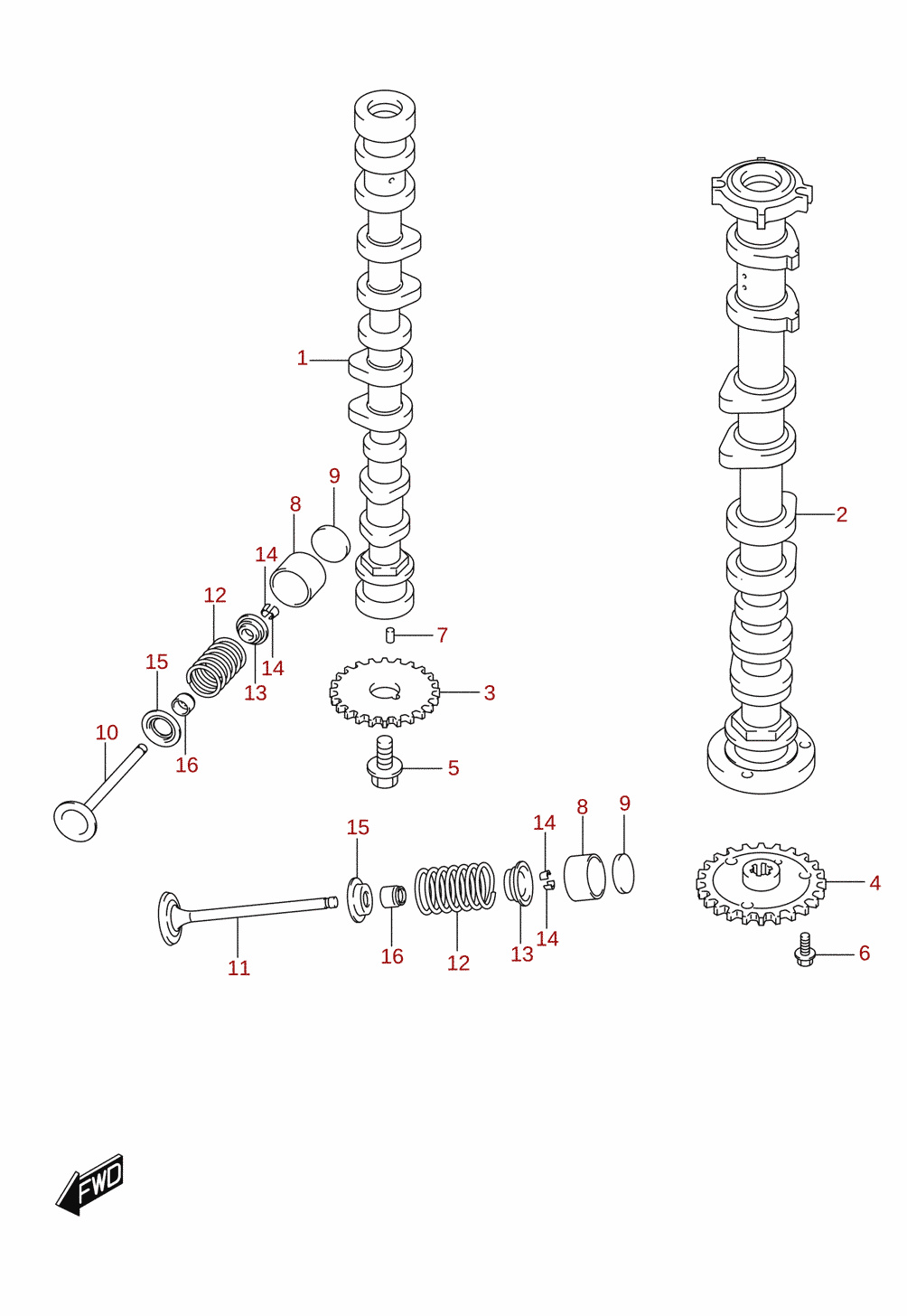

Camshaft (DF100B, DF90A, DF90ATH)

Reference no. DF90A_E01_019 7

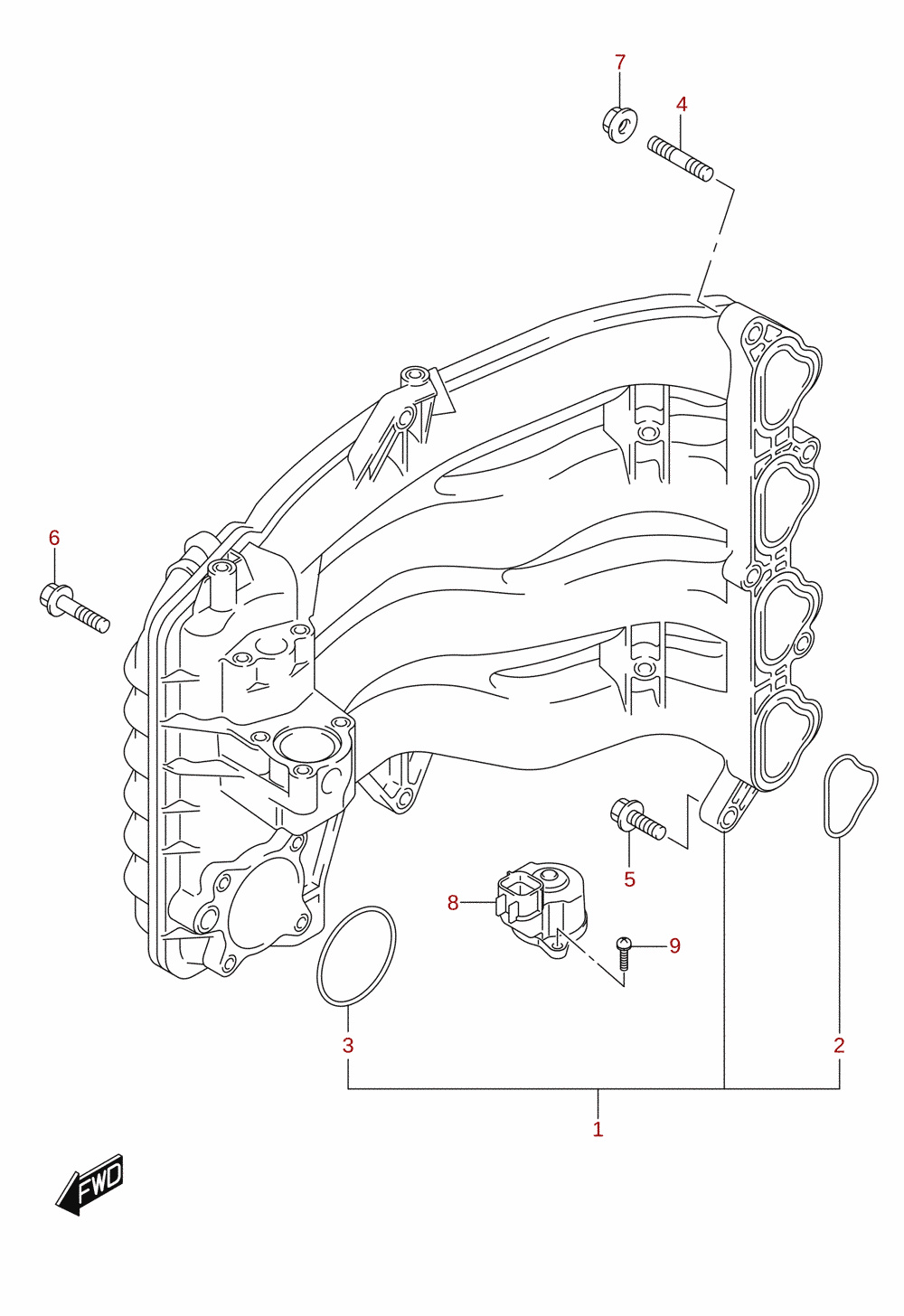

Intake manifold

Reference no. DF90A_E01_019 8

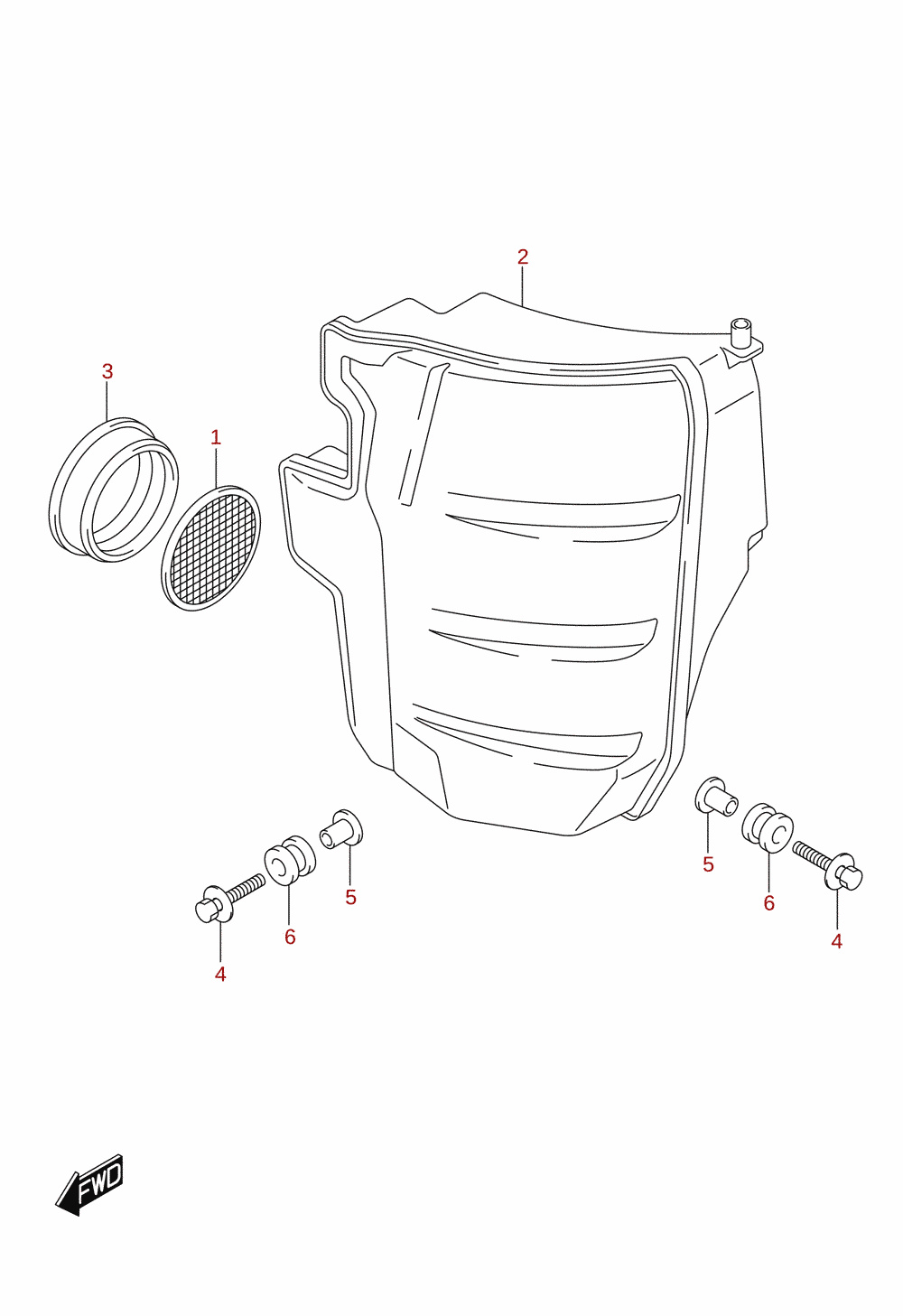

Silencer

Reference no. DF90A_E01_019 9

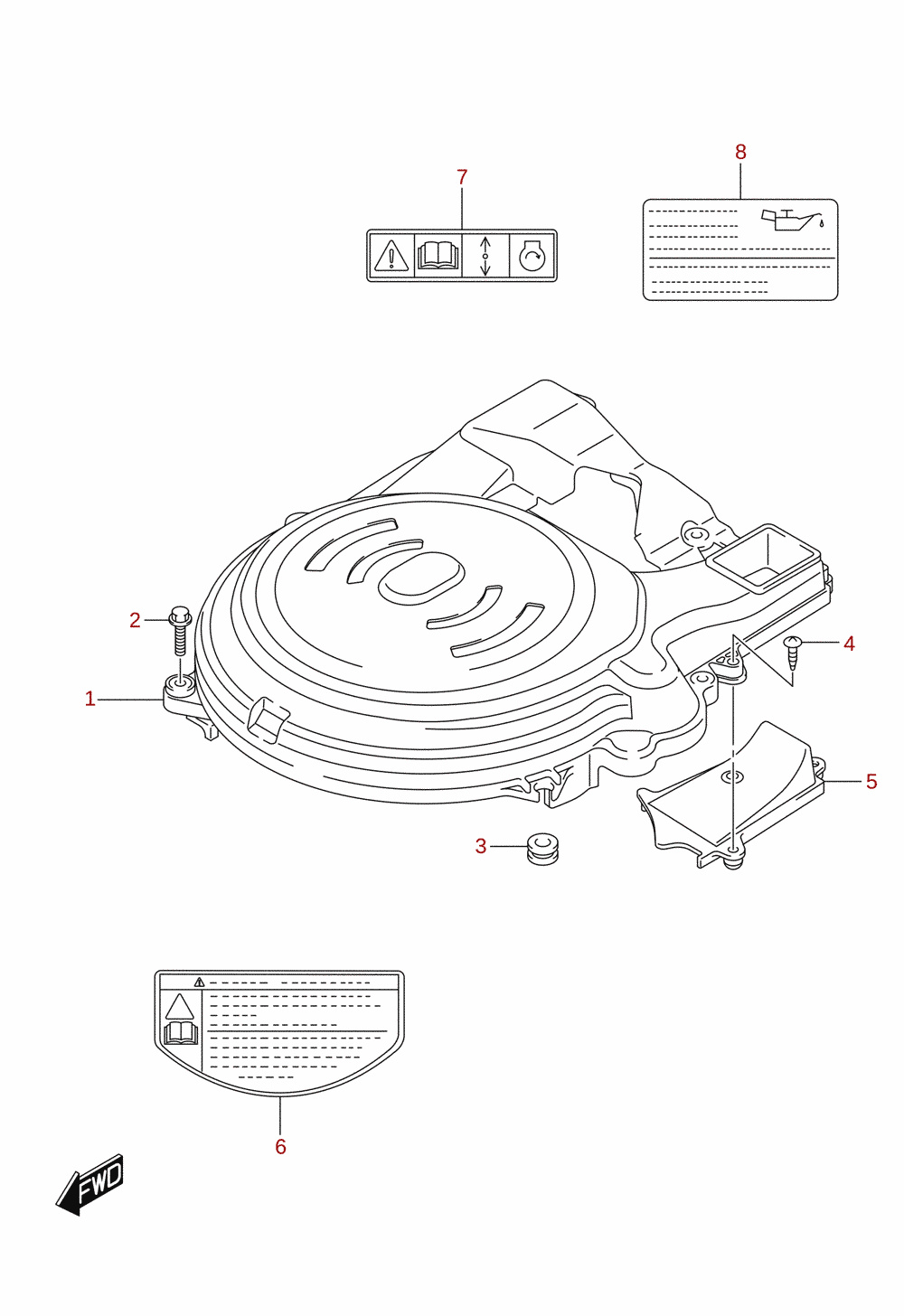

Ring gear cover

Reference no. DF90A_E01_019 10

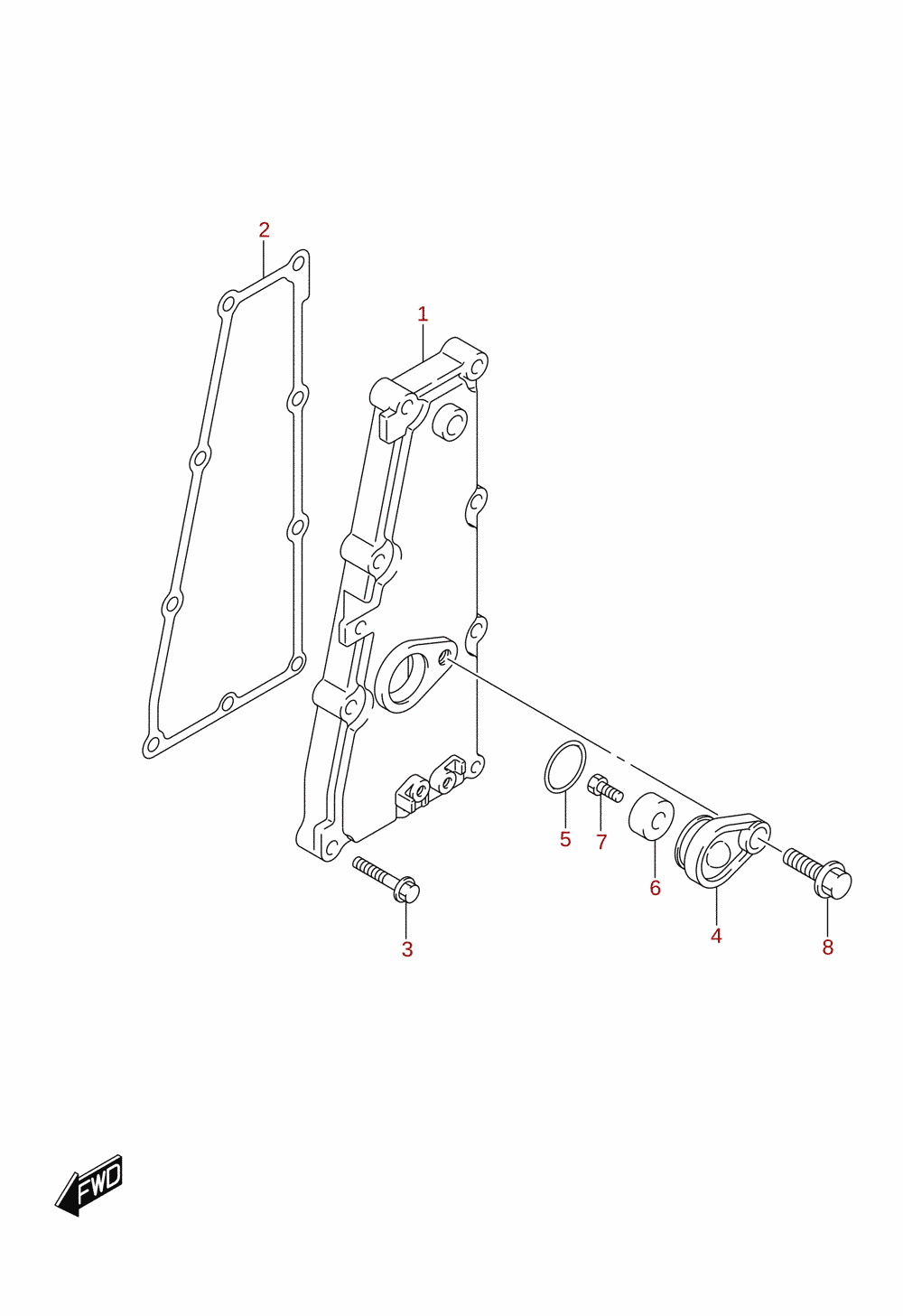

Exhaust cover

Reference no. DF90A_E01_019 11

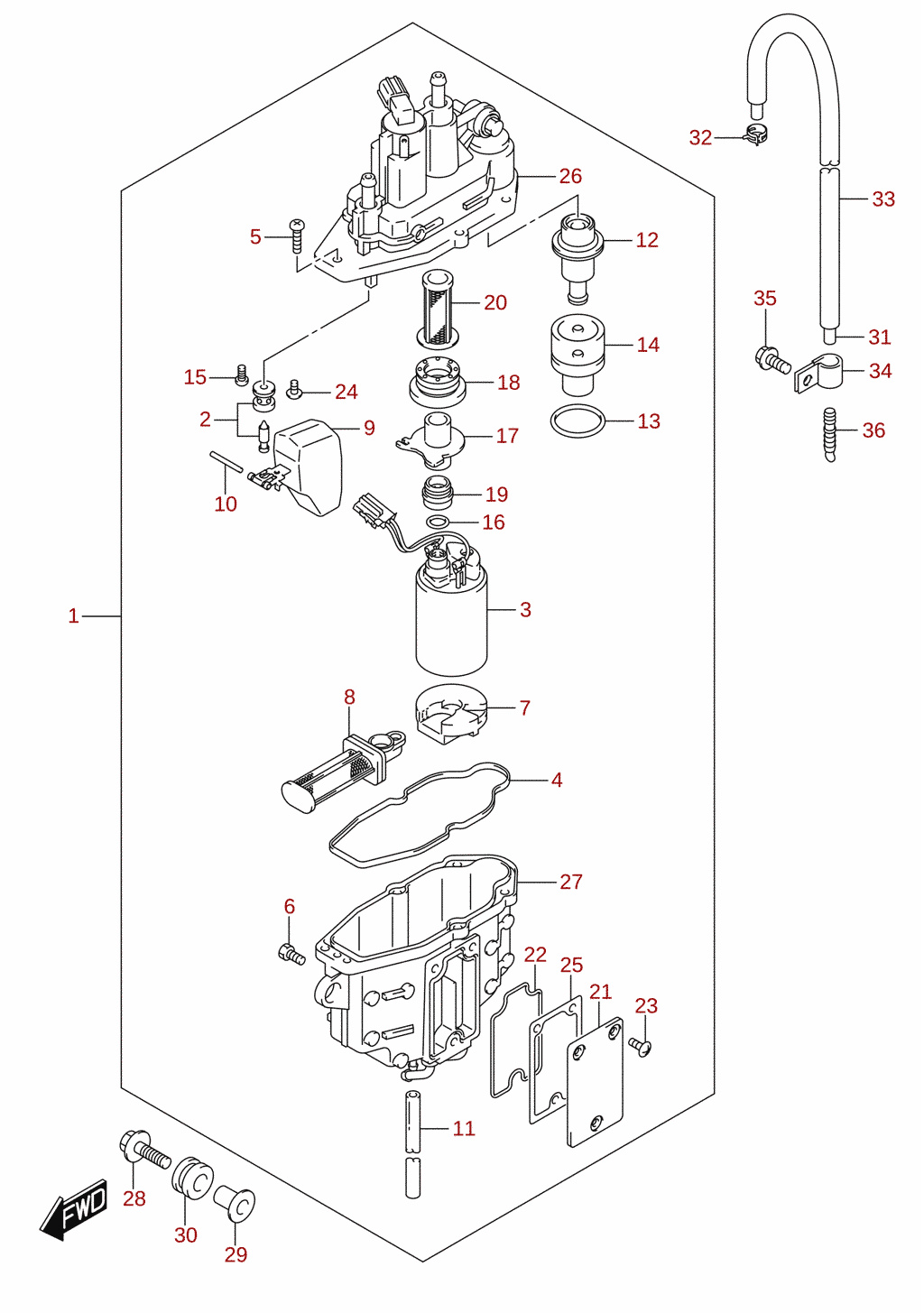

Fuel vapor separator

Reference no. DF90A_E01_019 12

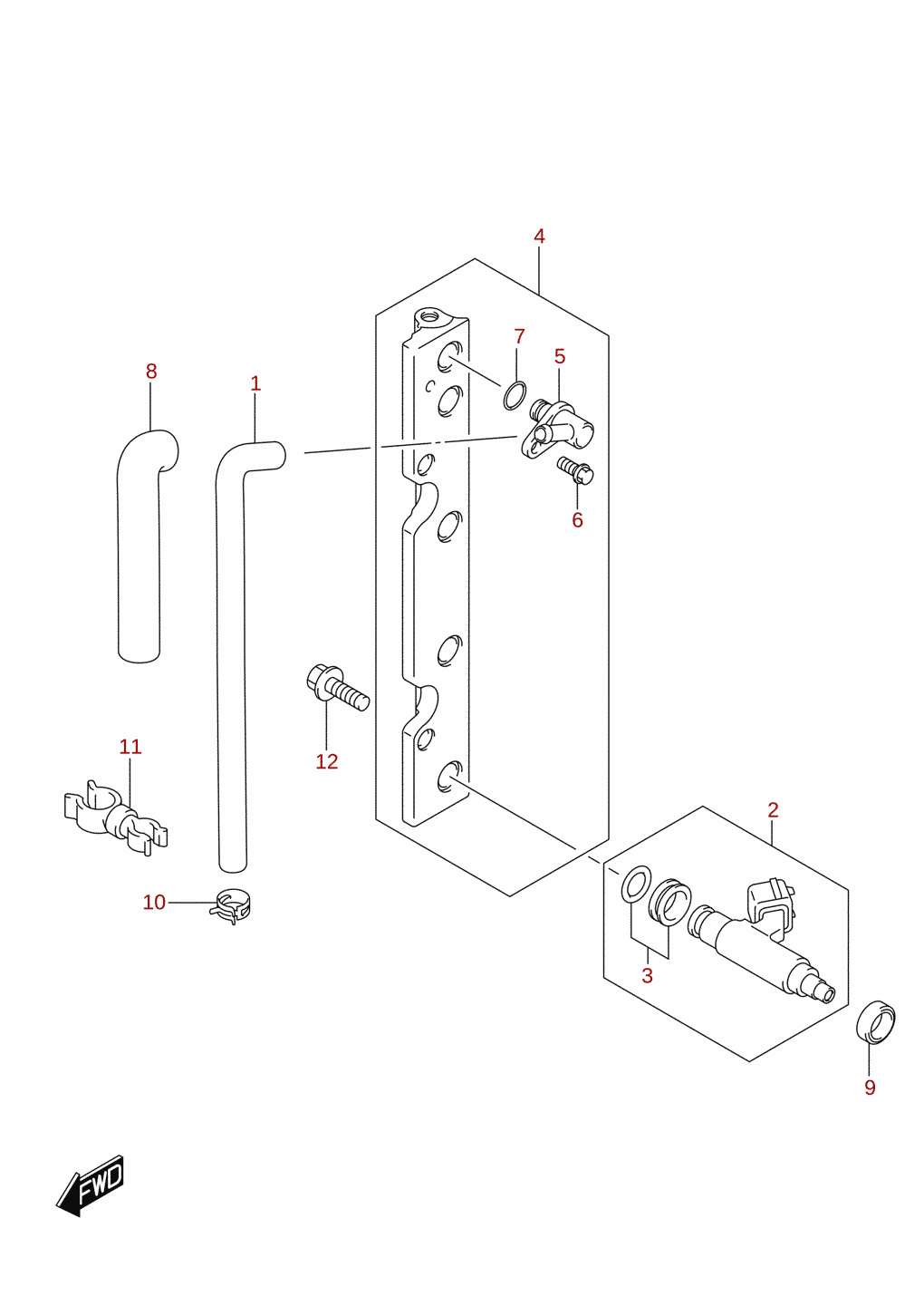

Fuel injector

Reference no. DF90A_E01_019 13

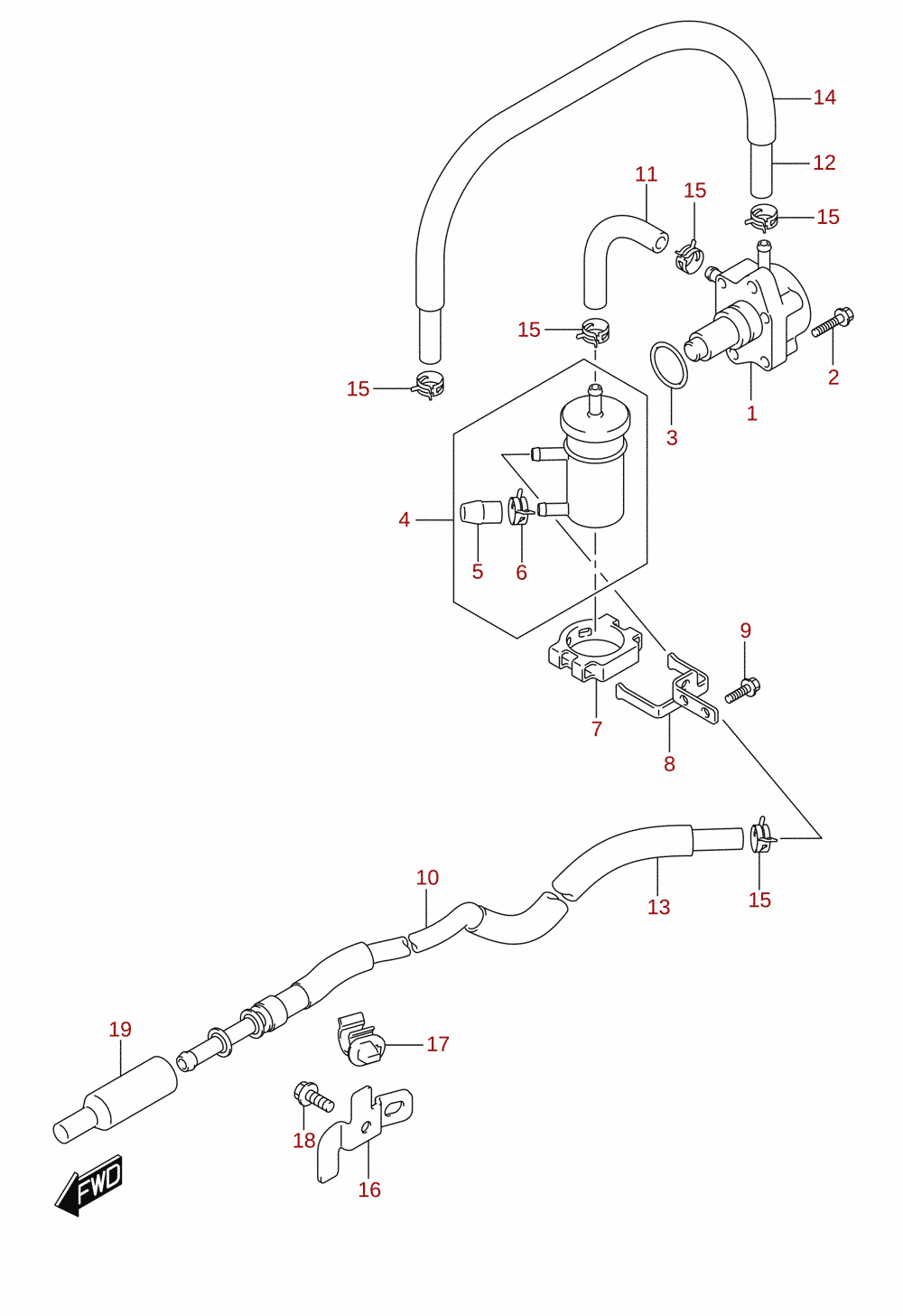

Fuel pump (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)

Reference no. DF90A_E01_019 14

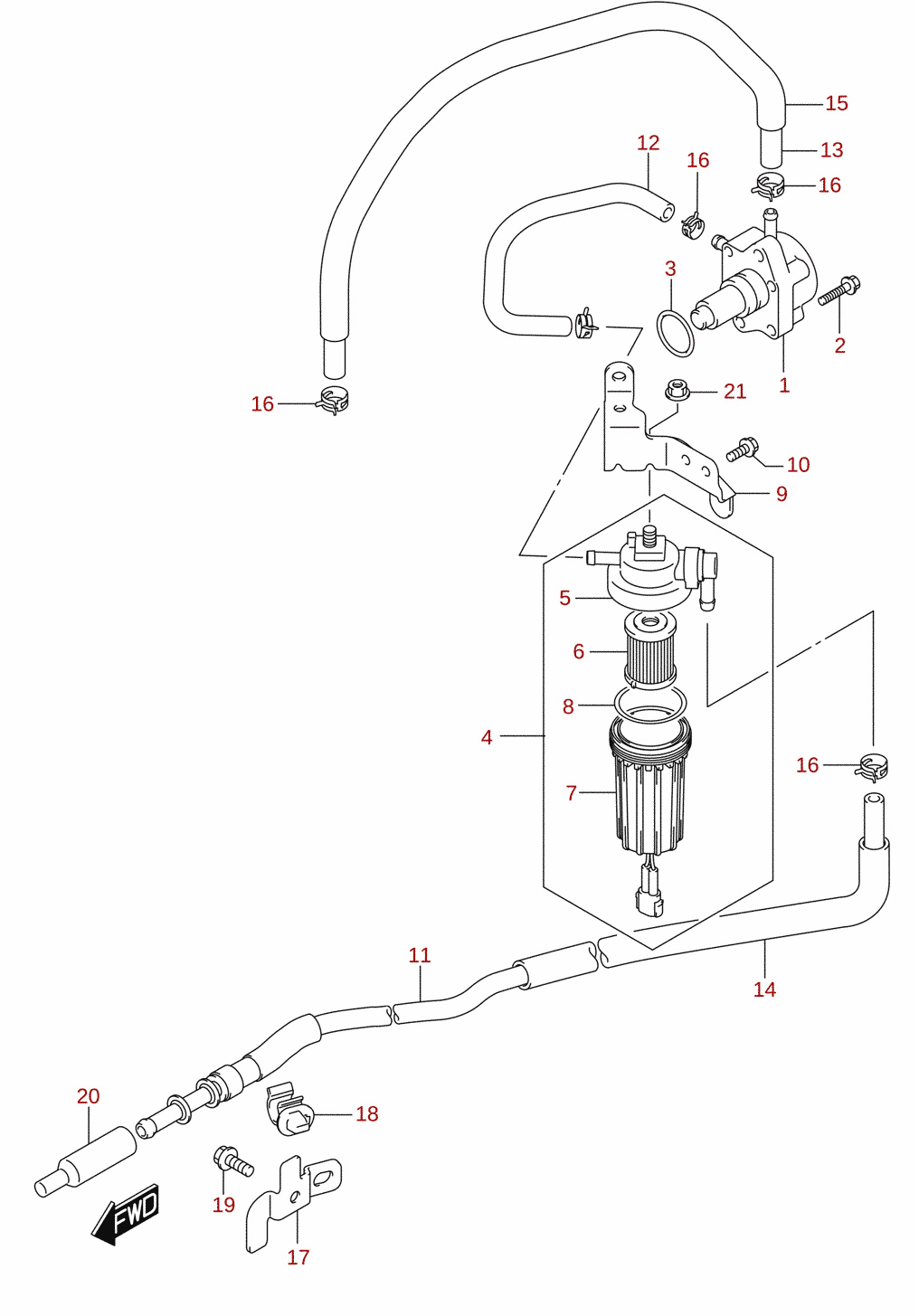

Fuel pump (DF100B)

Reference no. DF90A_E01_019 15

Water pump (DF80A)

Reference no. DF90A_E01_019 17

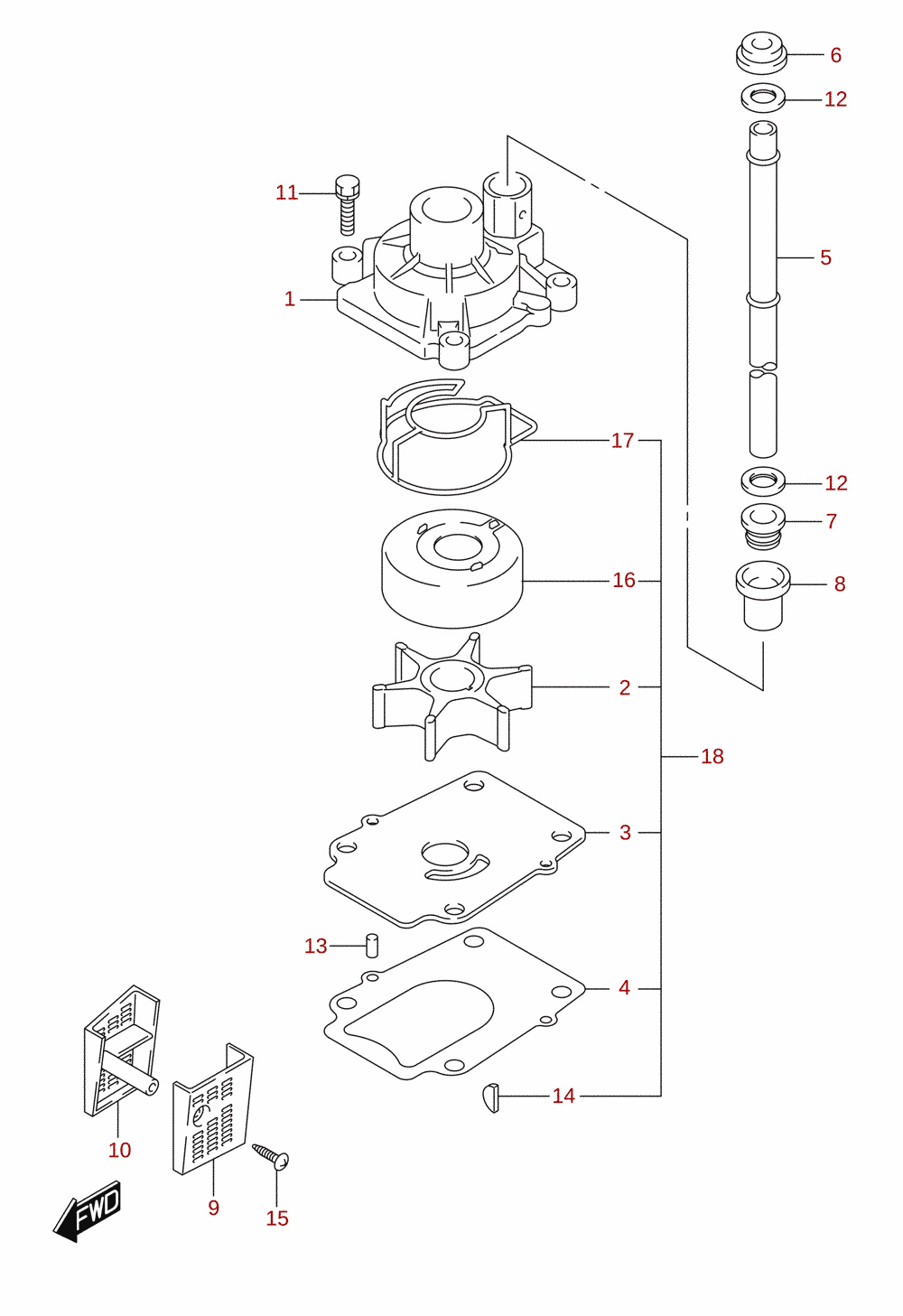

Water pump (DF70)

Reference no. DF90A_E01_019 16

Water pump (DF90)

Reference no. DF90A_E01_019 18

Water pump (DF100B)

Reference no. DF90A_E01_019 19

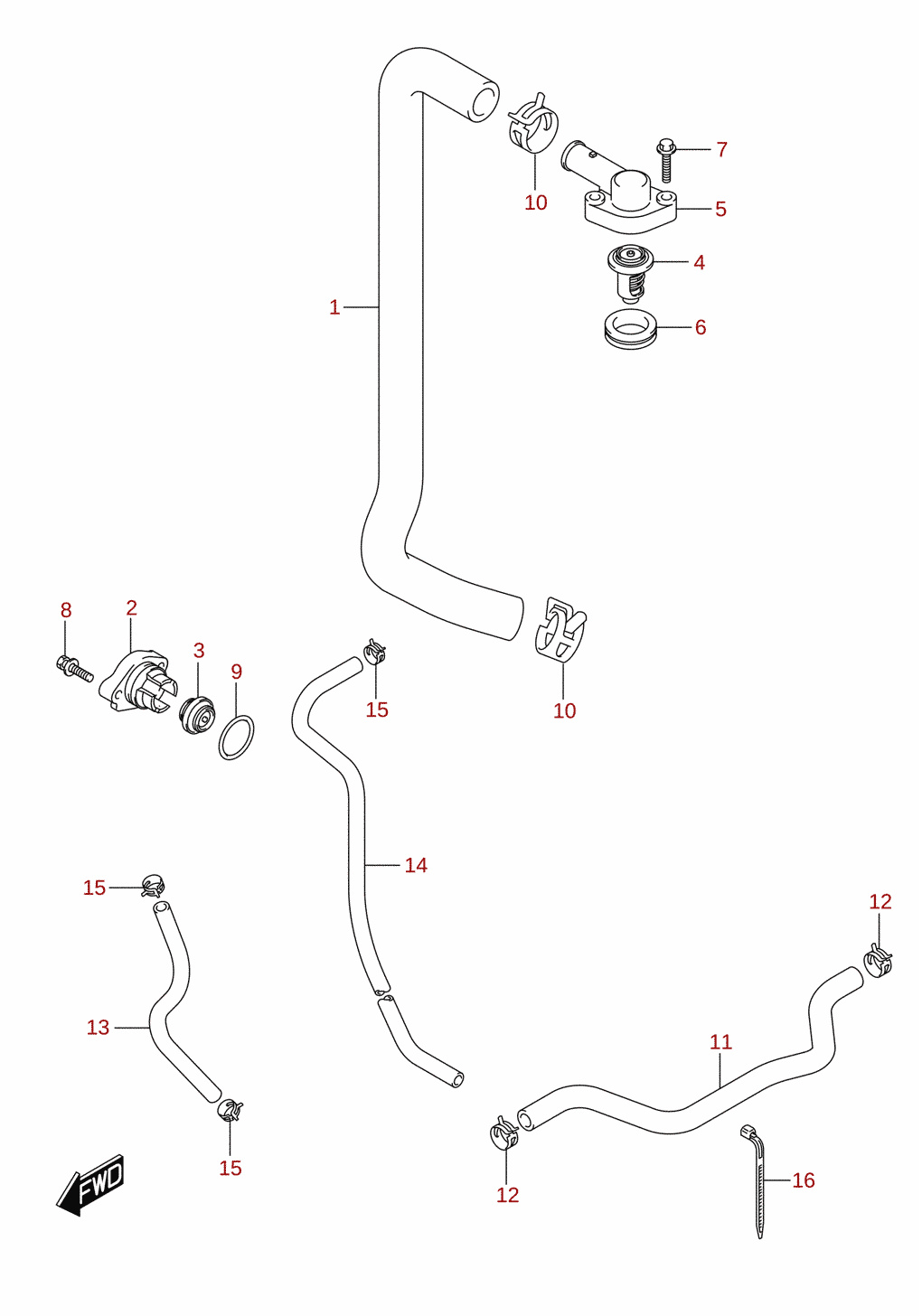

Thermostat (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 20

Thermostat (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 21

Throttle body (DF100B, DF70A, DF80A, DF90A)

Reference no. DF90A_E01_019 22

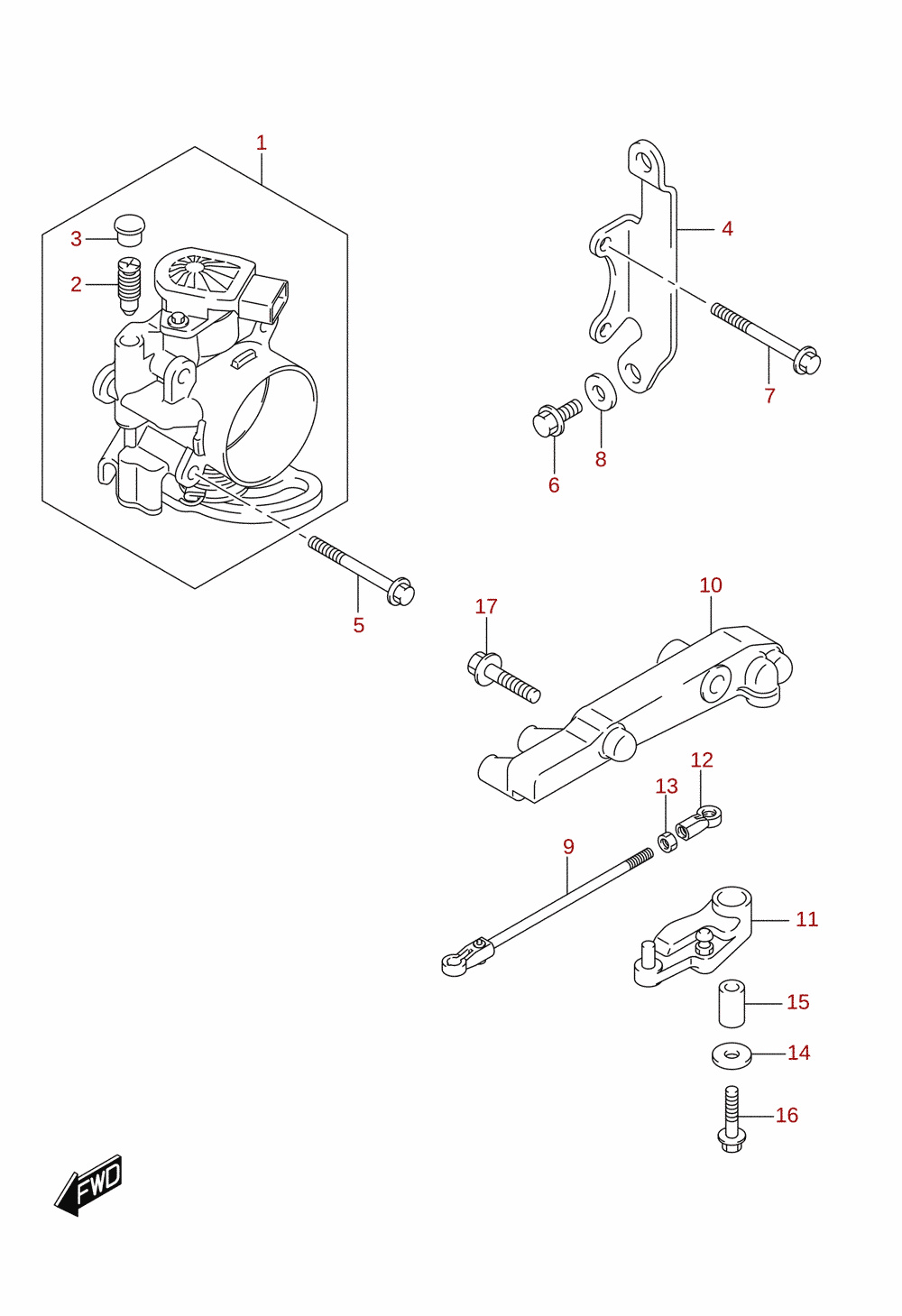

Throttle body (DF70ATH, DF90ATH)

Reference no. DF90A_E01_019 23

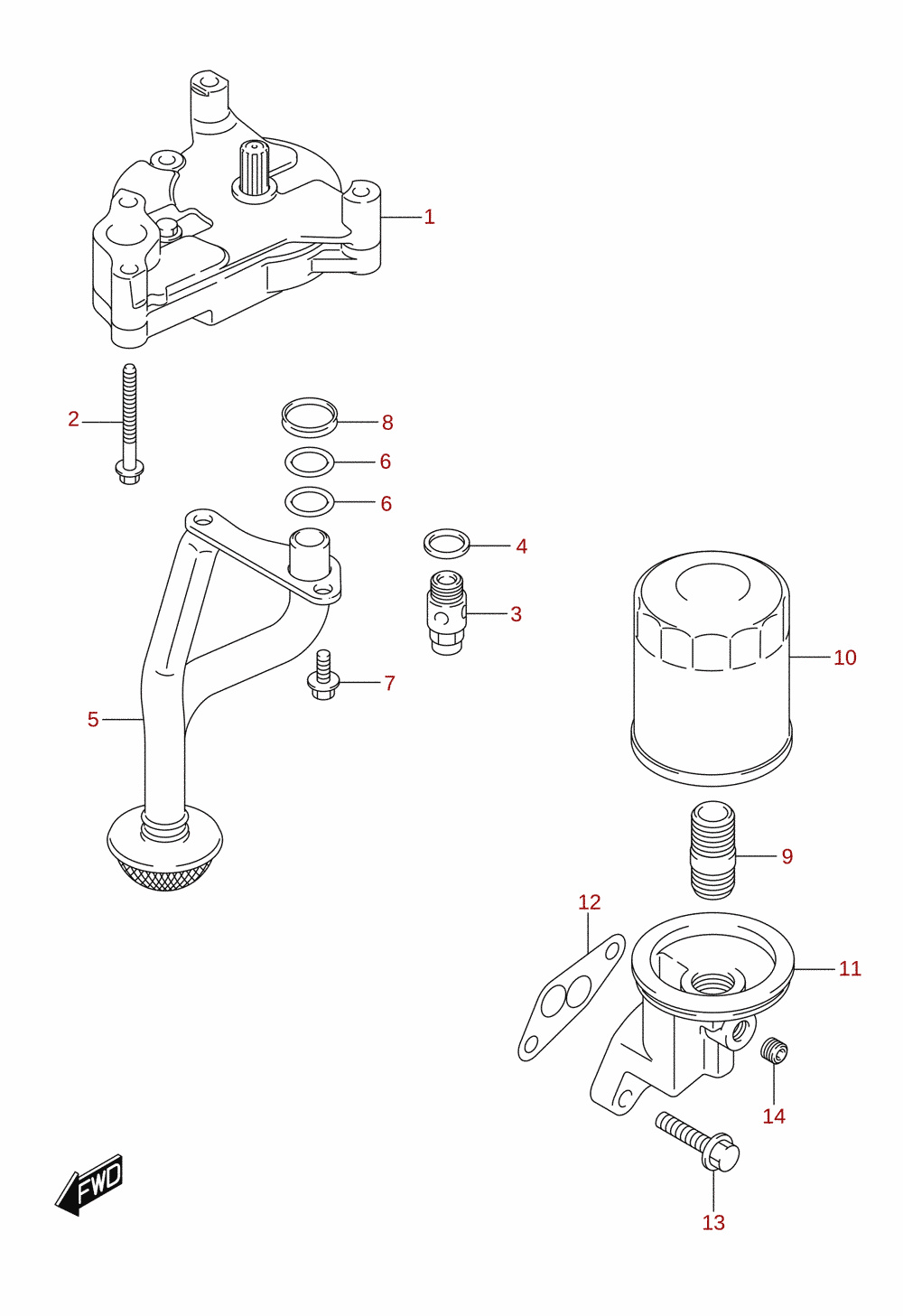

Oil pump

Reference no. DF90A_E01_019 24

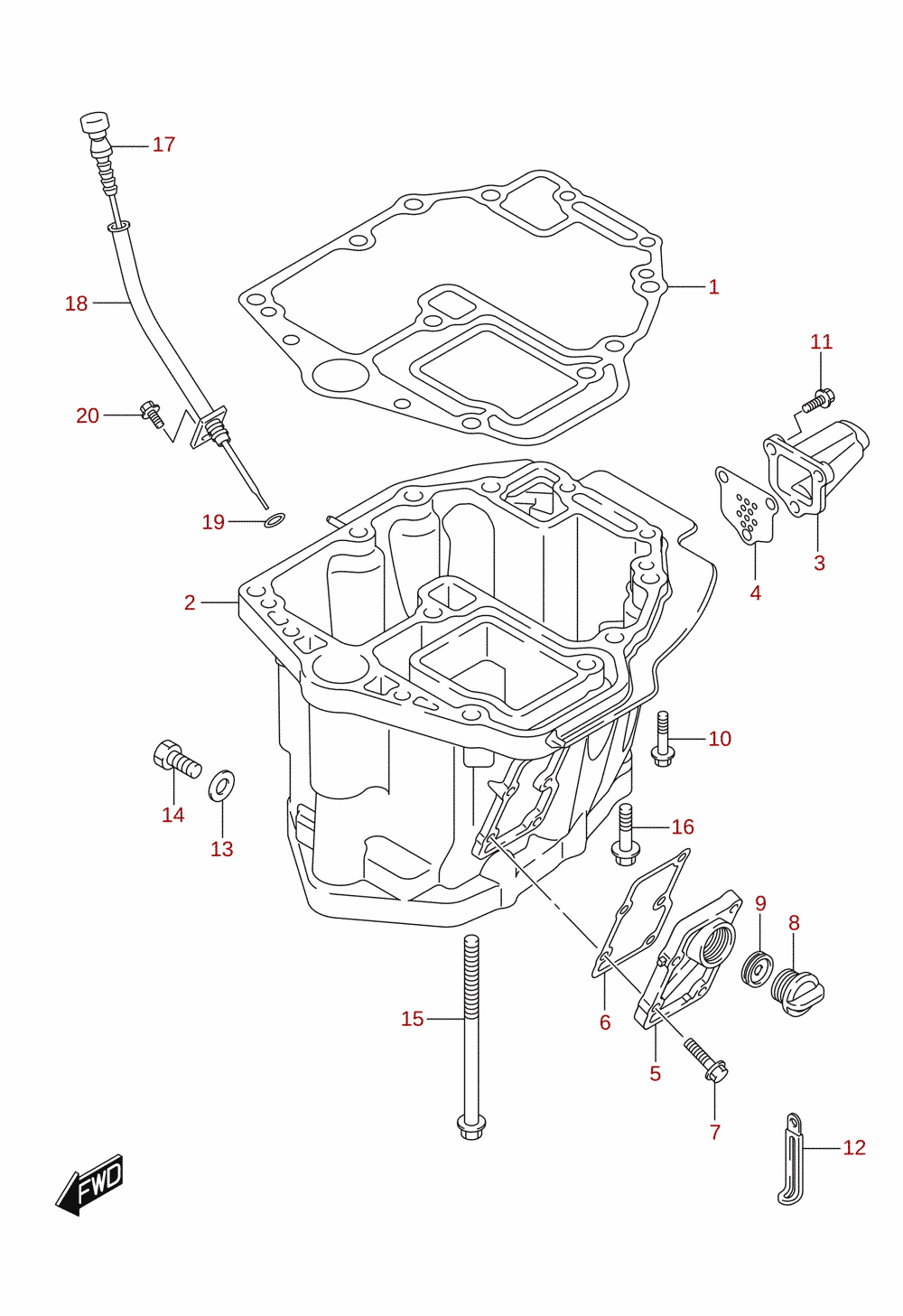

Oil pan (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 25

Oil pan (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 26

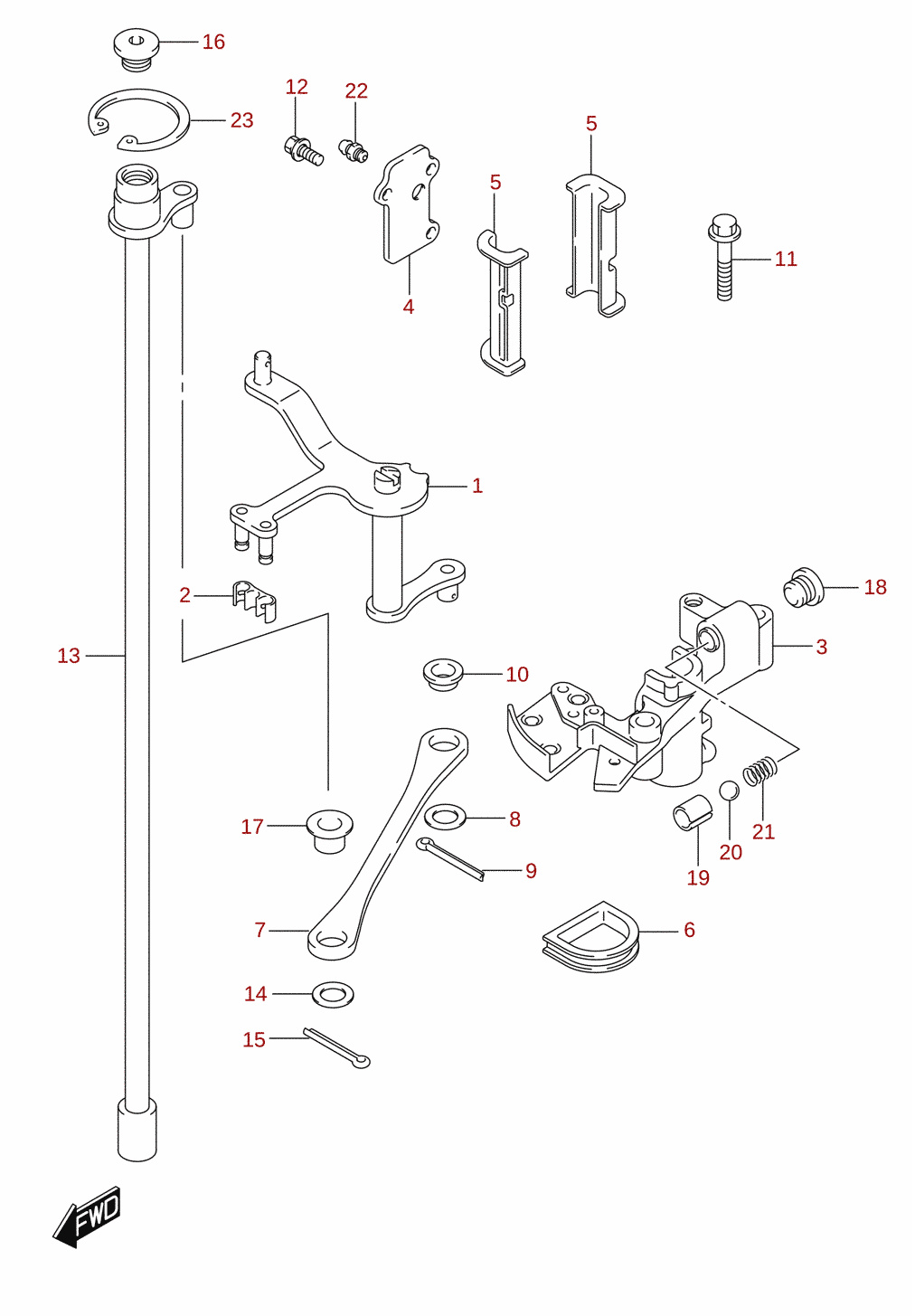

Clutch shaft

Reference no. DF90A_E01_019 27

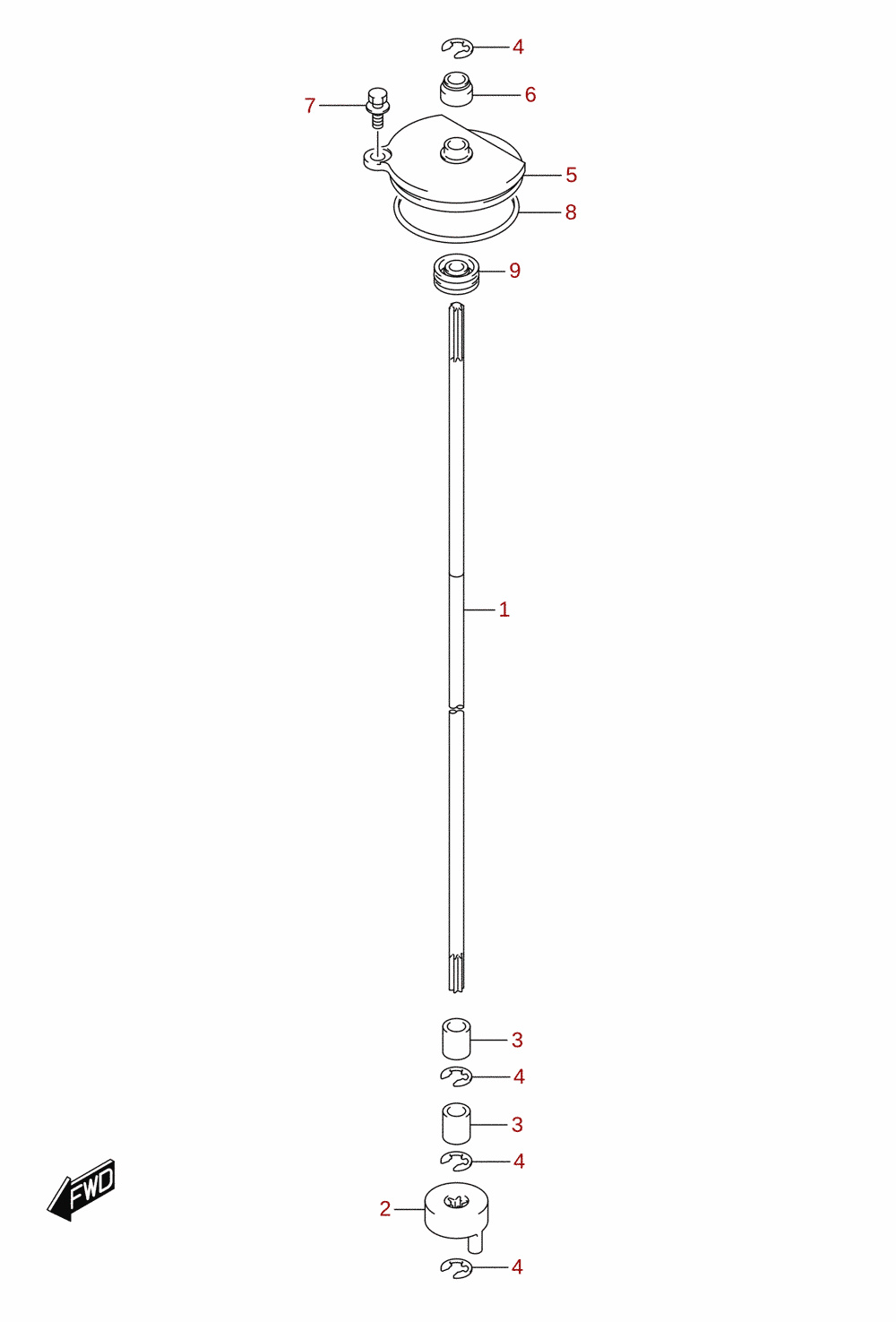

Clutch rod

Reference no. DF90A_E01_019 28

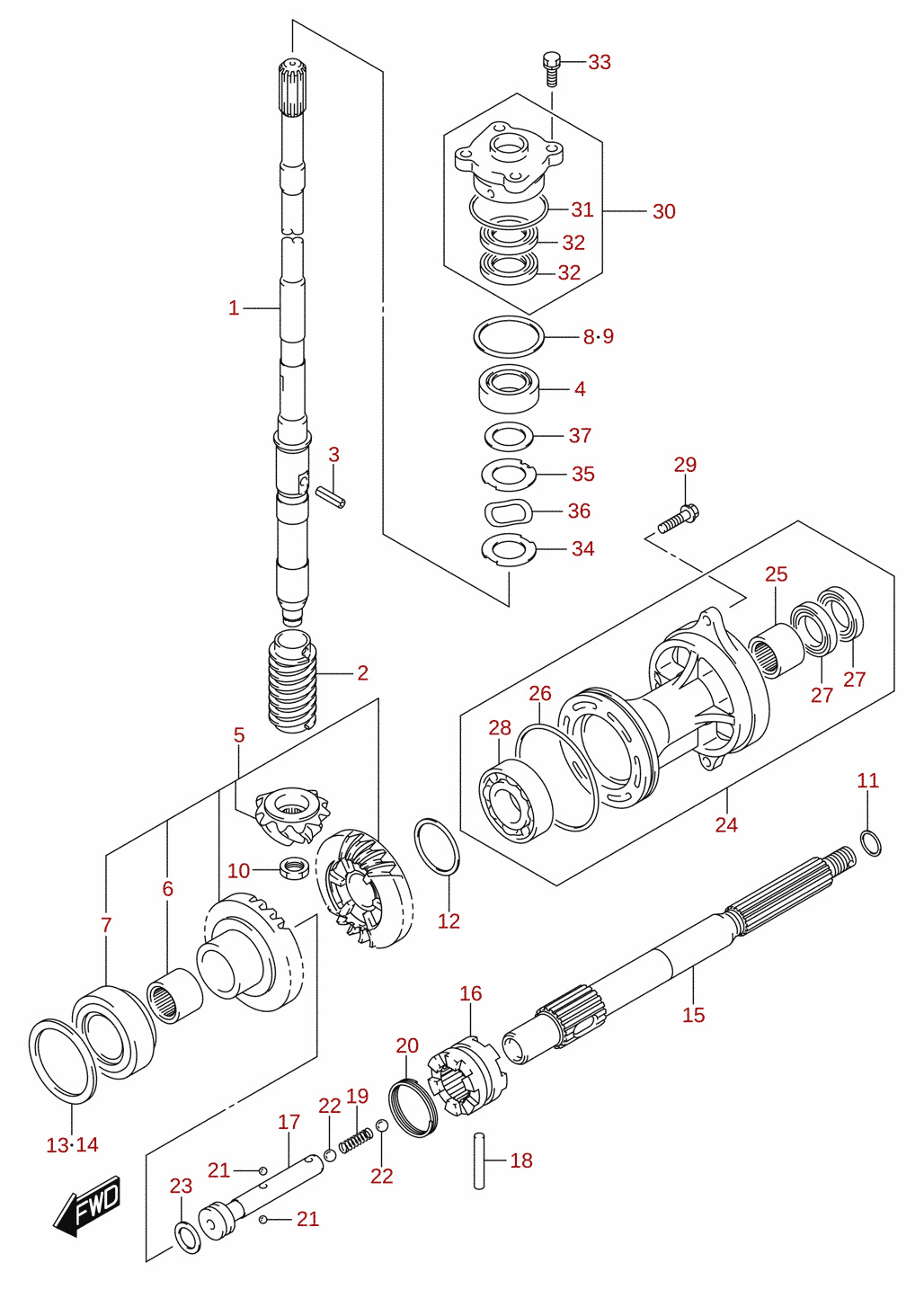

Transmission (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 29

Transmission (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 30

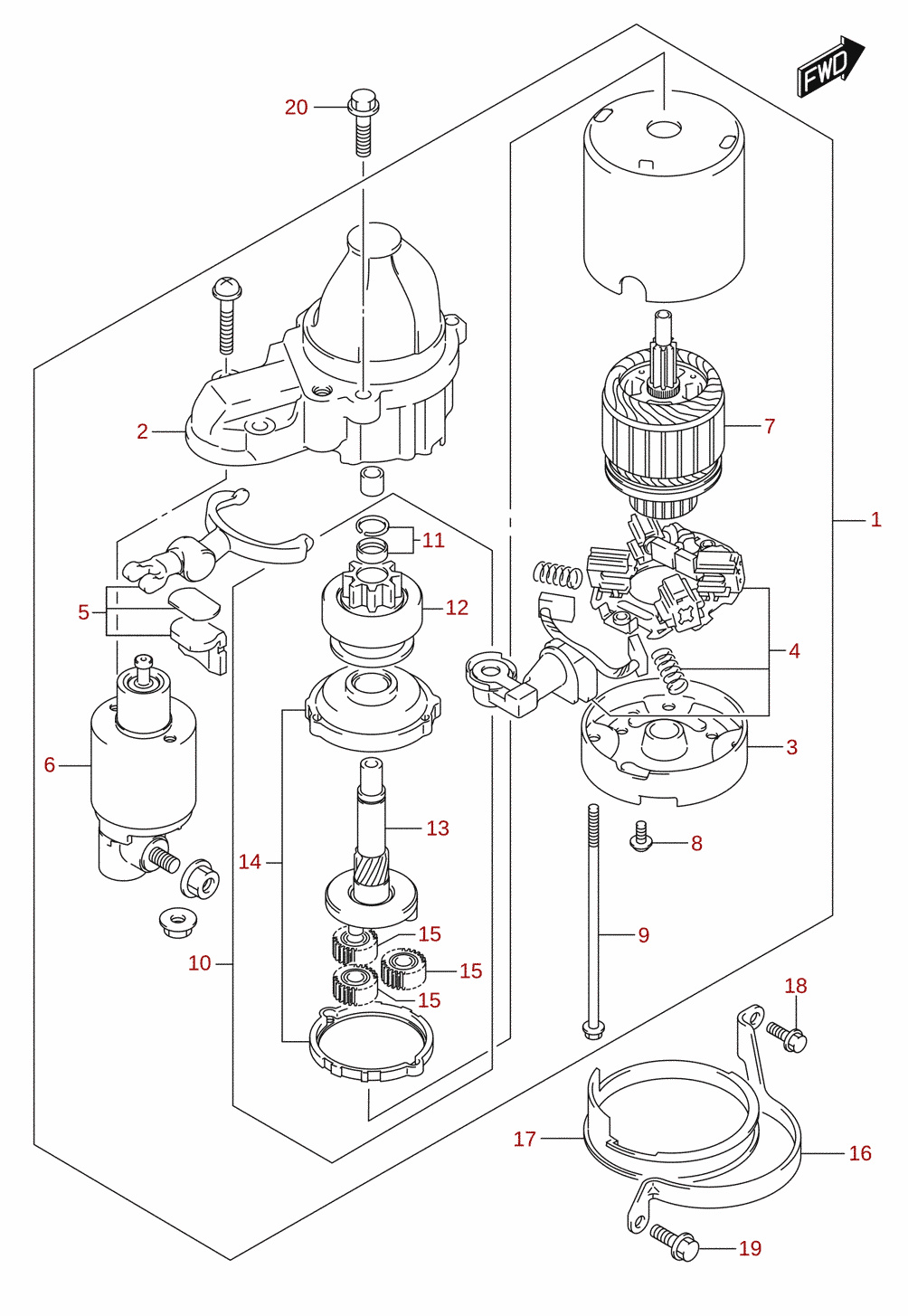

Starting motor

Reference no. DF90A_E01_019 31

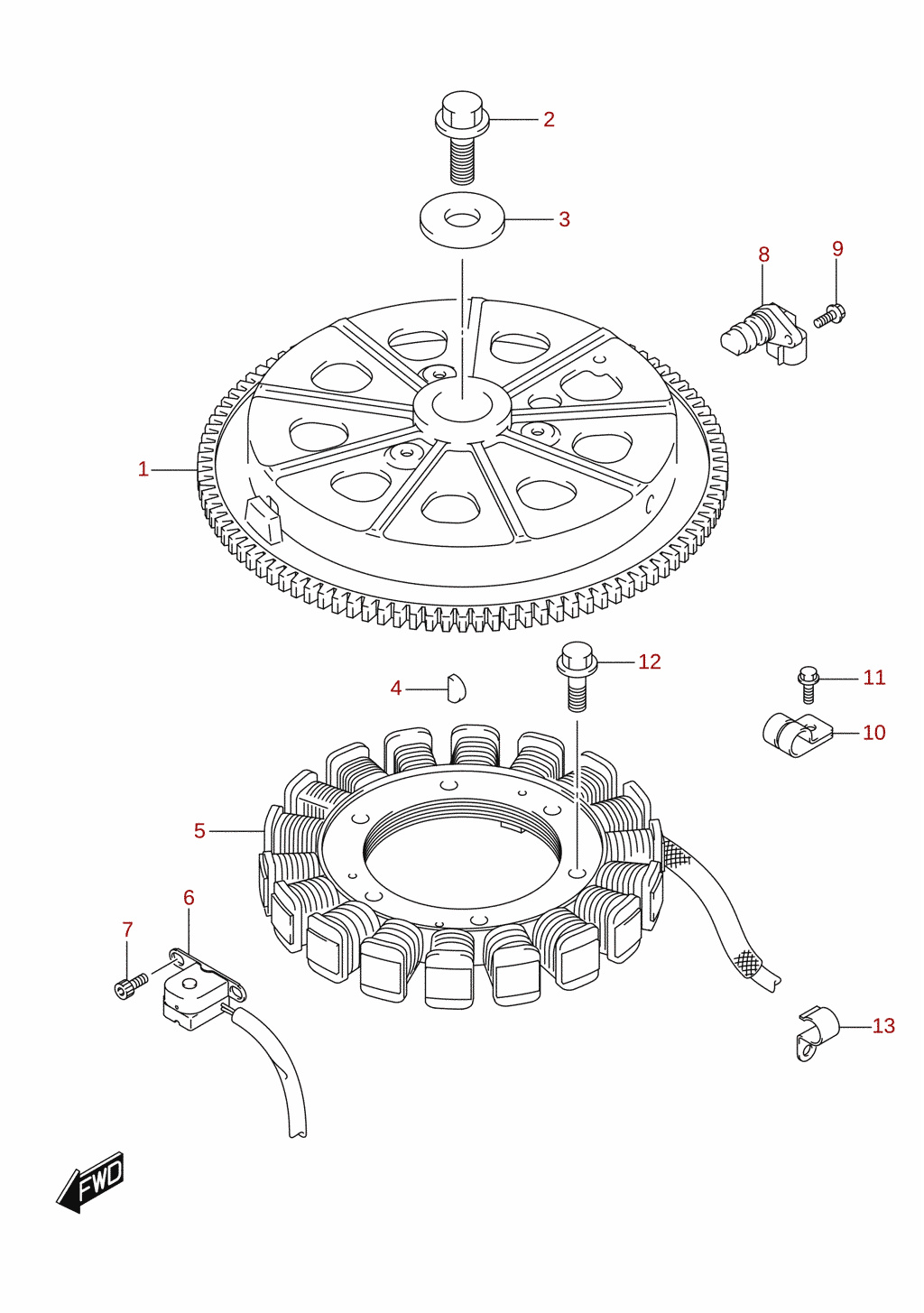

Magneto

Reference no. DF90A_E01_019 32

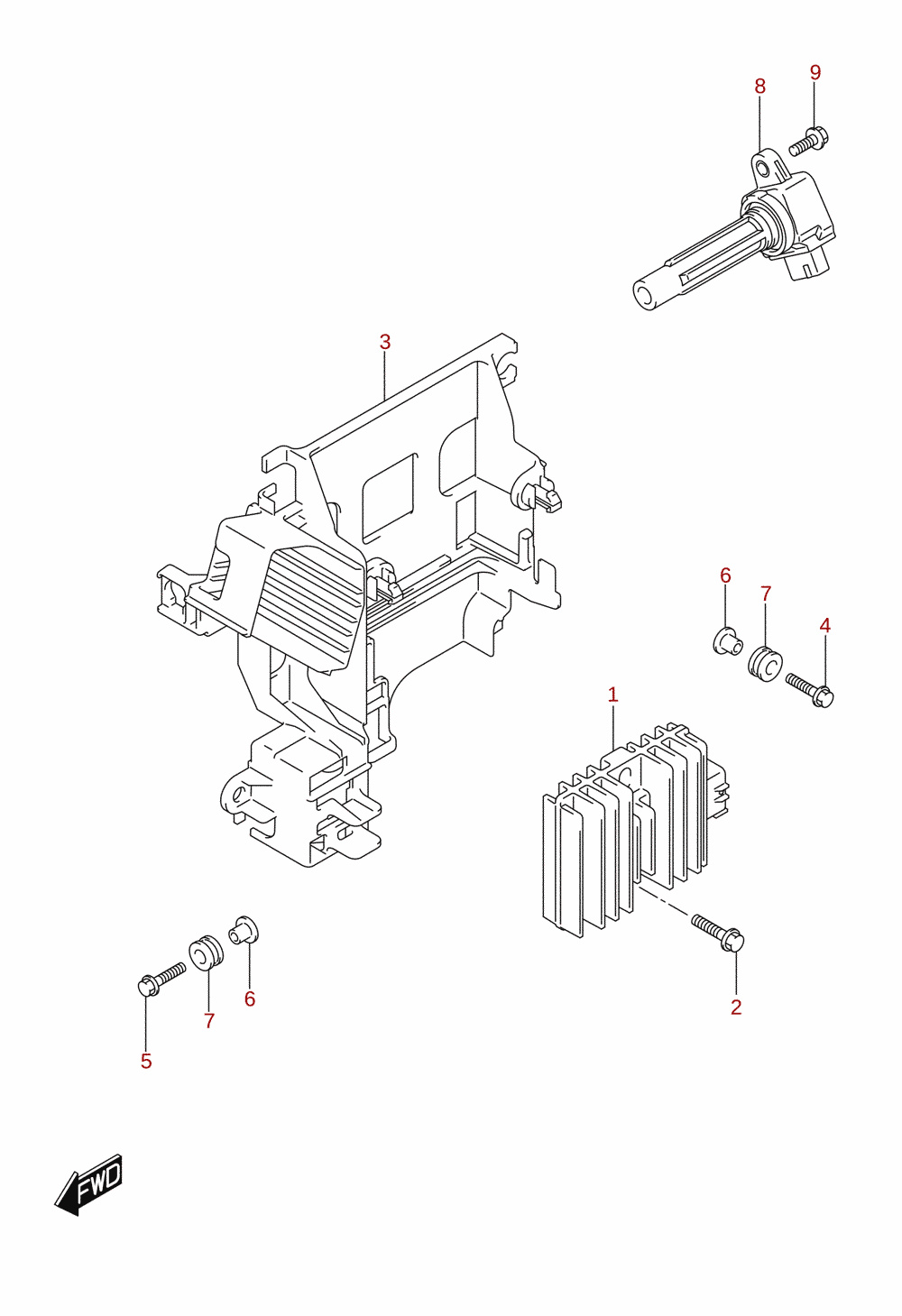

Rectifier / ignition coil

Reference no. DF90A_E01_019 33

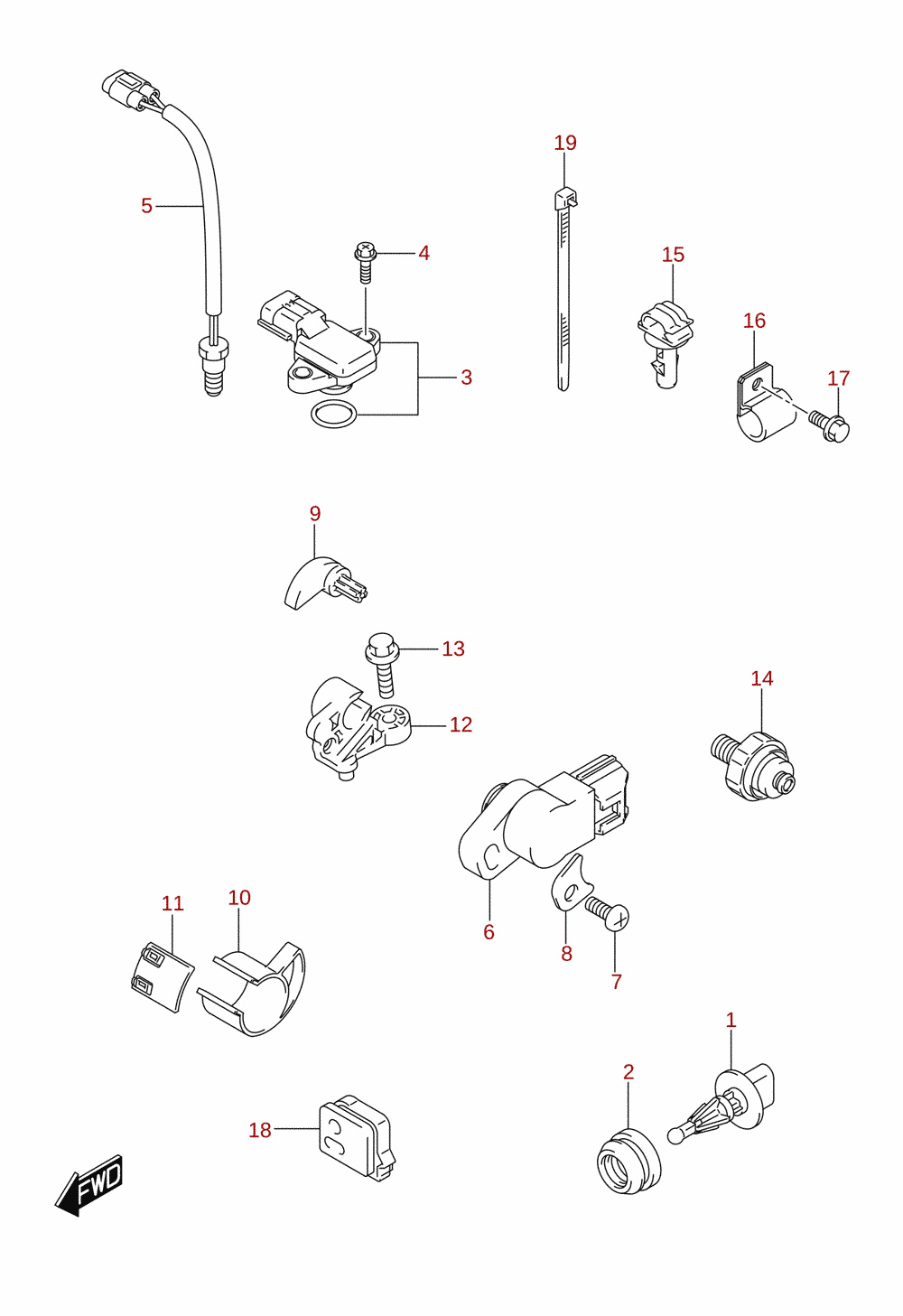

Sensor

Reference no. DF90A_E01_019 34

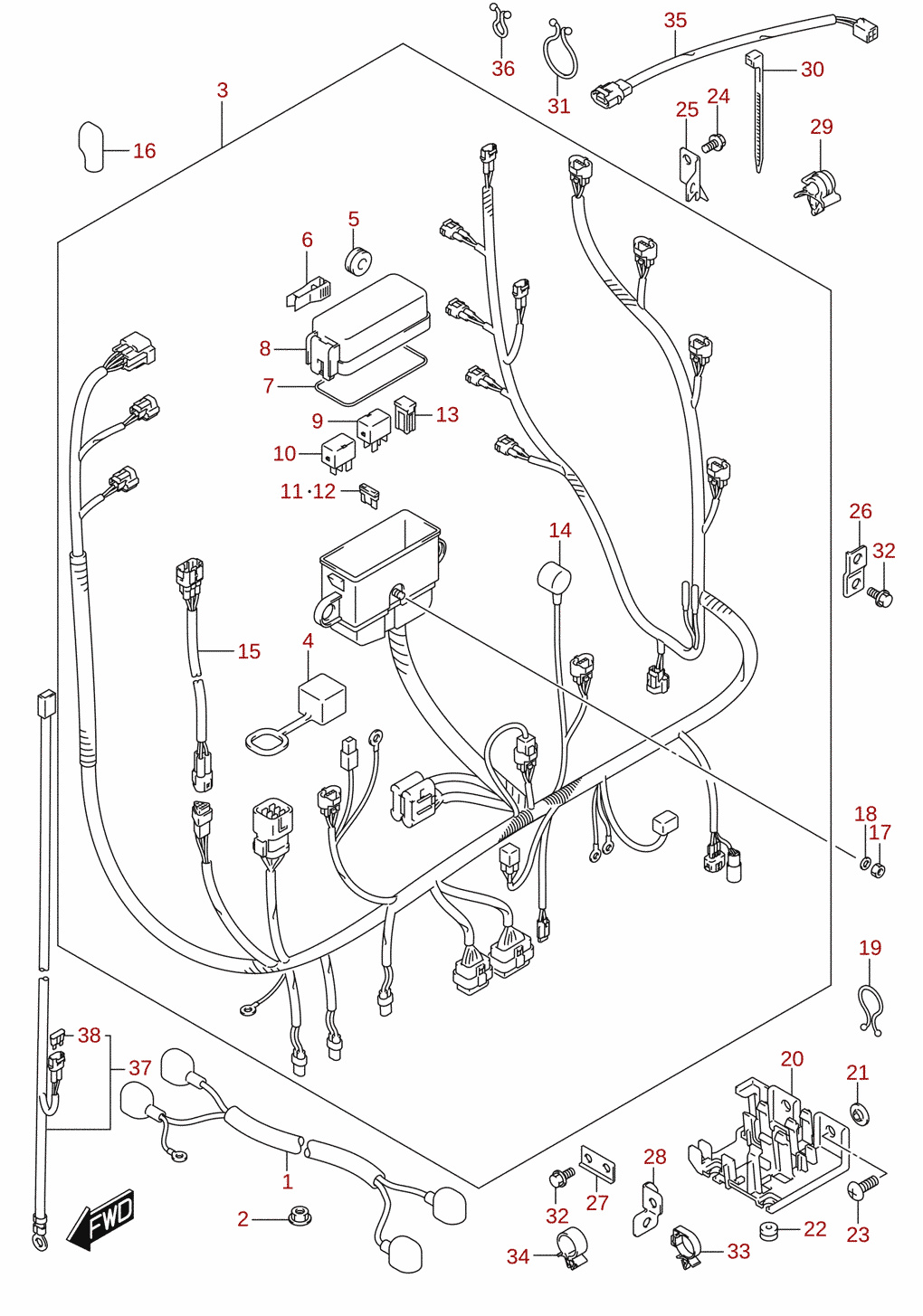

Harness (DF70A, DF70ATH, DF80A, DF90A, DF90ATH)

Reference no. DF90A_E01_019 35

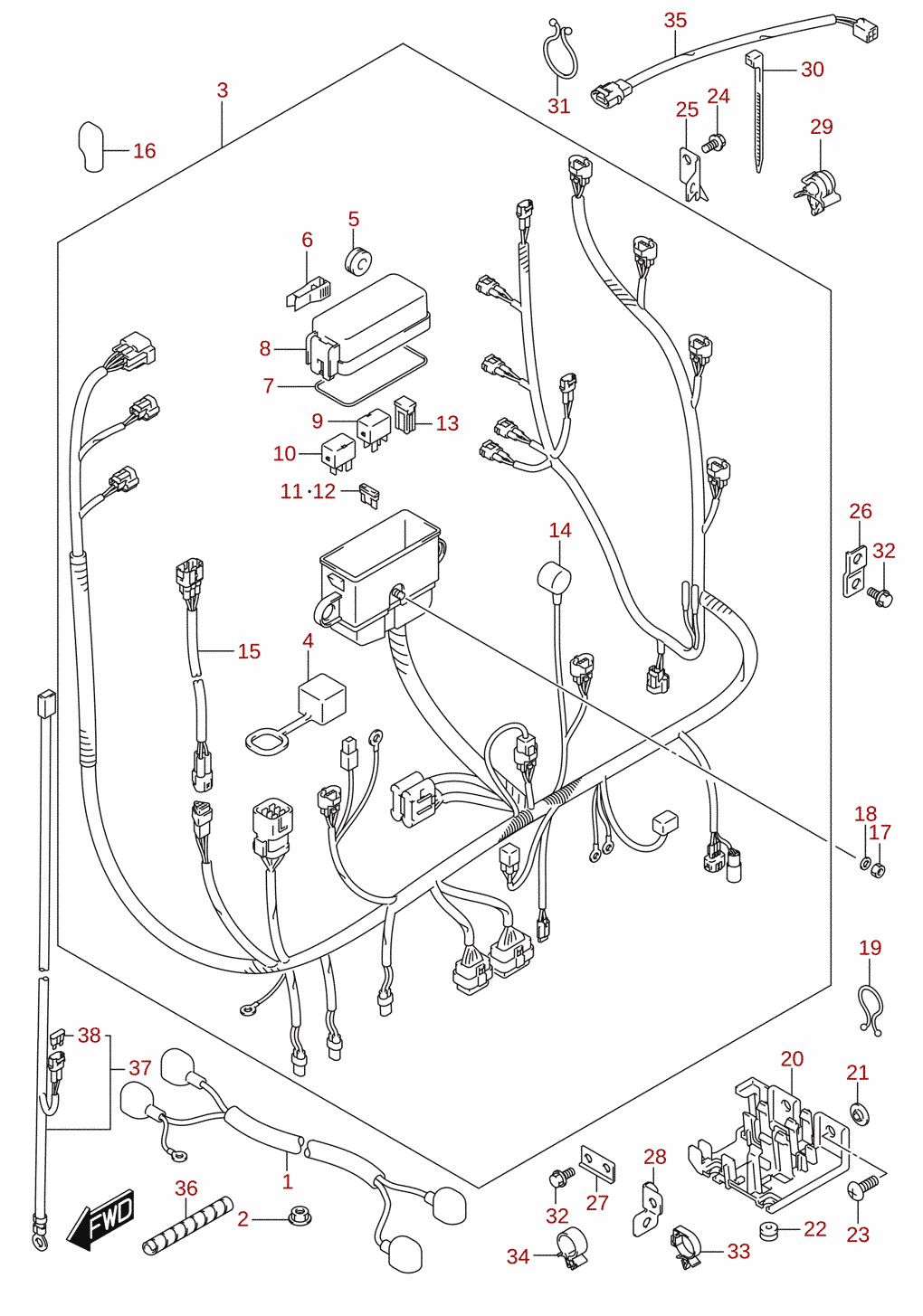

Harness (DF100B)

Reference no. DF90A_E01_019 36

PTT switch / engine control unit (DF70)

Reference no. DF90A_E01_019 37

PTT switch / engine control unit (DF80A)

Reference no. DF90A_E01_019 38

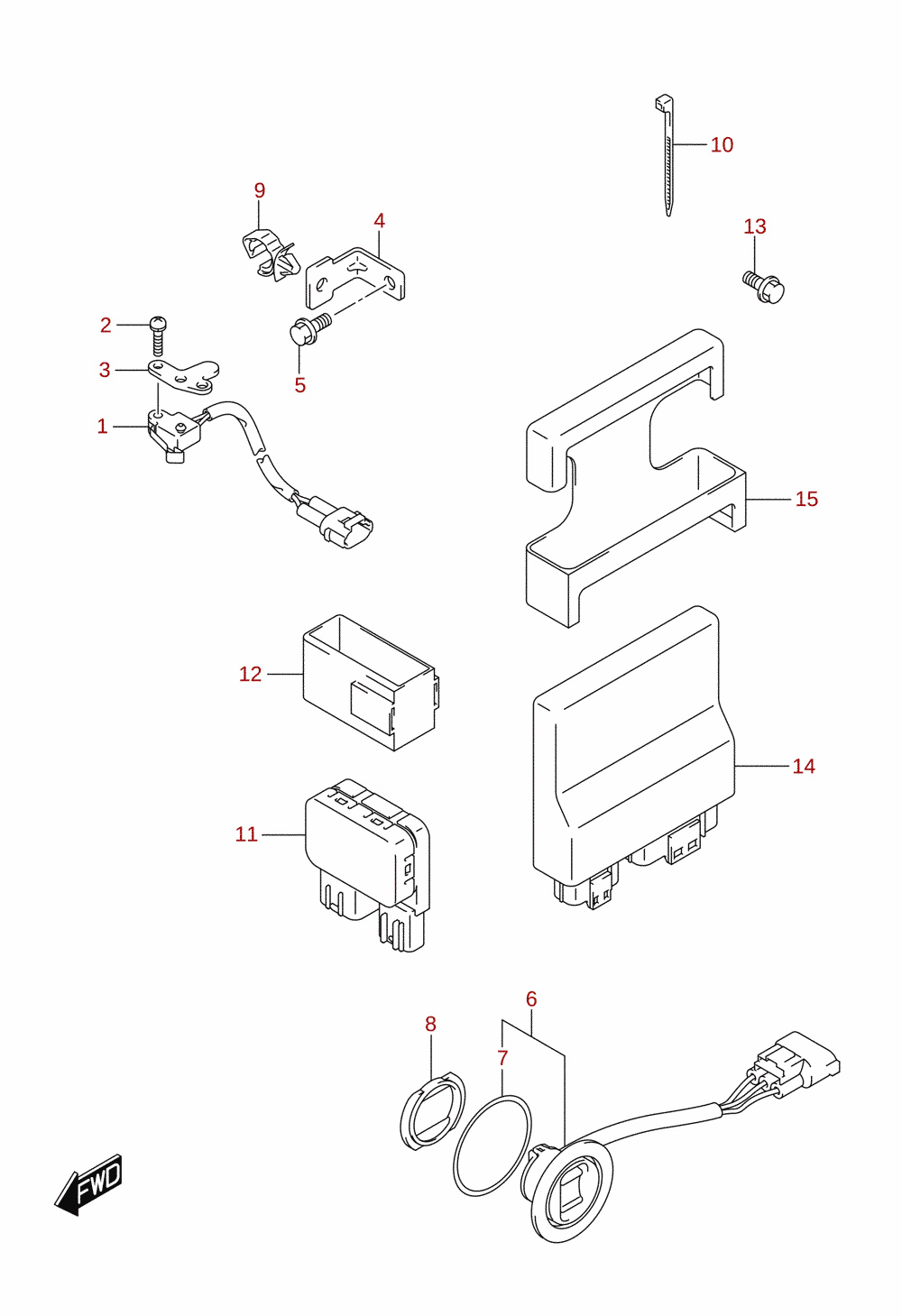

PTT switch / engine control unit (DF90)

Reference no. DF90A_E01_019 39

PTT switch / engine control unit (DF100B)

Reference no. DF90A_E01_019 40

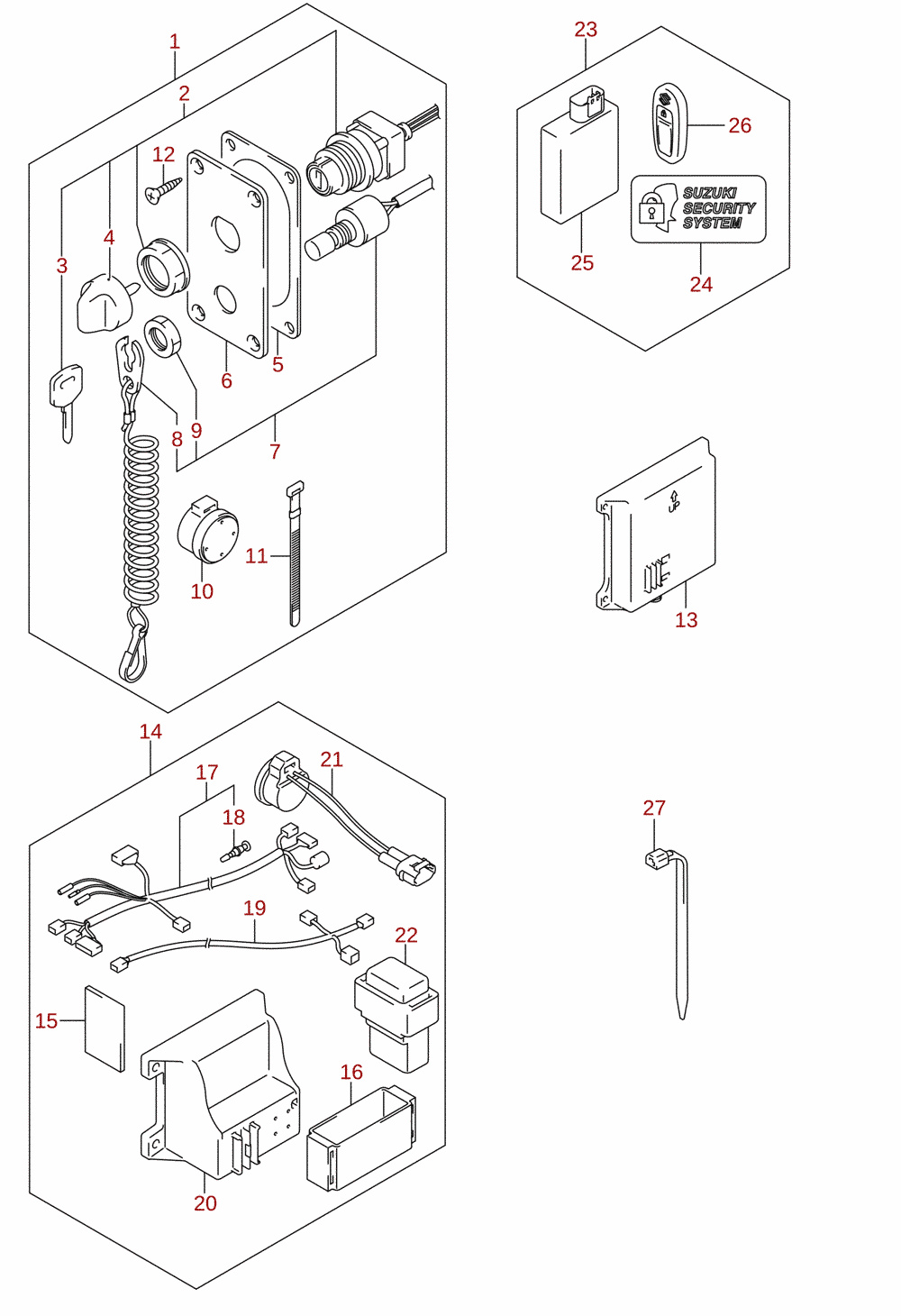

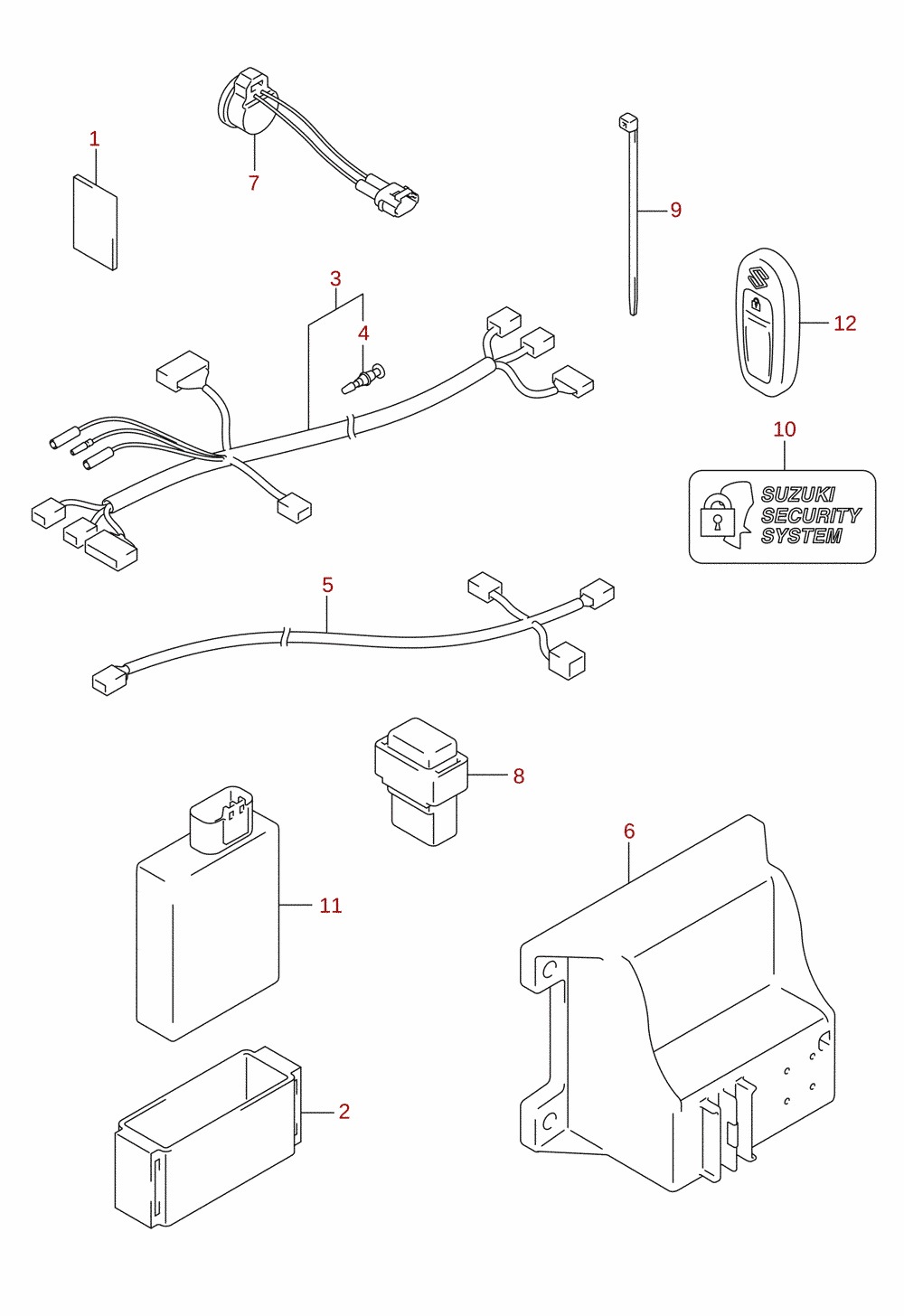

Keyless start (DF100B, DF70A, DF80A, DF90A)

Reference no. DF90A_E01_019 41

Clamp bracket (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 42

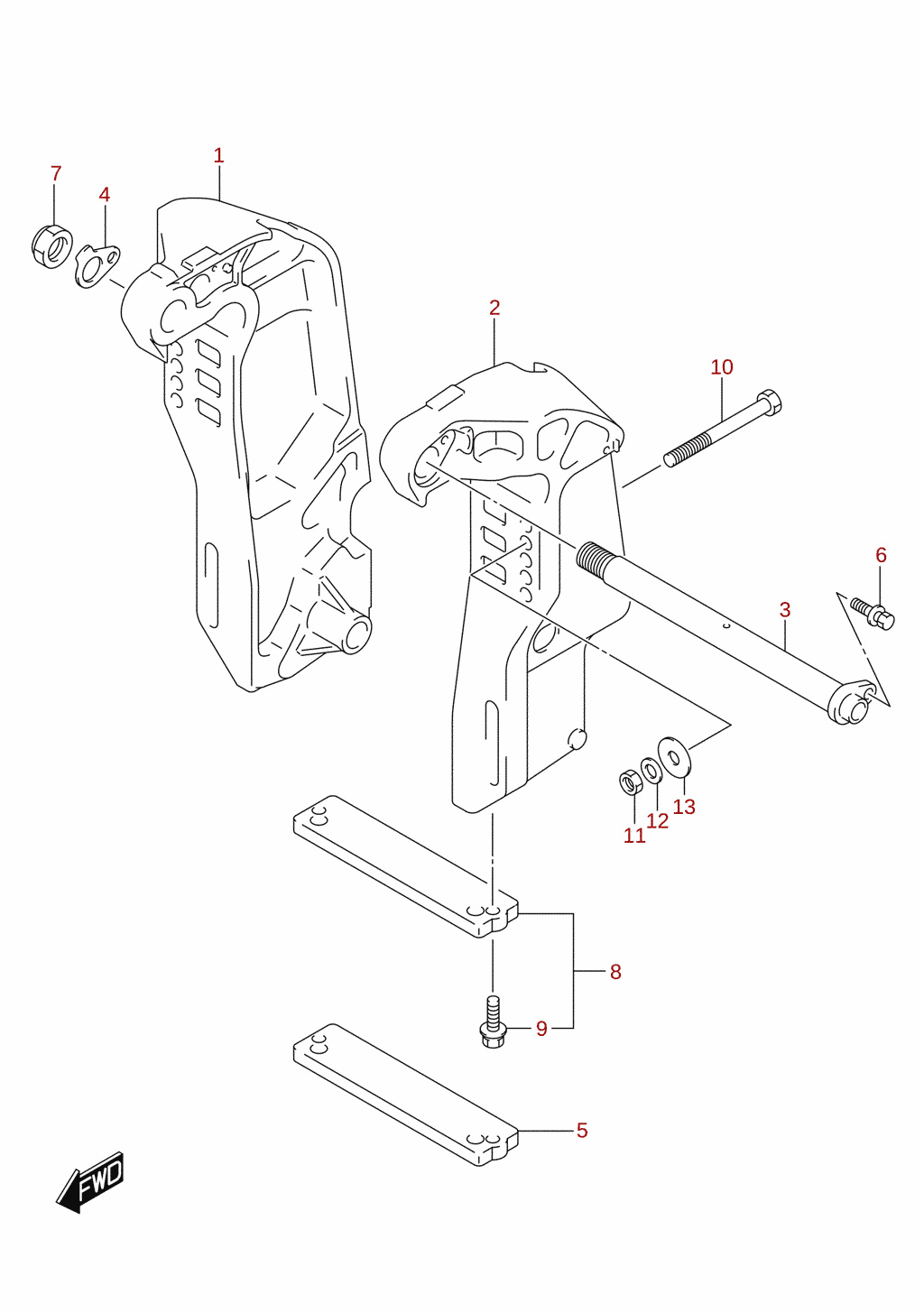

Clamp bracket (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 43

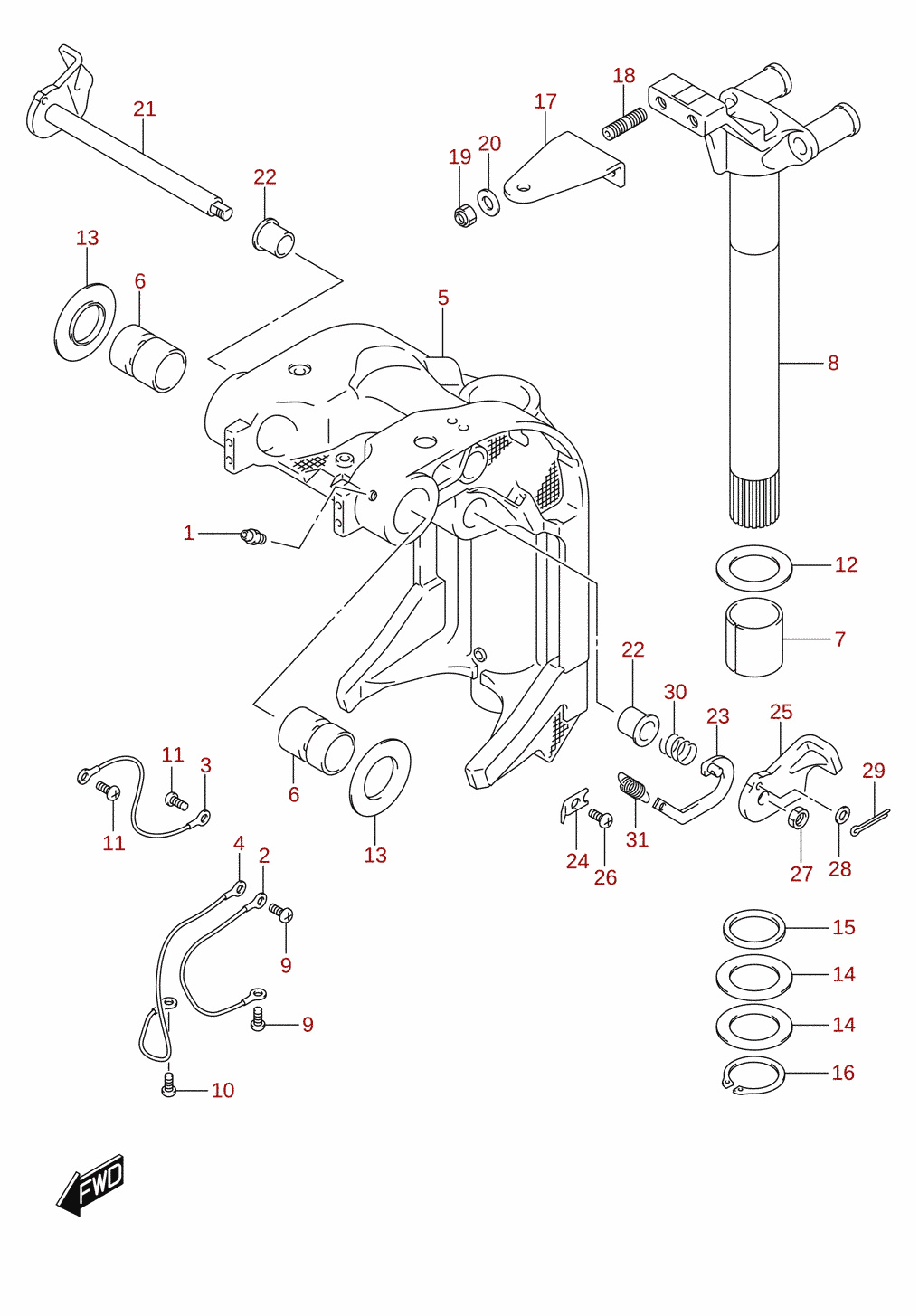

Swivel bracket (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 44

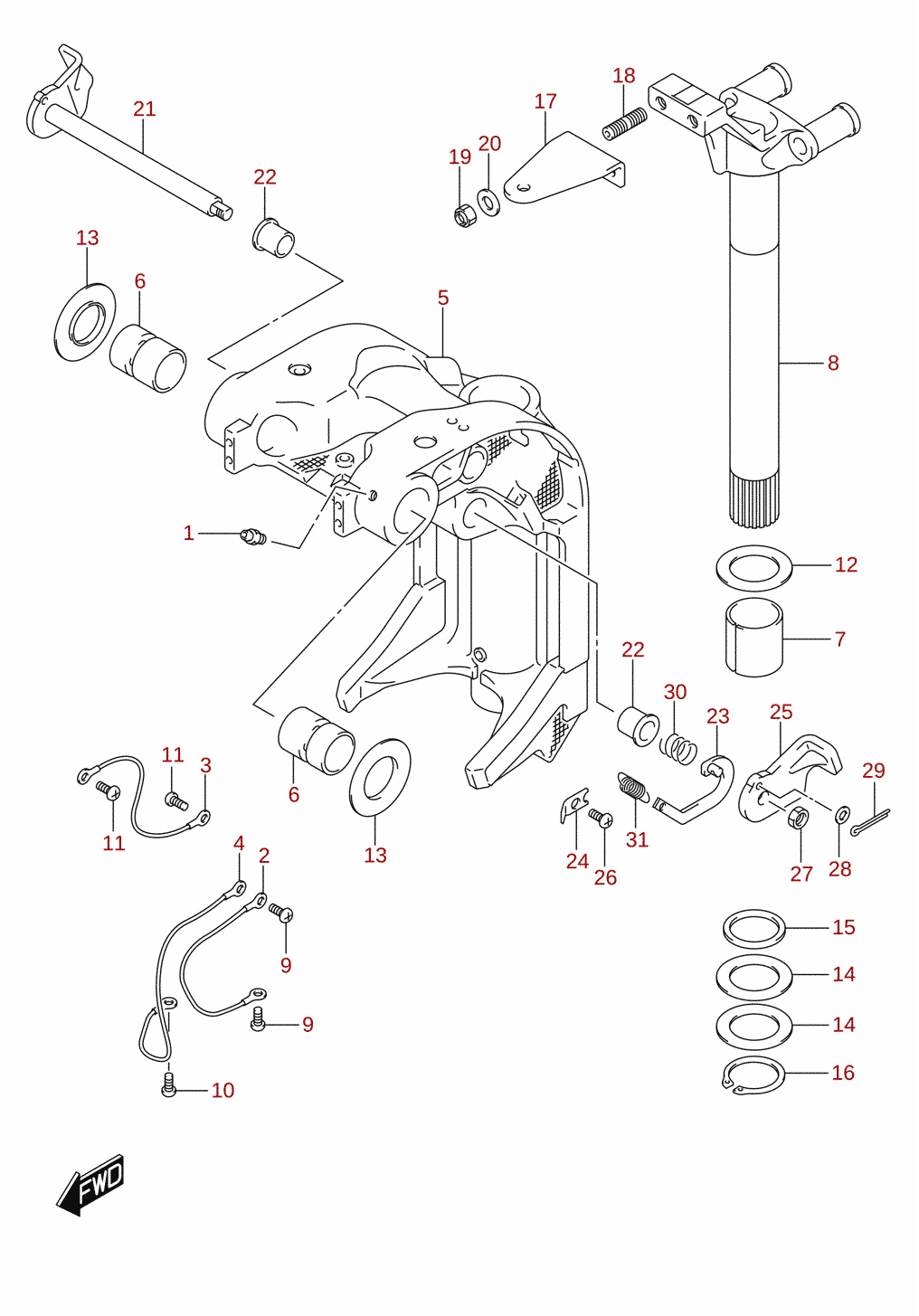

Swivel bracket (DF80A)

Reference no. DF90A_E01_019 45

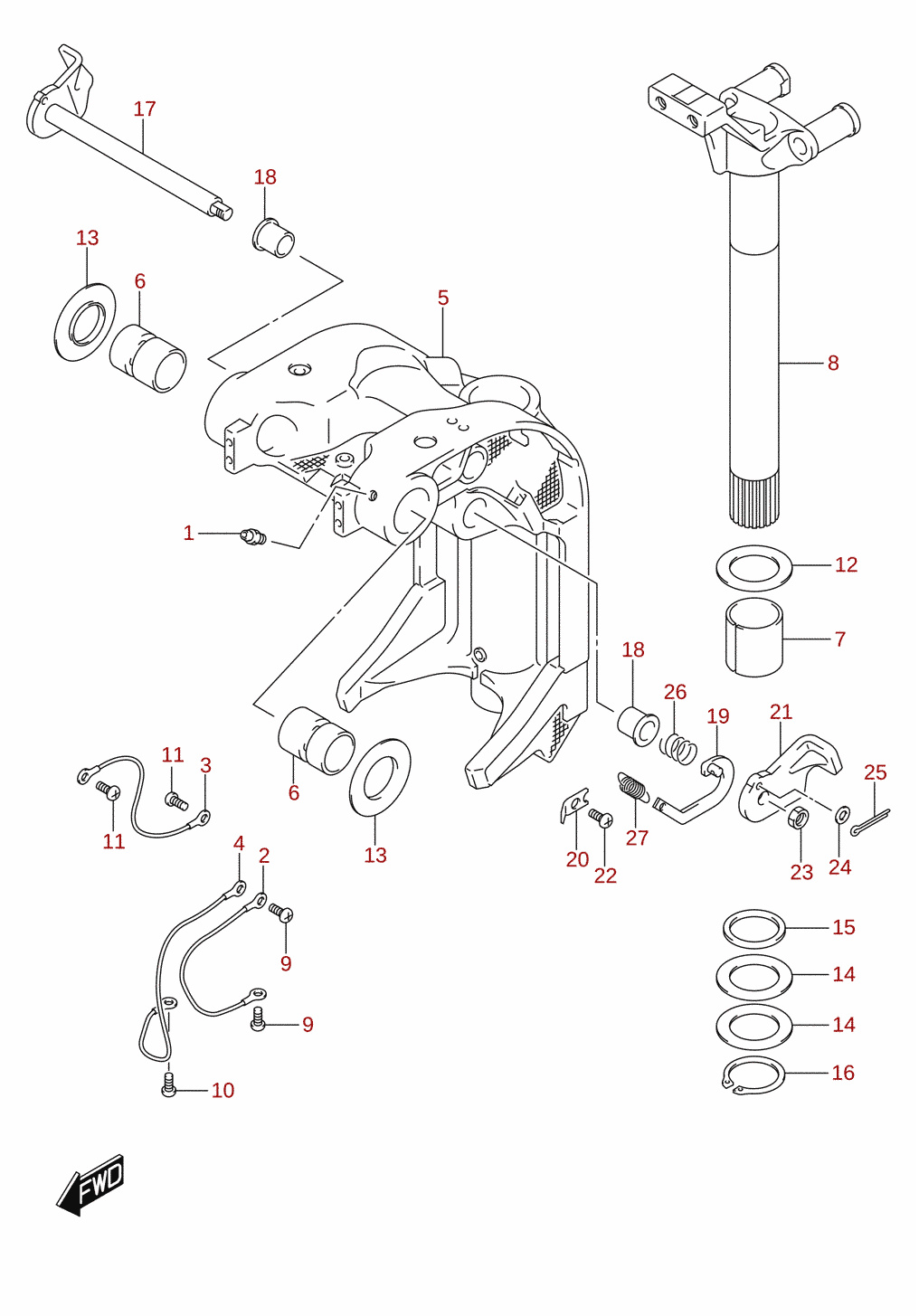

Swivel bracket (DF70ATH, DF90ATH)

Reference no. DF90A_E01_019 46

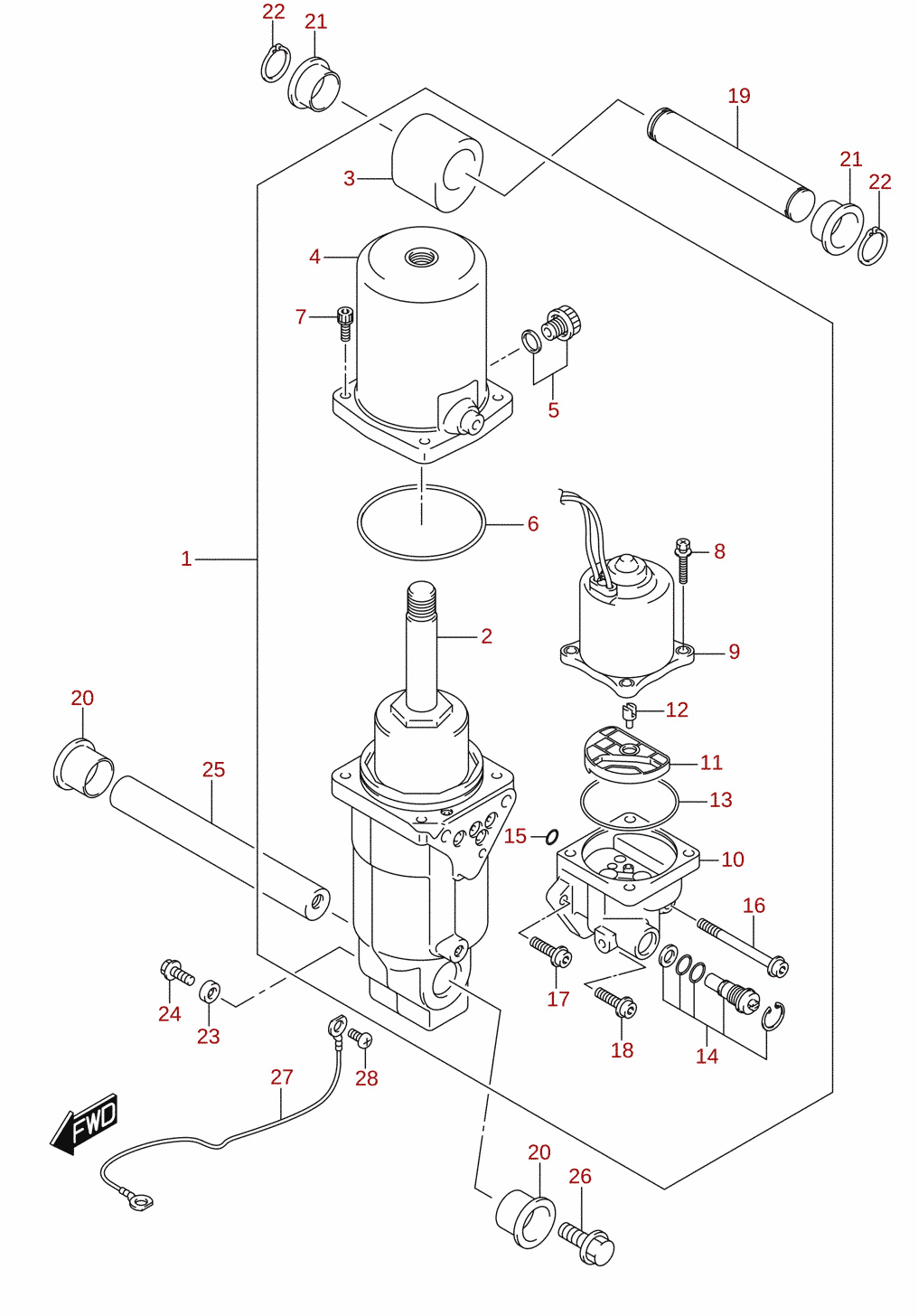

Trim cylinder

Reference no. DF90A_E01_019 47

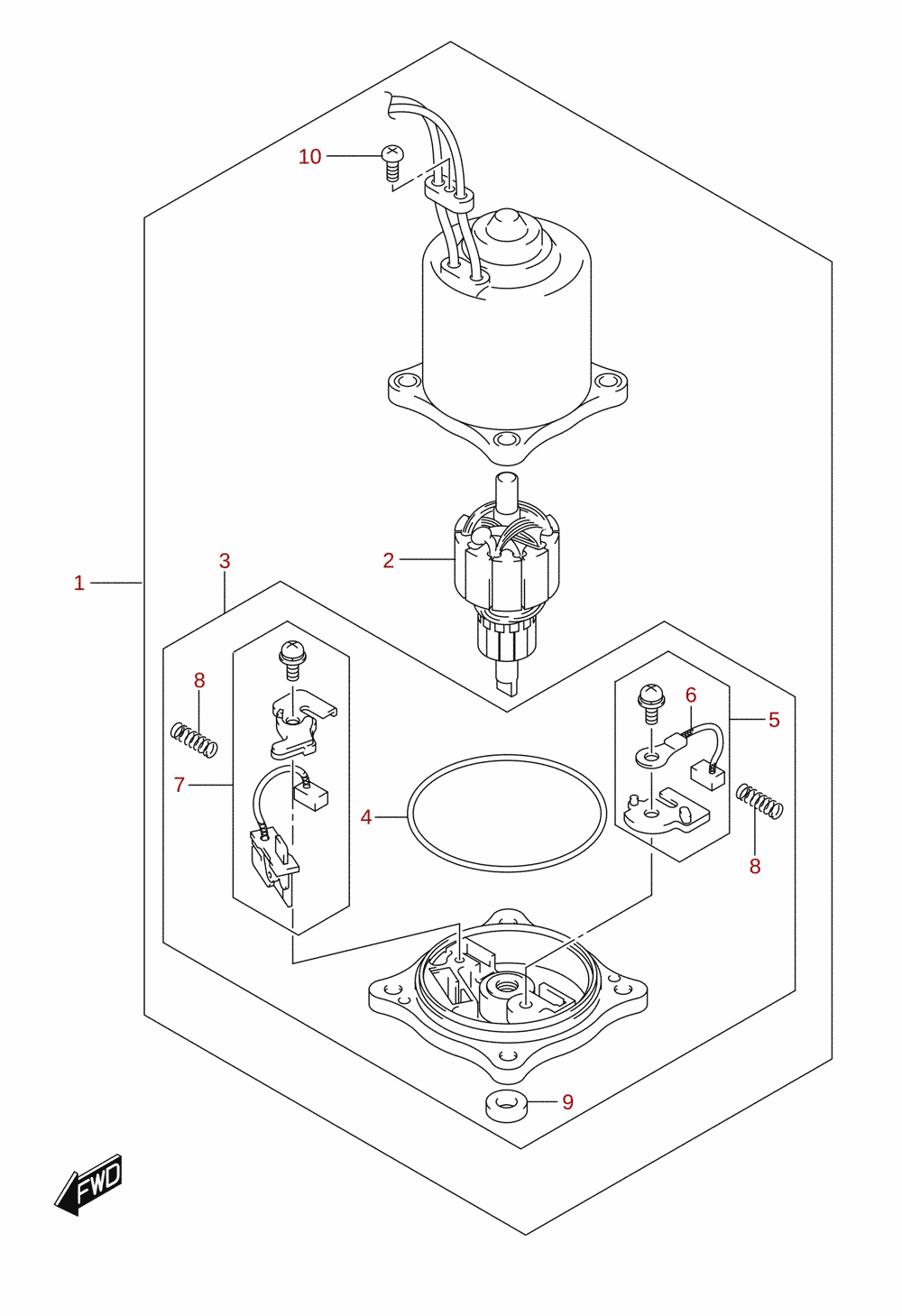

PTT motor

Reference no. DF90A_E01_019 48

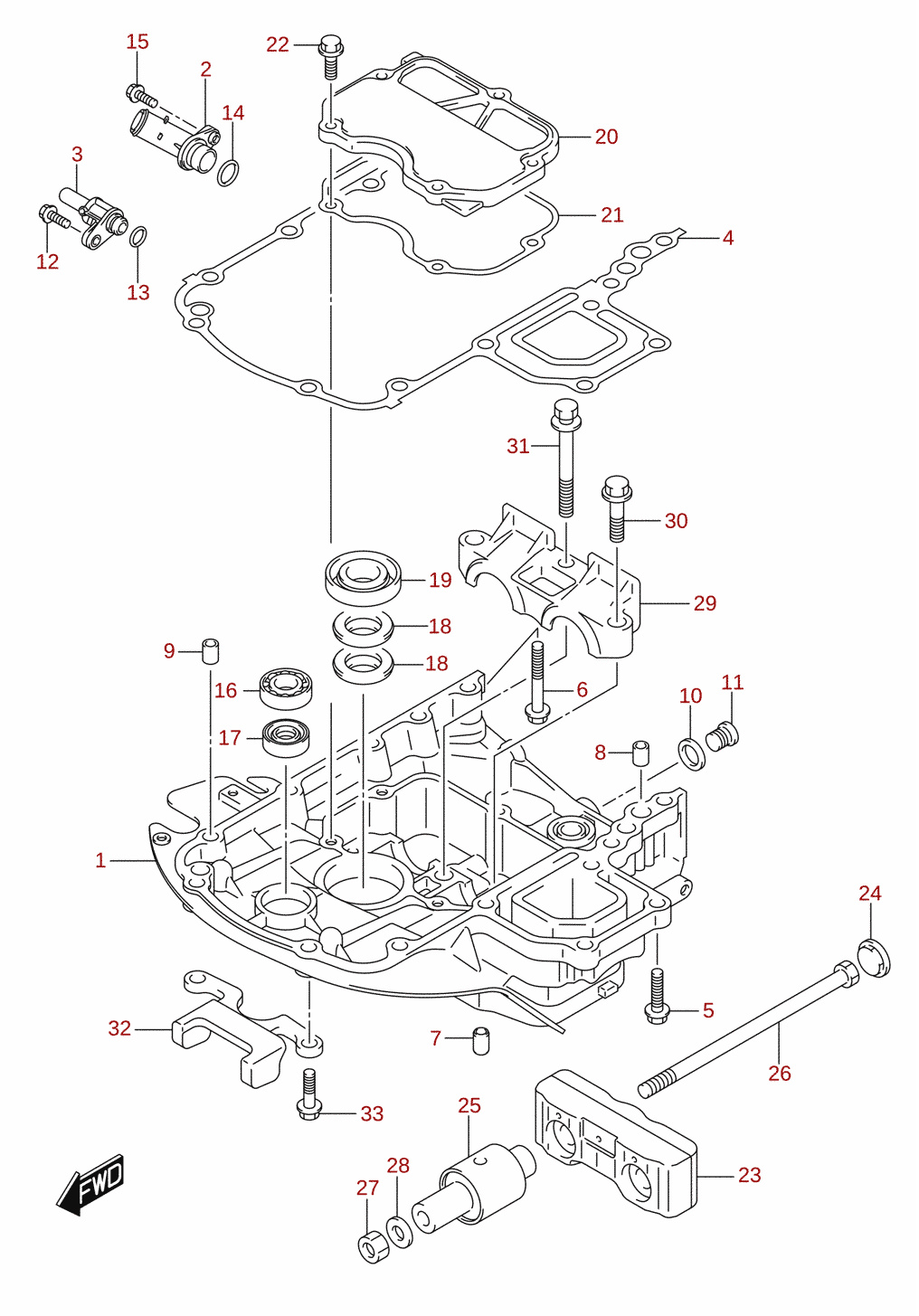

Engine holder (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 49

Engine holder (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 50

Drive shaft housing (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 51

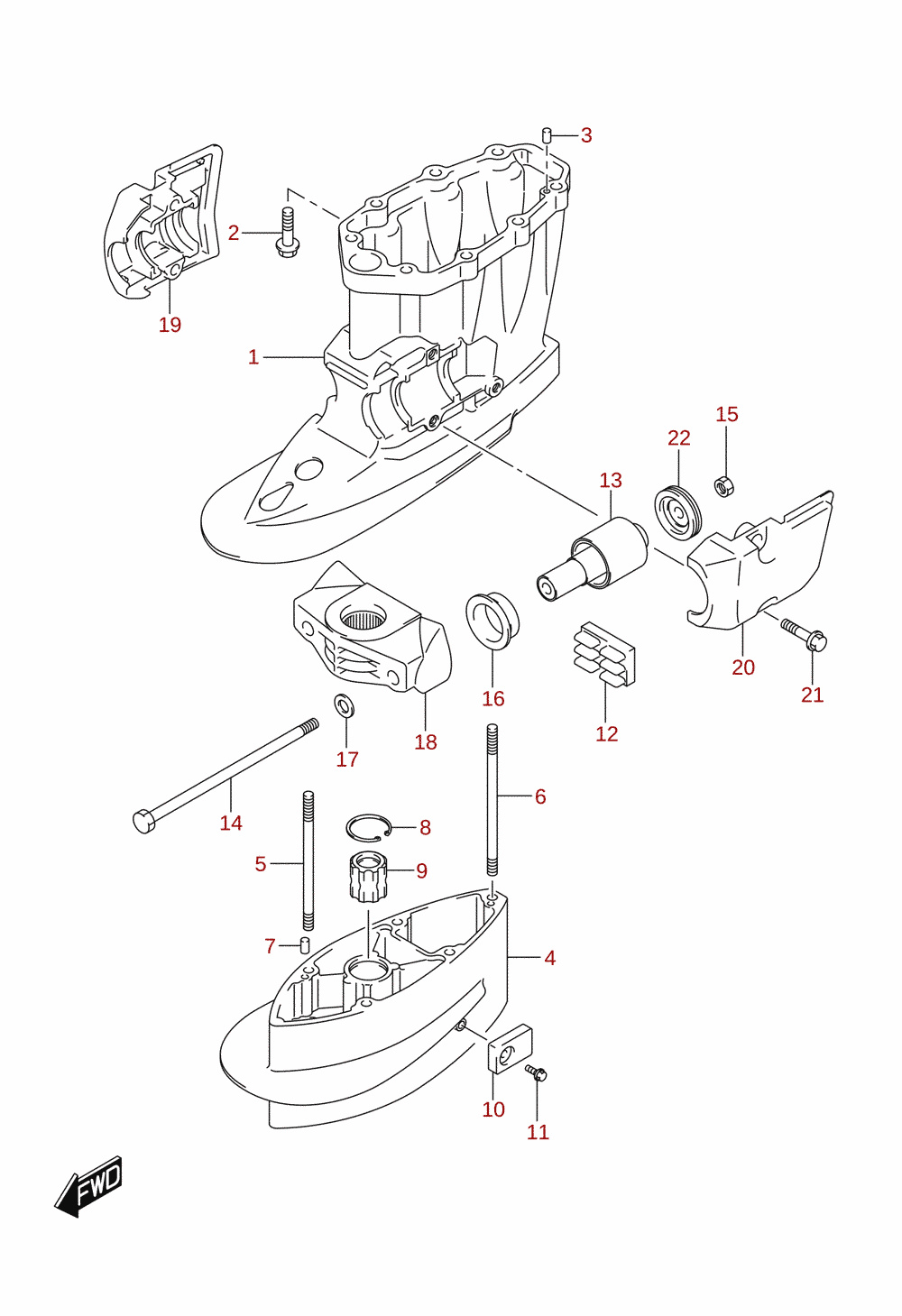

Drive shaft housing (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 52

Gear case (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 53

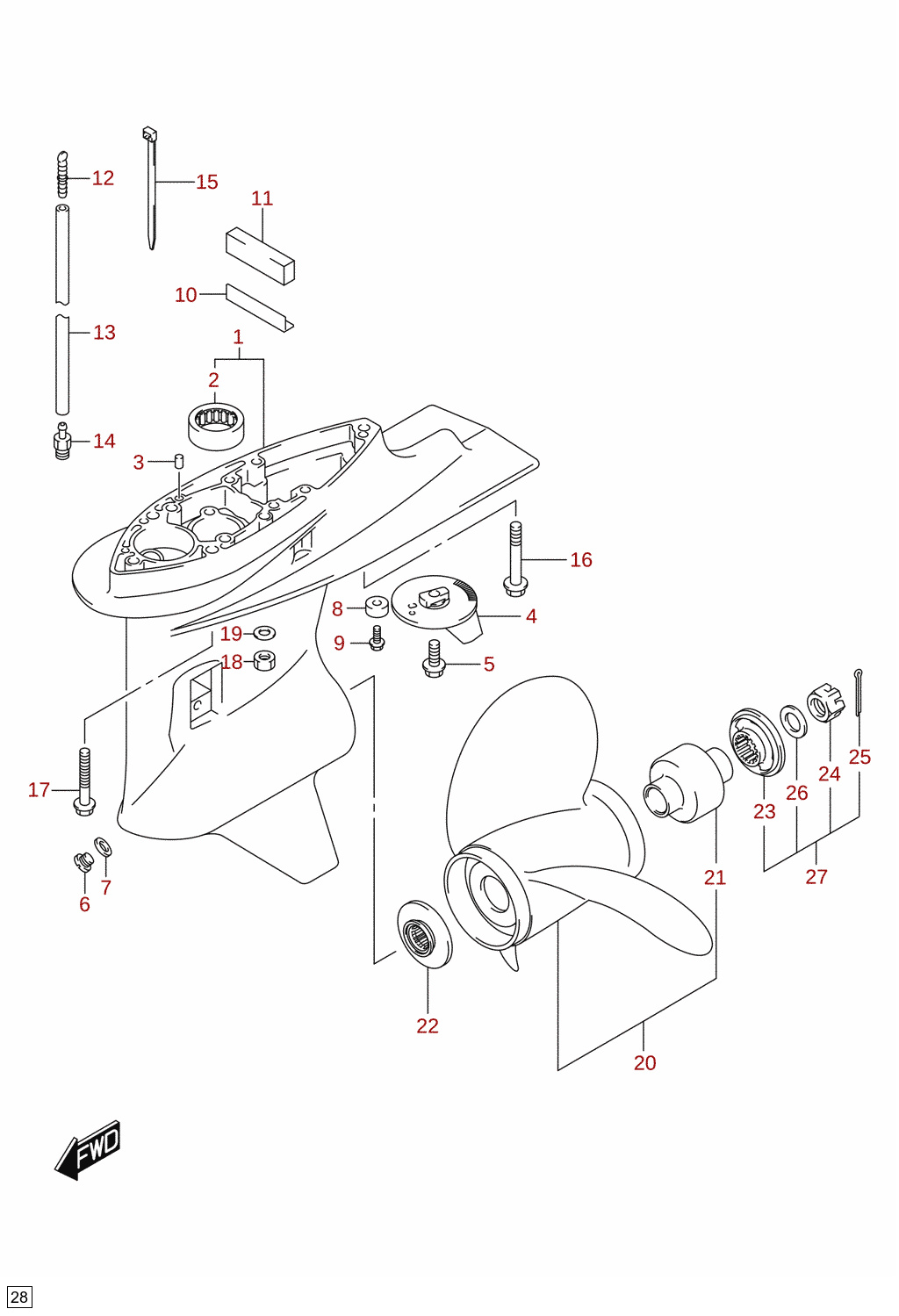

Gear case (DF70ATH, DF80A, DF90ATH)

Reference no. DF90A_E01_019 54

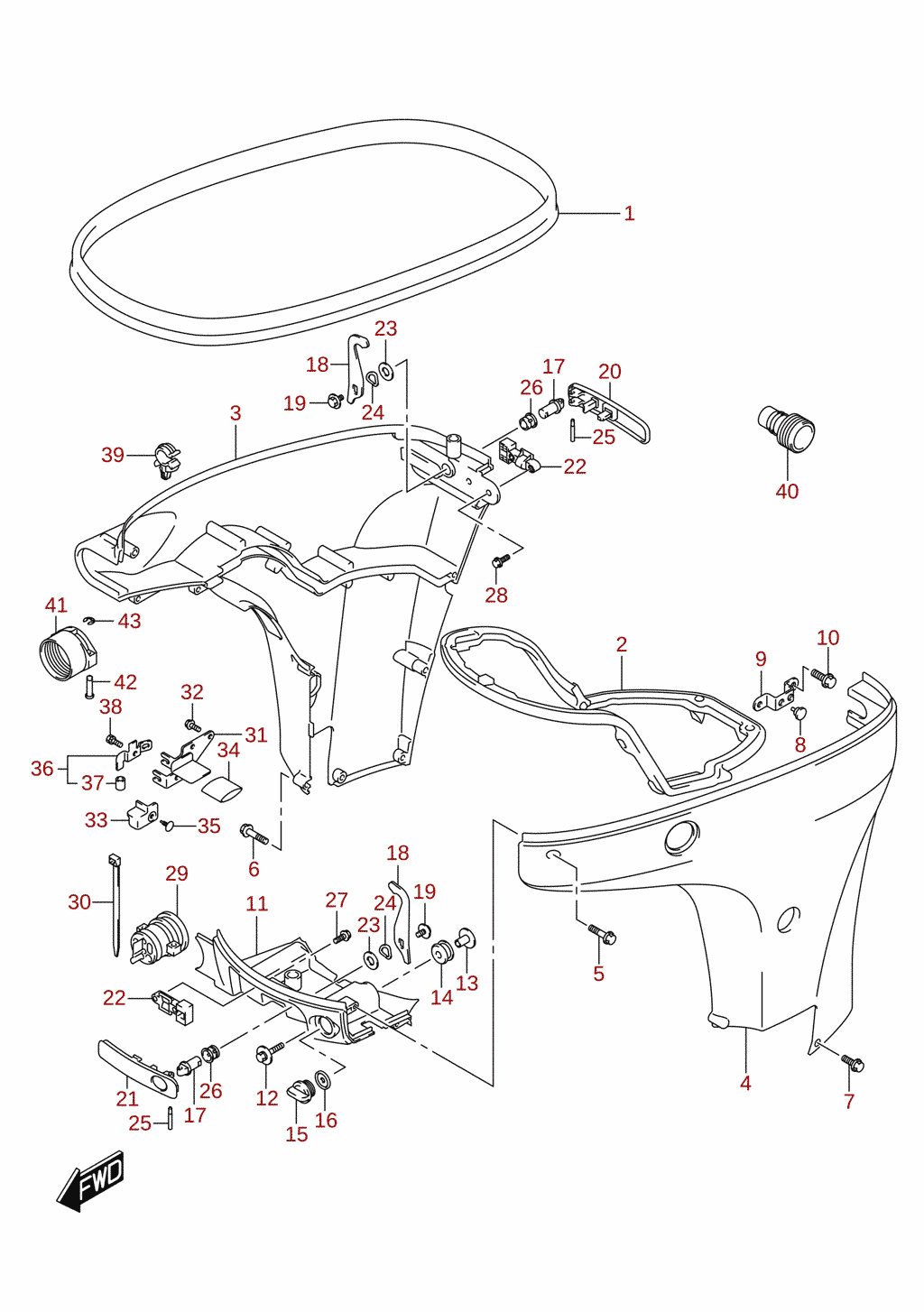

Side cover (DF100B, DF70A, DF90A)

Reference no. DF90A_E01_019 55

Side cover (DF70ATH, DF90ATH)

Reference no. DF90A_E01_019 56

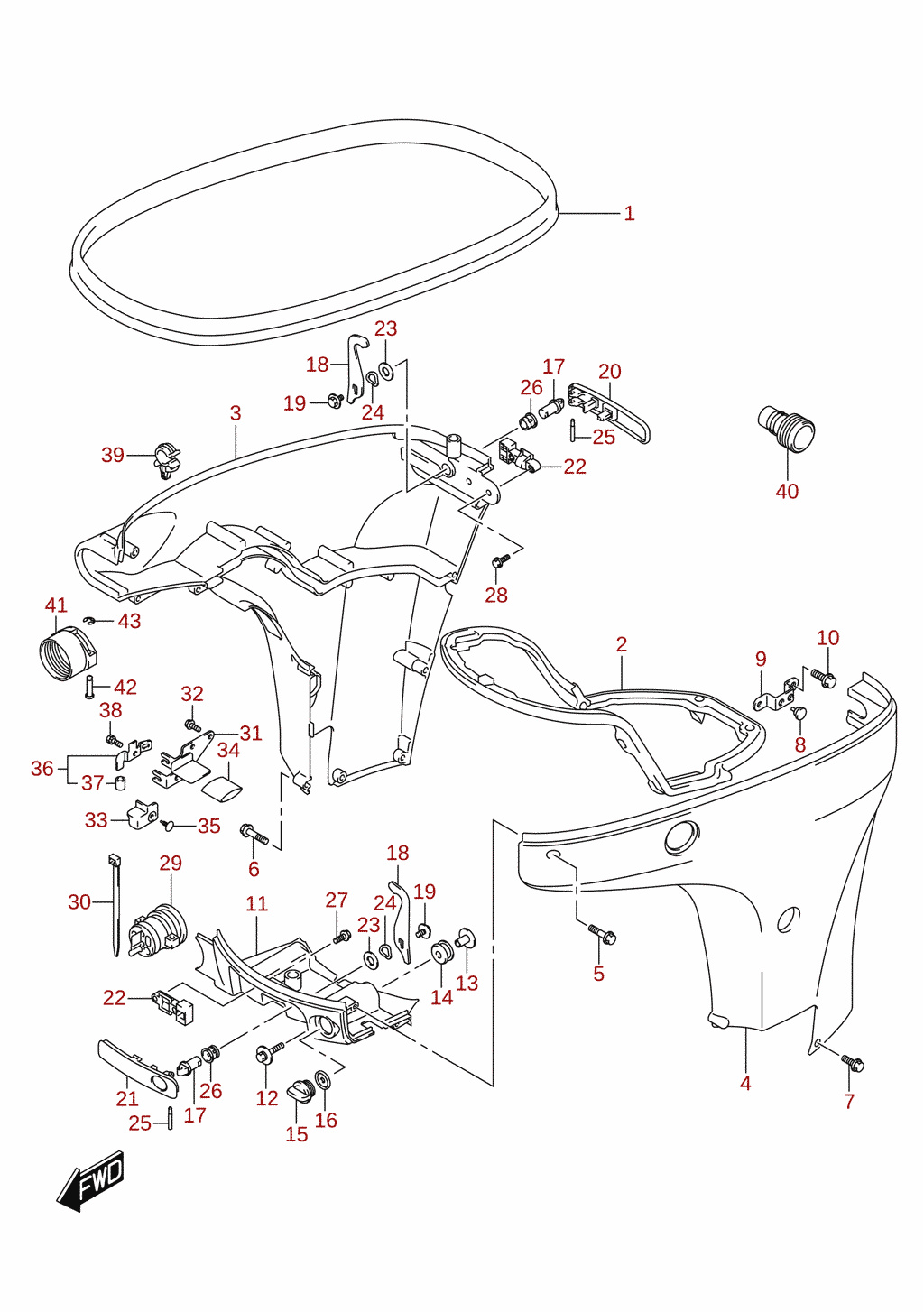

Side cover (DF80A)

Reference no. DF90A_E01_019 57

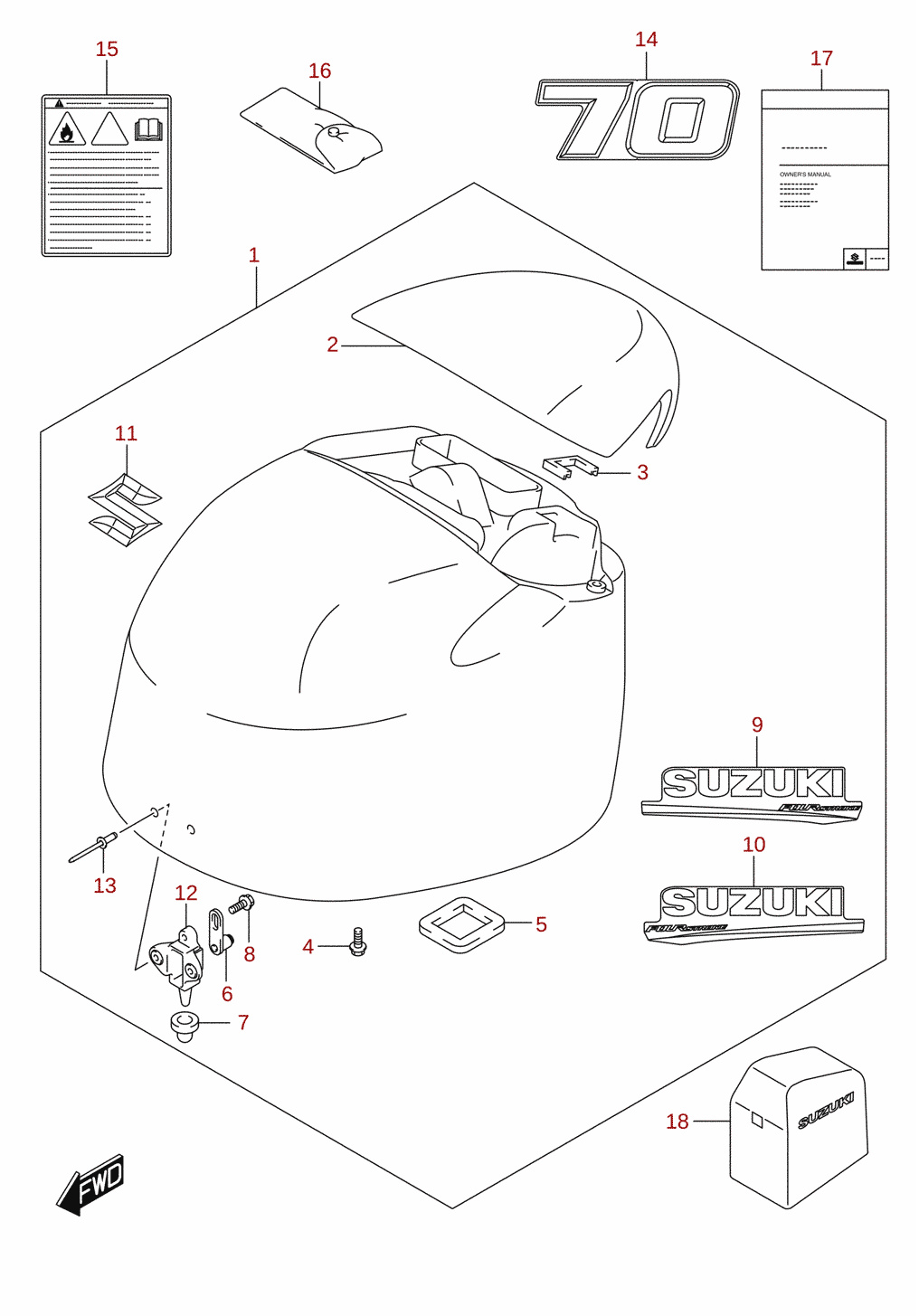

Engine cover (DF70A)

Reference no. DF90A_E01_019 58

Engine cover (DF70ATH)

Reference no. DF90A_E01_019 59

Engine cover (DF80A)

Reference no. DF90A_E01_019 60

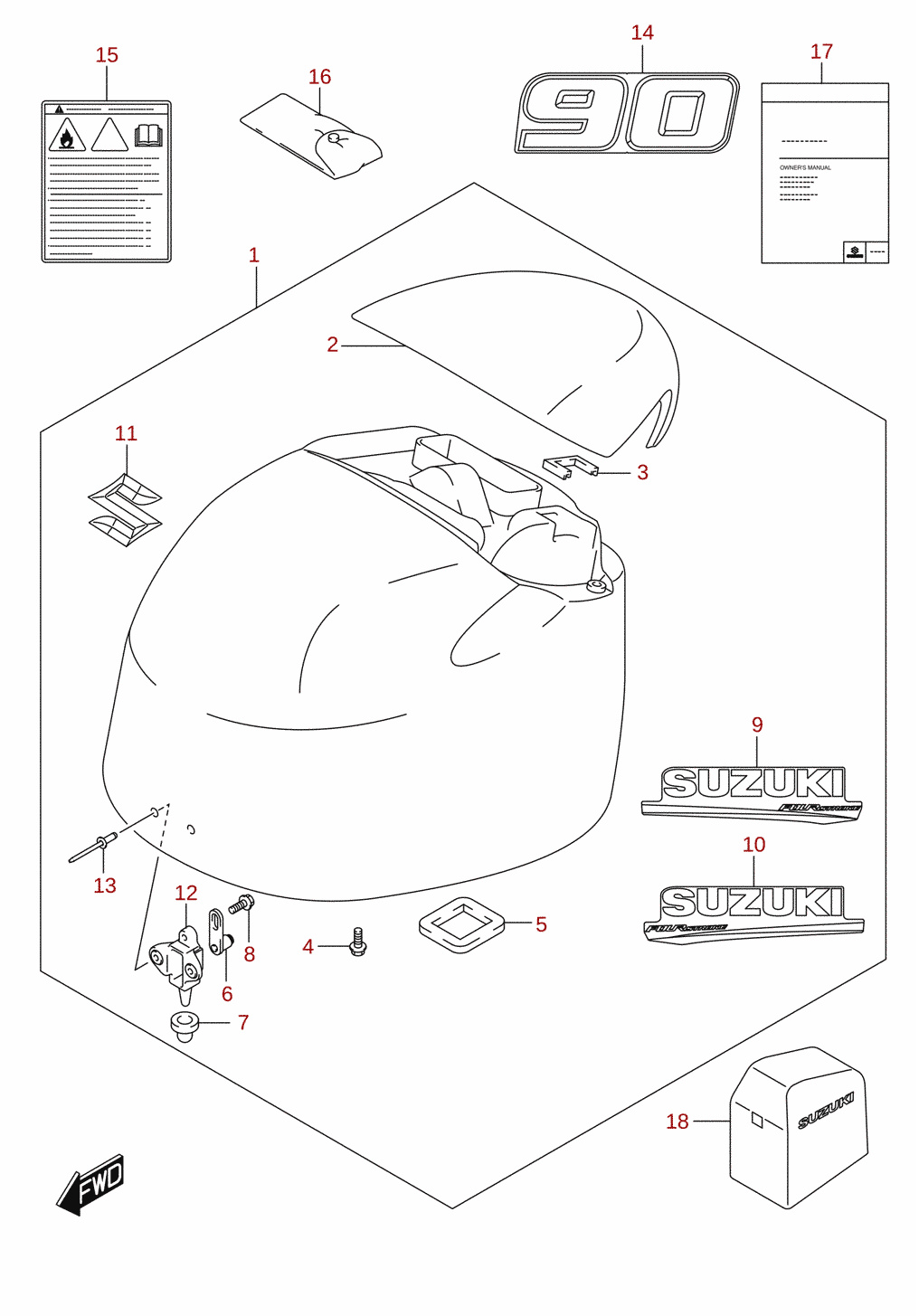

Engine cover (DF90A)

Reference no. DF90A_E01_019 61

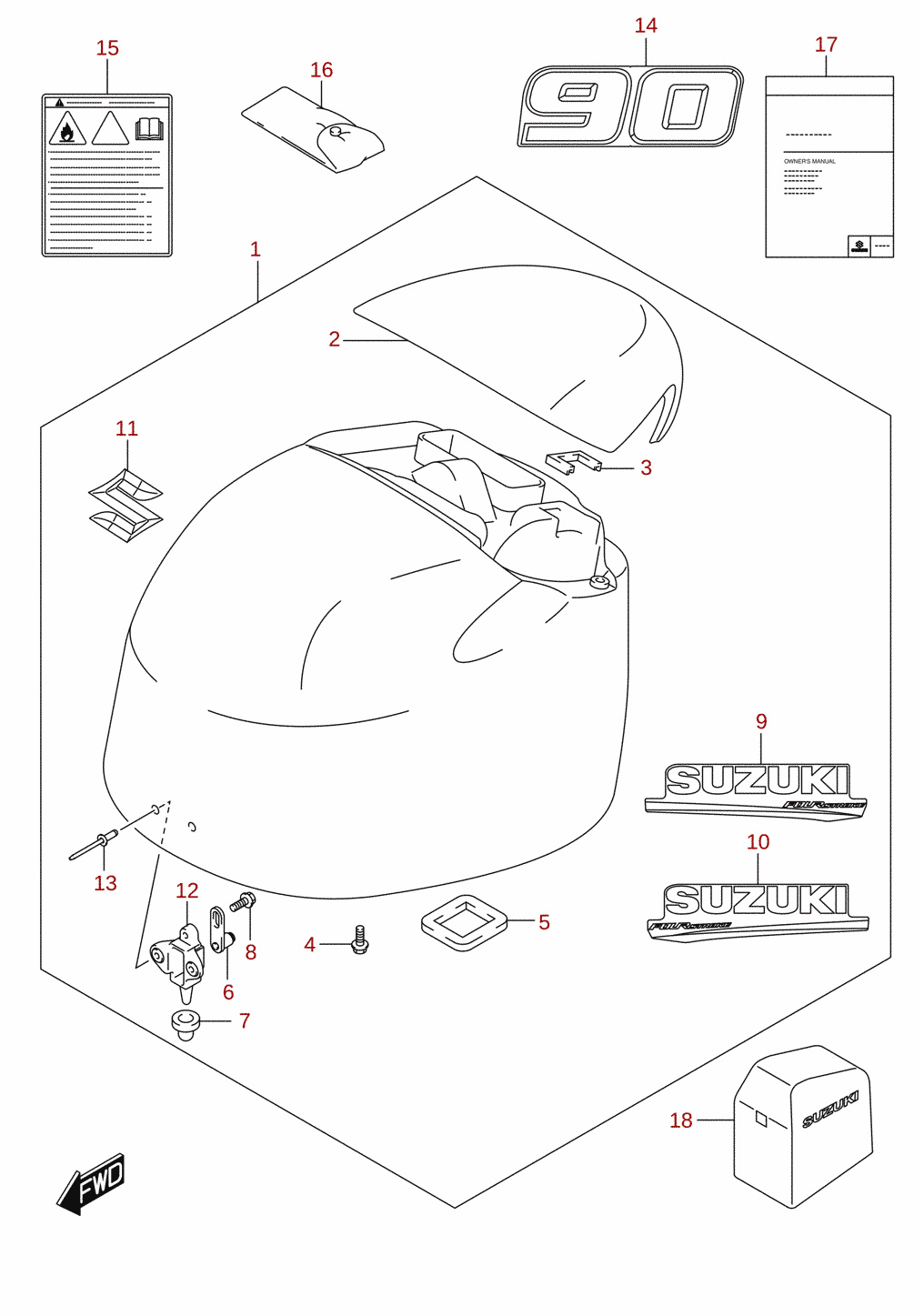

Engine cover (DF90ATH)

Reference no. DF90A_E01_019 62

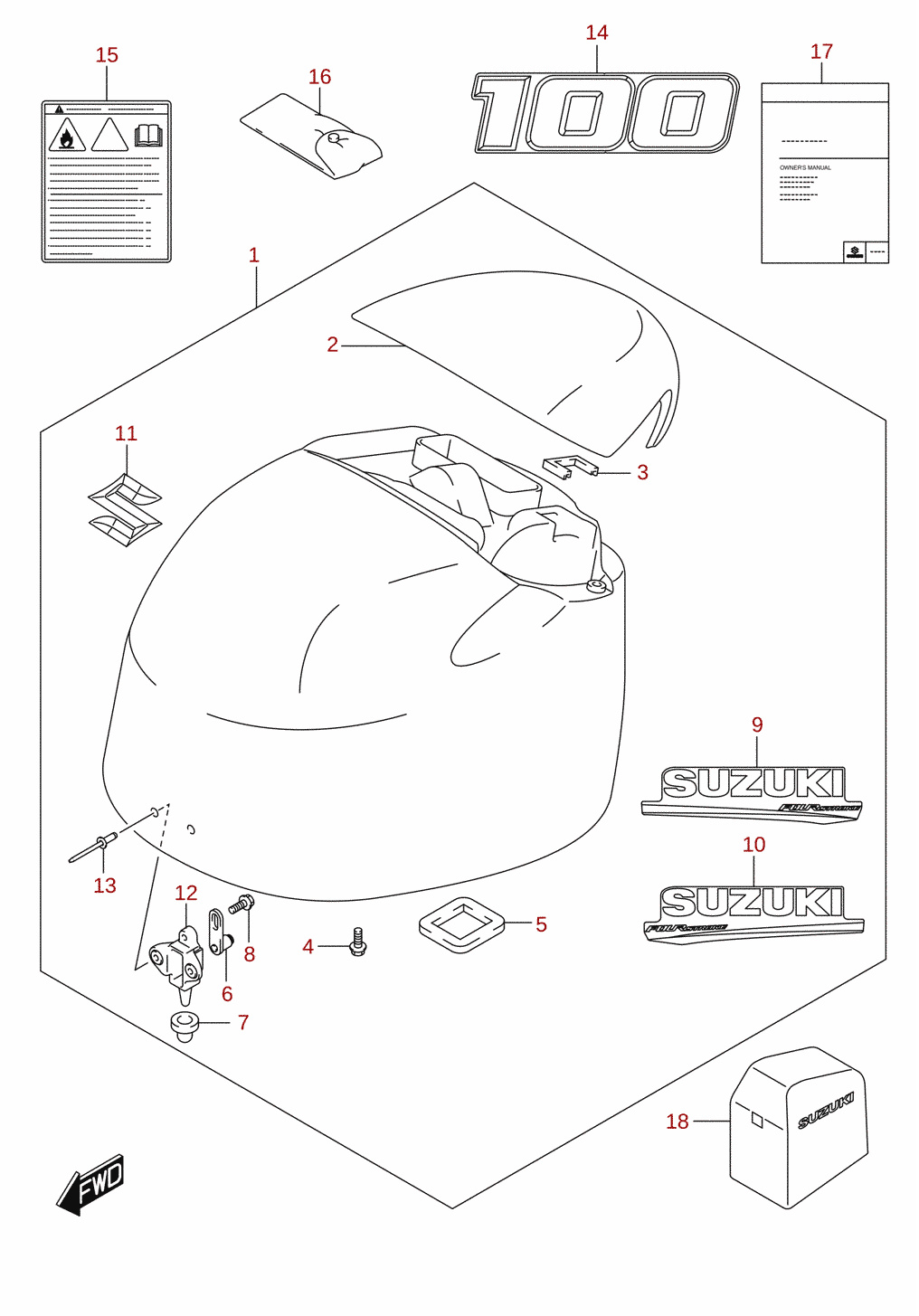

Engine cover (DF100B)

Reference no. DF90A_E01_019 63

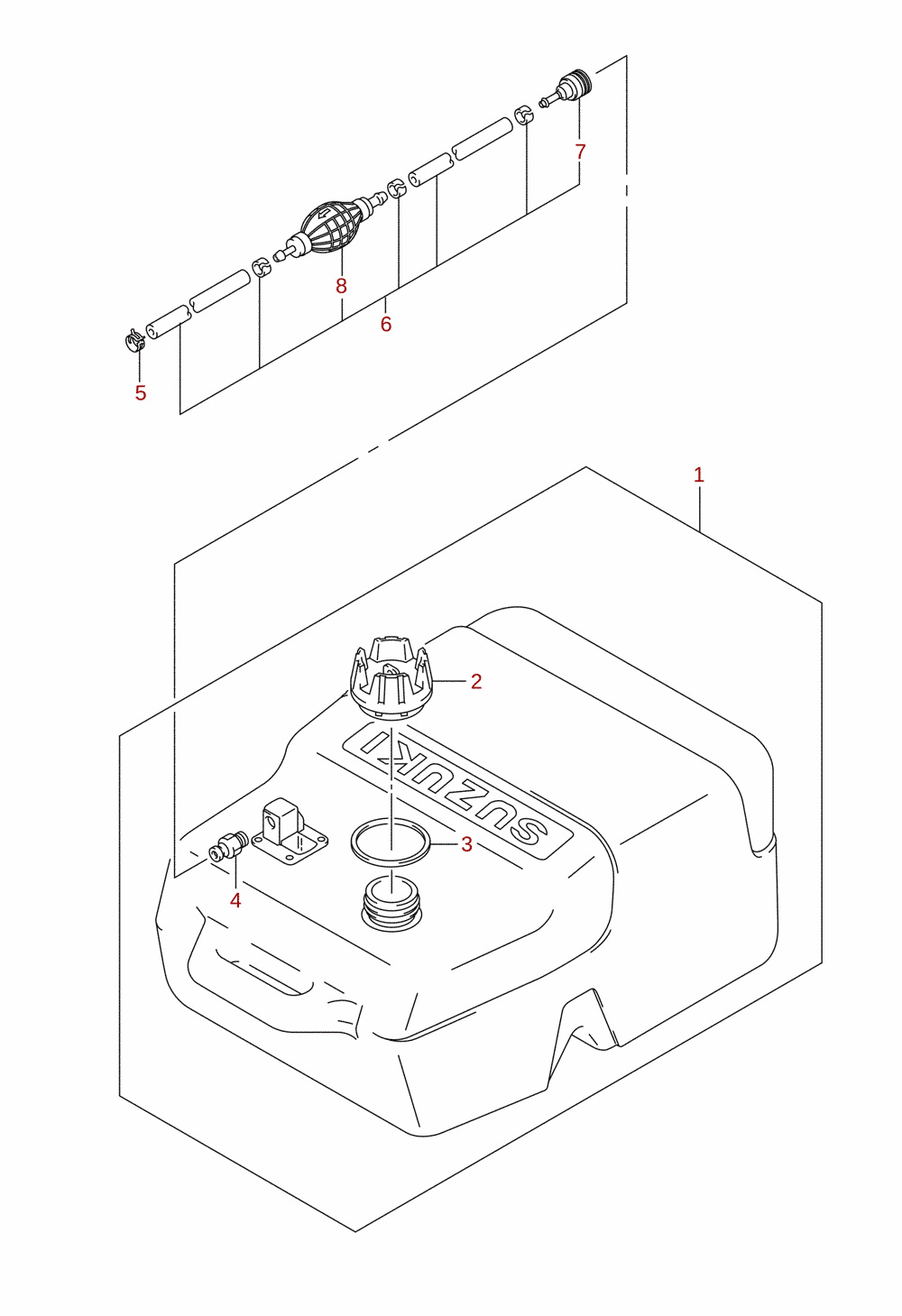

Fuel tank

Reference no. DF90A_E01_019 64

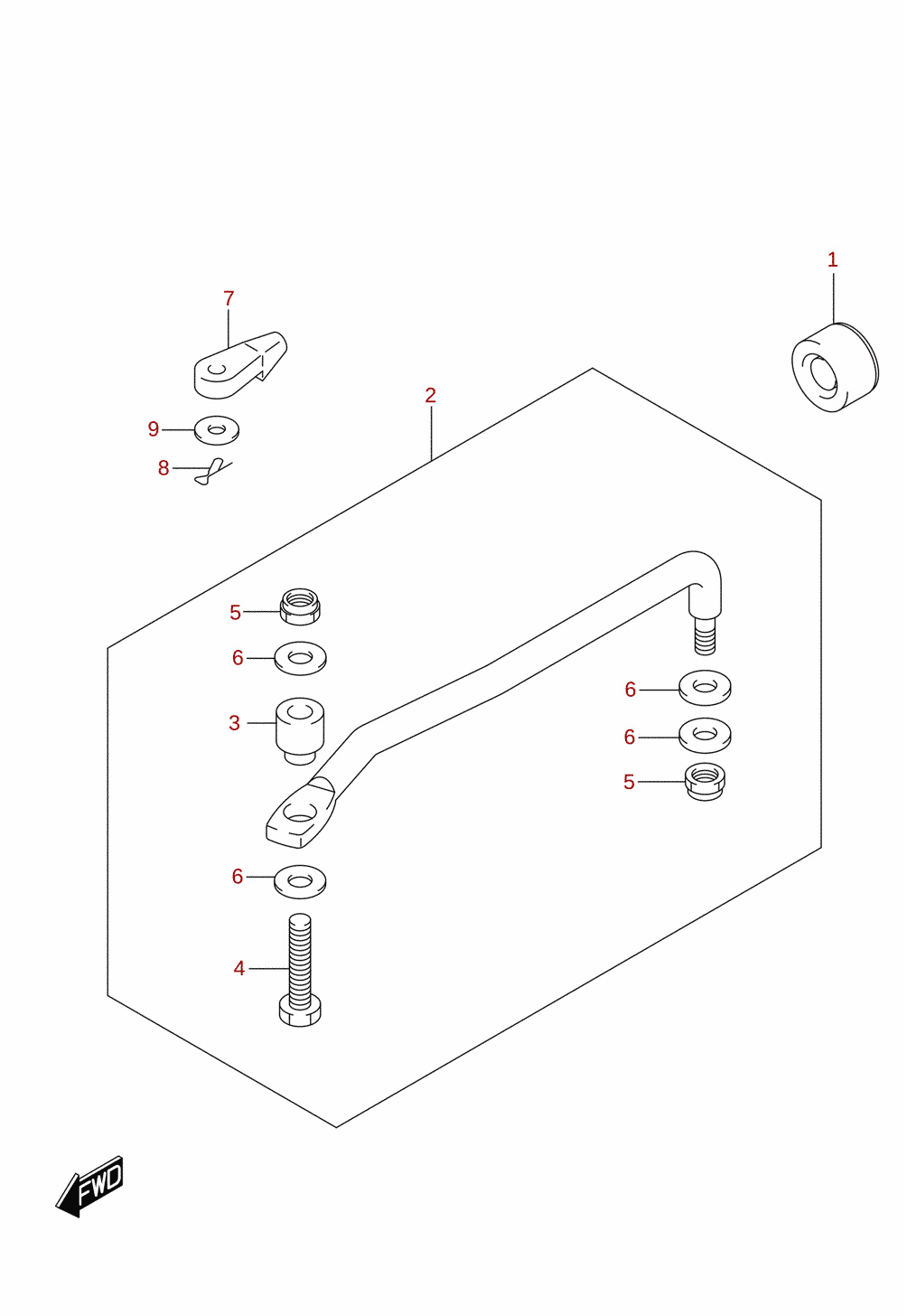

Drag link (DF100B, DF70A, DF80A, DF90A)

Reference no. DF90A_E01_019 65

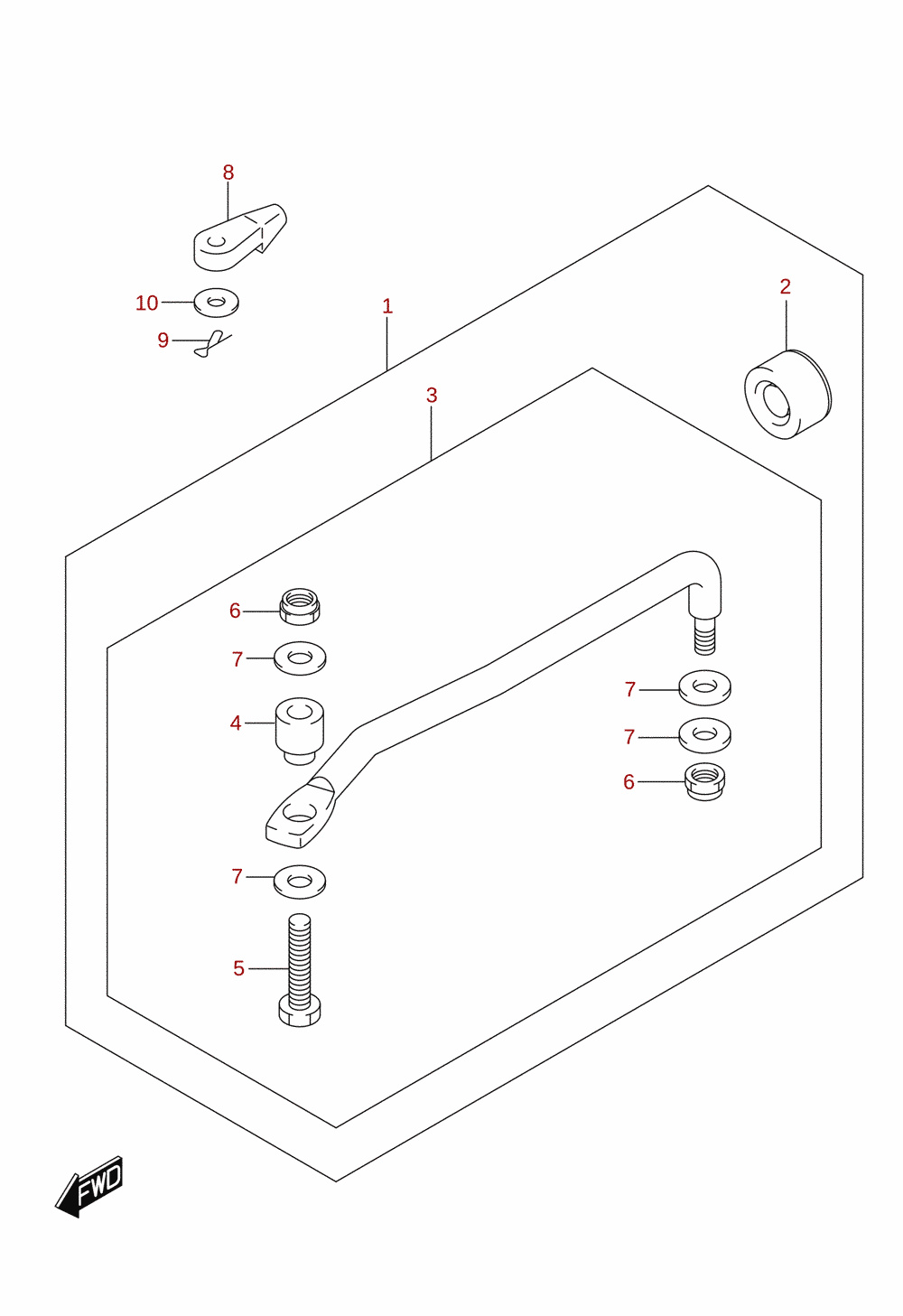

Drag link (DF70ATH, DF90ATH)

Reference no. DF90A_E01_019 66

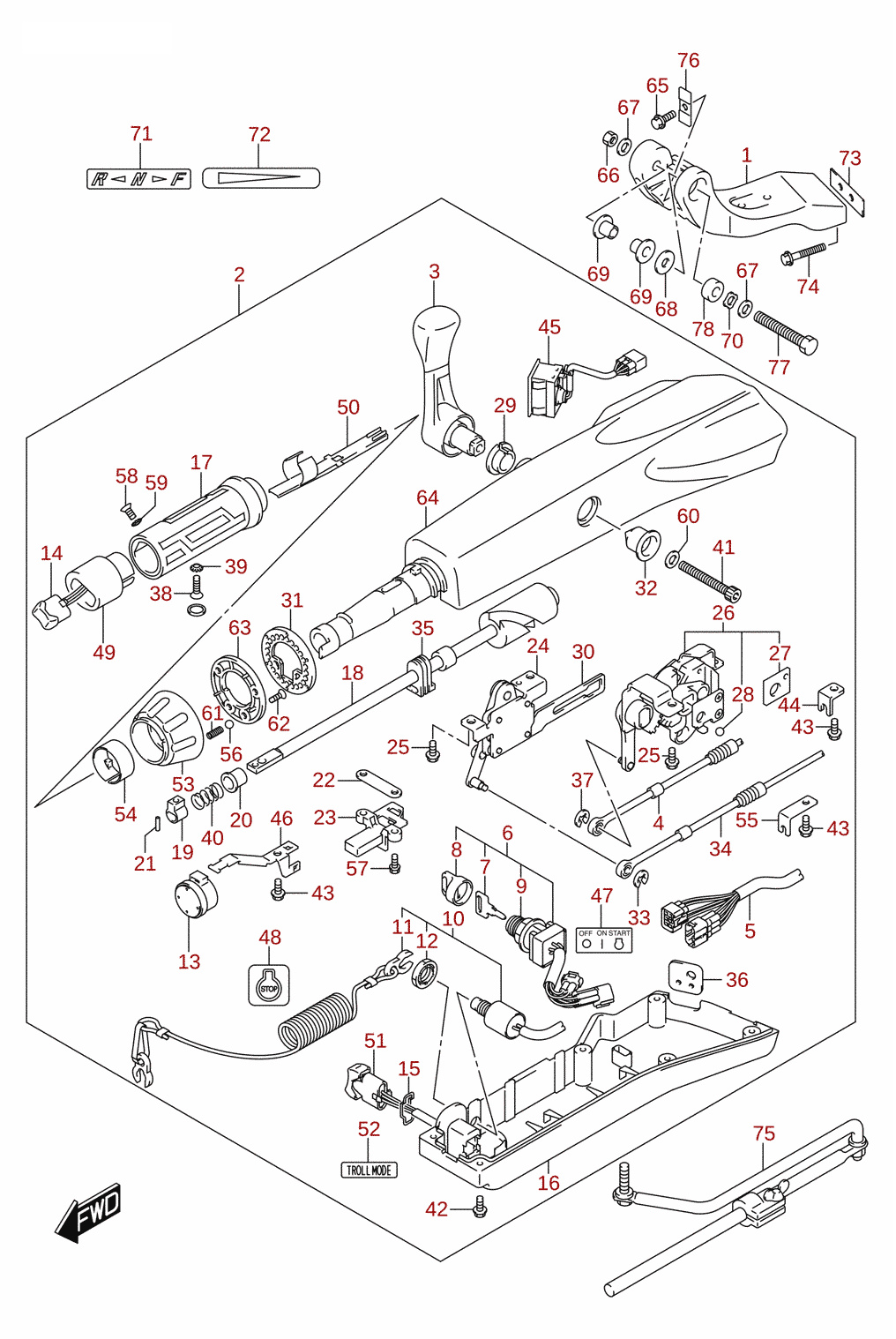

Tiller handle (DF70ATH, DF90ATH)

Reference no. DF90A_E01_019 67

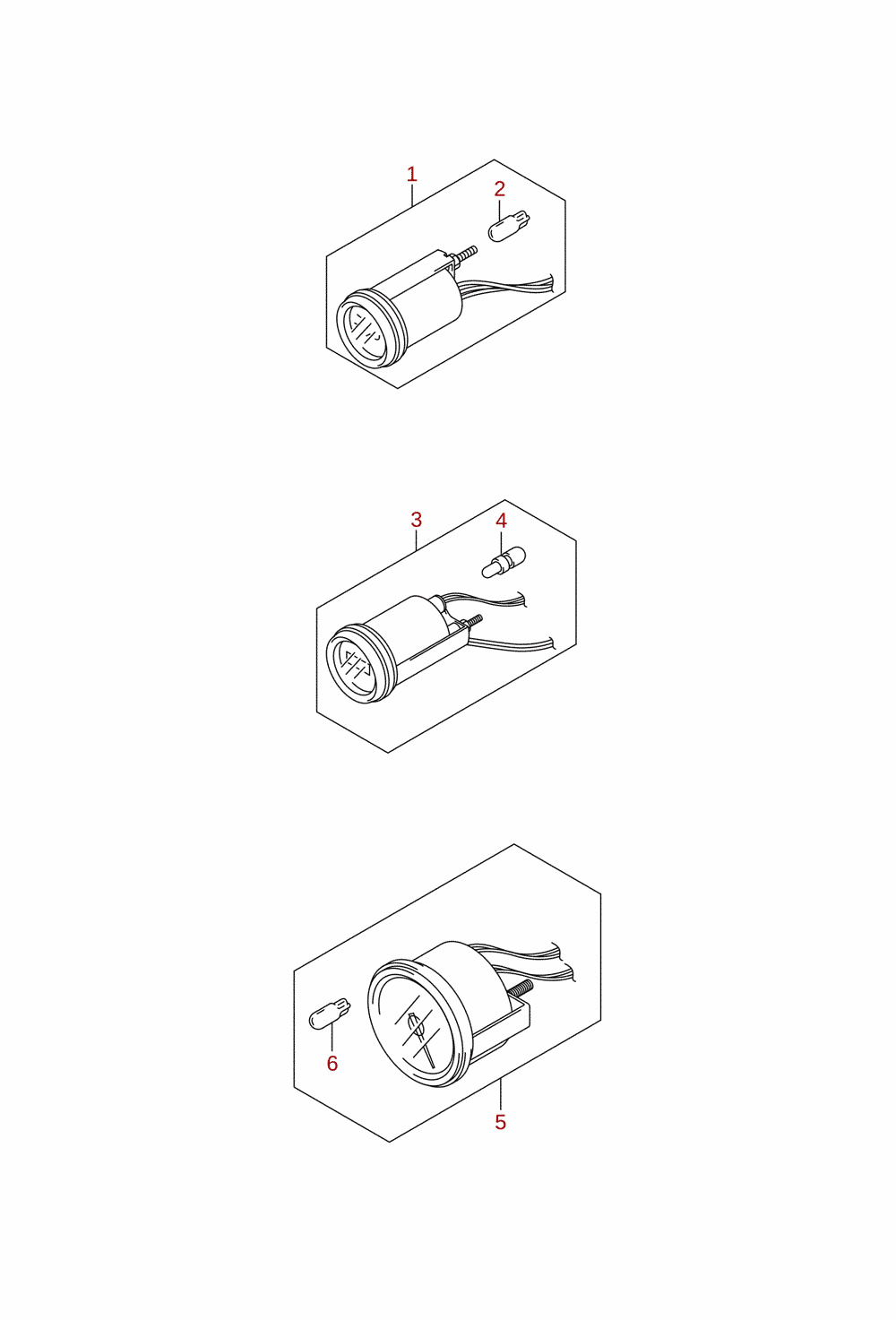

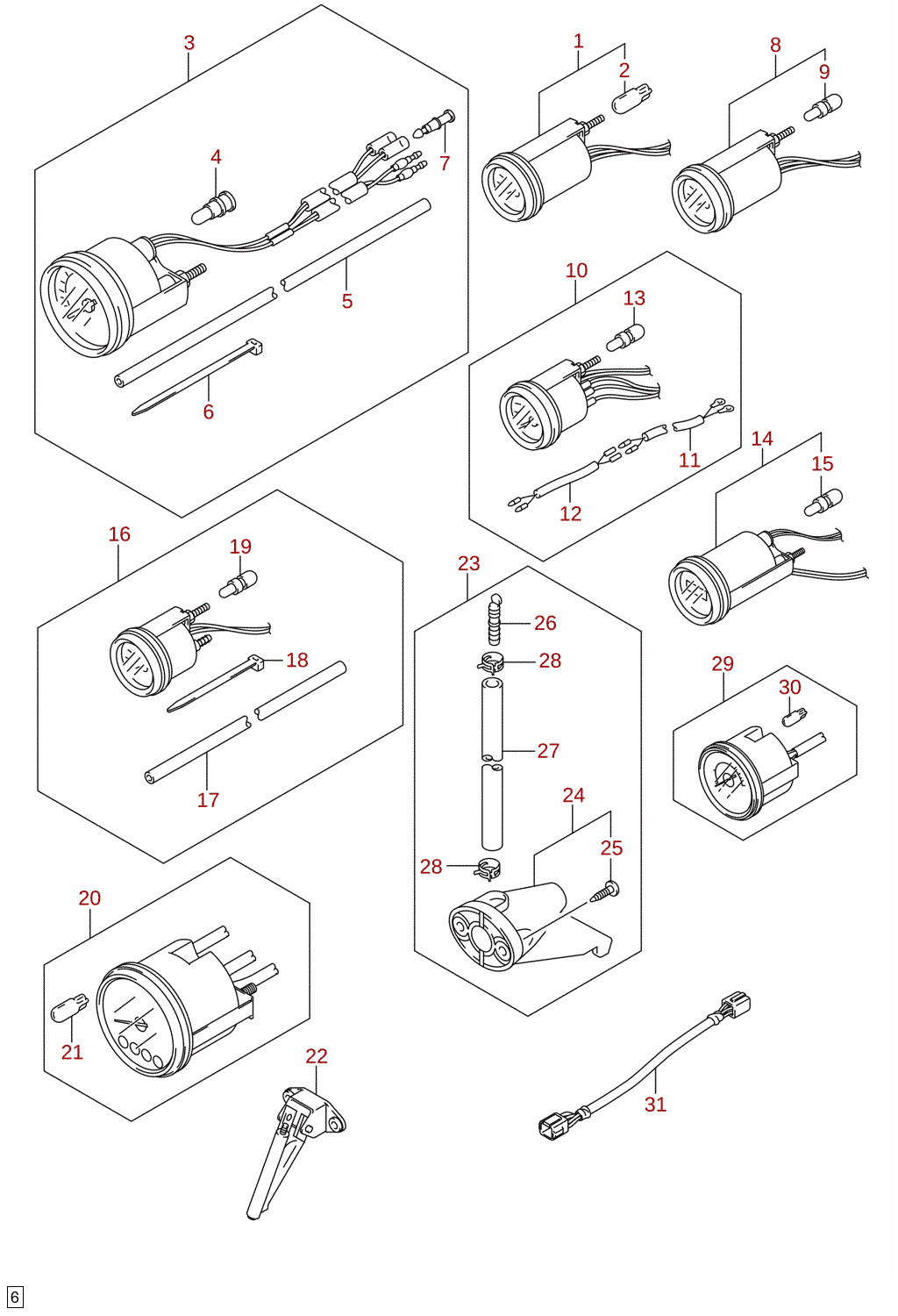

Meter (DF100B, DF70A, DF80A, DF90A)

Reference no. DF90A_E01_019 68

Meter (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 69

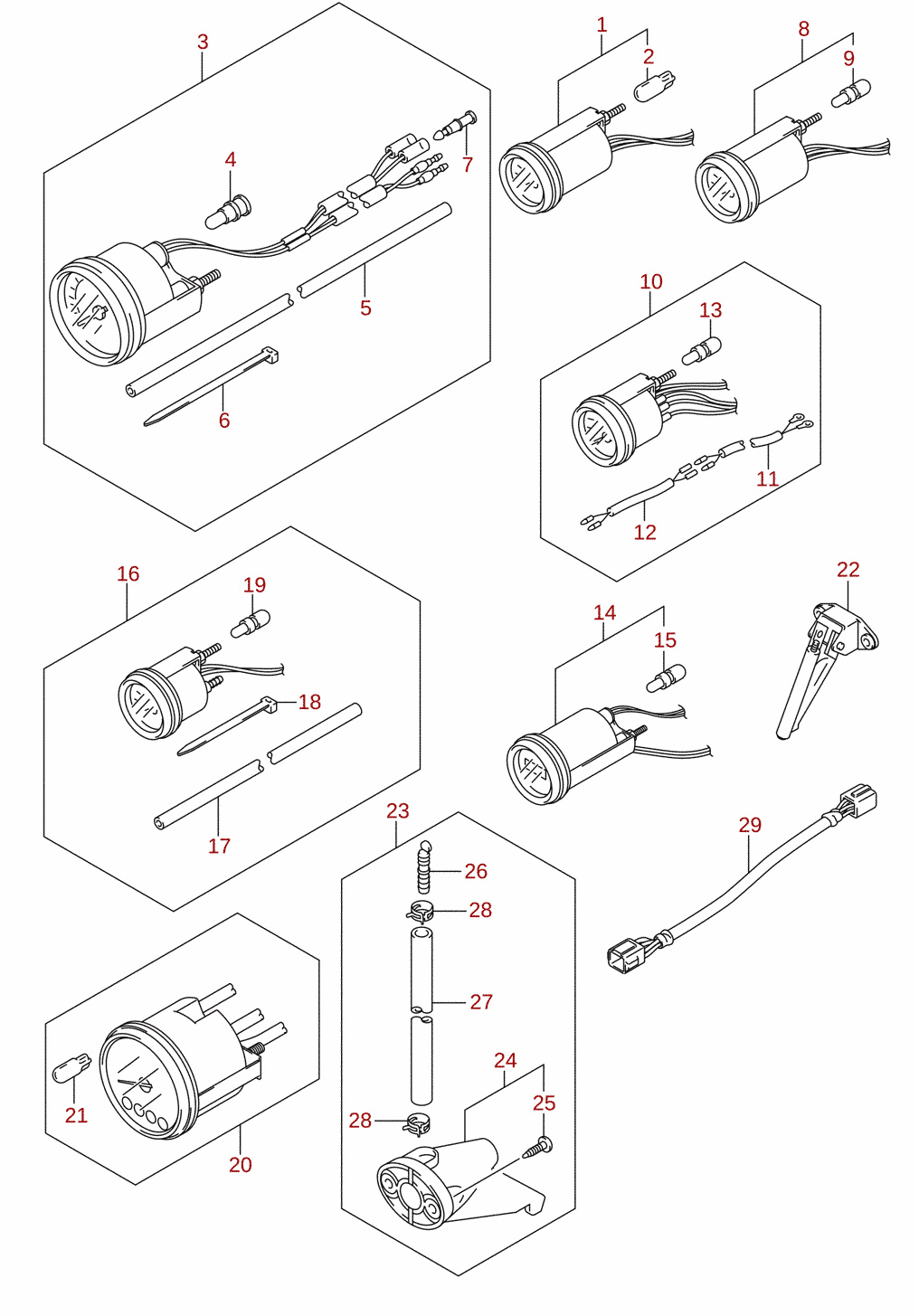

Meter (DF70ATH, DF90ATH) (optional)

Reference no. DF90A_E01_019 70

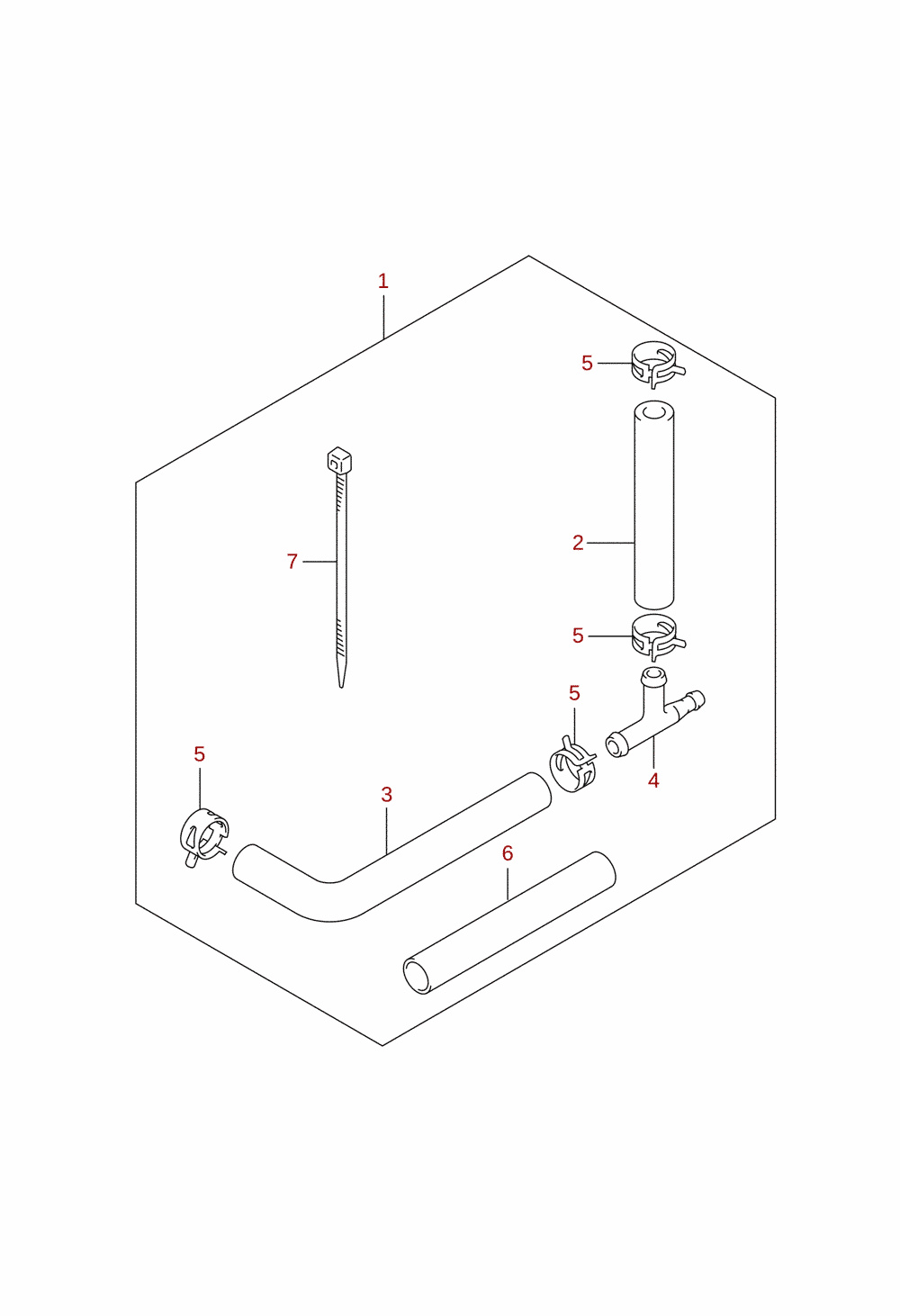

Water pressure gauge sub-kit (optional)

Reference no. DF90A_E01_019 71

Remote control (optional) 1/2

Reference no. DF90A_E01_019 72

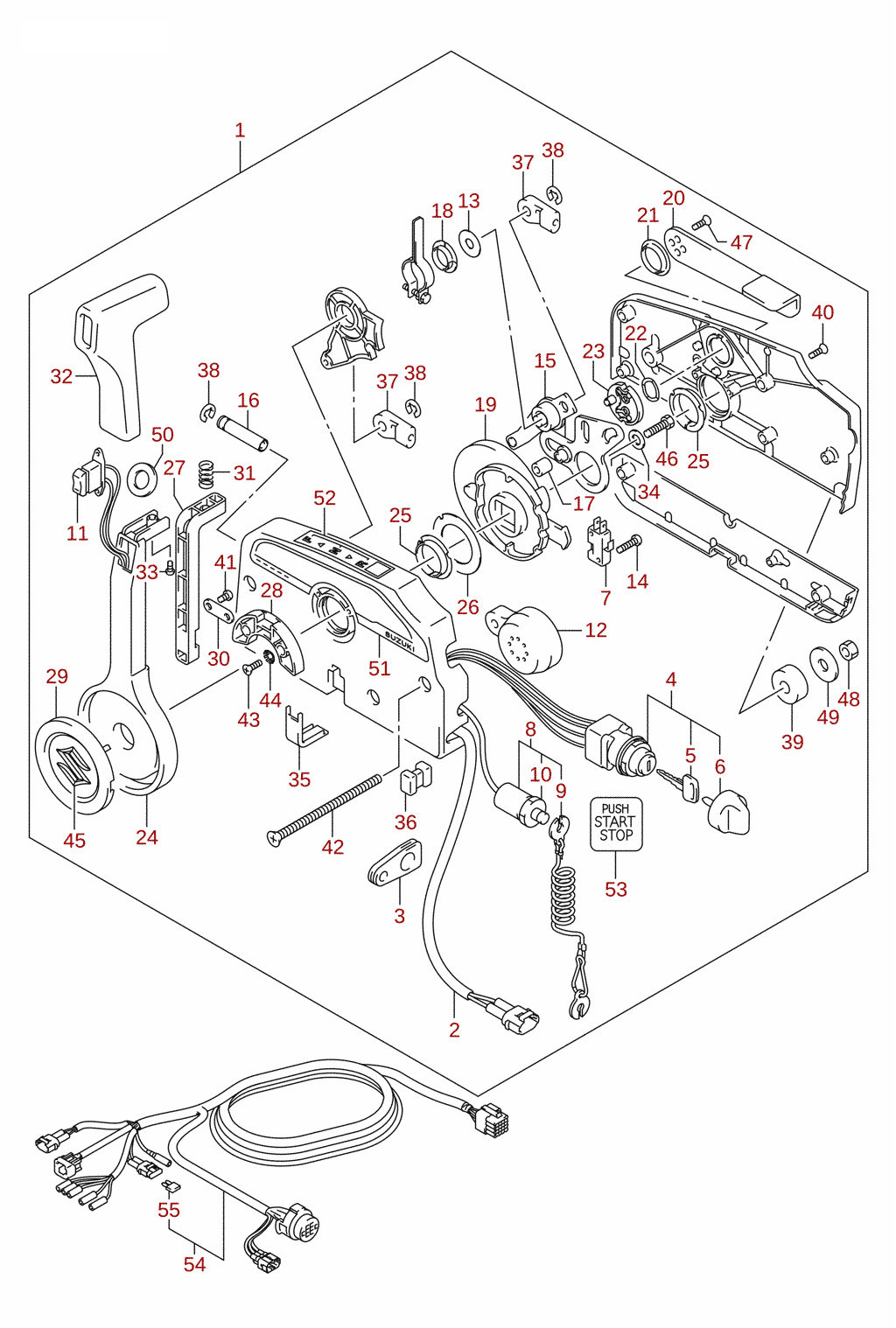

Remote control (optional) 2/2

Reference no. DF90A_E01_019 73

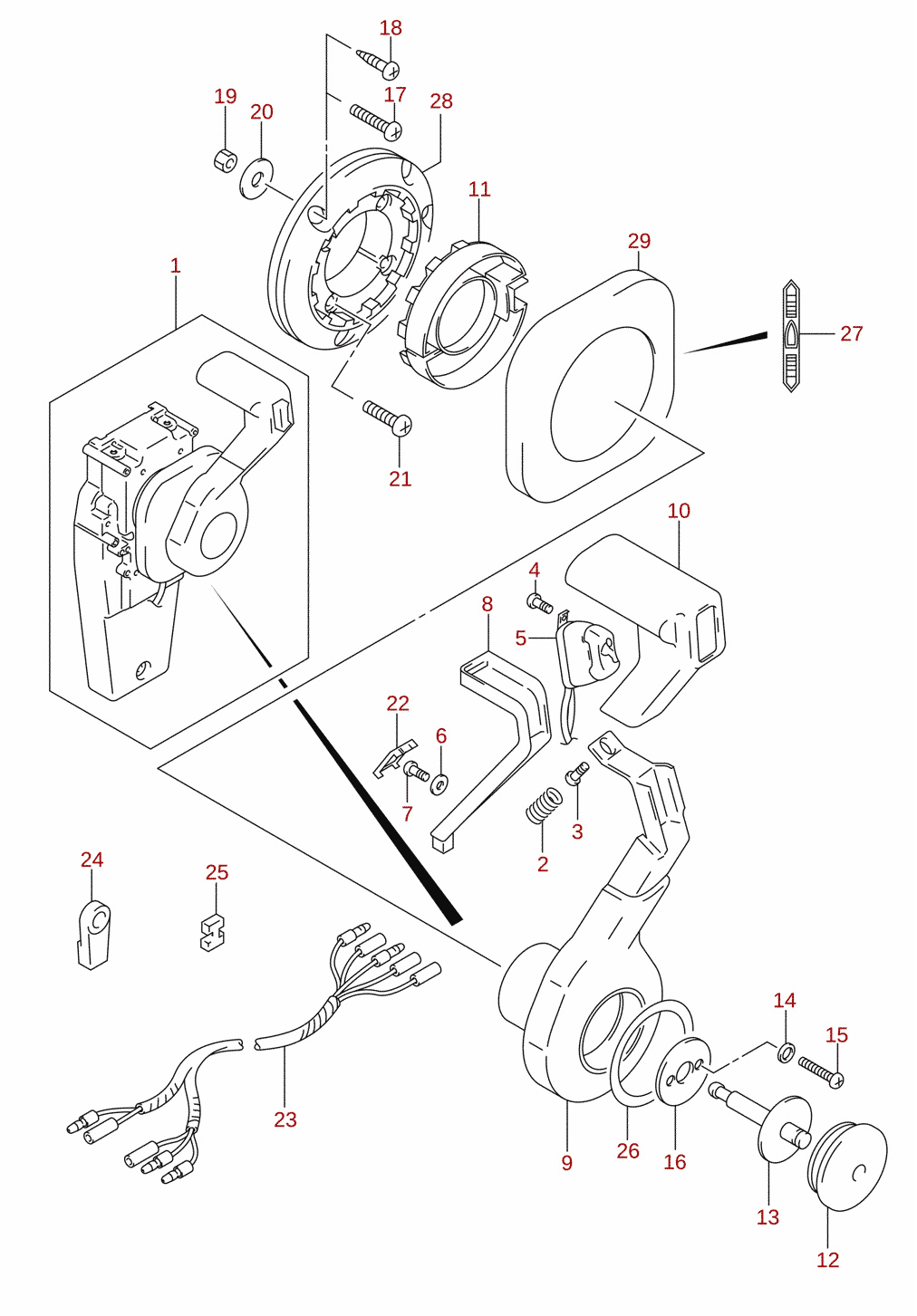

Concealed remote control (1) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 74

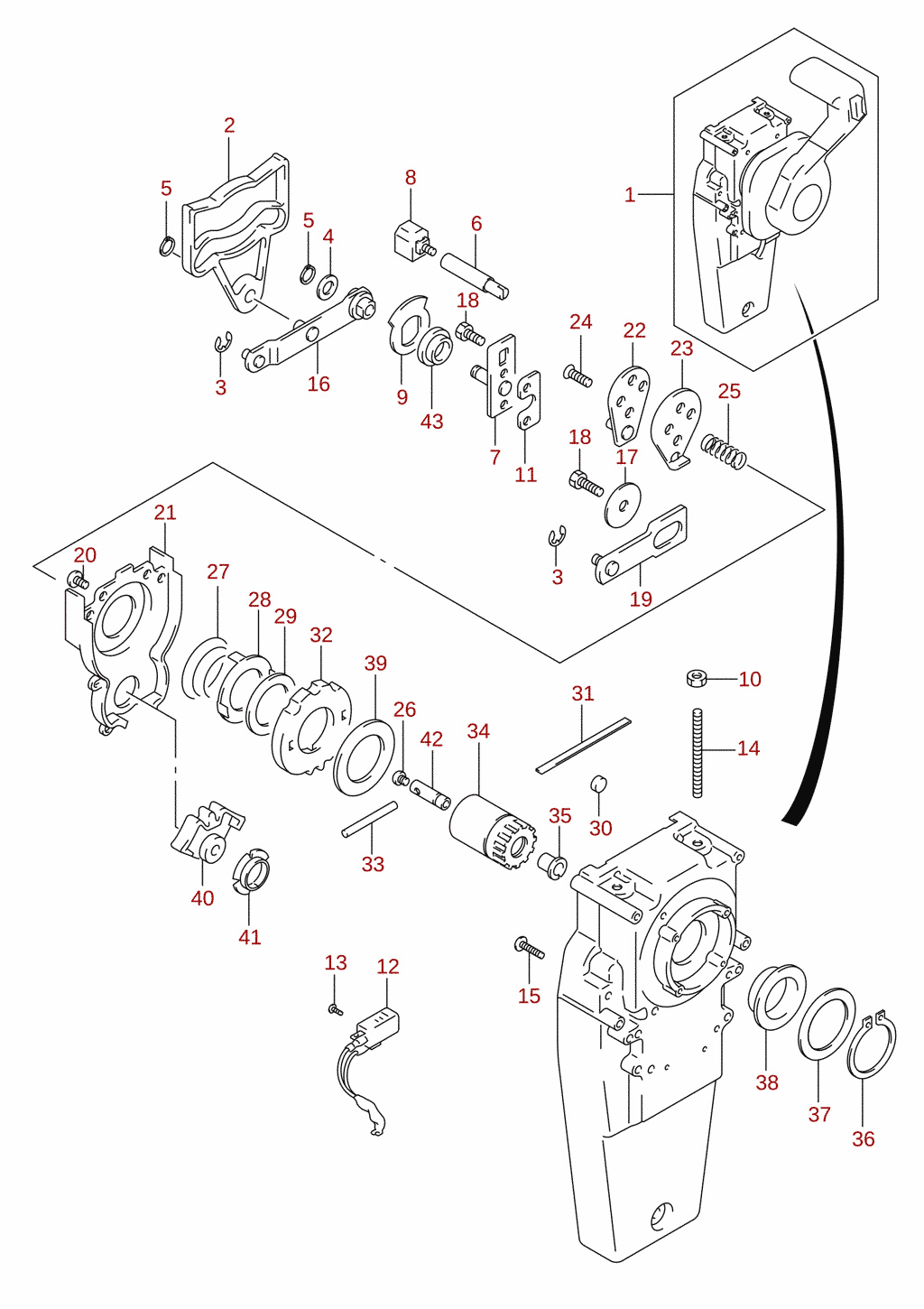

Concealed remote control (2) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 75

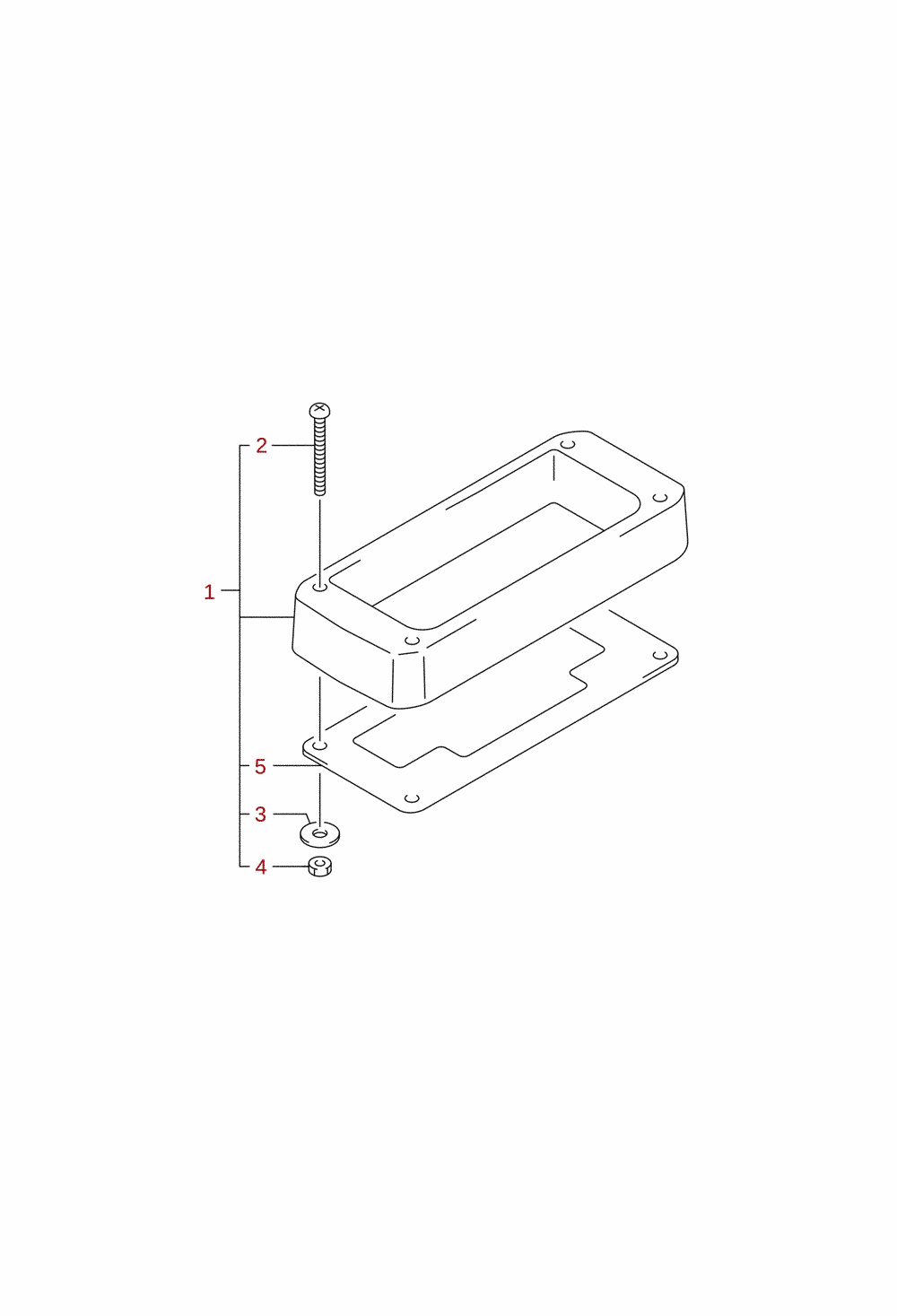

Remote control spacer (optional)

Reference no. DF90A_E01_019 76

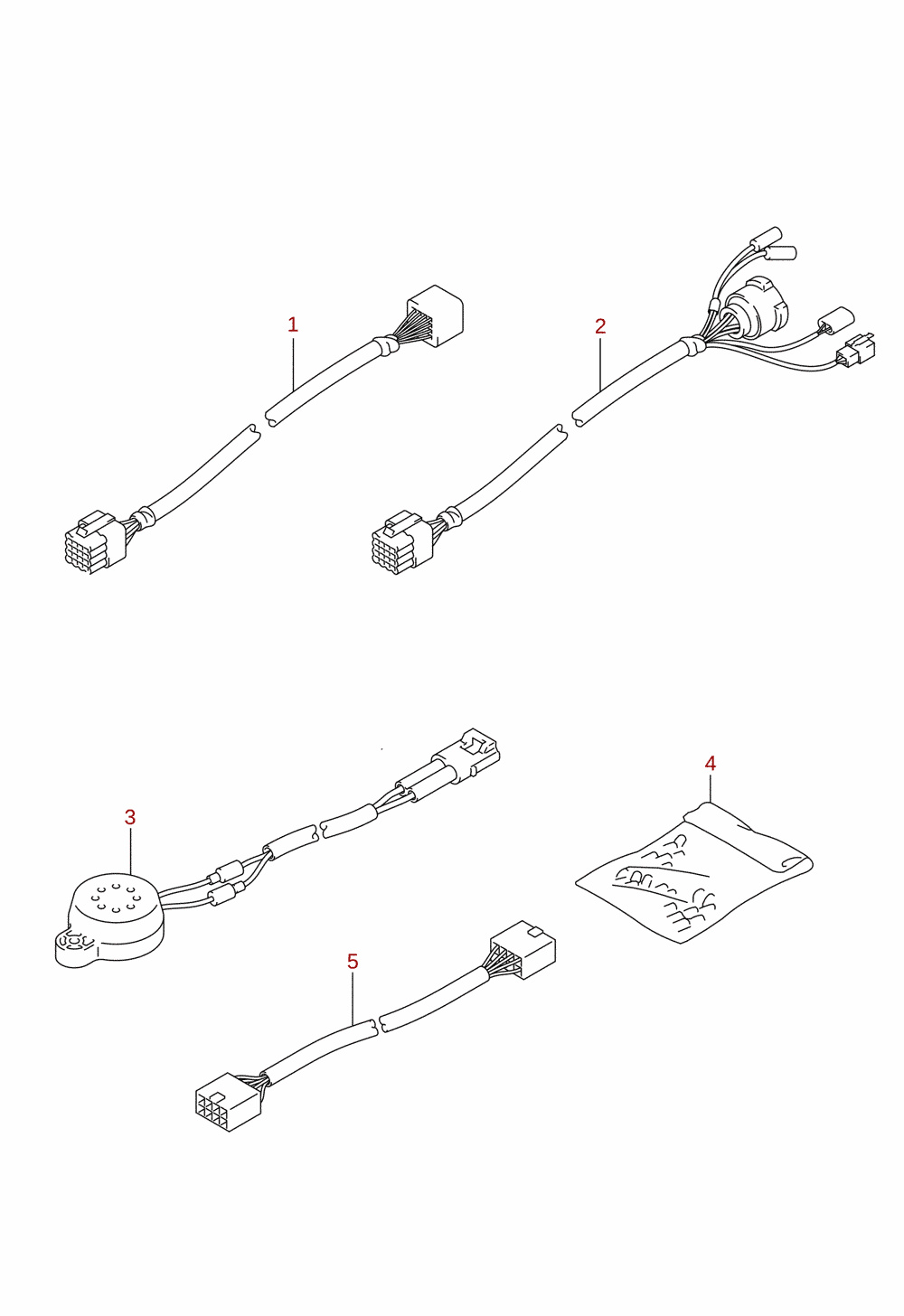

Harness (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 77

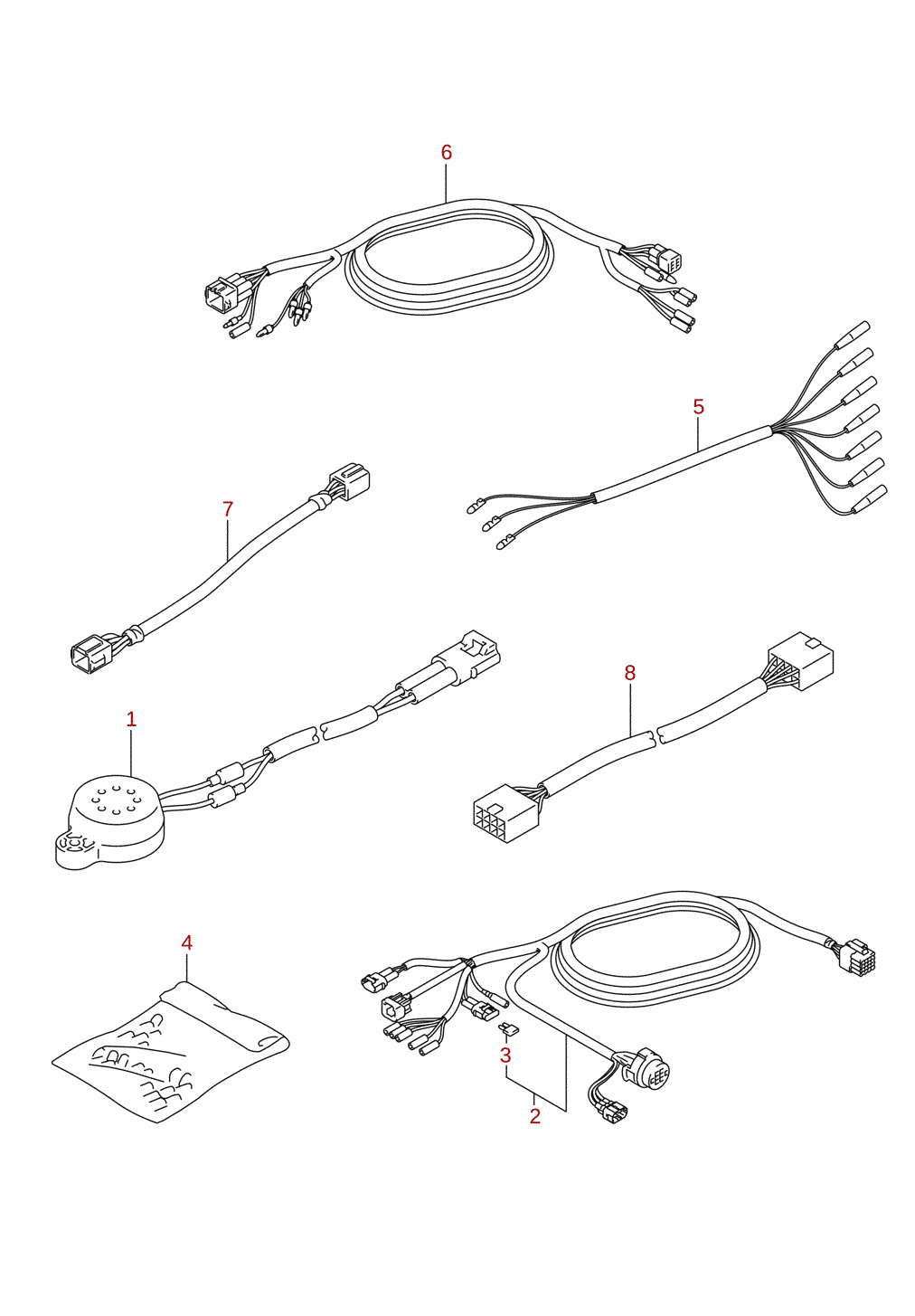

Harness (DF70ATH, DF90ATH) (optional)

Reference no. DF90A_E01_019 78

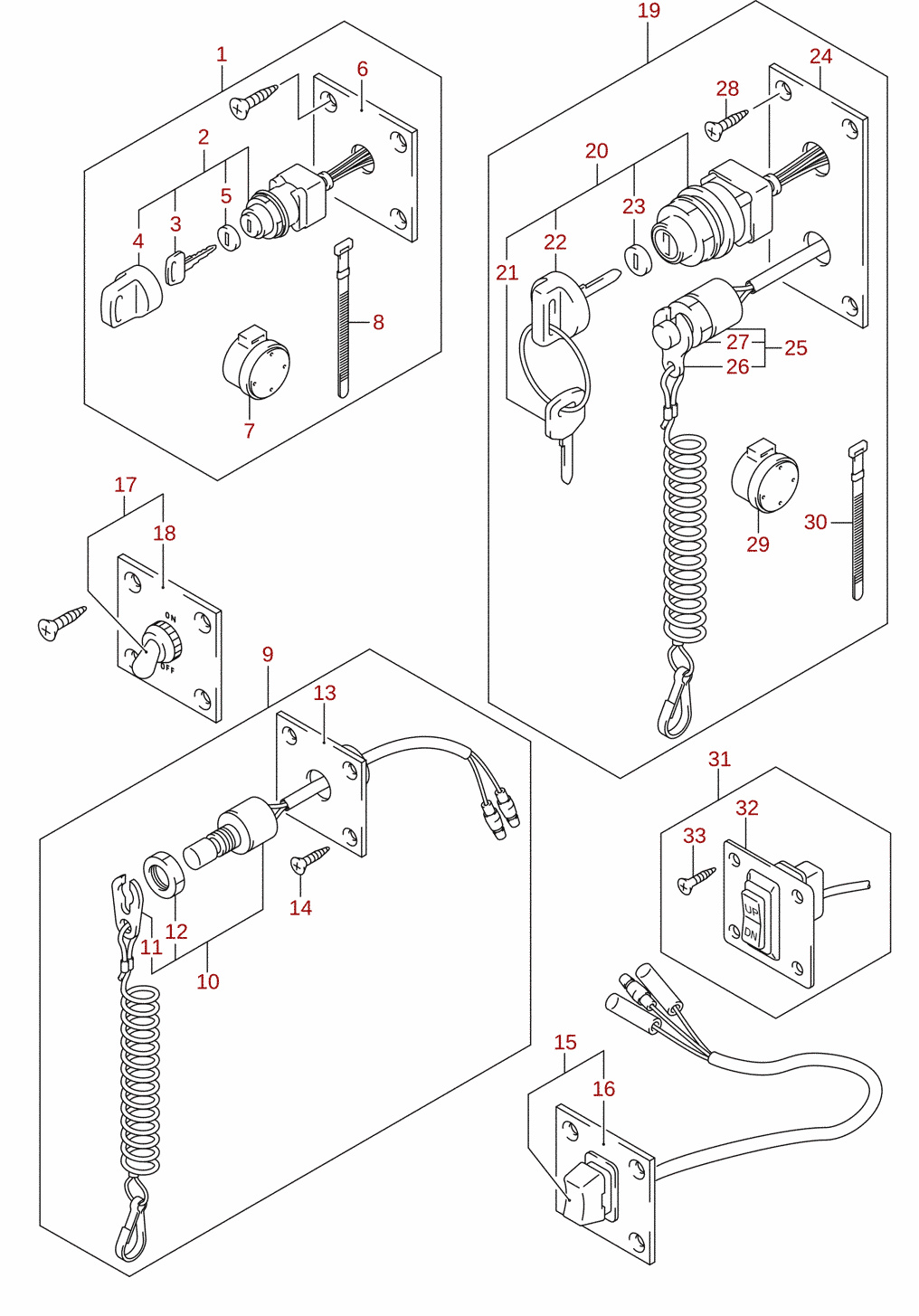

Switch (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 79

Keyless start (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 80

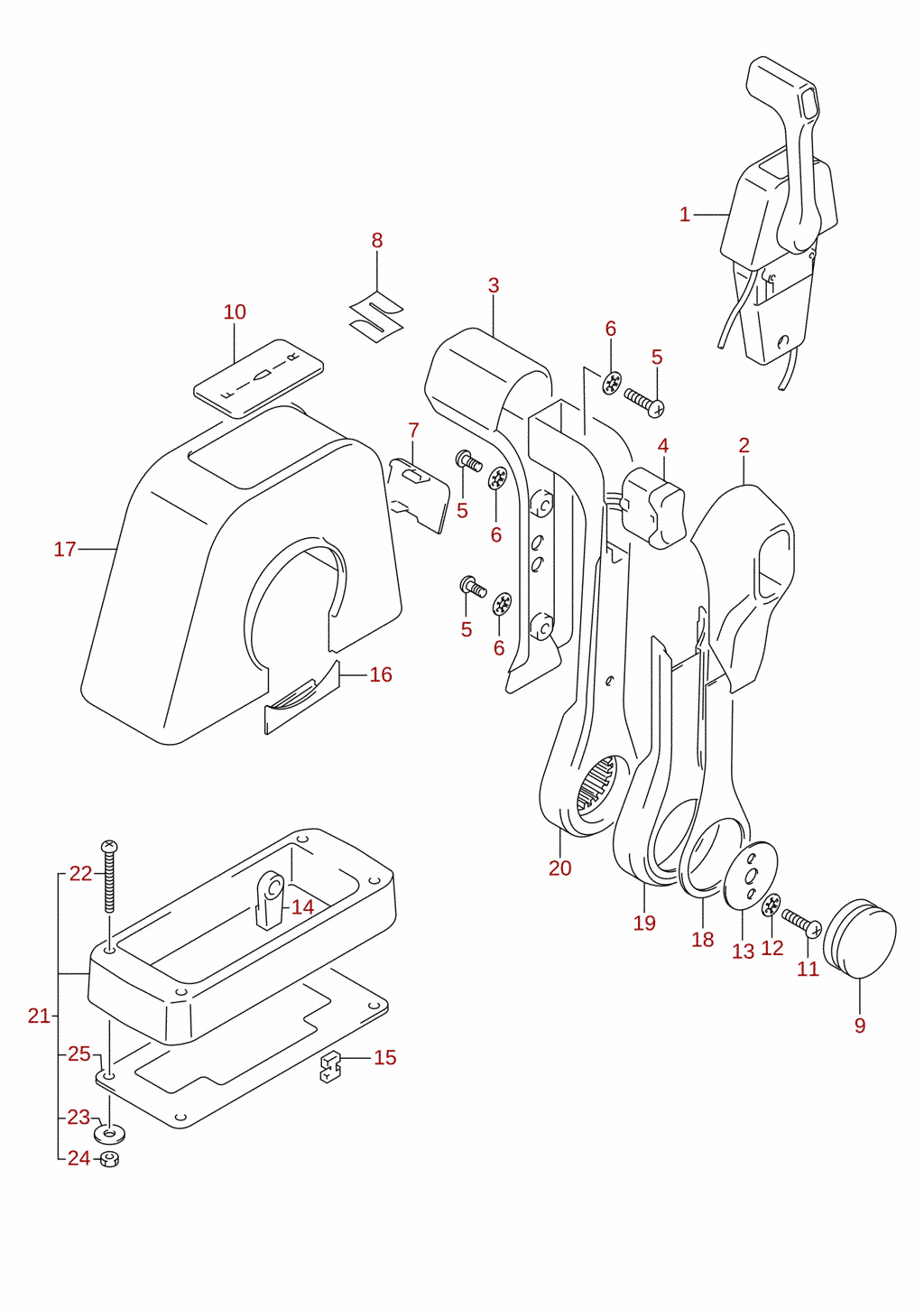

Remote control assembly single (1) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 81

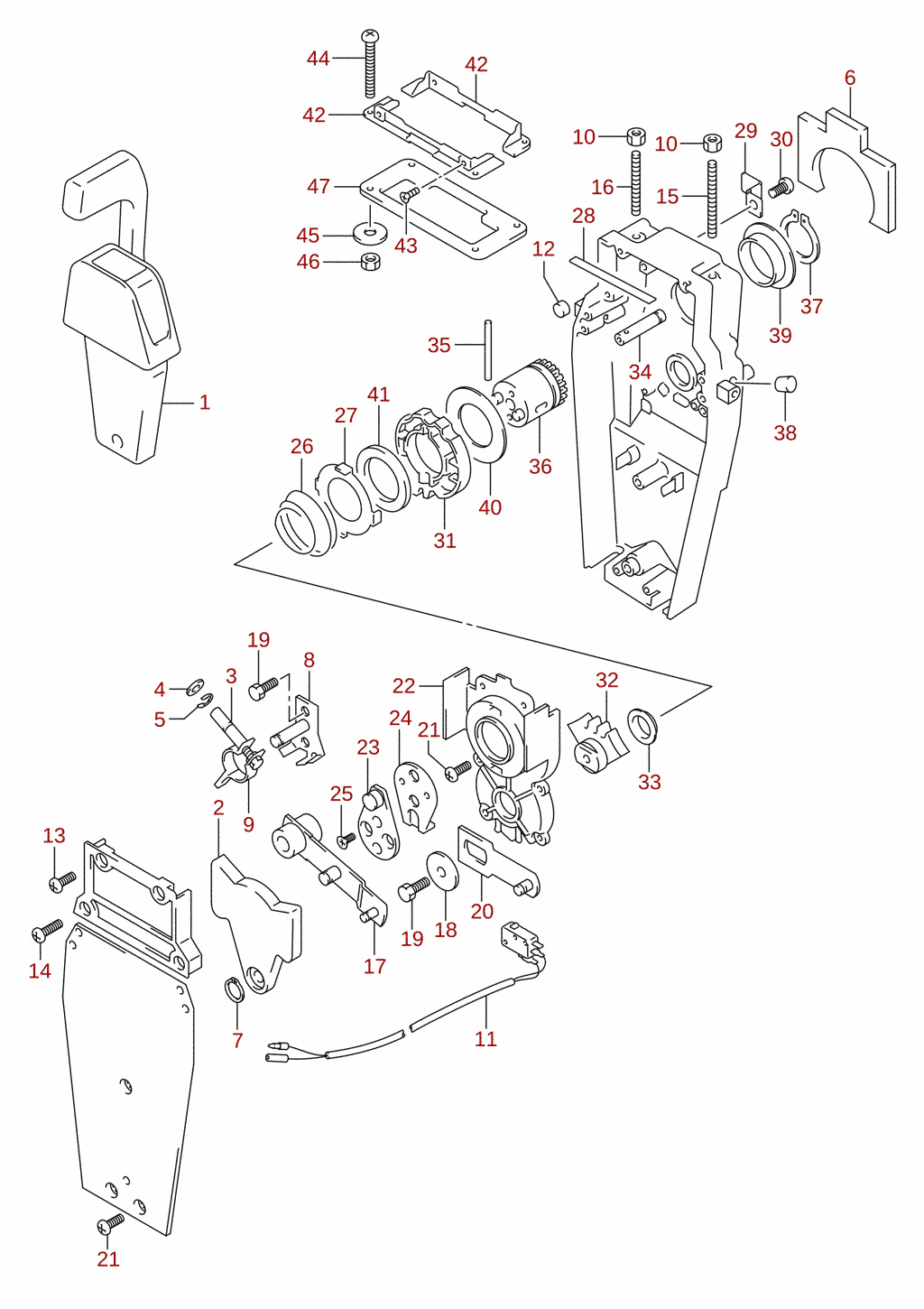

Remote control assembly single (2) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 82

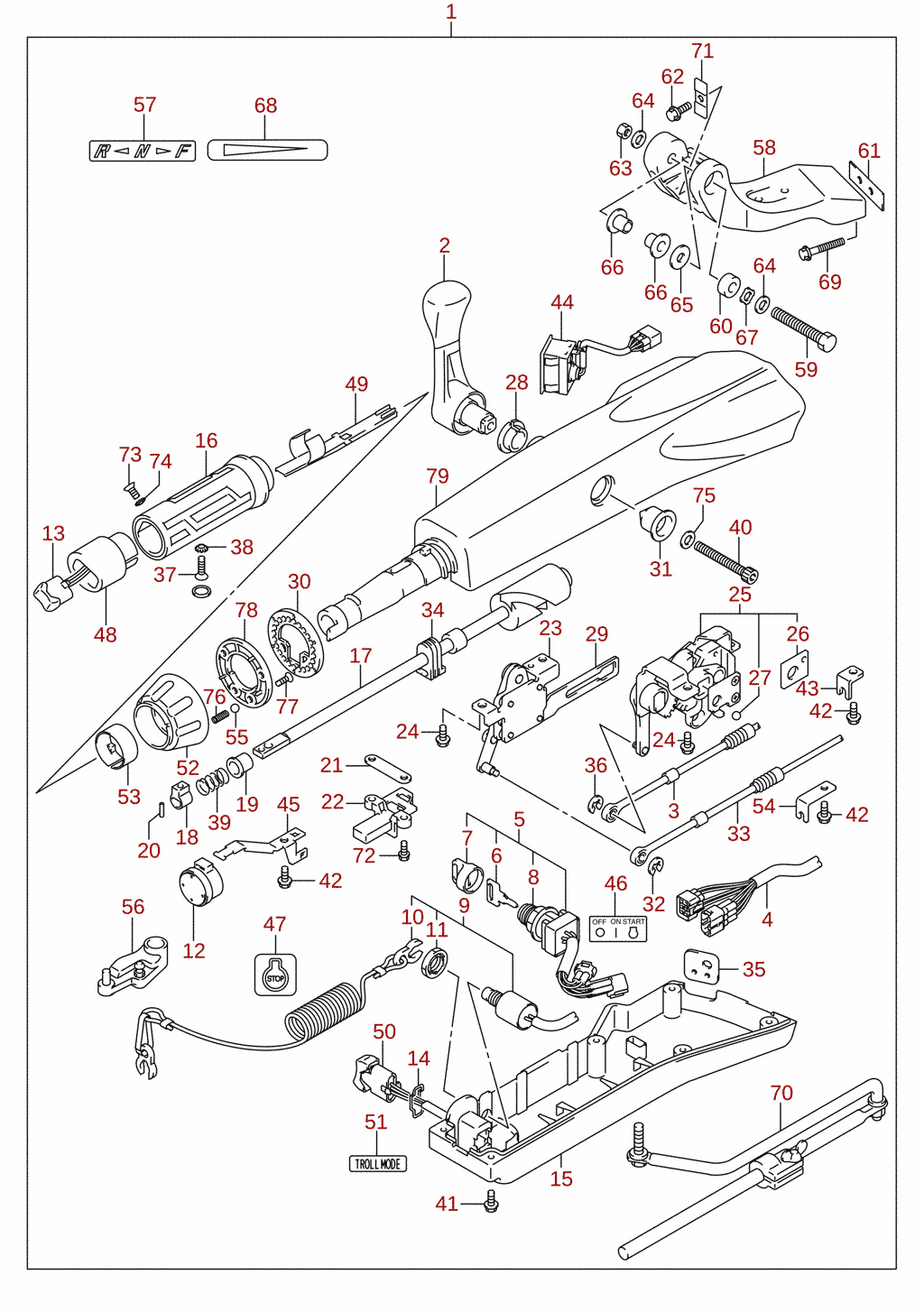

Tiller handle (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 83

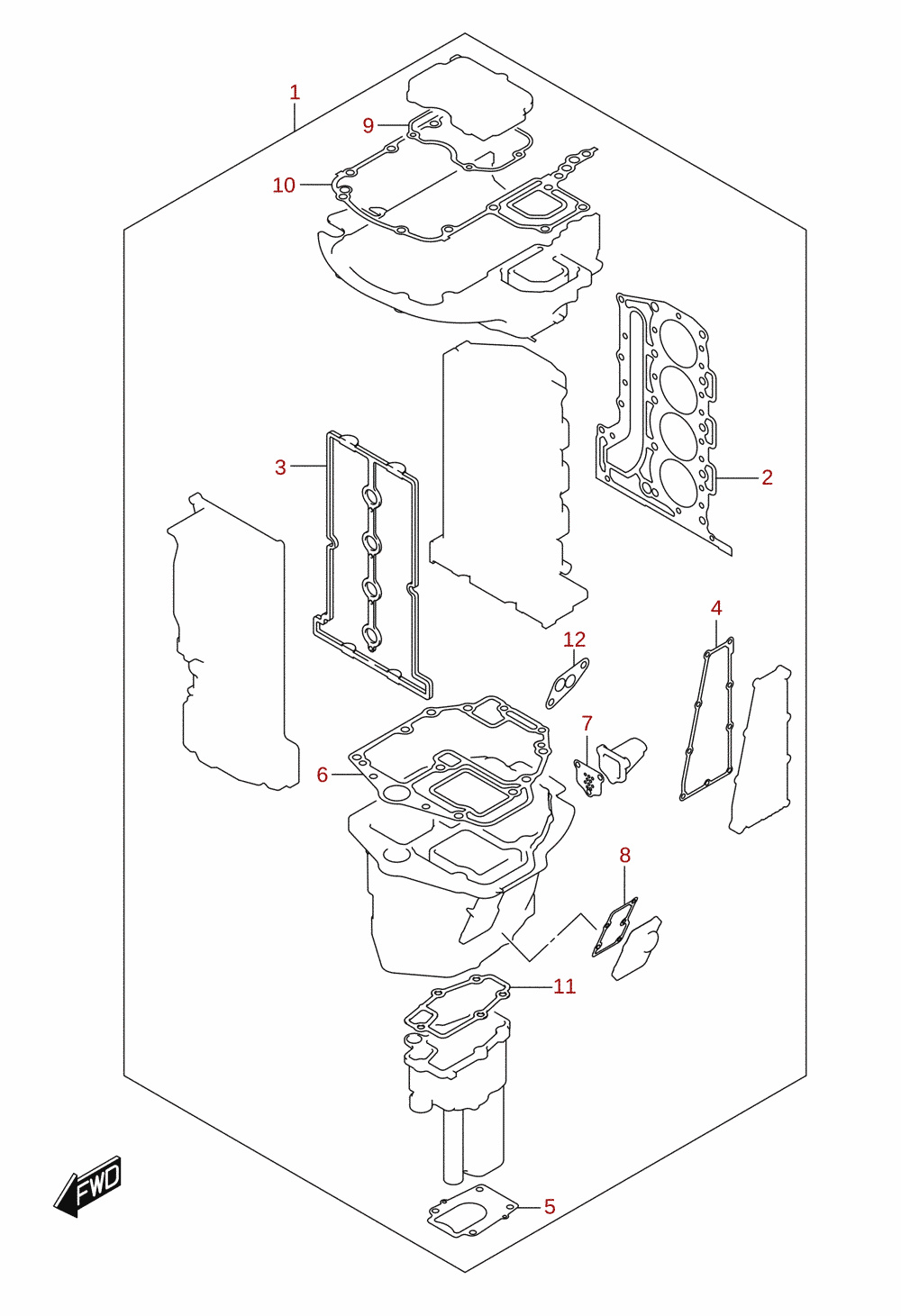

Gasket set (optional)

Reference no. DF90A_E01_019 84

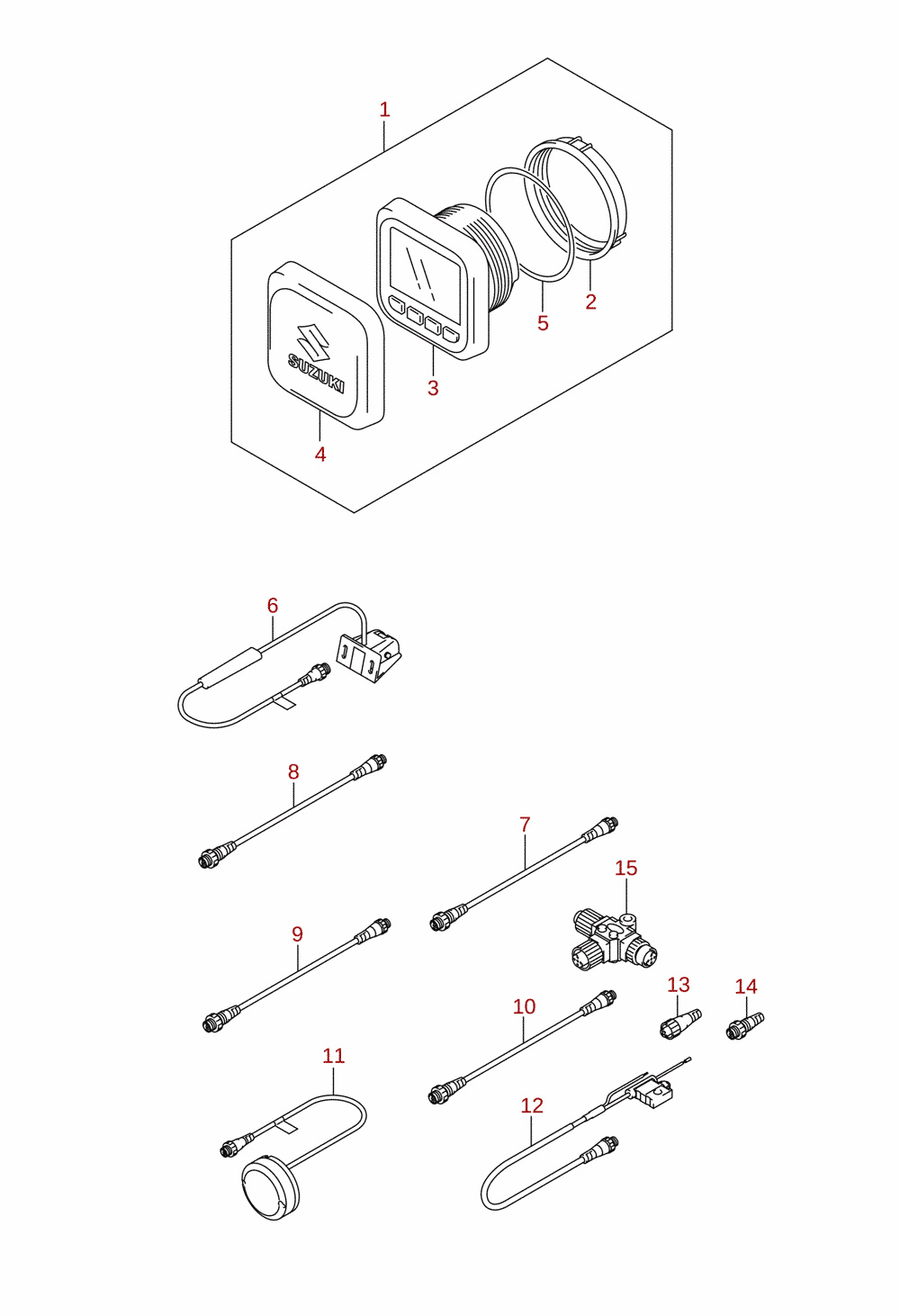

Multi function gauge (DF70ATH, DF90ATH) (optional)

Reference no. DF90A_E01_019 85

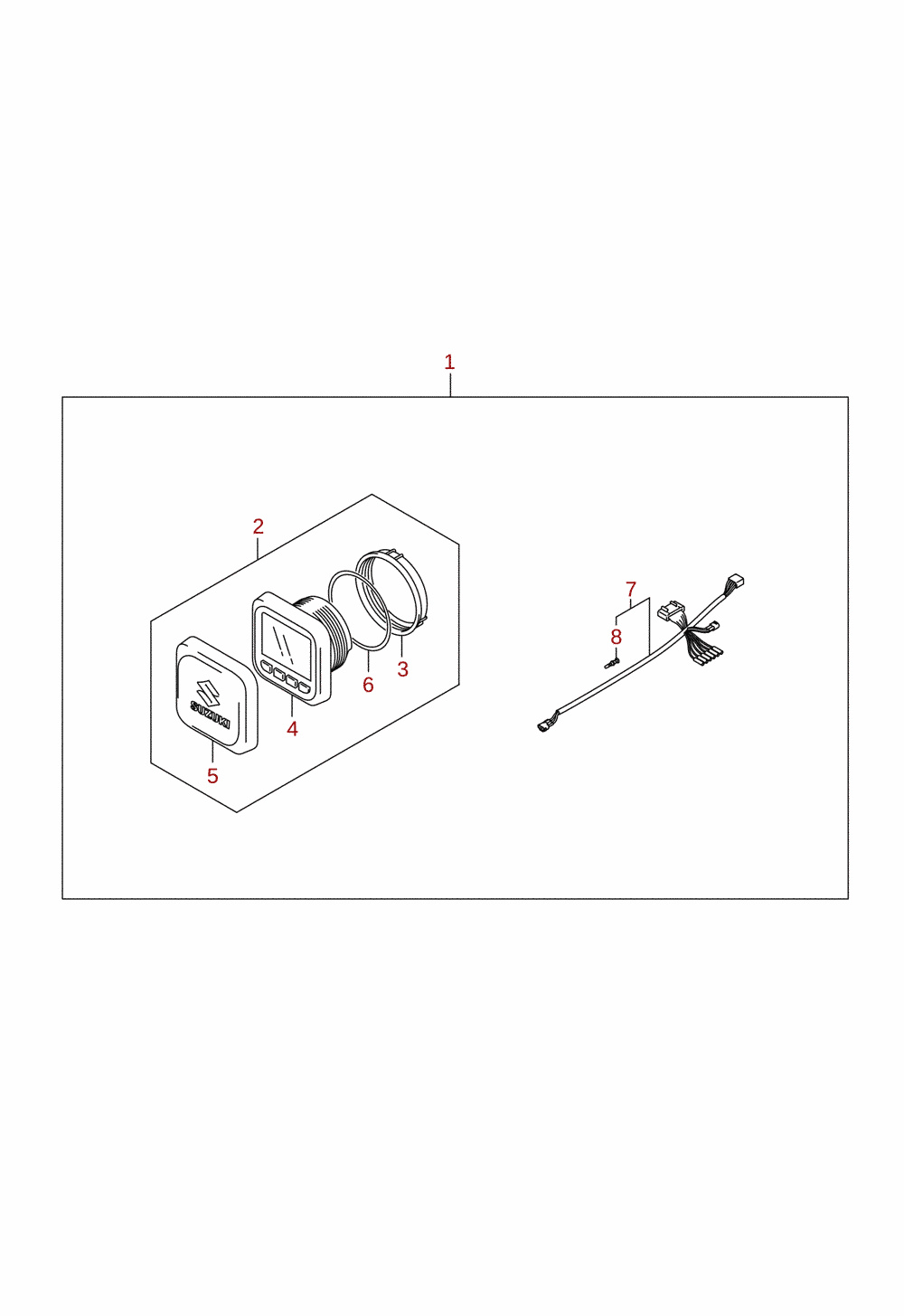

Multi function gauge (1) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 86

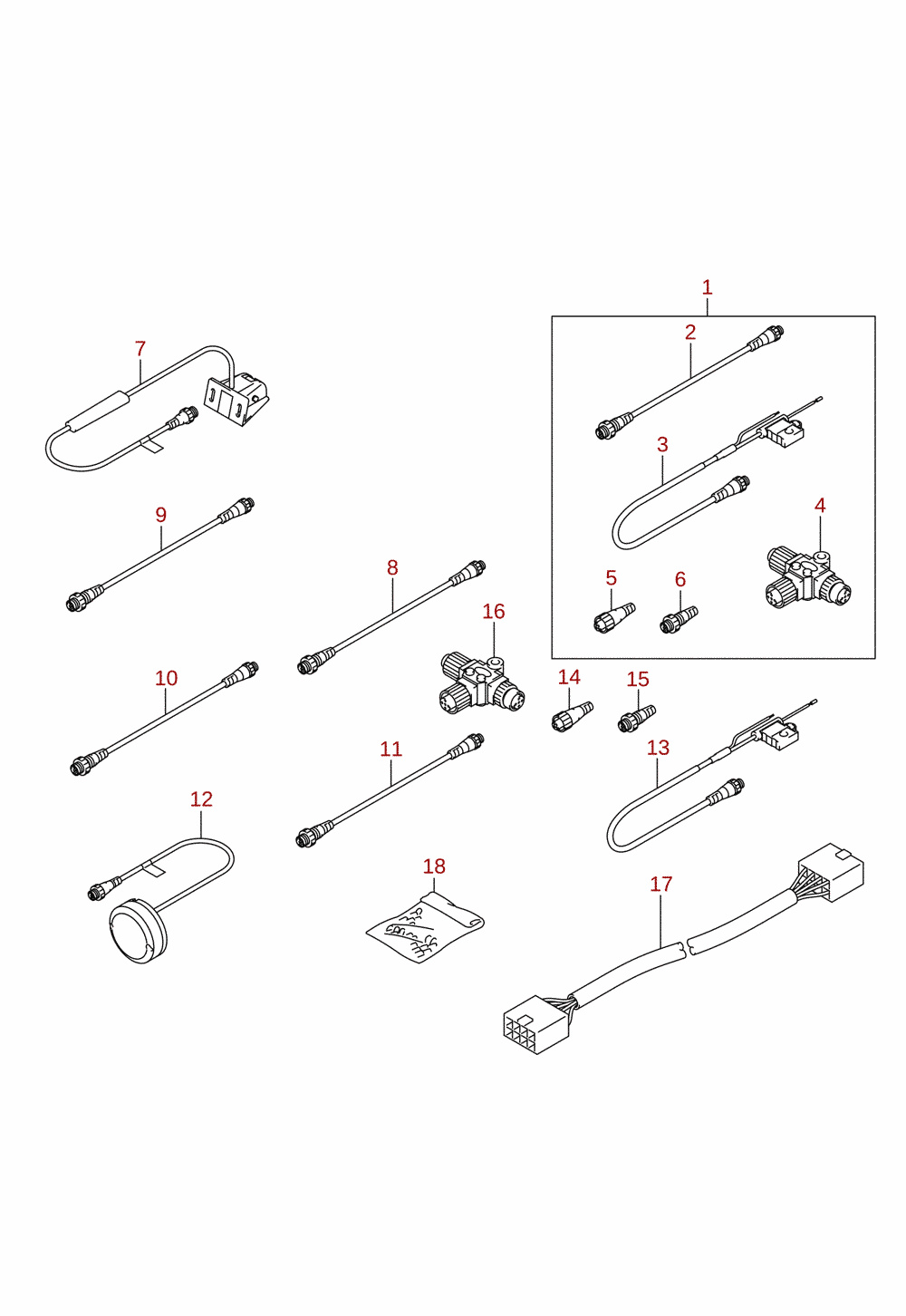

Multi function gauge (2) (DF100B, DF70A, DF80A, DF90A) (optional)

Reference no. DF90A_E01_019 87
