Exploded views for Suzuki DF325AT, DF350AT (E01) 2019 [DF350A_E01_019]

Crankshaft (DF325A)

Reference no. DF350A_E01_019 3

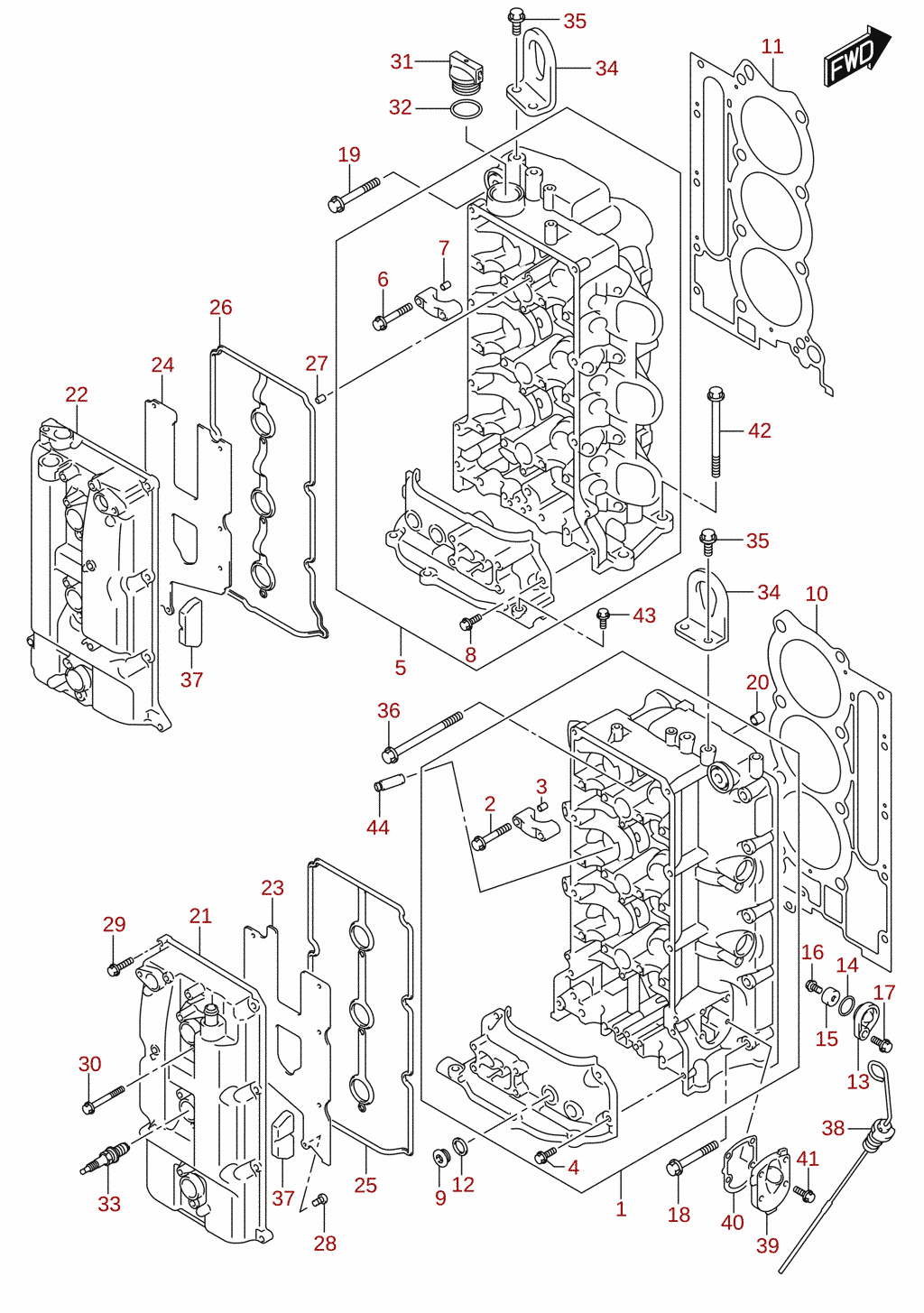

Cylinder head

Reference no. DF350A_E01_019 0

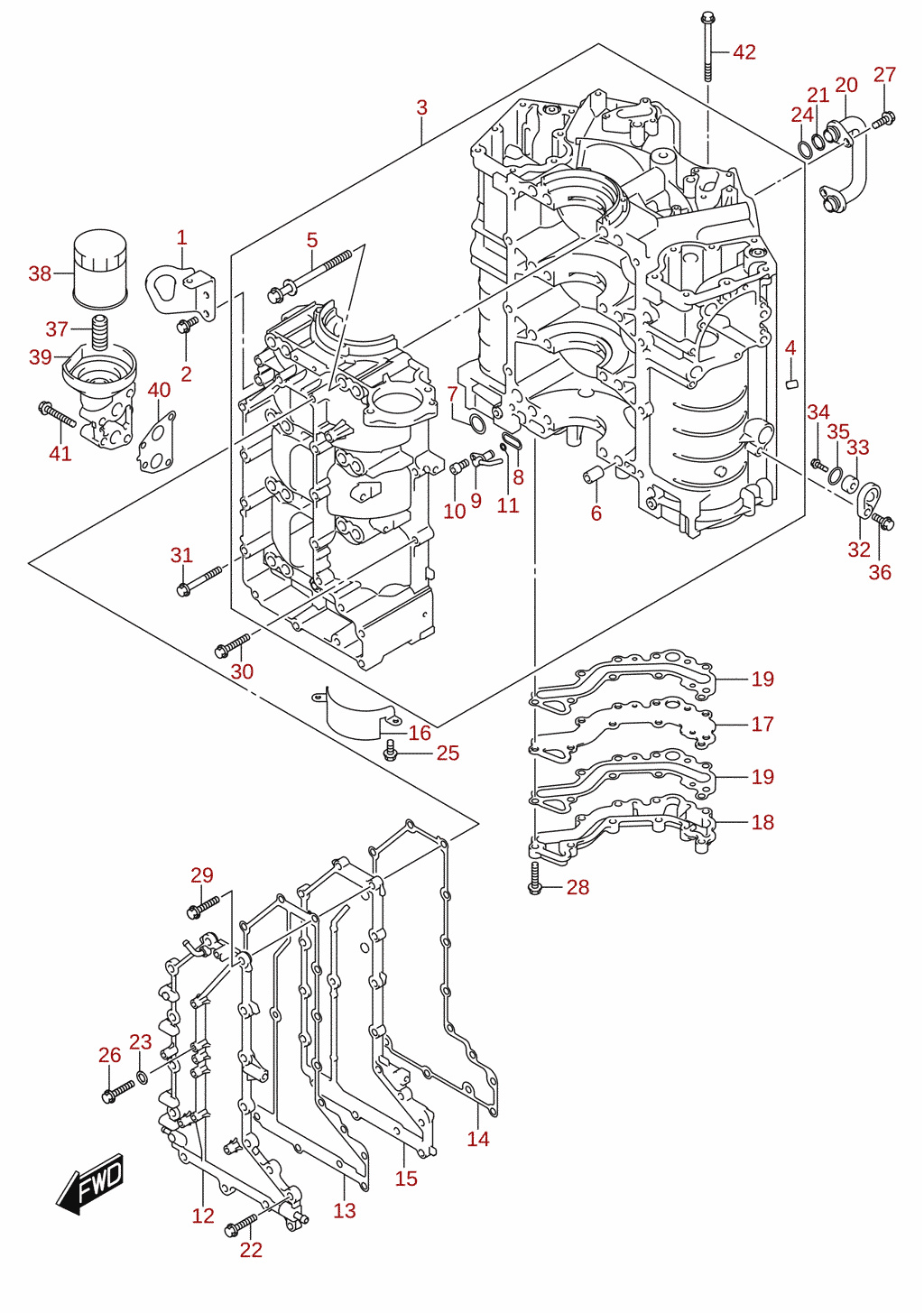

Cylinder block

Reference no. DF350A_E01_019 1

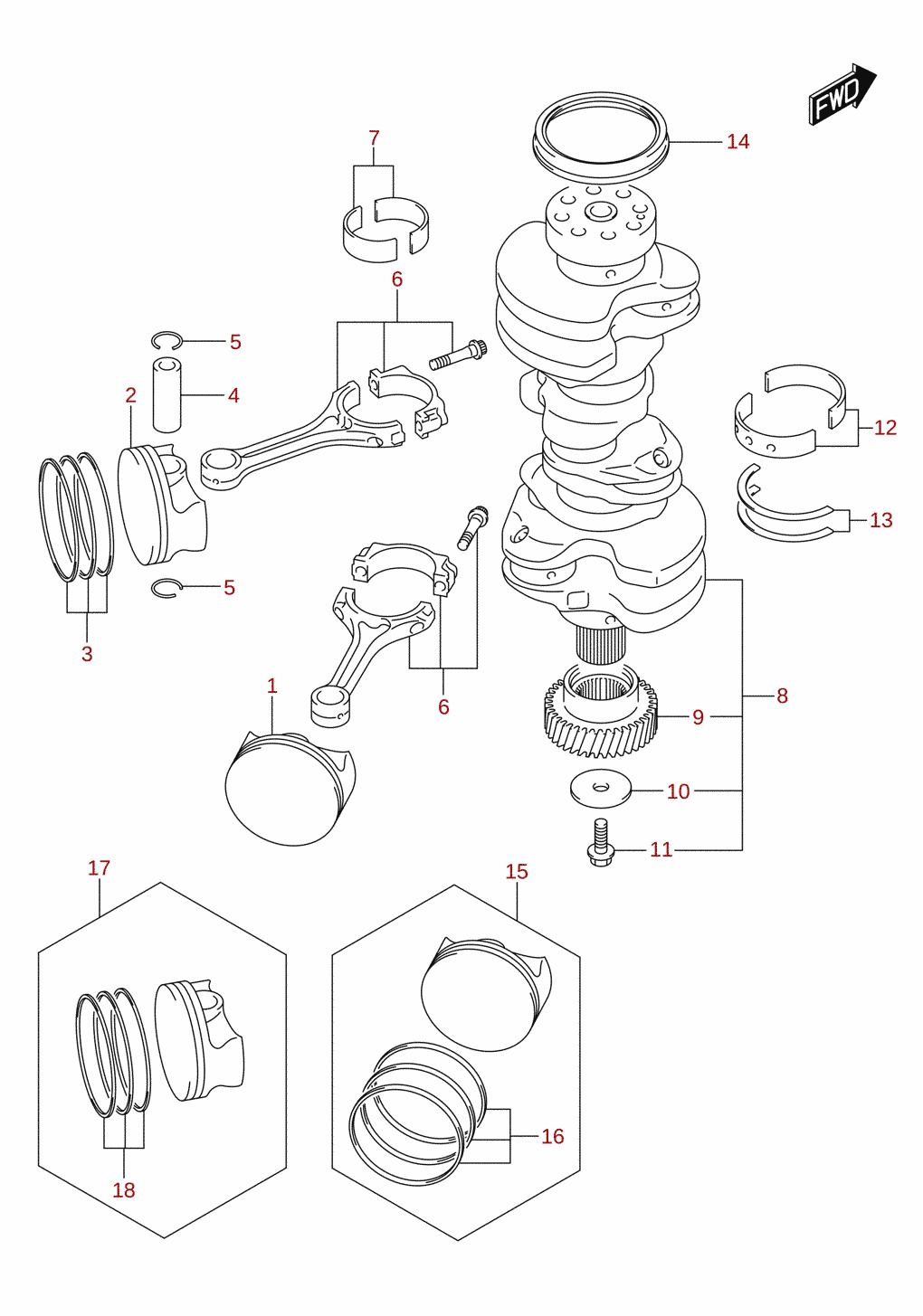

Crankshaft (DF350A)

Reference no. DF350A_E01_019 2

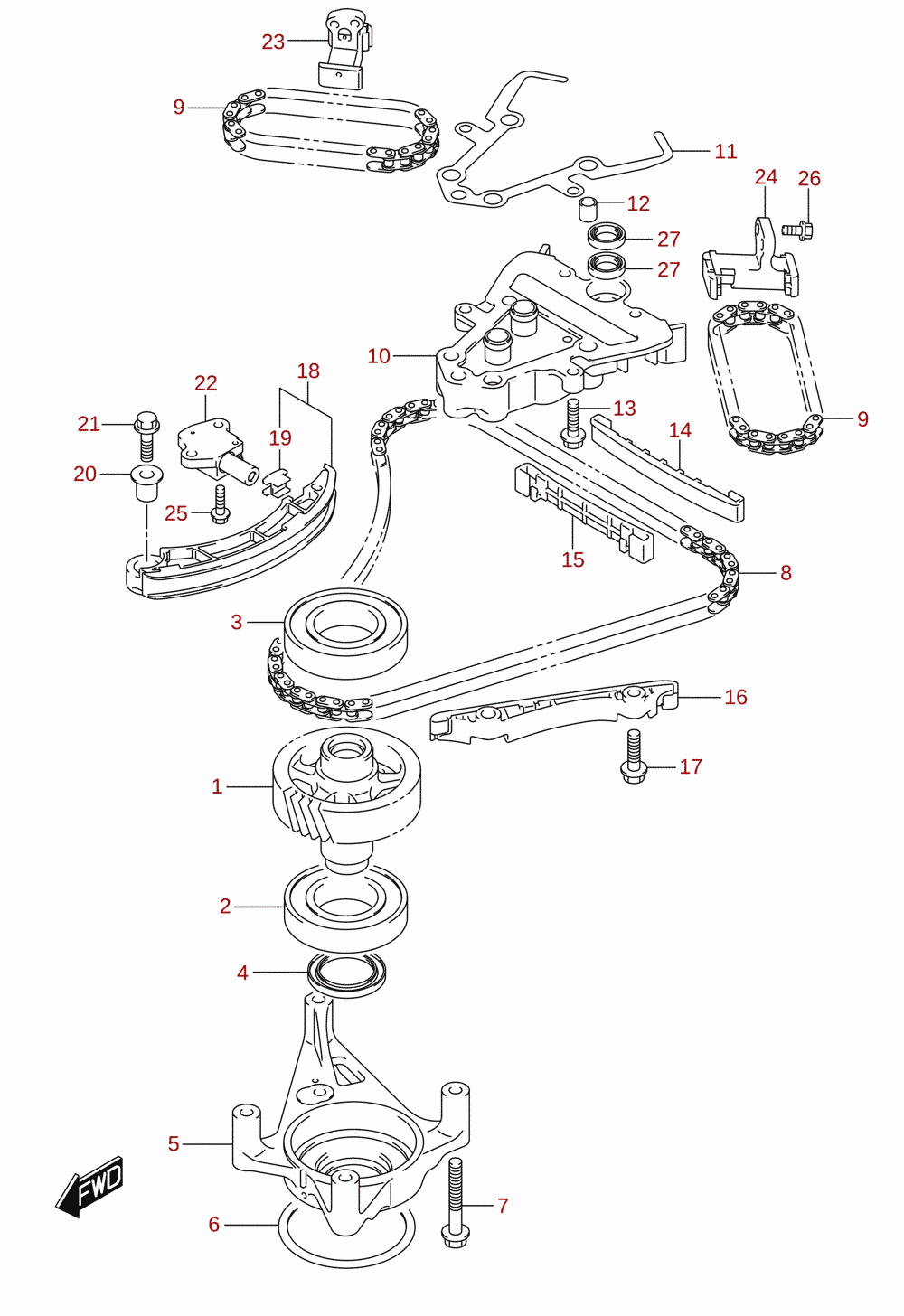

Timing chain

Reference no. DF350A_E01_019 4

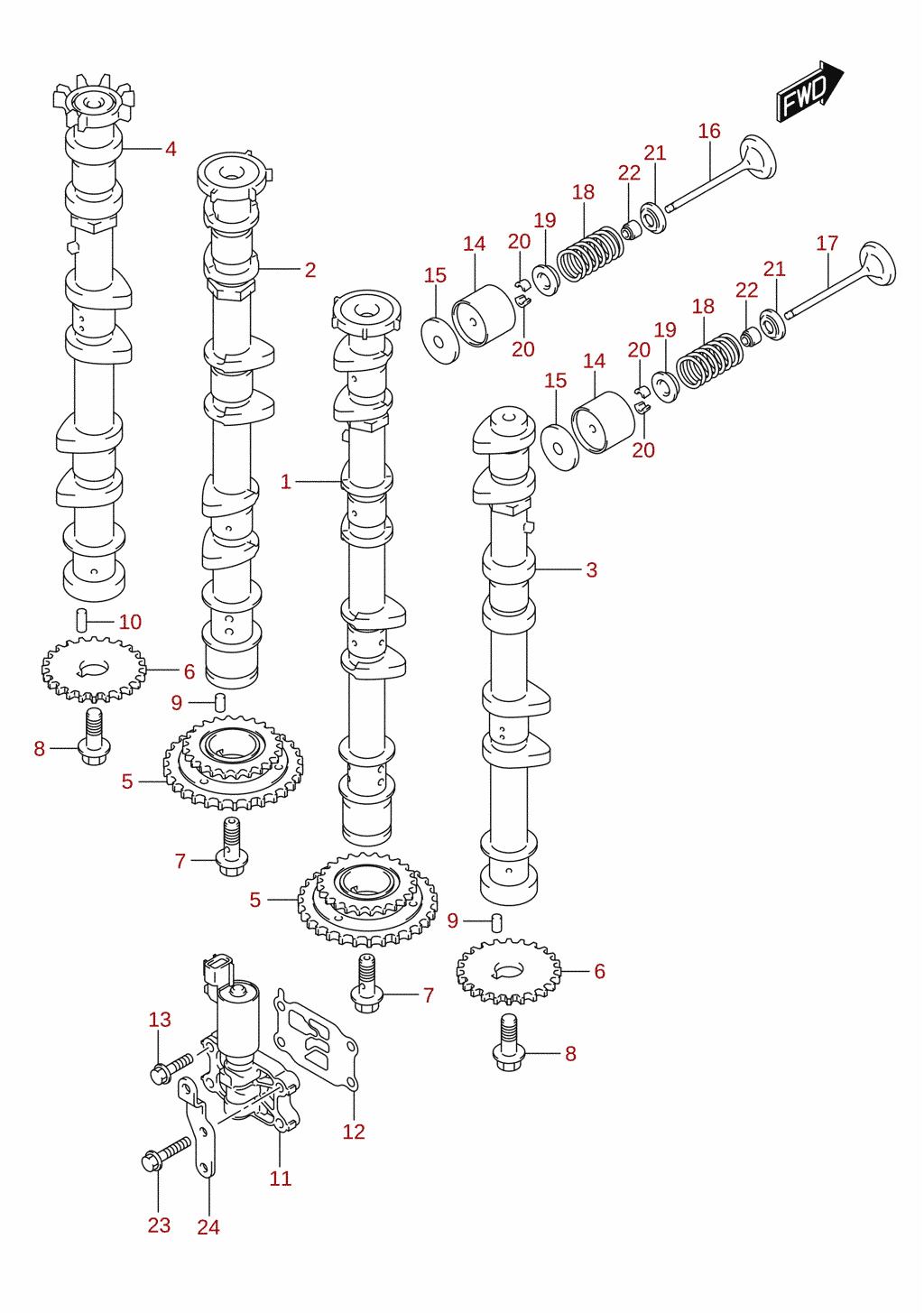

Camshaft

Reference no. DF350A_E01_019 5

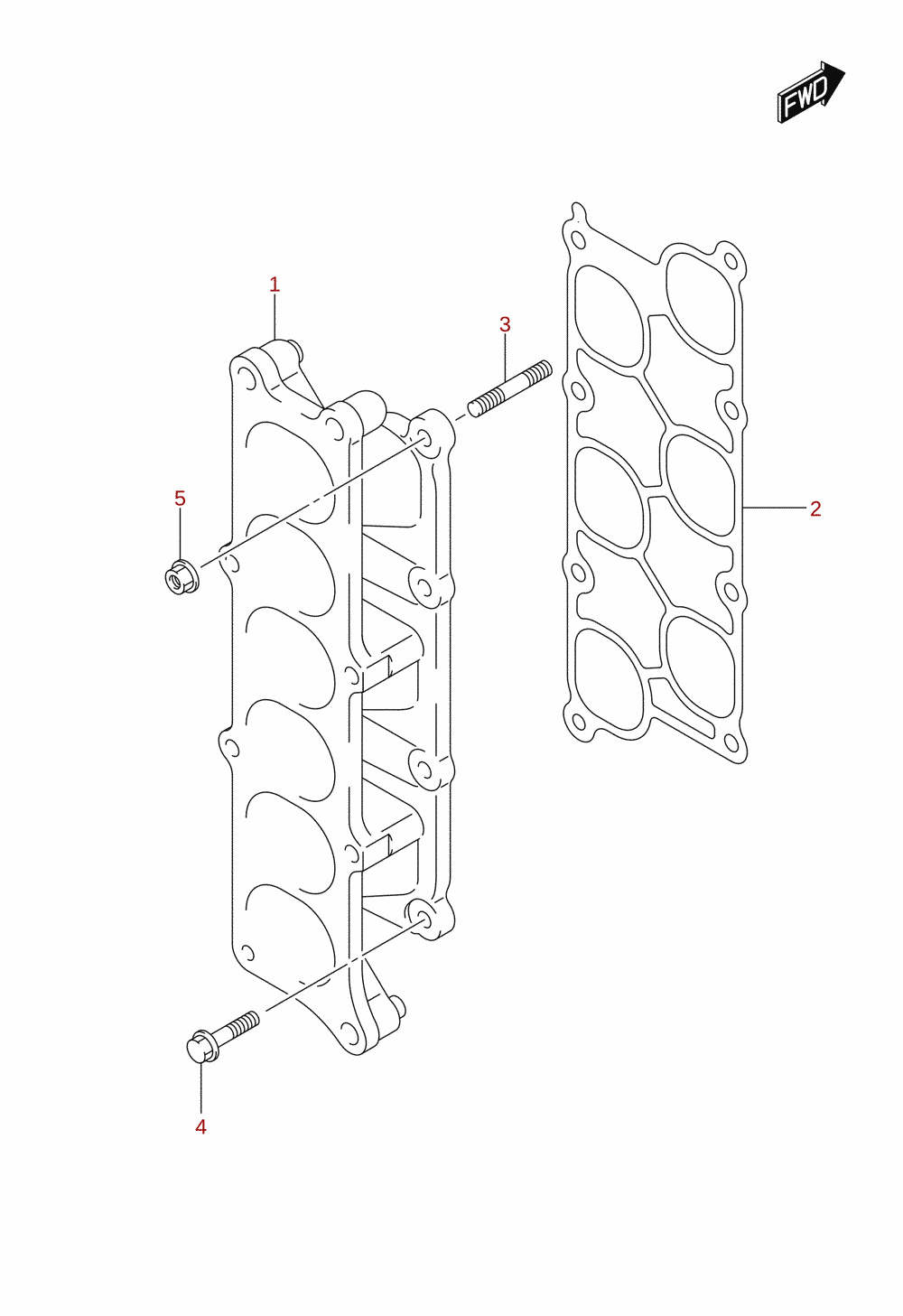

Intake manifold

Reference no. DF350A_E01_019 6

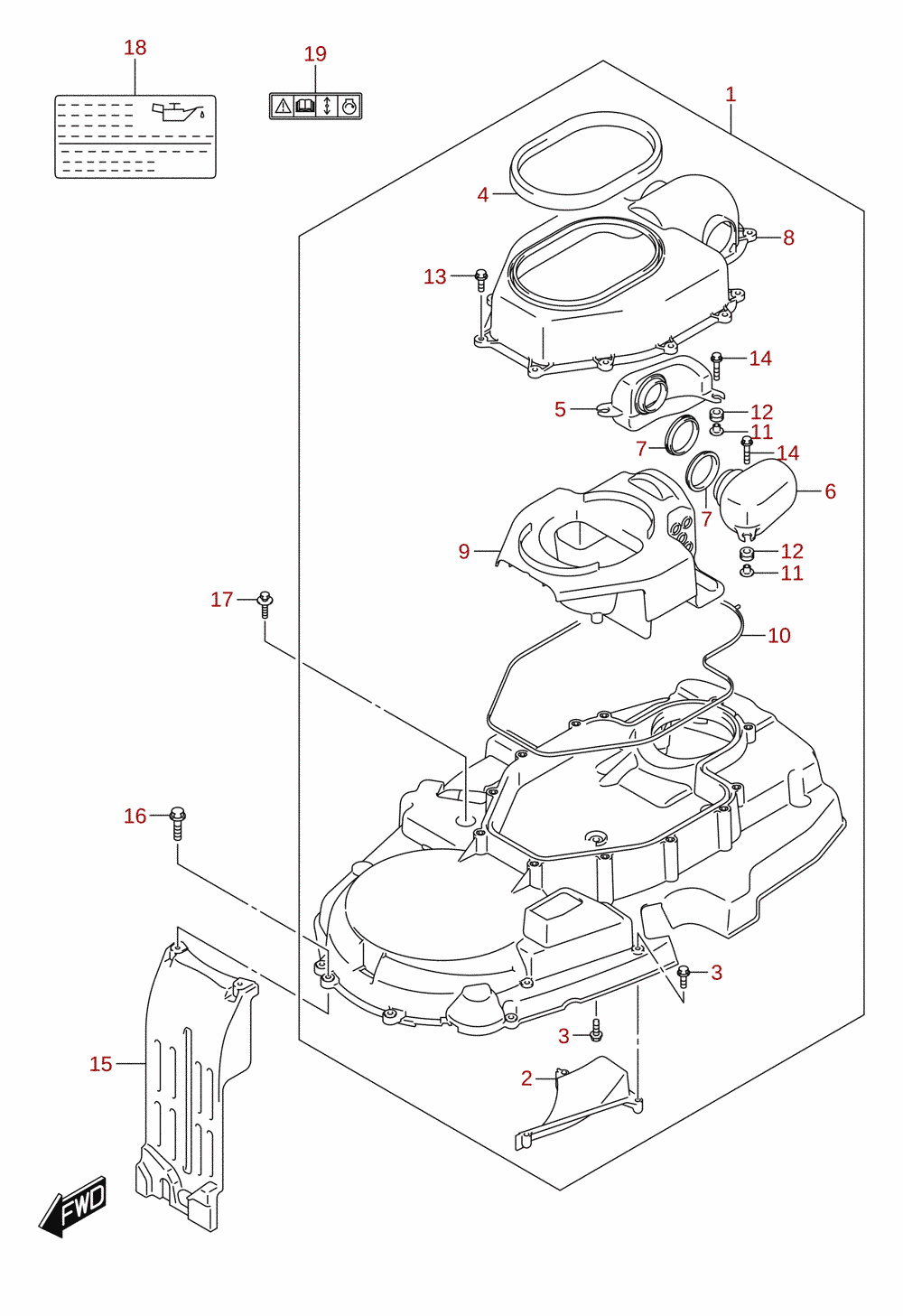

Ring gear cover

Reference no. DF350A_E01_019 7

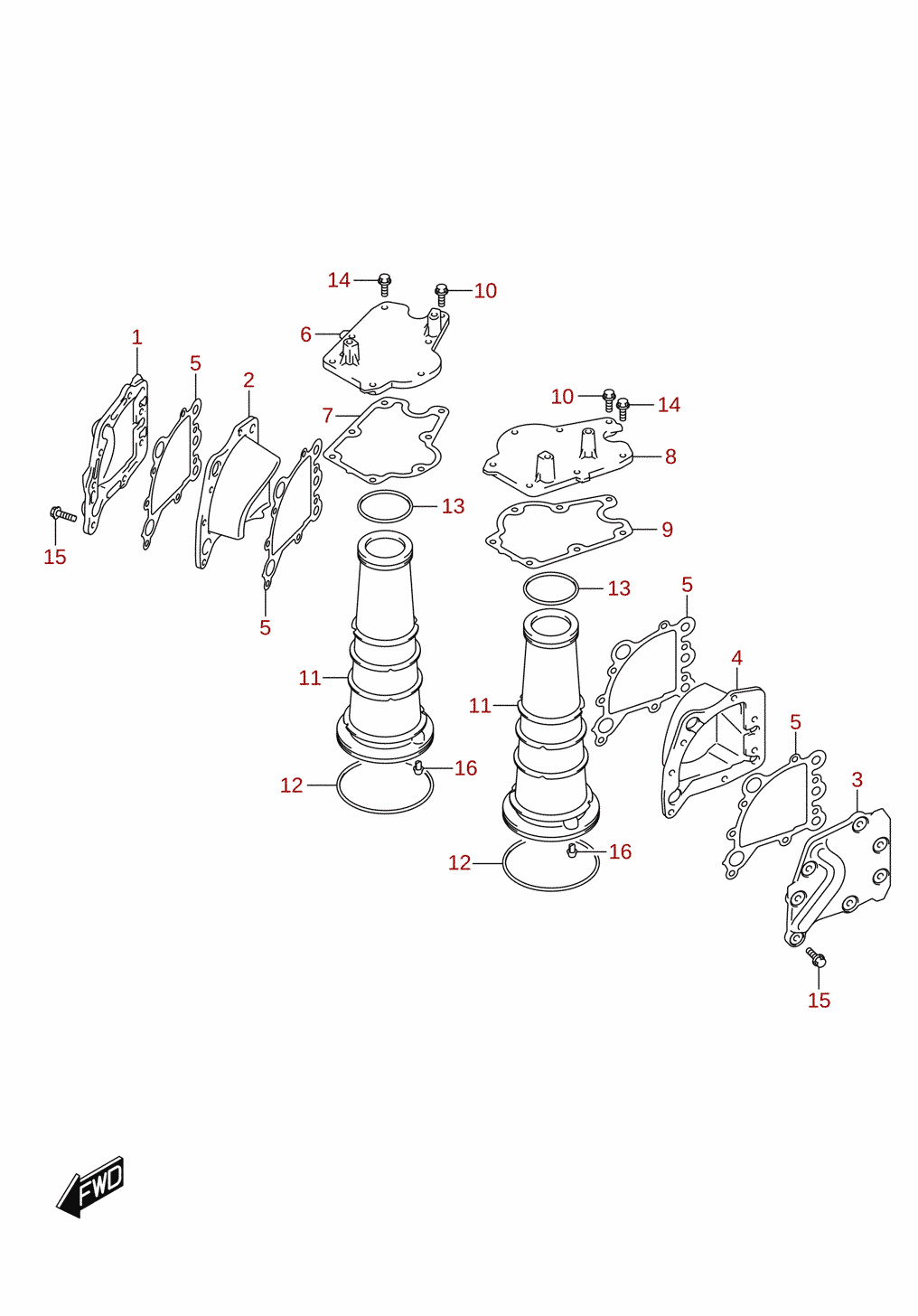

Exhaust cover

Reference no. DF350A_E01_019 8

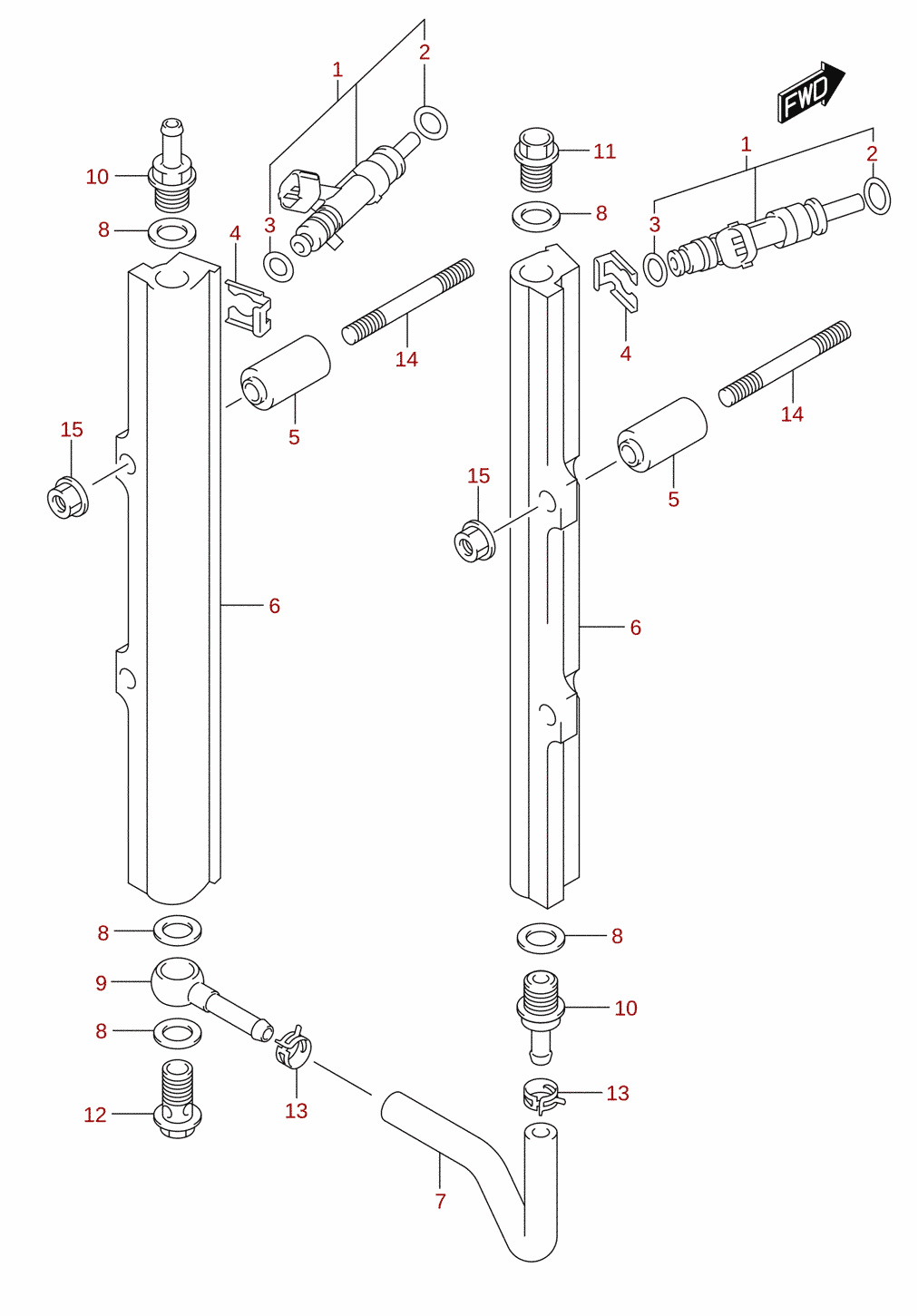

Fuel injector

Reference no. DF350A_E01_019 9

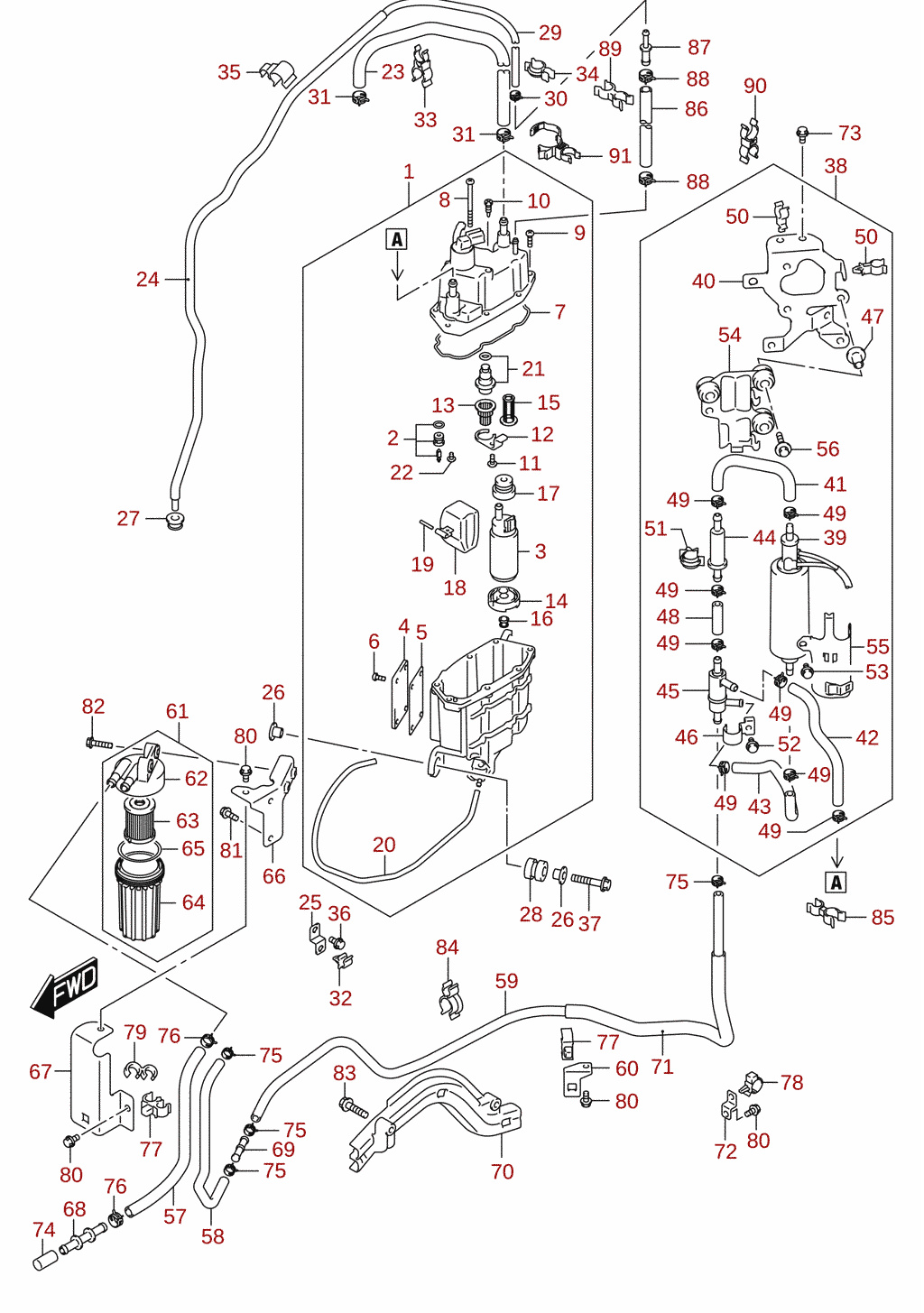

Fuel pump / fuel vapor separator

Reference no. DF350A_E01_019 10

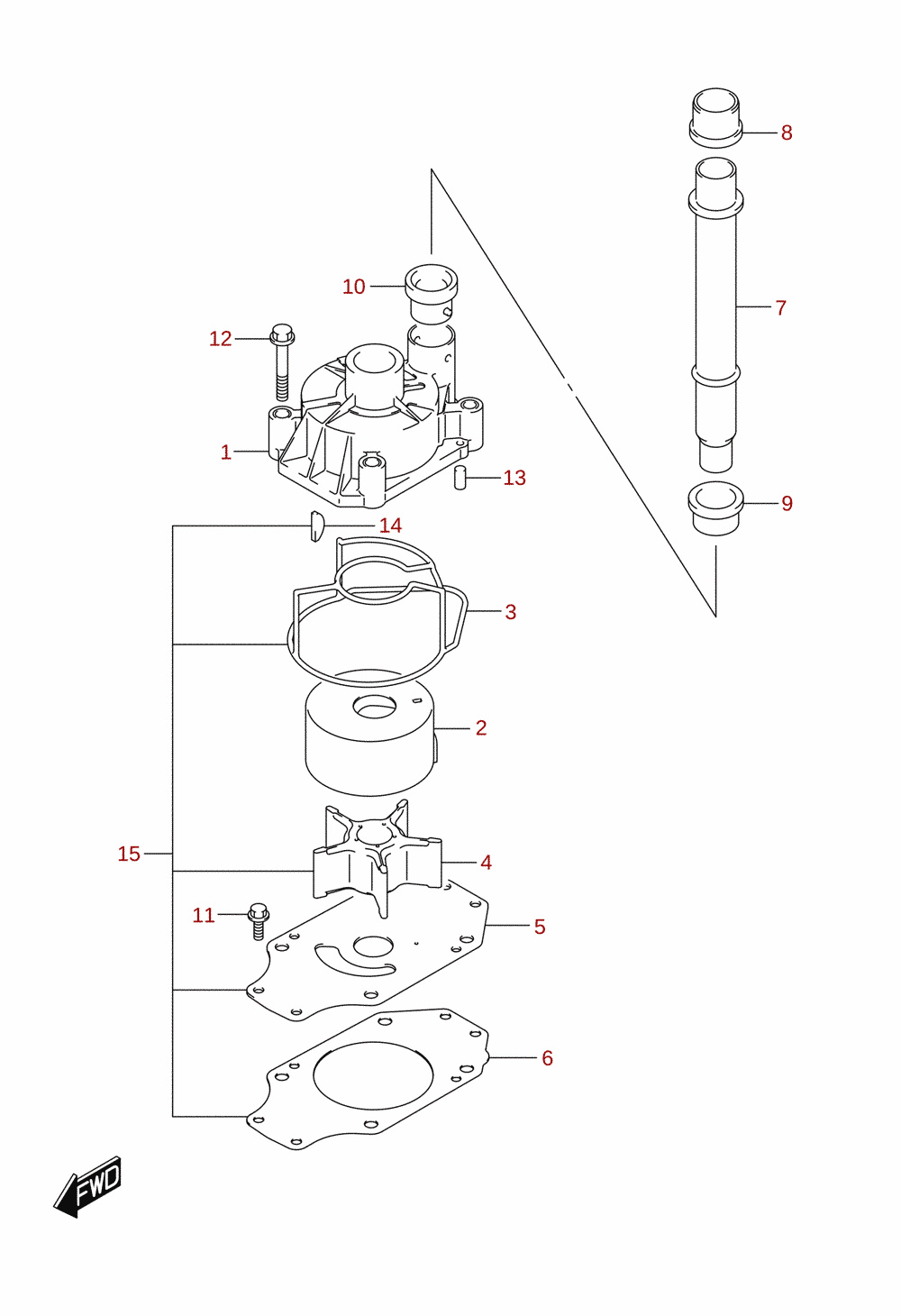

Water pump

Reference no. DF350A_E01_019 11

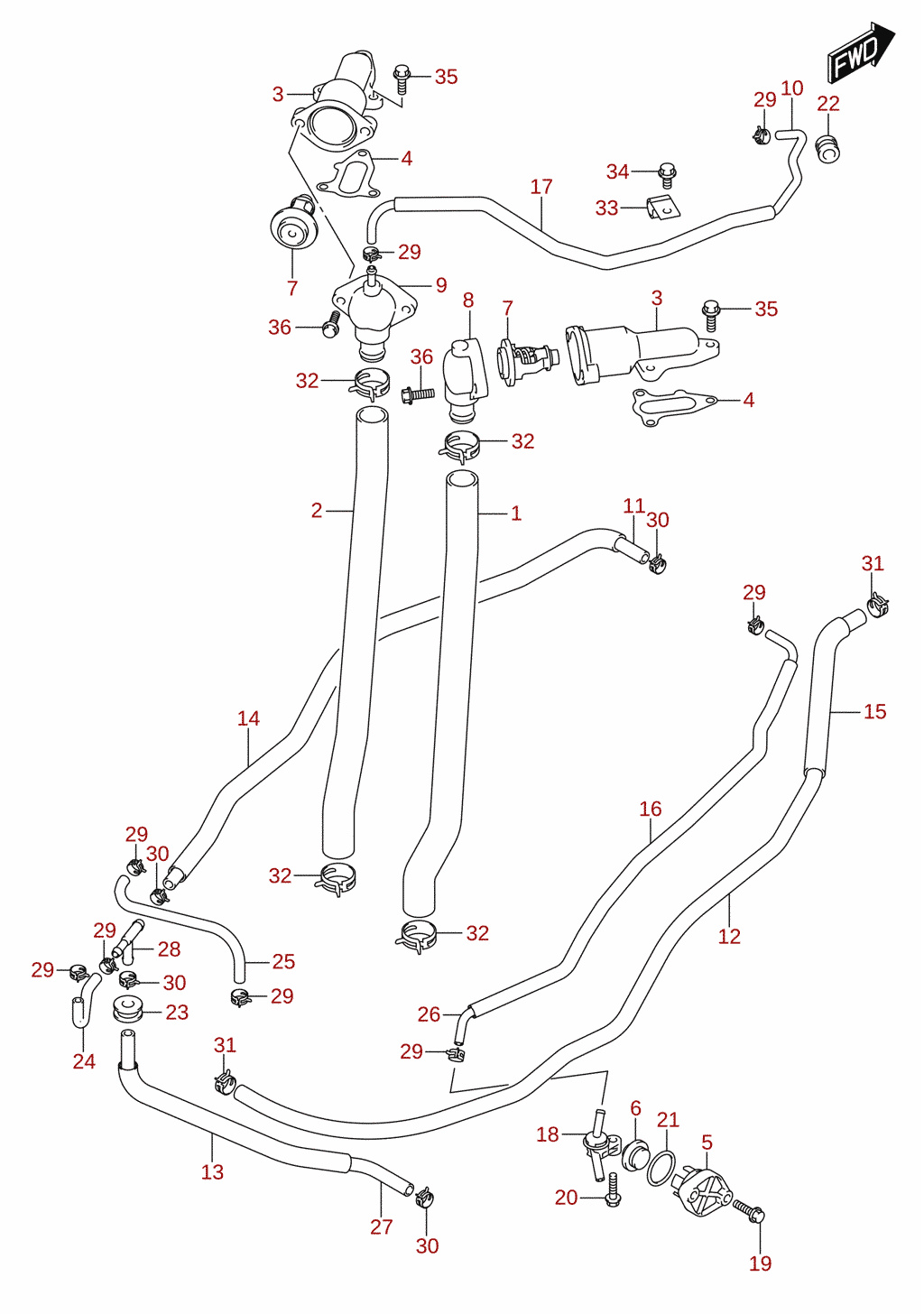

Thermostat

Reference no. DF350A_E01_019 12

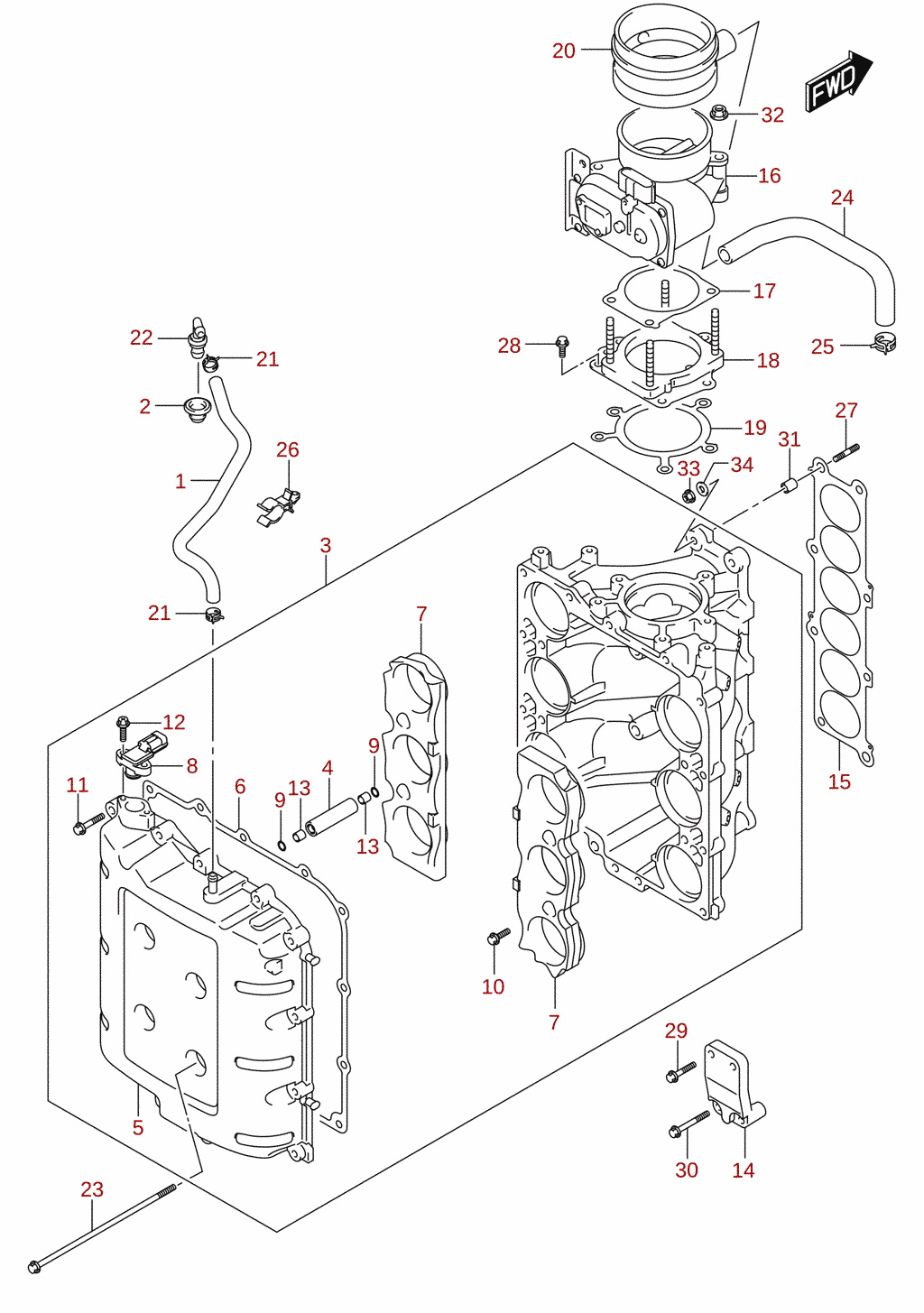

Throttle body

Reference no. DF350A_E01_019 13

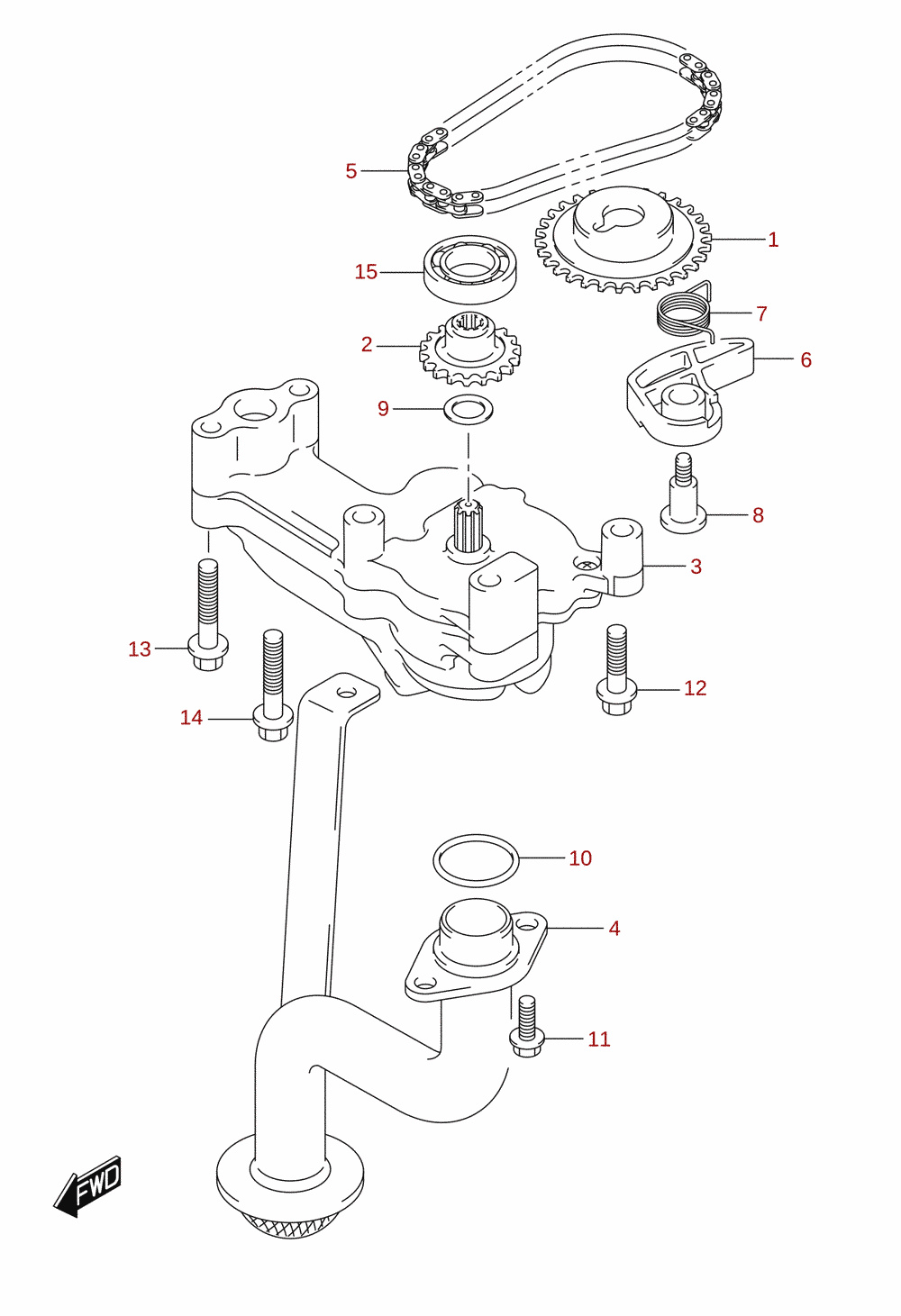

Oil pump

Reference no. DF350A_E01_019 14

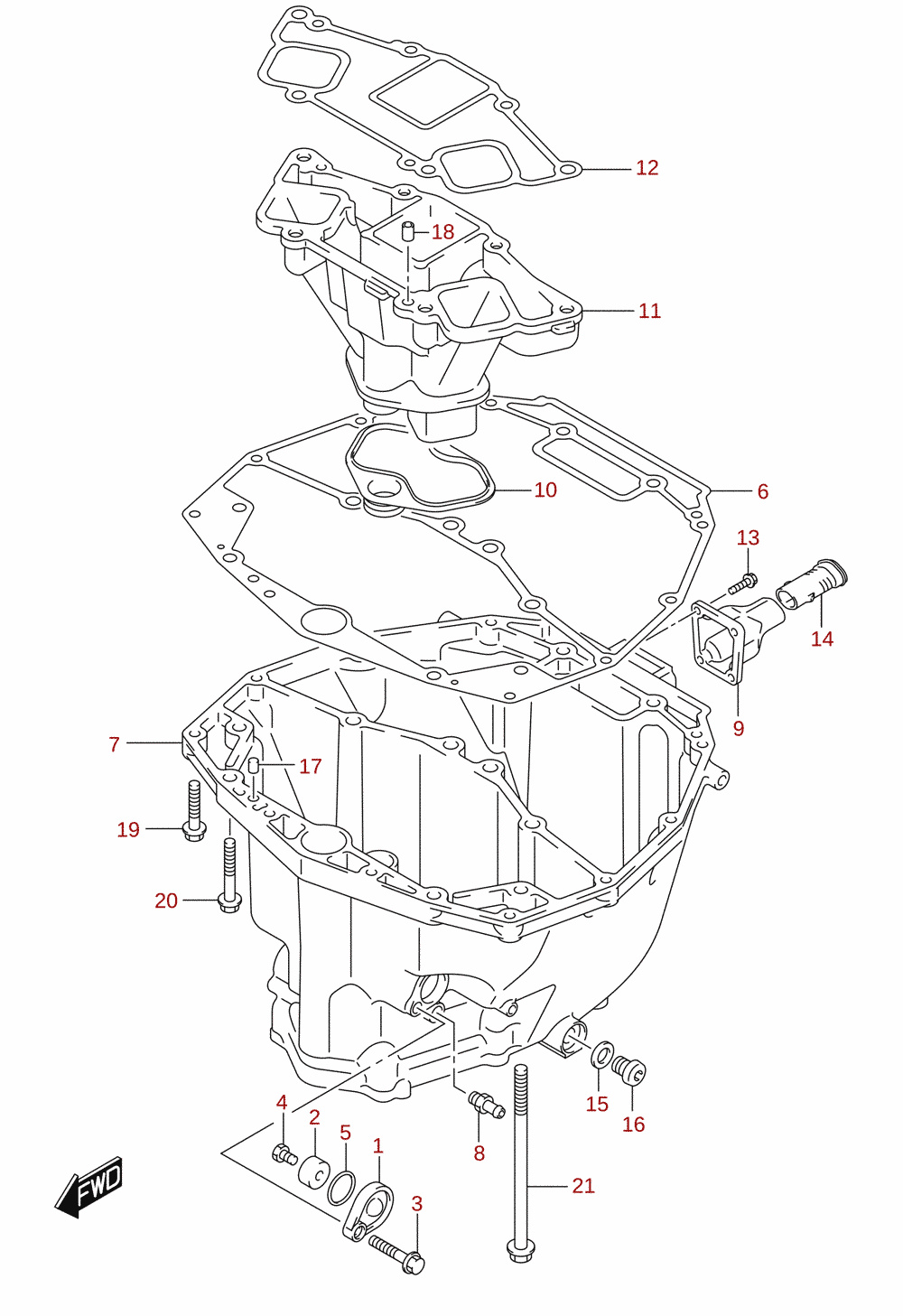

Oil pan

Reference no. DF350A_E01_019 15

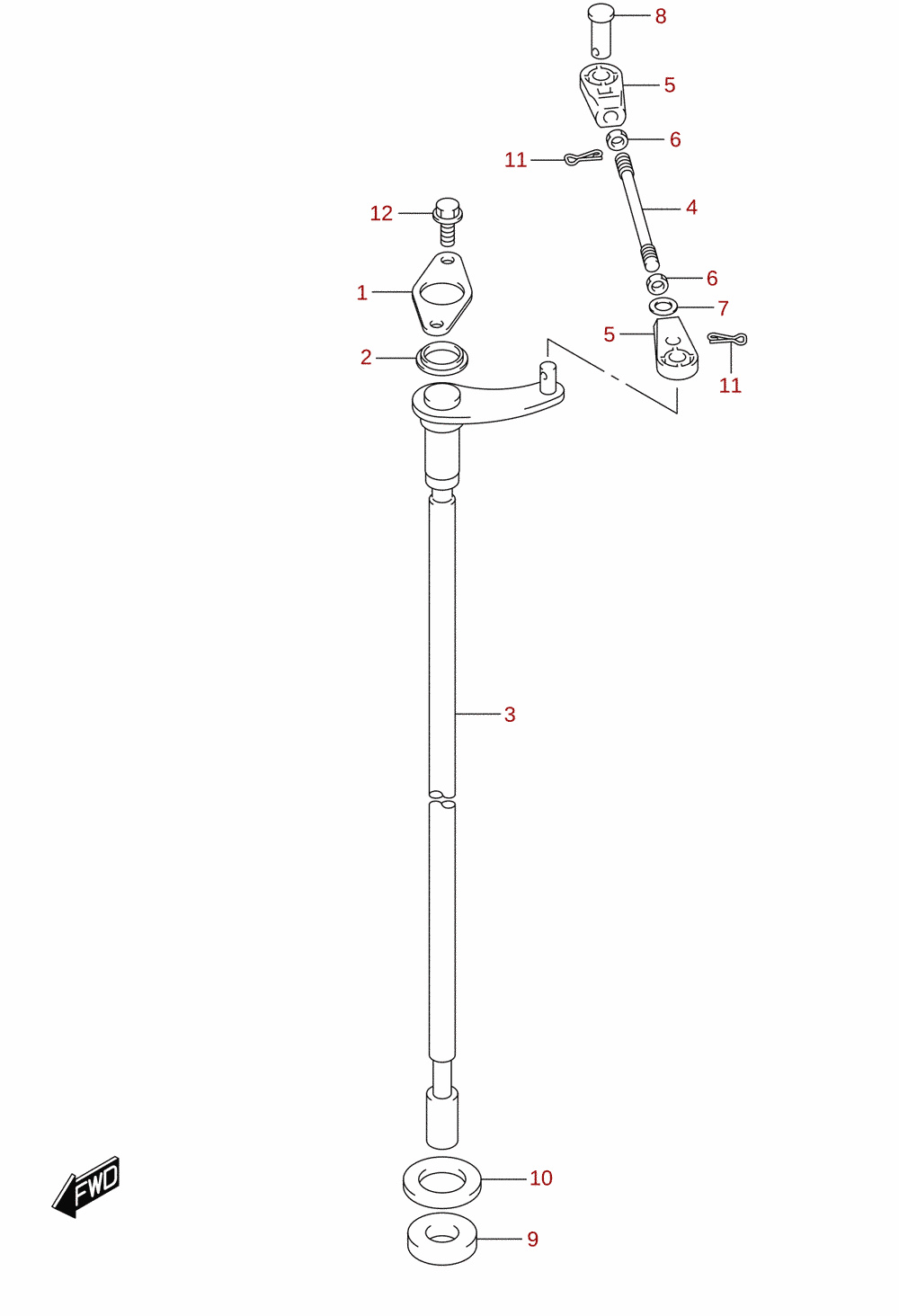

Clutch shaft

Reference no. DF350A_E01_019 16

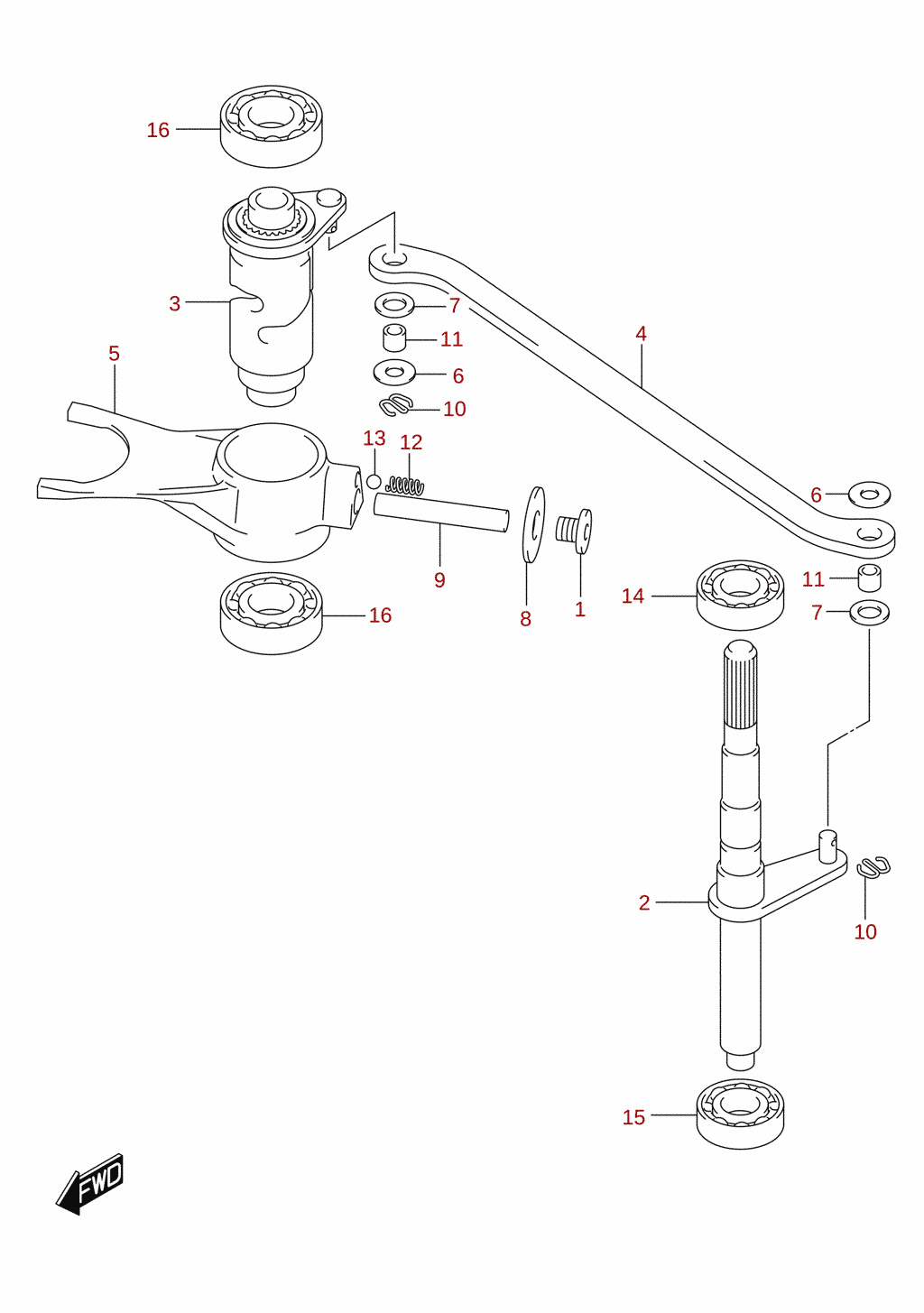

Clutch rod

Reference no. DF350A_E01_019 17

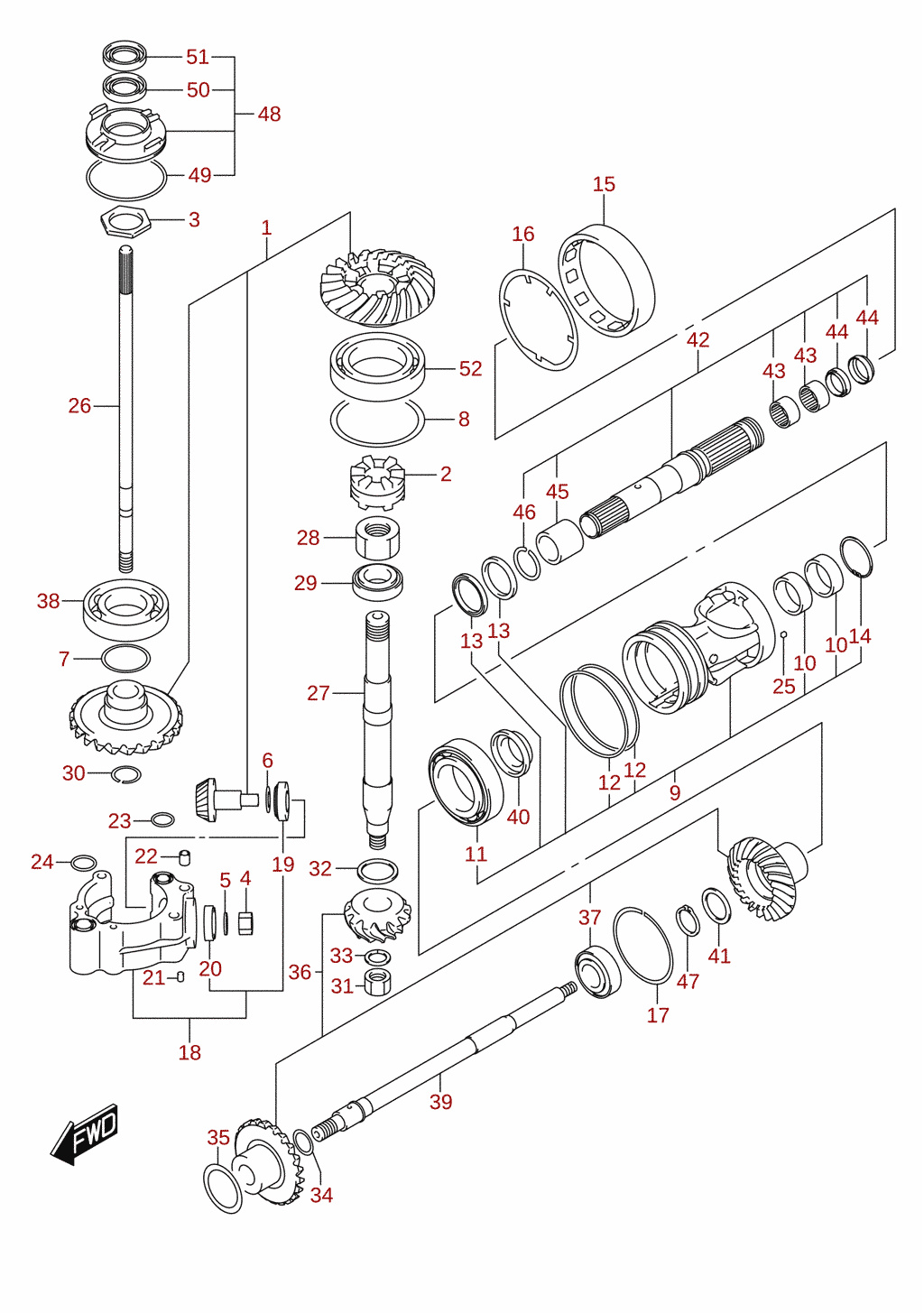

Transmission

Reference no. DF350A_E01_019 18

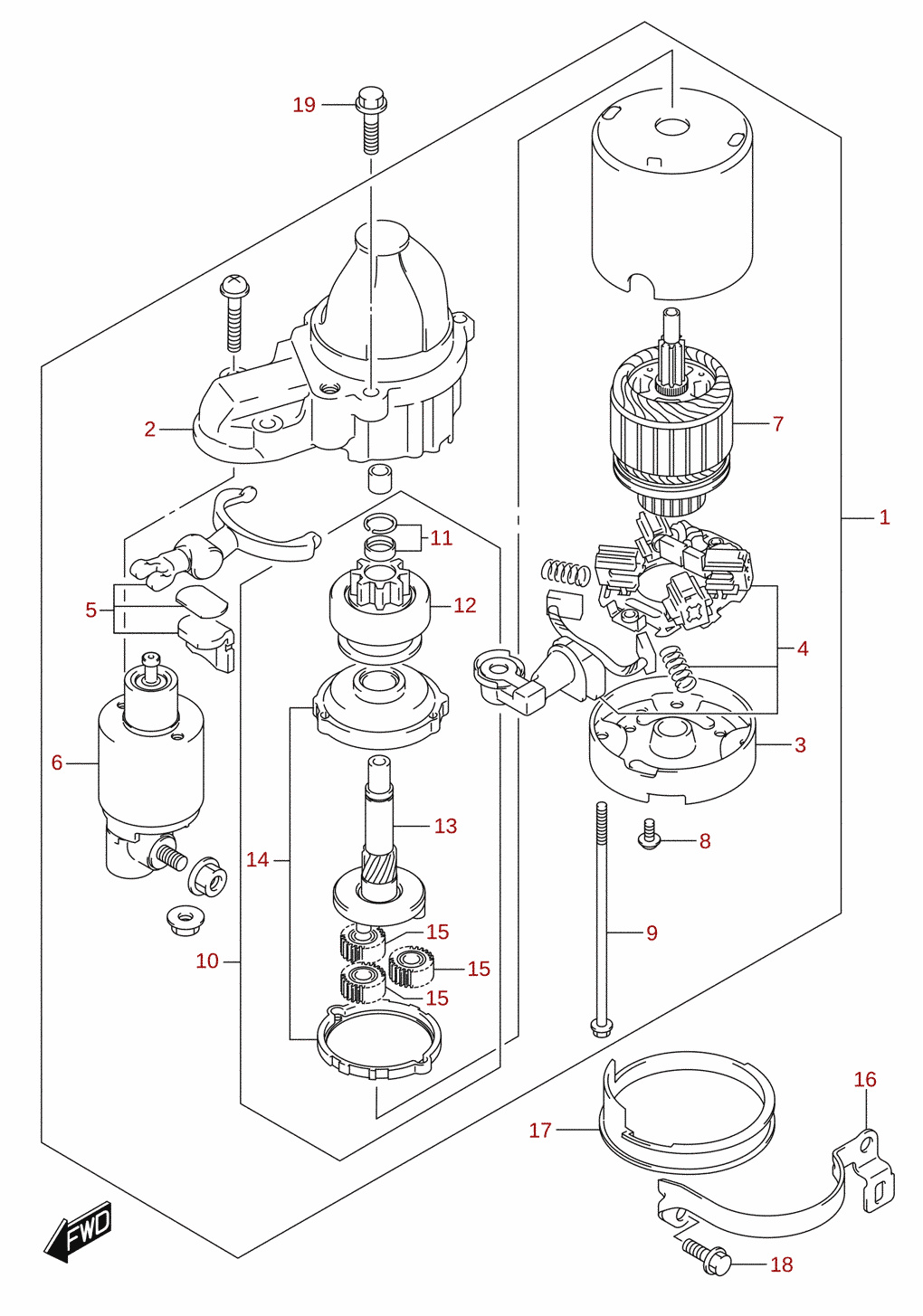

Starting motor

Reference no. DF350A_E01_019 19

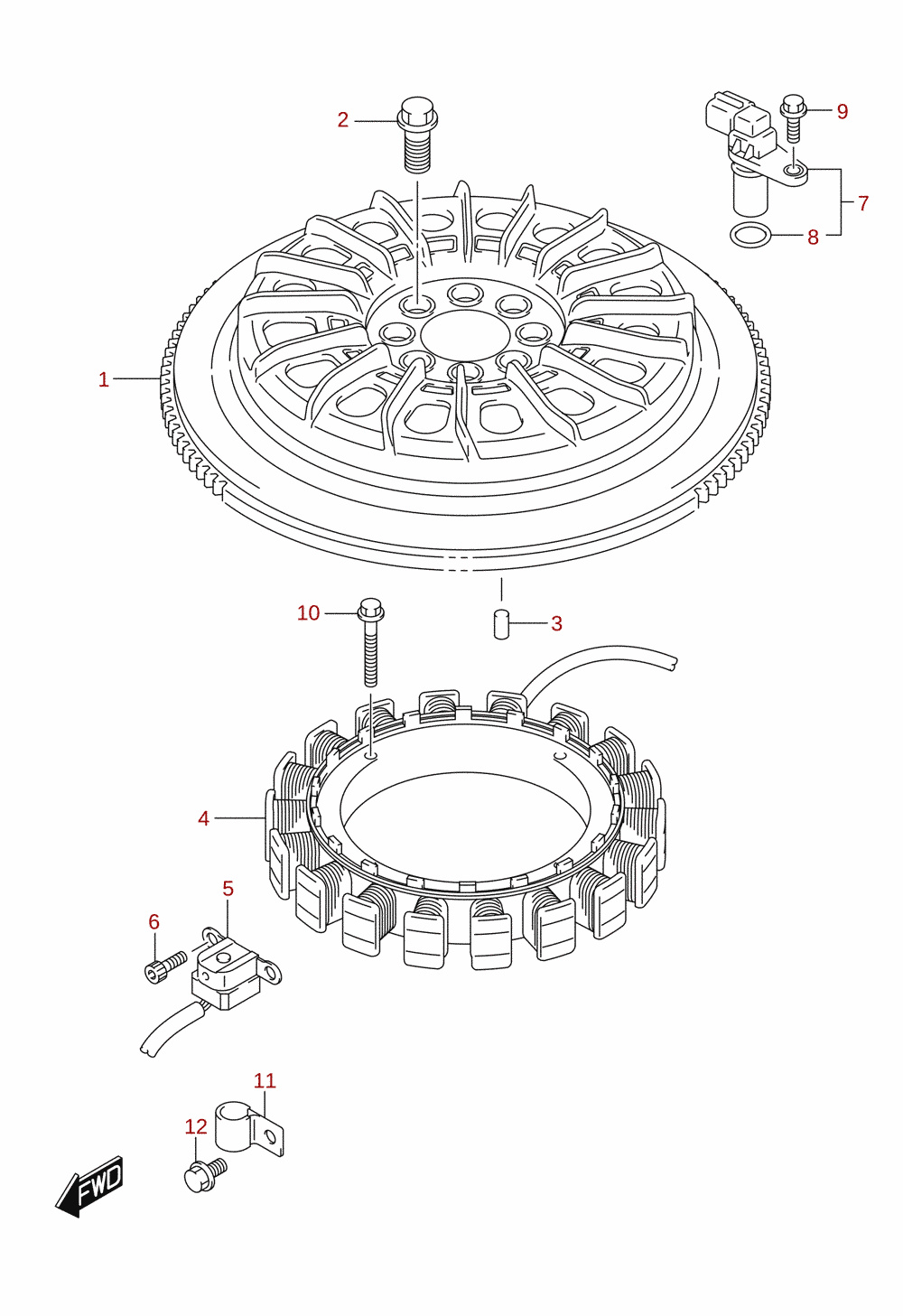

Magneto

Reference no. DF350A_E01_019 20

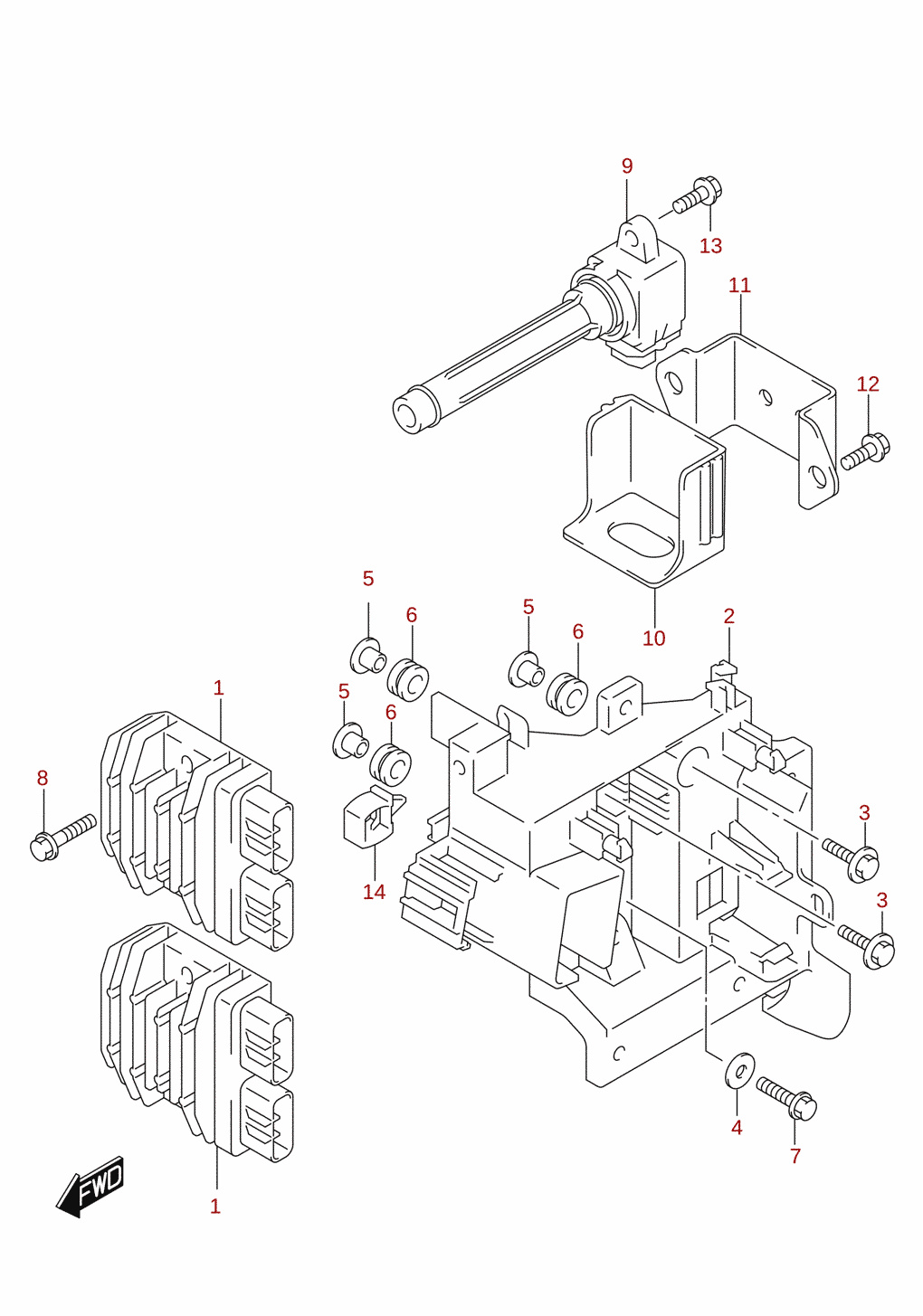

Rectifier / ignition coil

Reference no. DF350A_E01_019 21

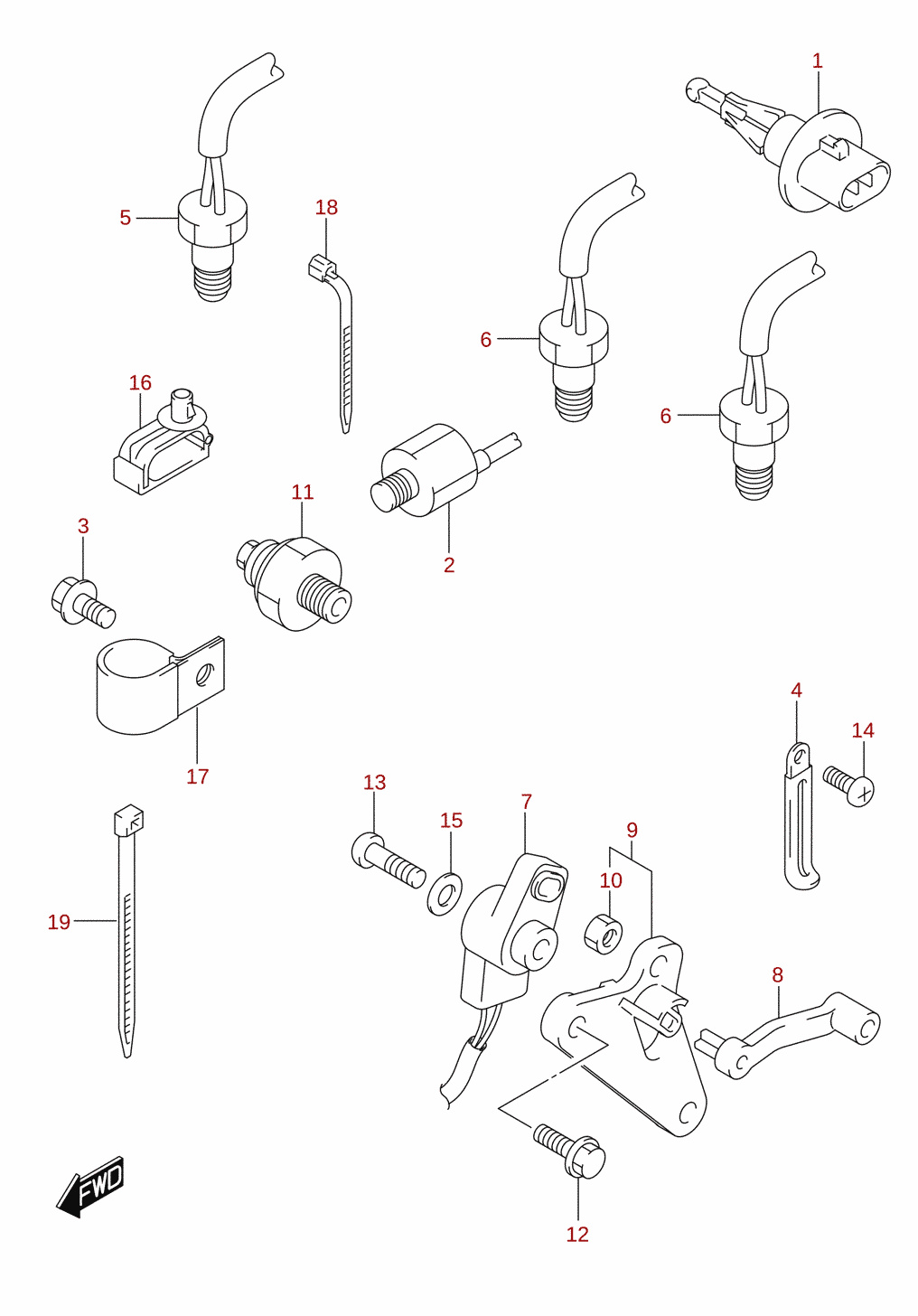

Sensor

Reference no. DF350A_E01_019 22

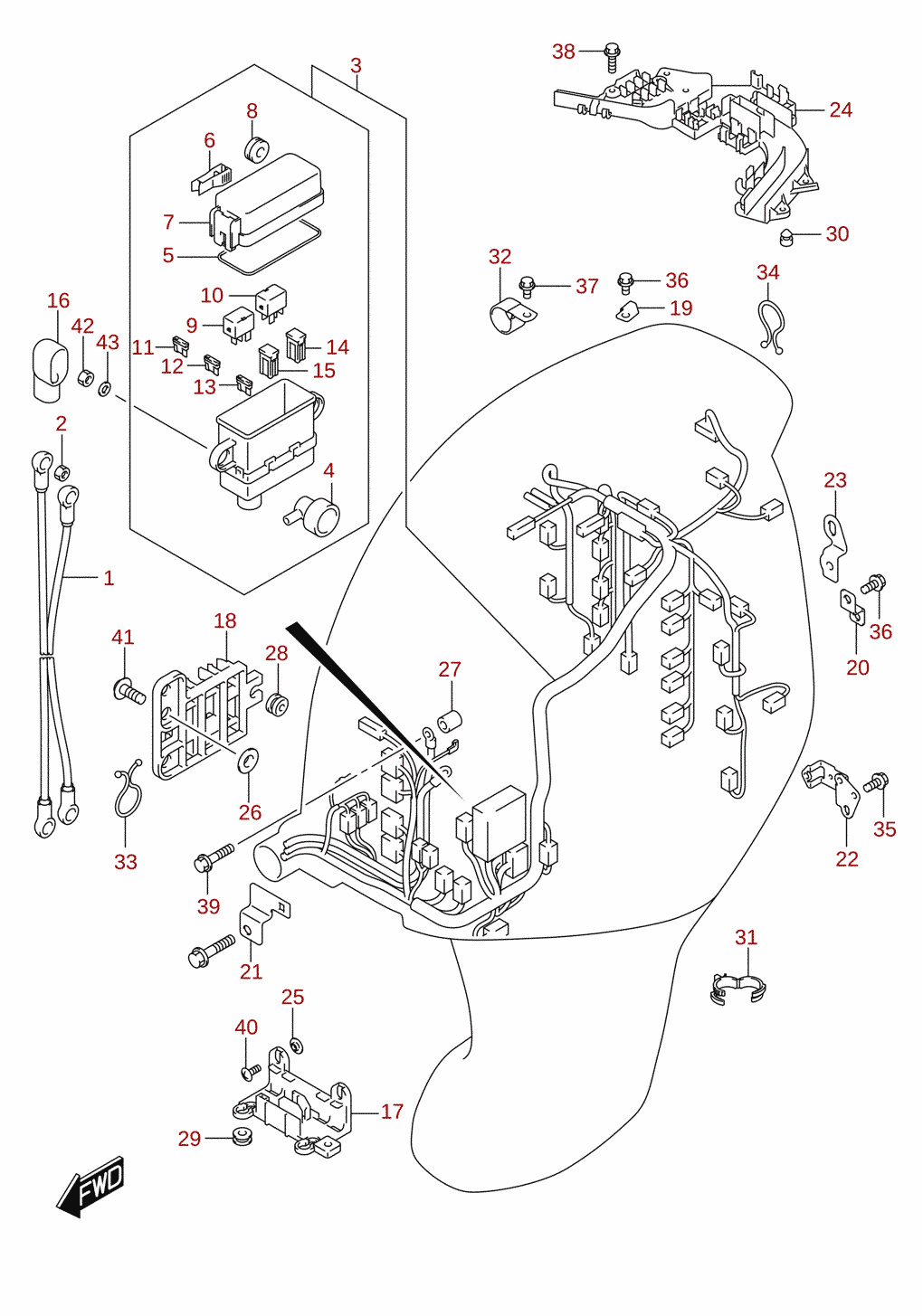

Harness

Reference no. DF350A_E01_019 23

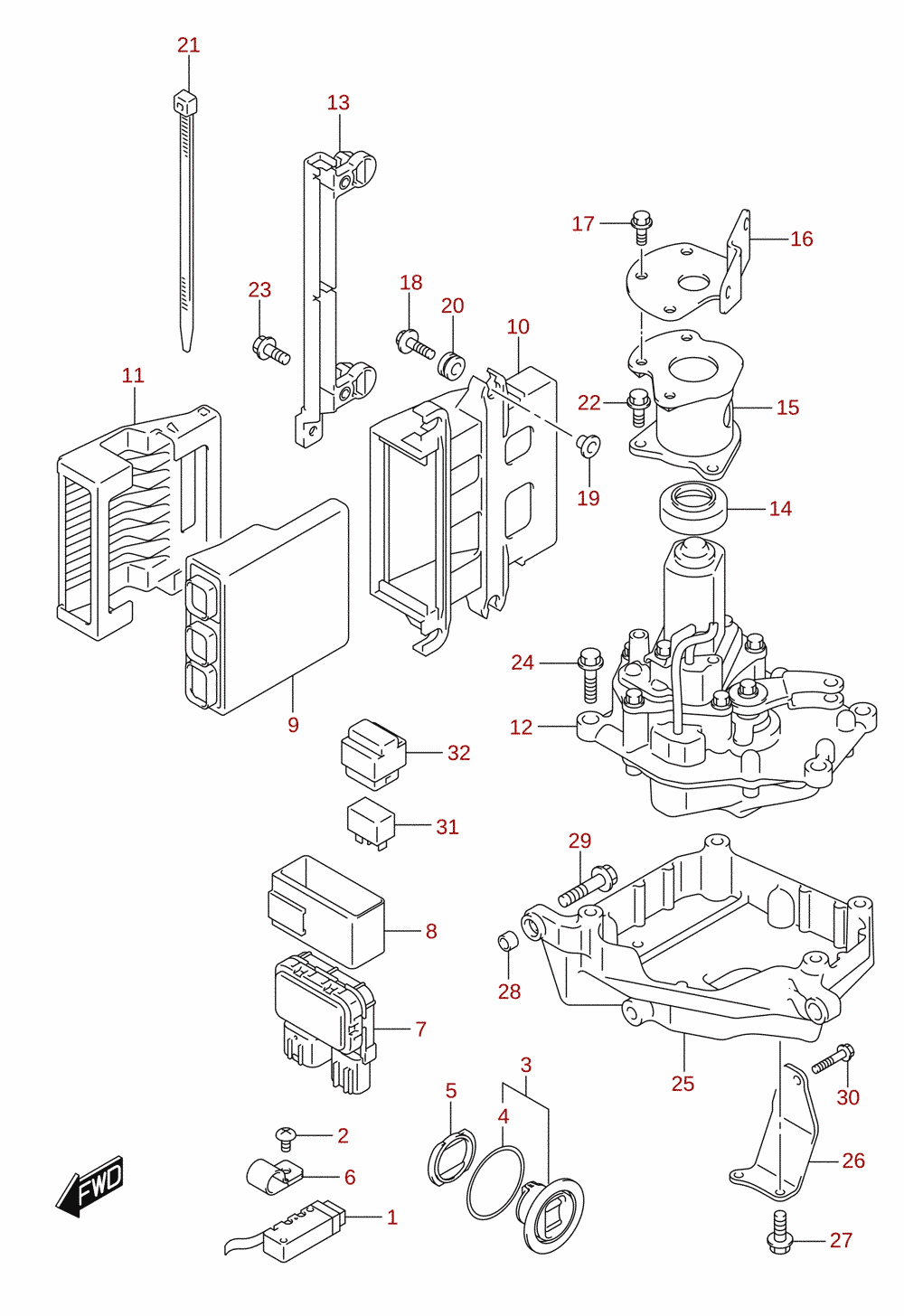

PTT switch / engine control unit (DF350A)

Reference no. DF350A_E01_019 24

PTT switch / engine control unit (DF325A)

Reference no. DF350A_E01_019 25

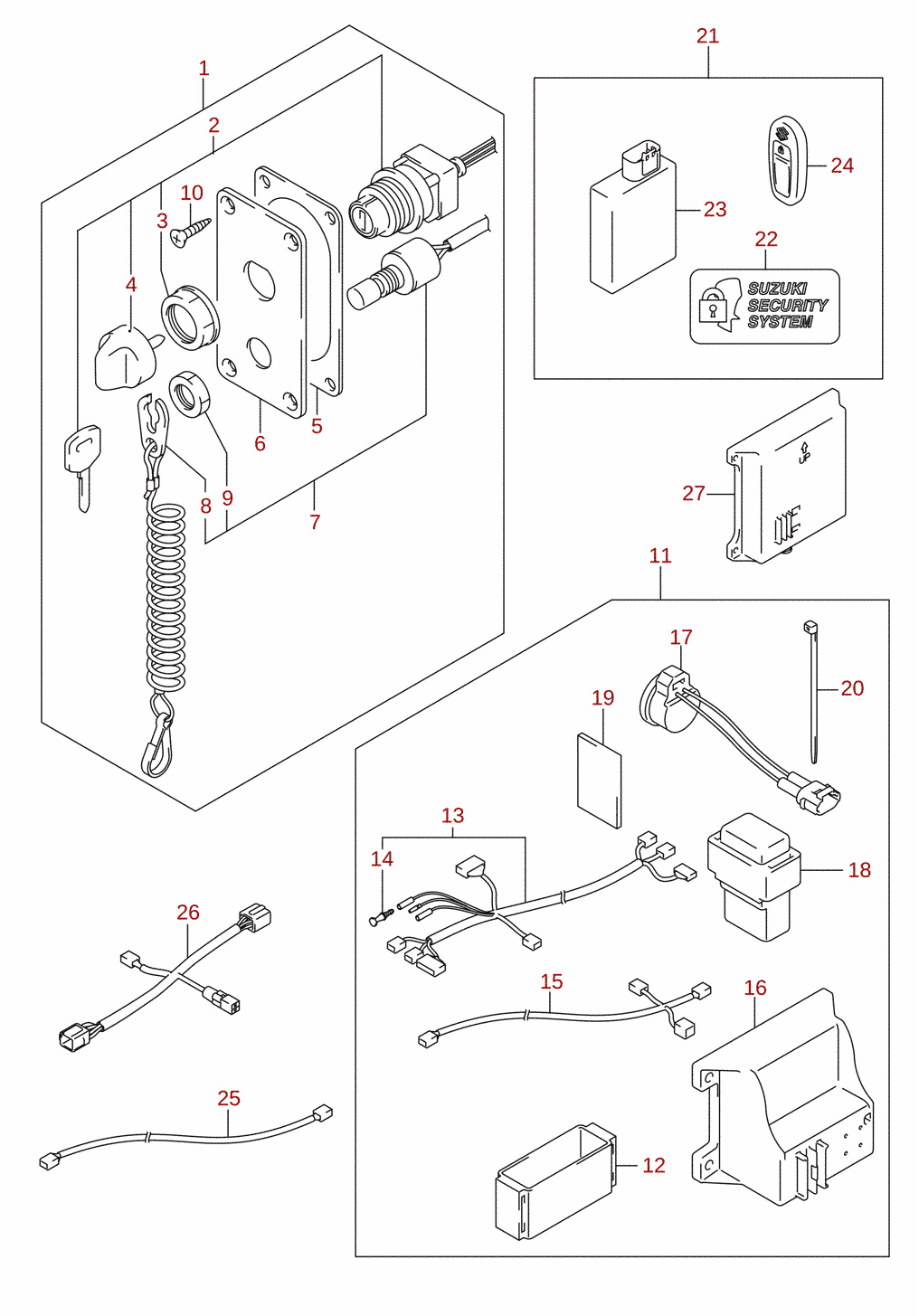

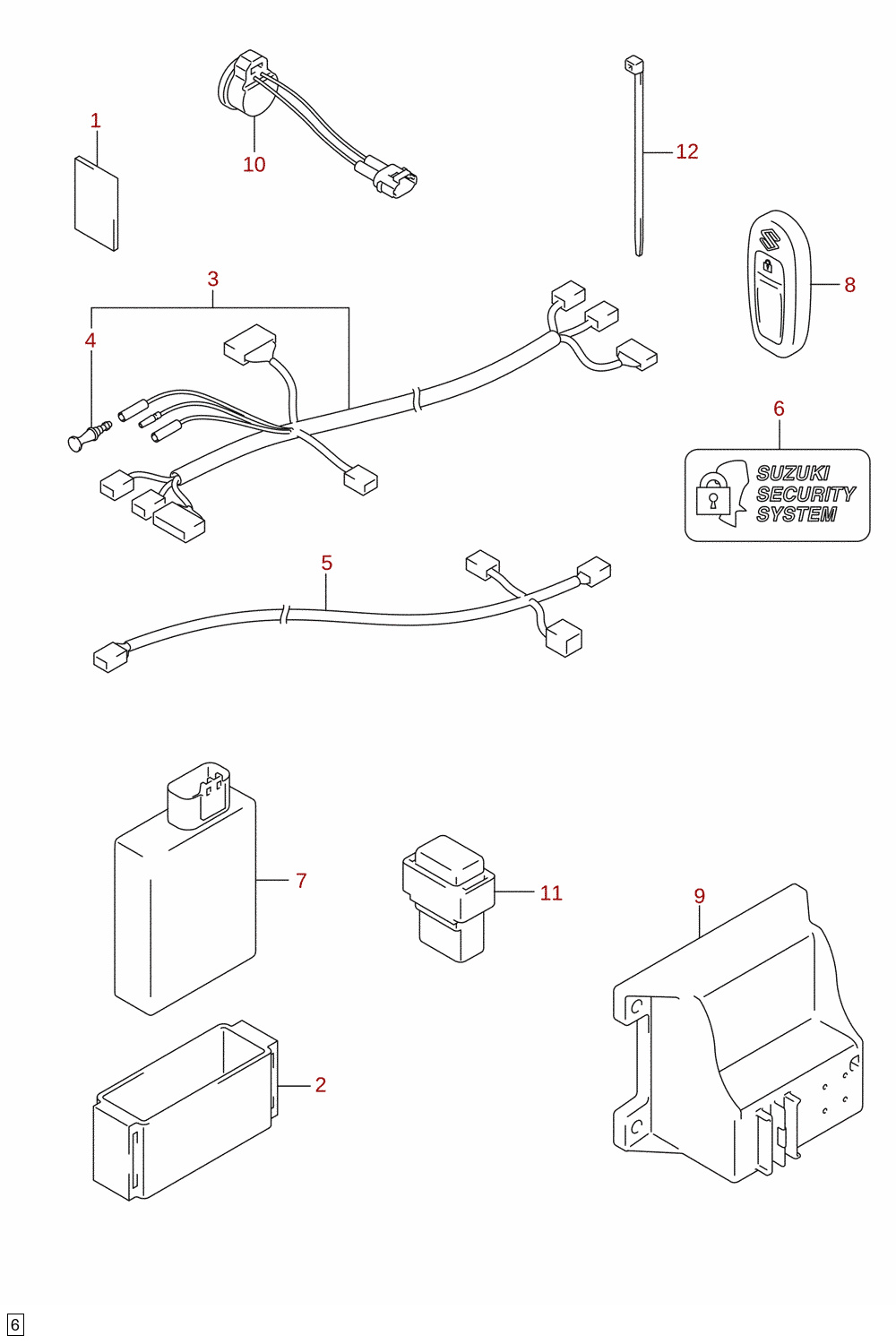

Keyless start

Reference no. DF350A_E01_019 26

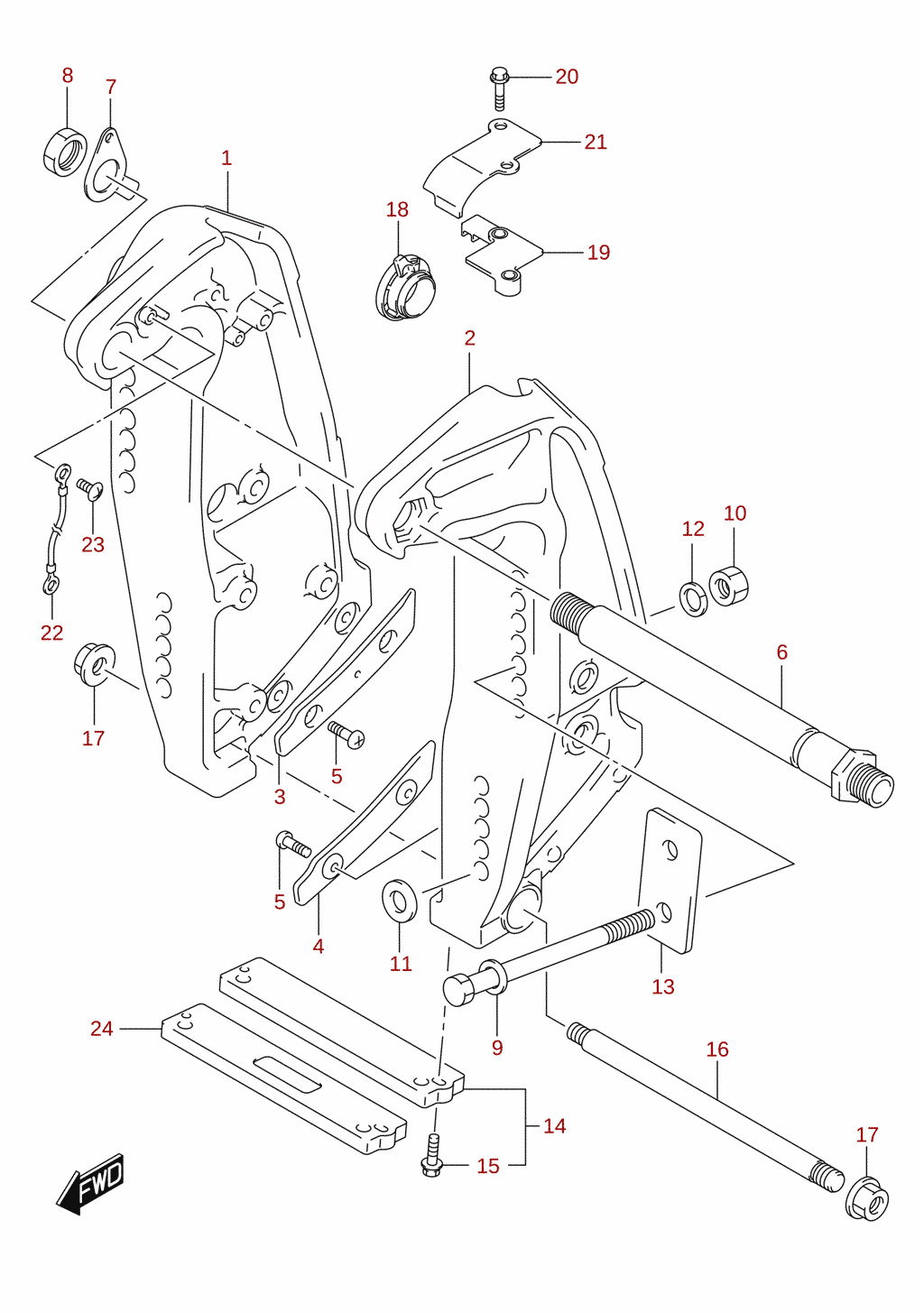

Clamp bracket

Reference no. DF350A_E01_019 27

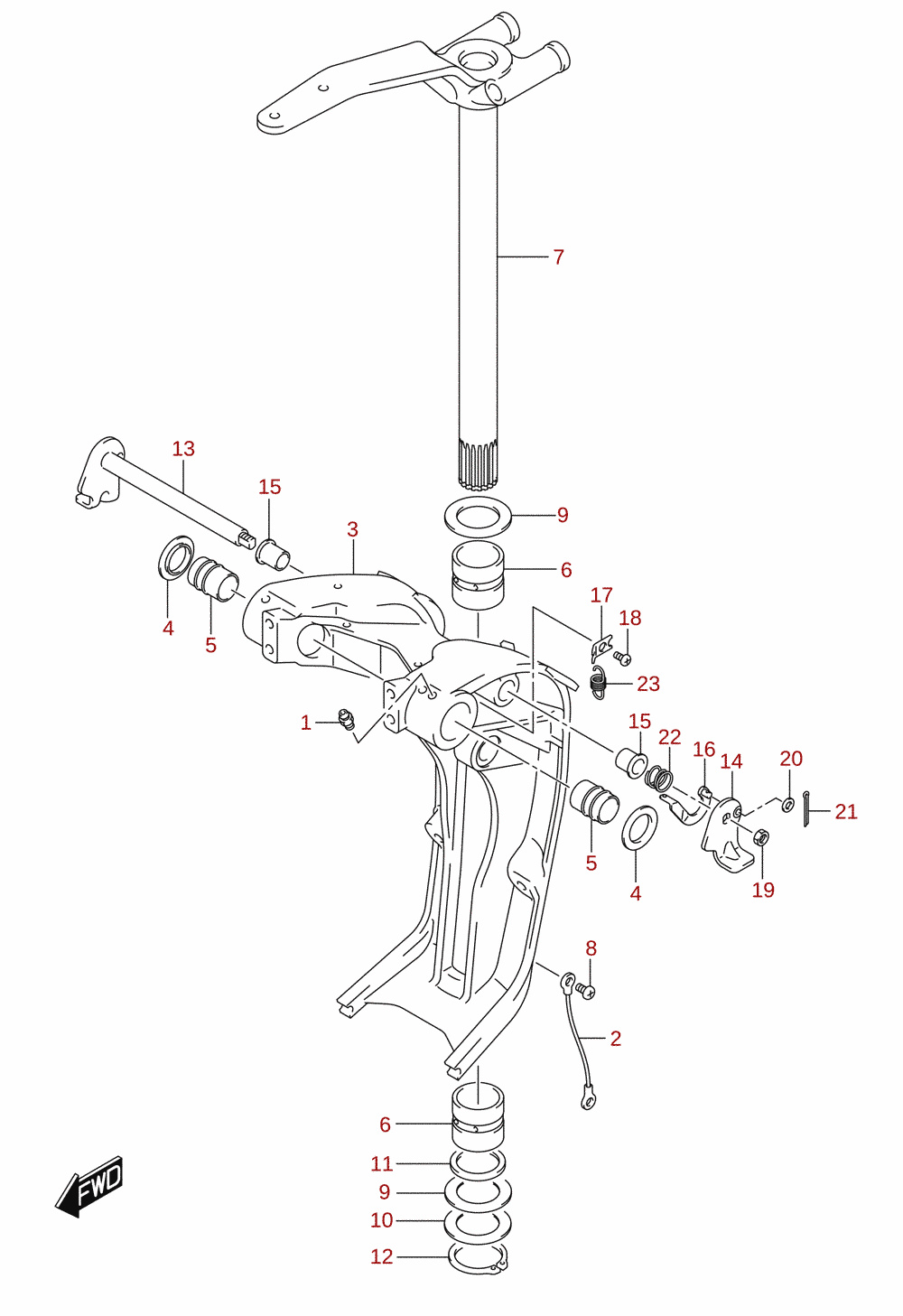

Swivel bracket

Reference no. DF350A_E01_019 28

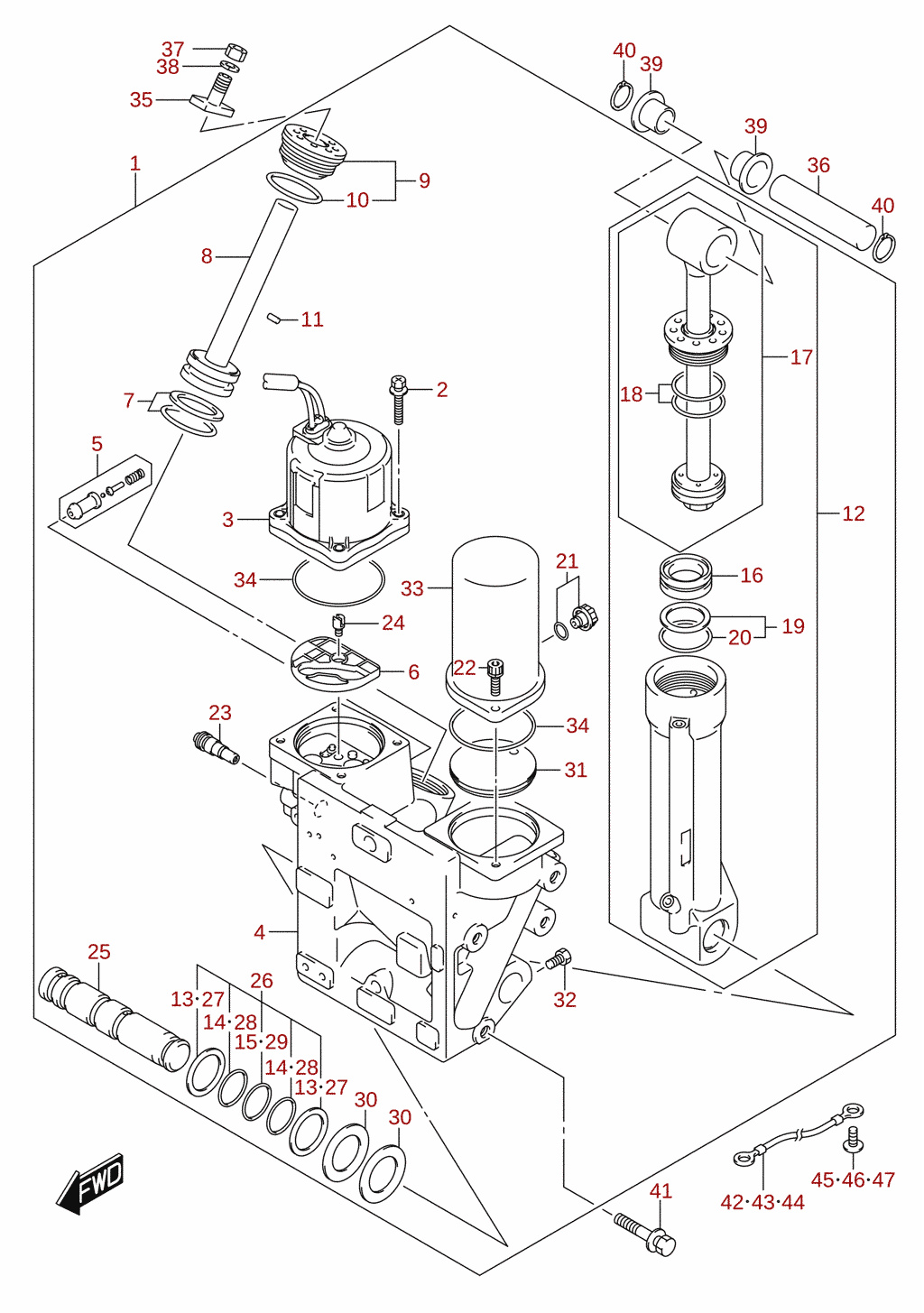

Trim cylinder

Reference no. DF350A_E01_019 29

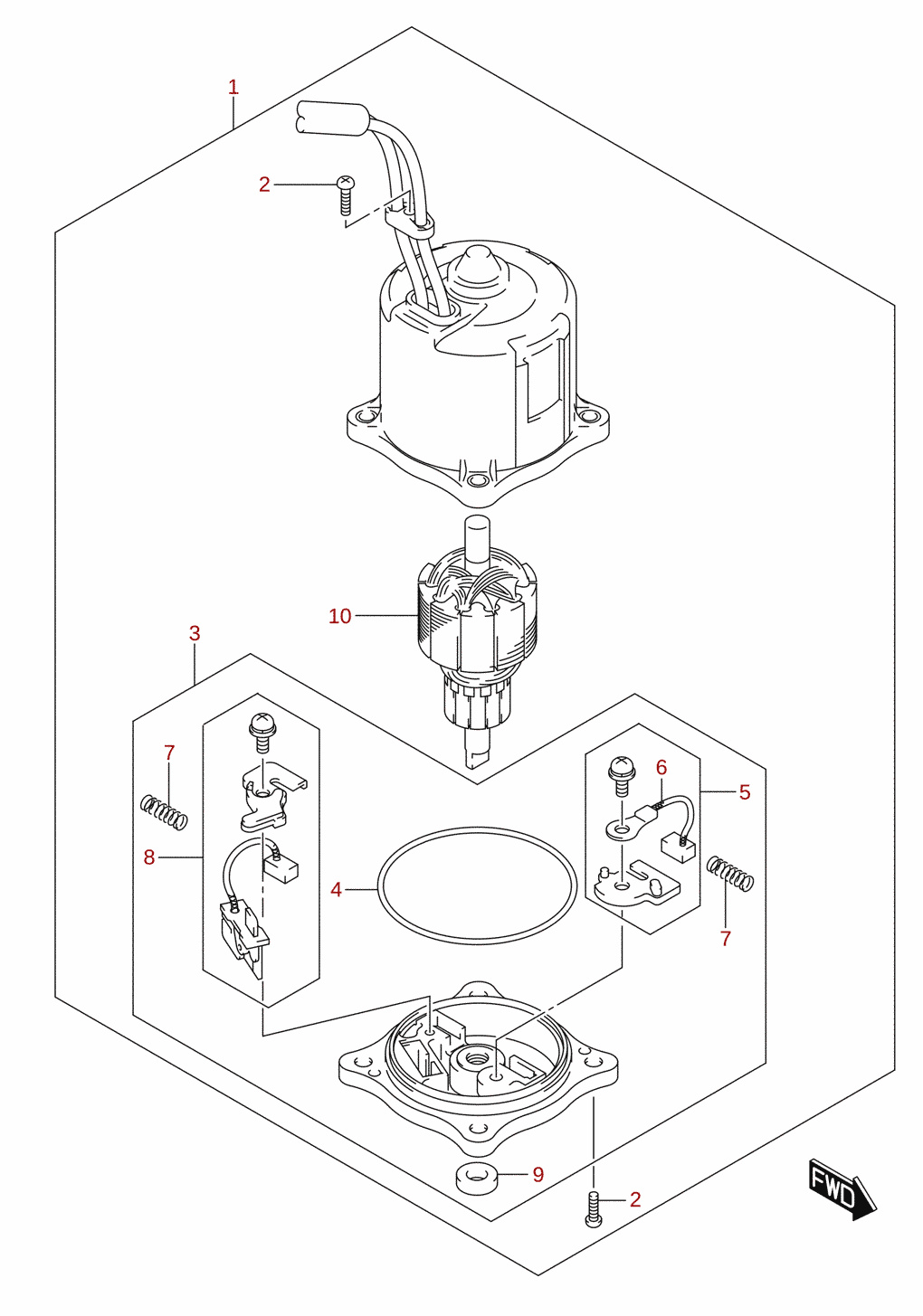

PTT motor

Reference no. DF350A_E01_019 30

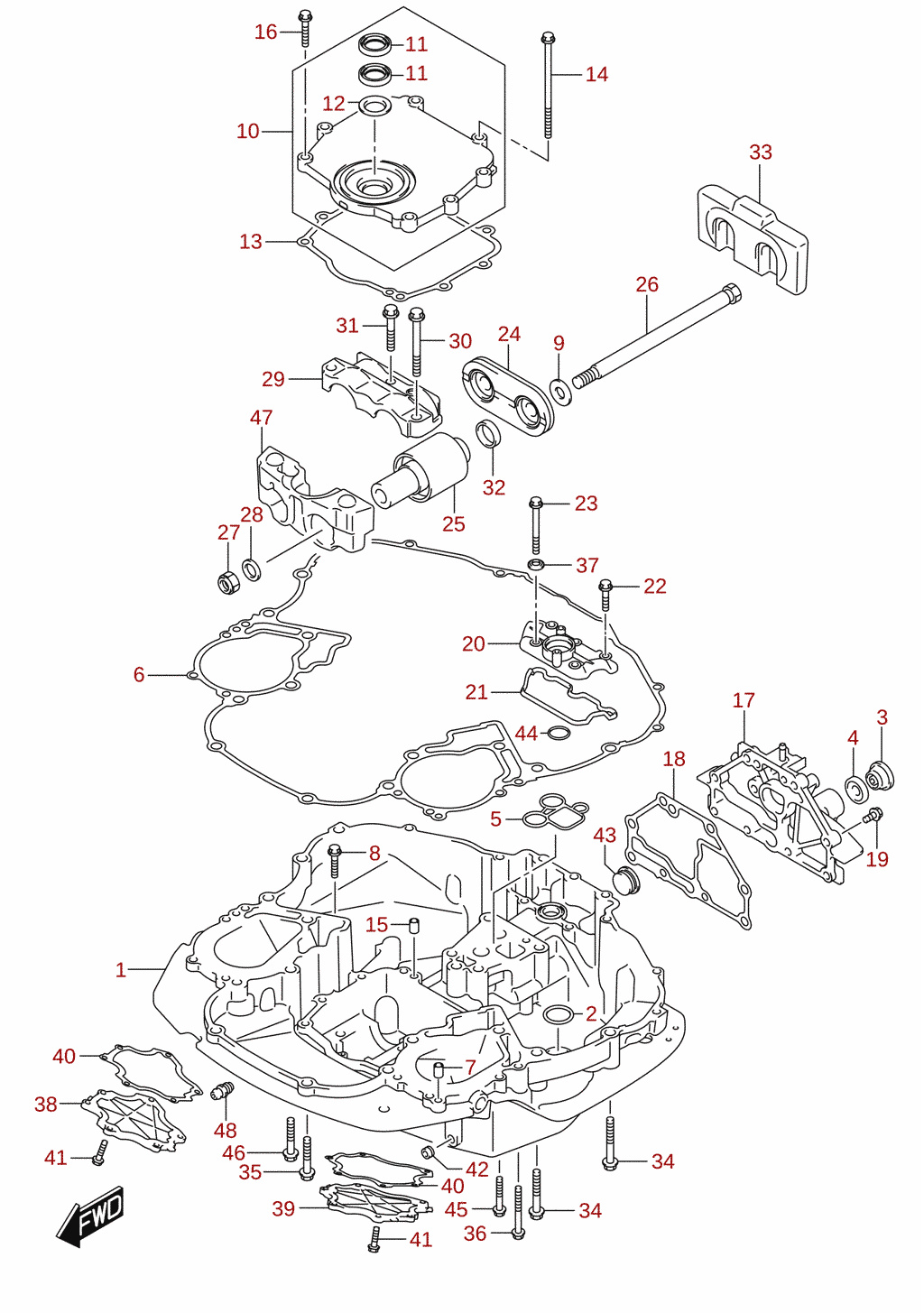

Engine holder

Reference no. DF350A_E01_019 31

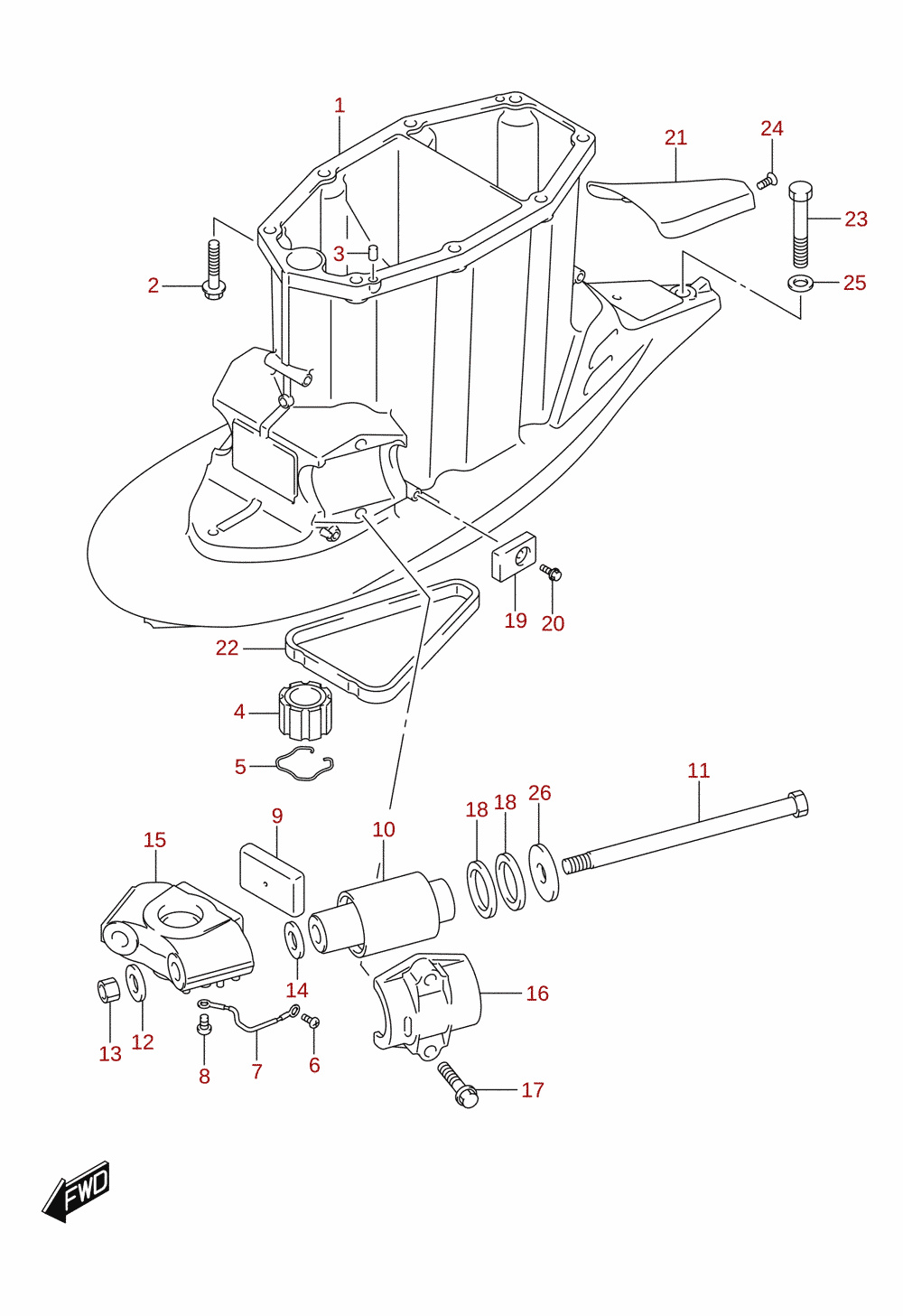

Drive shaft housing (X-transom)

Reference no. DF350A_E01_019 32

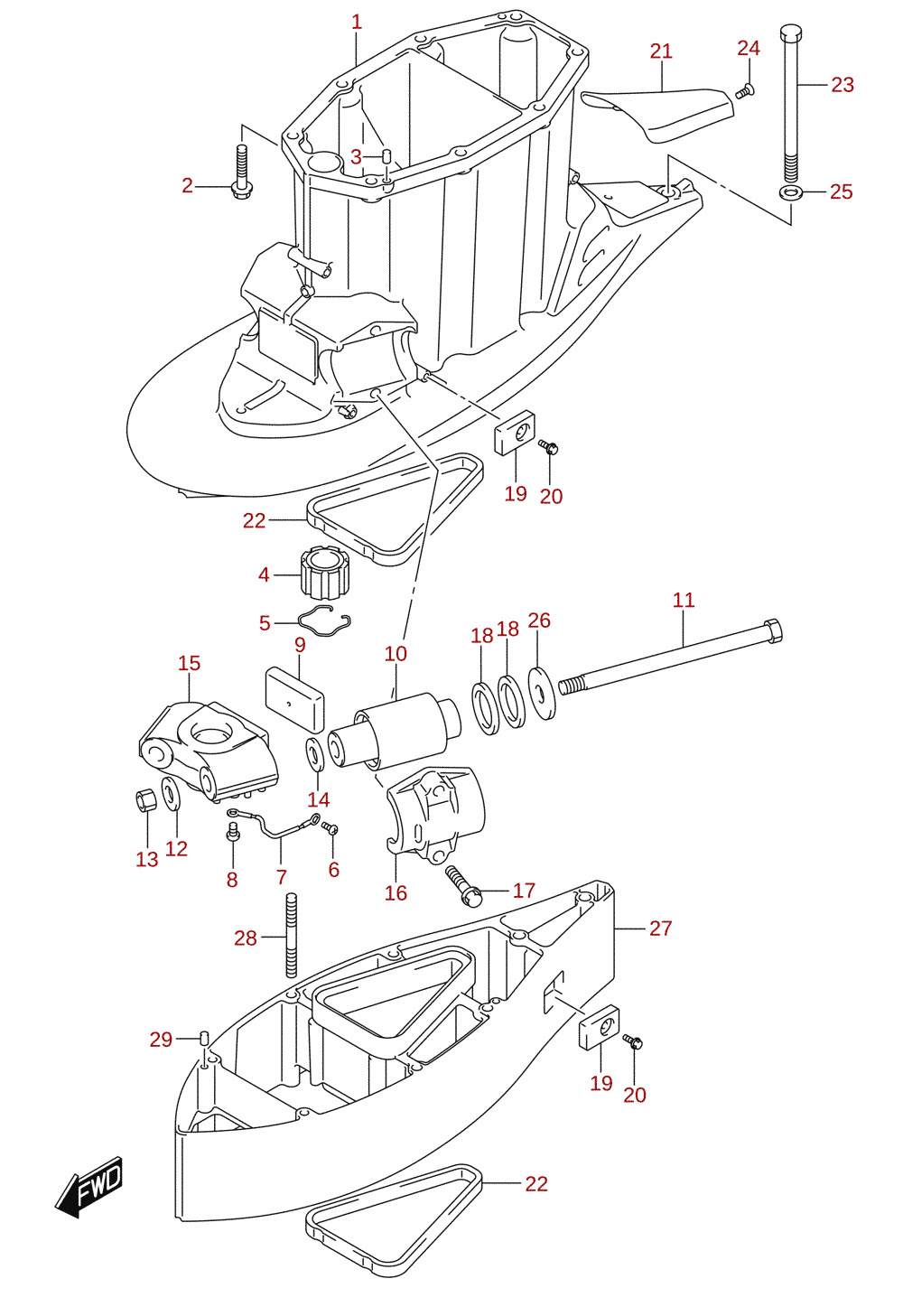

Drive shaft housing (XX-transom)

Reference no. DF350A_E01_019 33

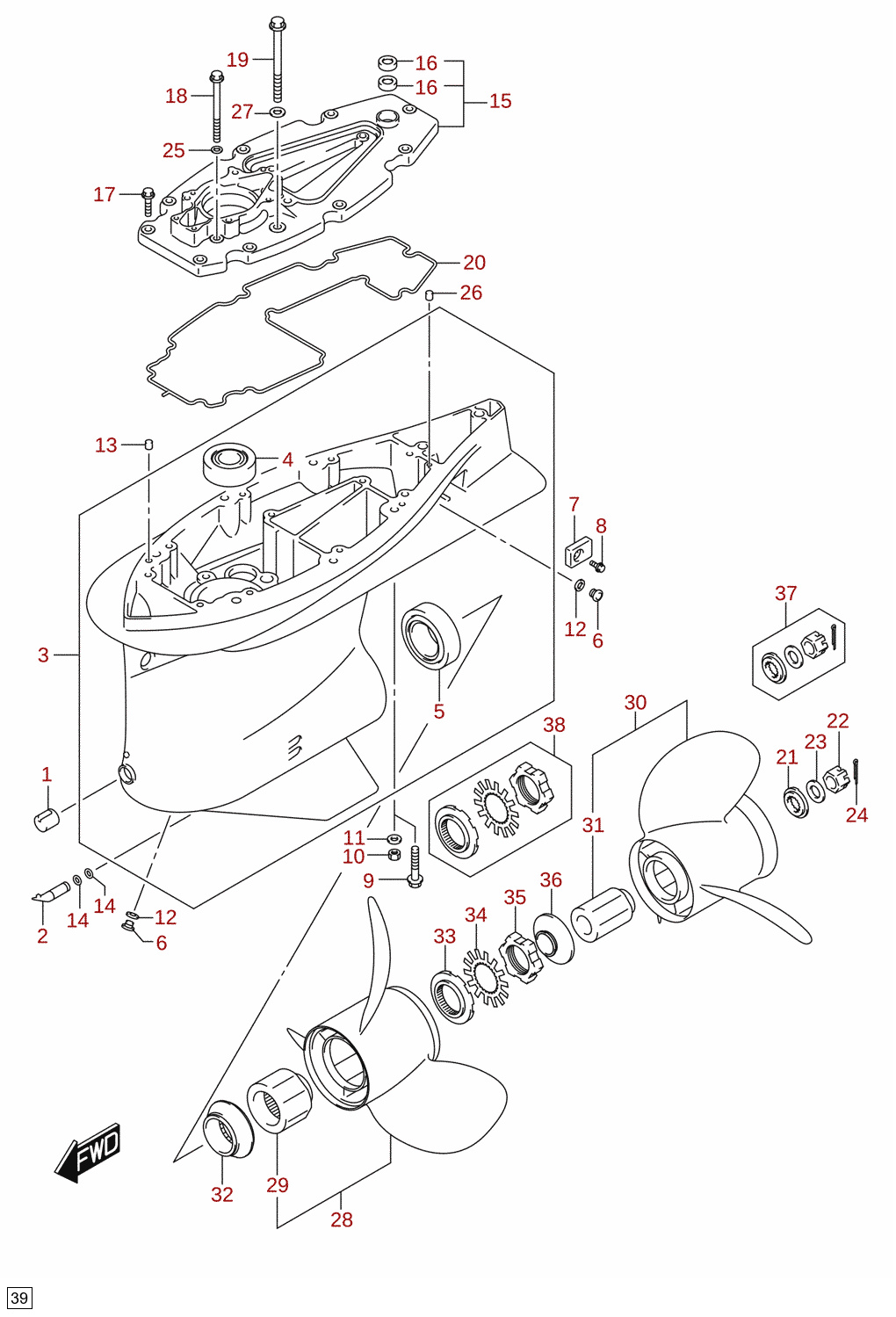

Gear case

Reference no. DF350A_E01_019 34

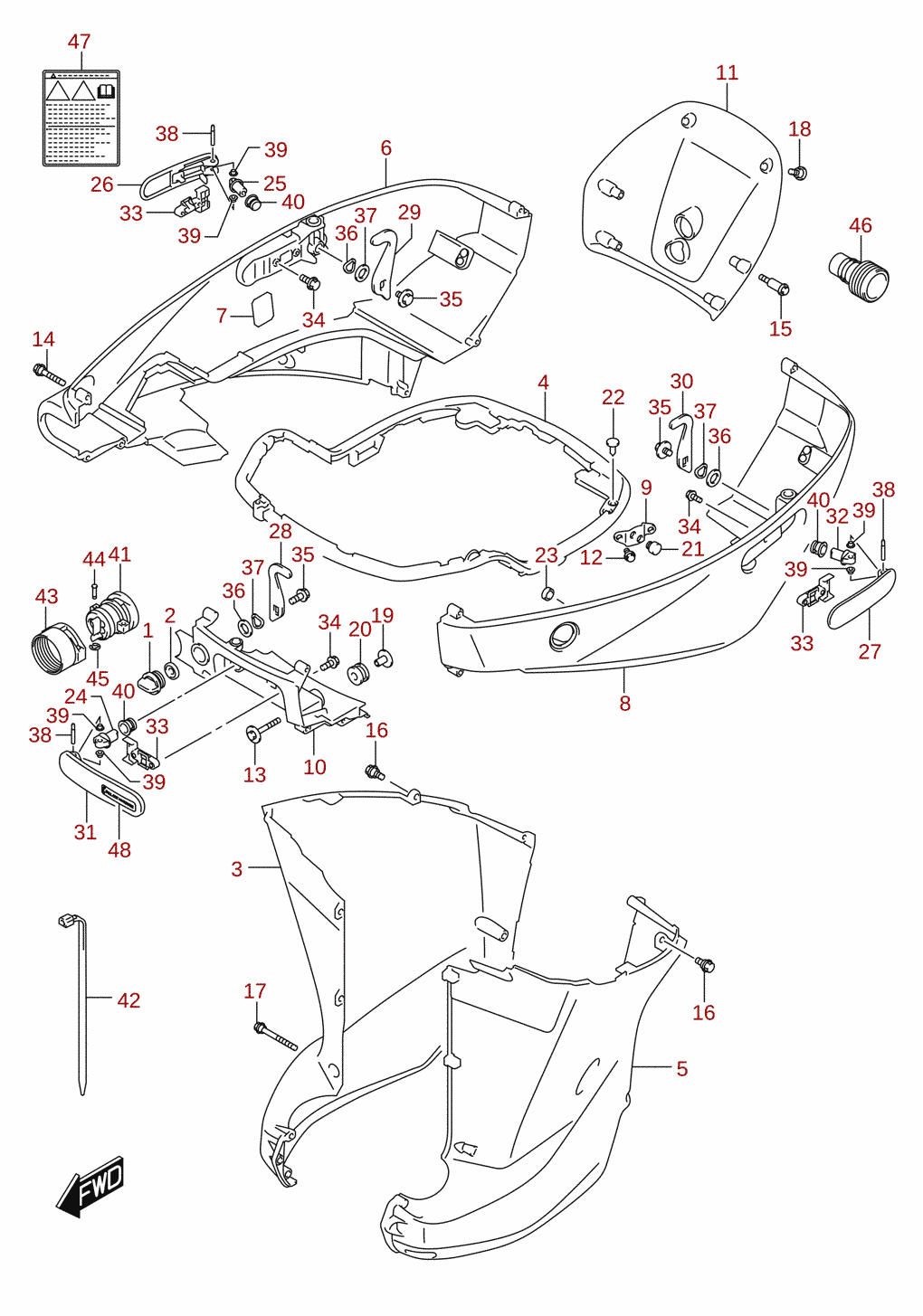

Side cover

Reference no. DF350A_E01_019 35

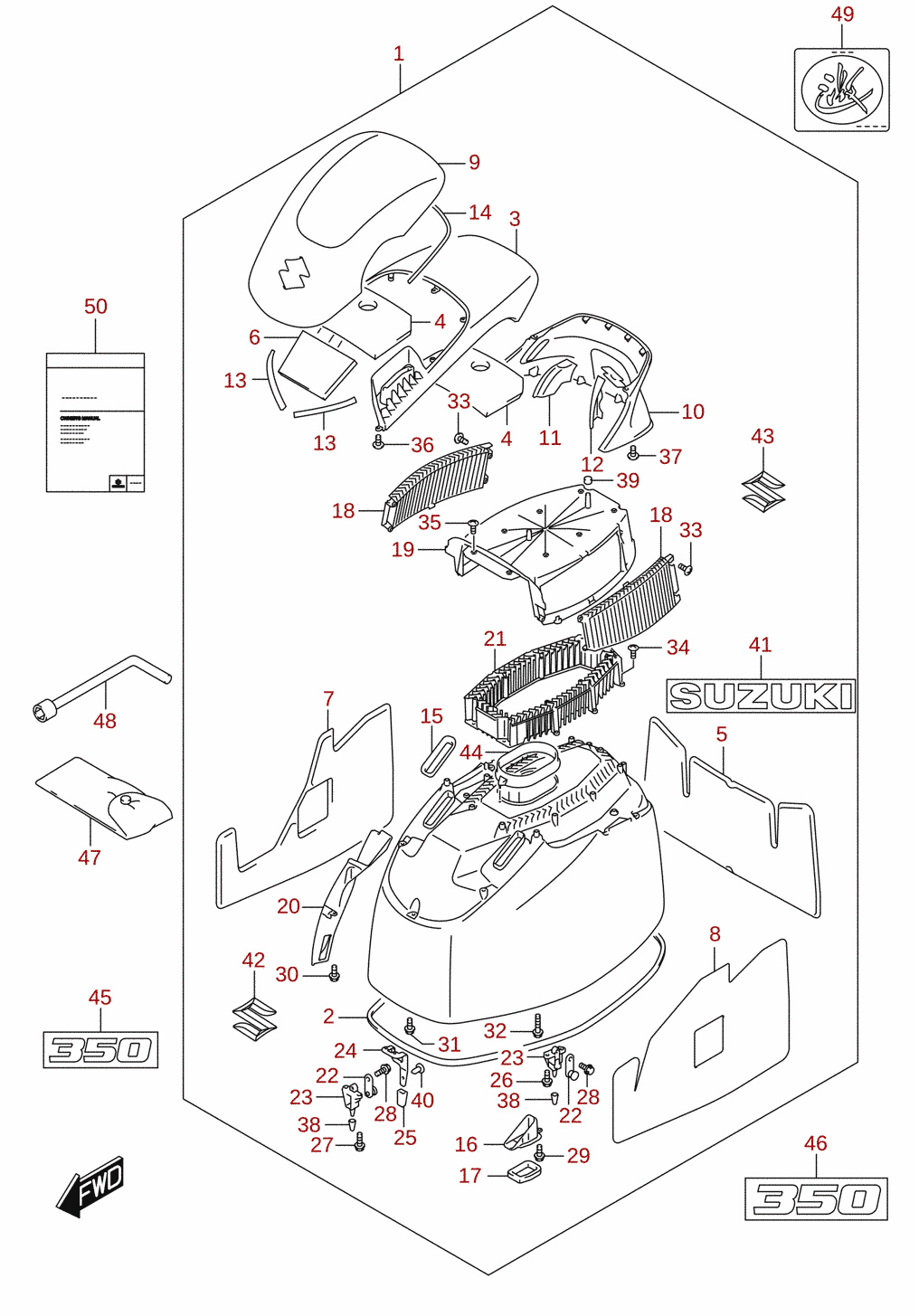

Engine cover (DF350A)

Reference no. DF350A_E01_019 36

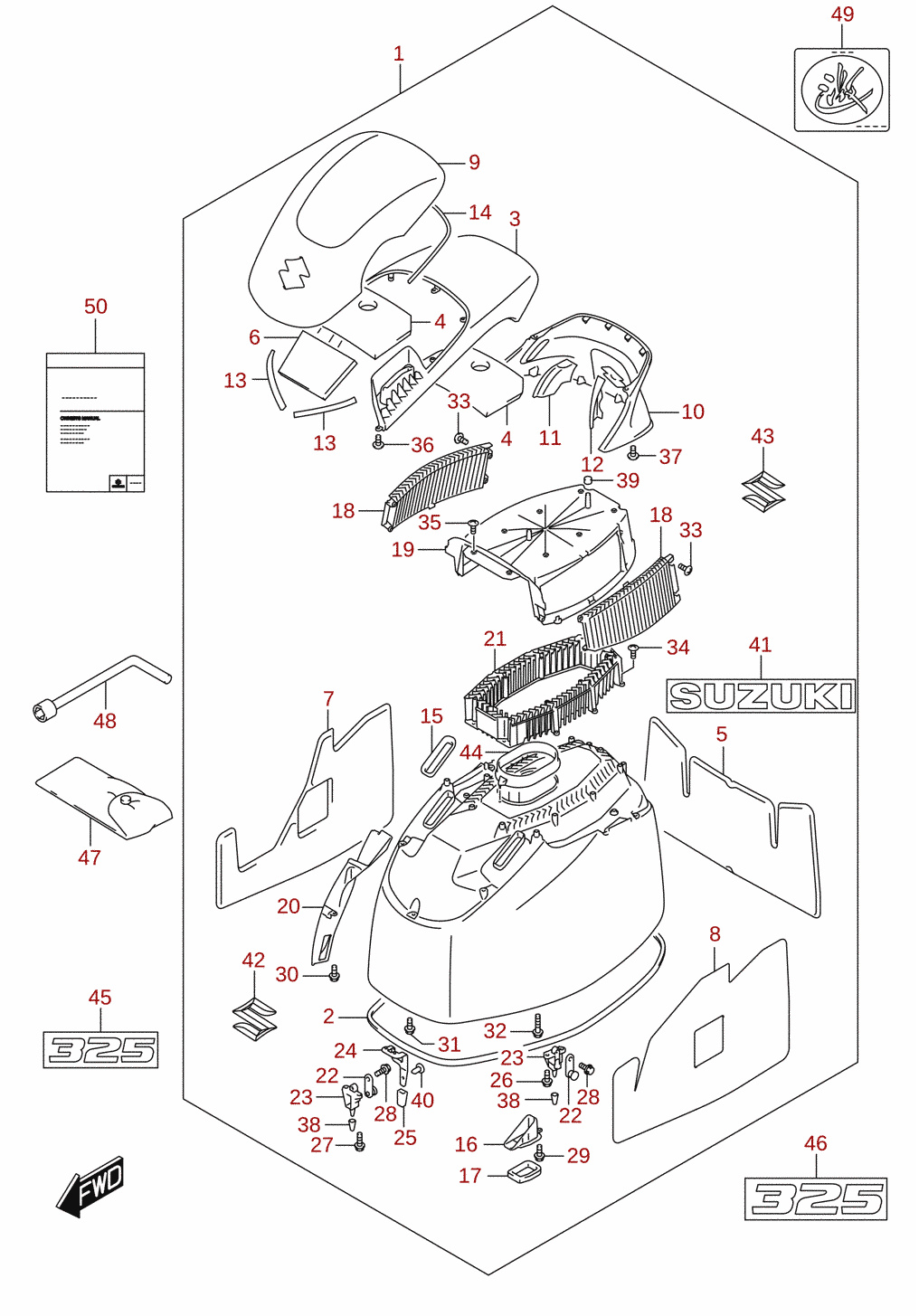

Engine cover (DF325A)

Reference no. DF350A_E01_019 37

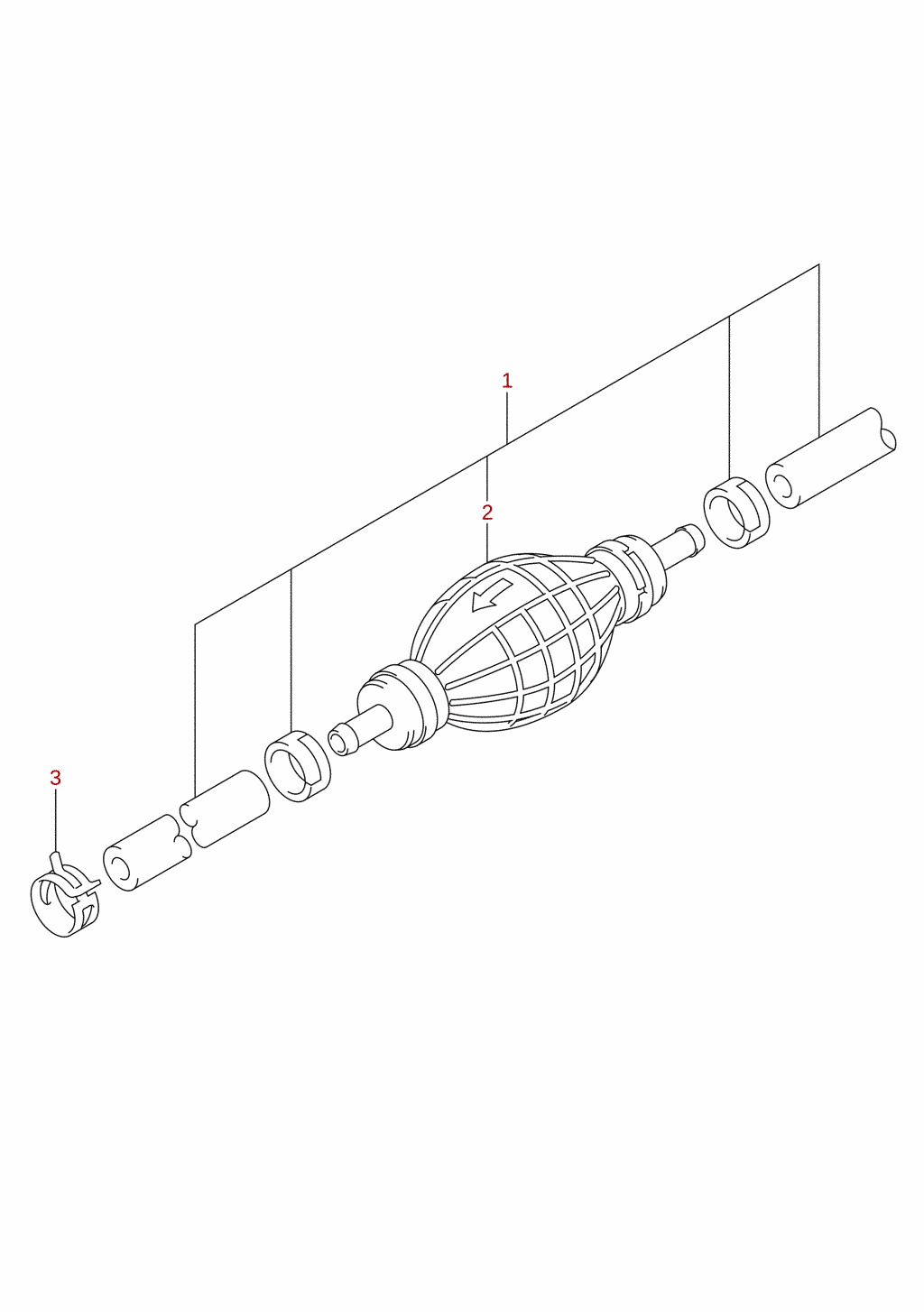

Fuel hose

Reference no. DF350A_E01_019 38

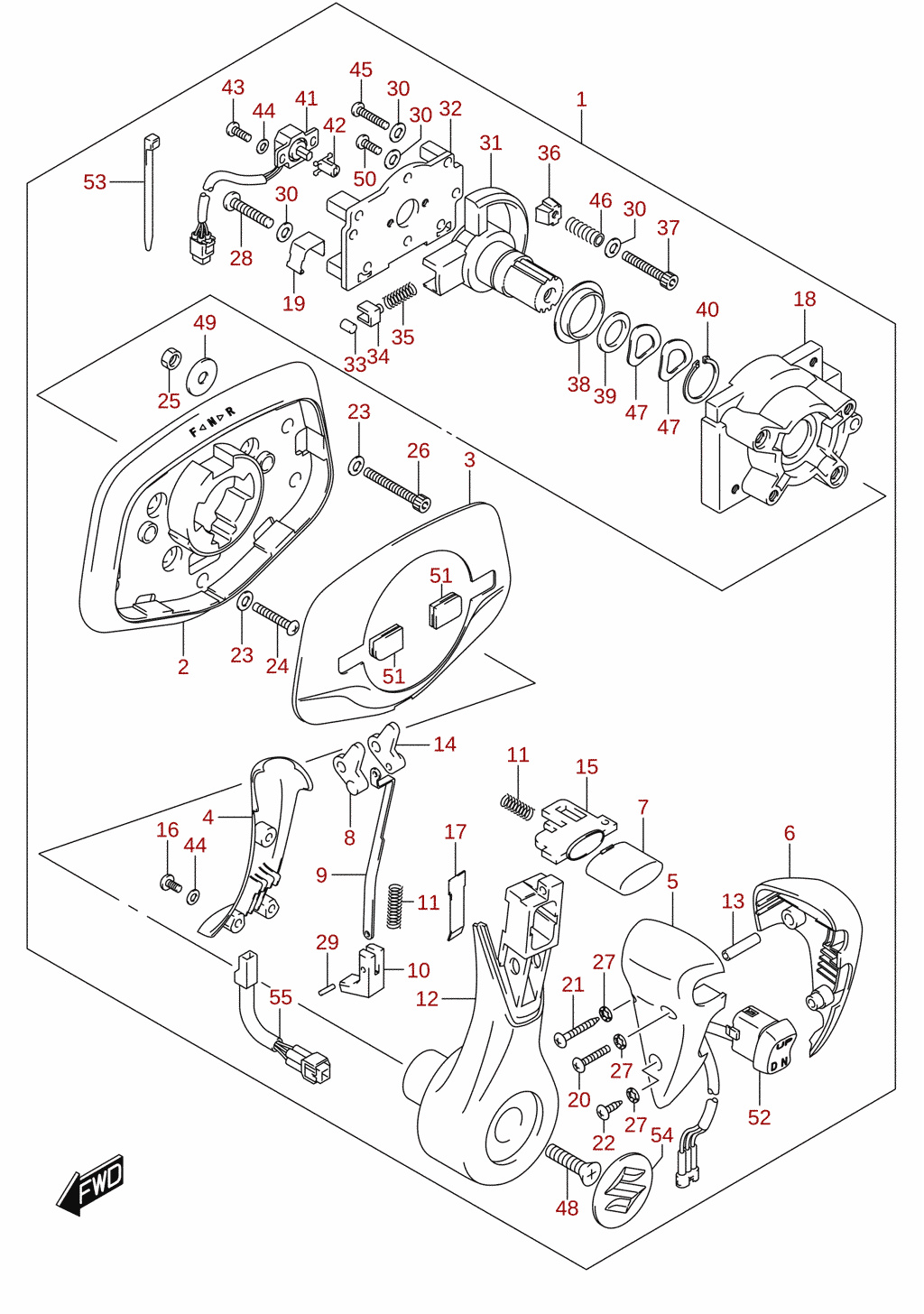

Flush mount remote control (optional)

Reference no. DF350A_E01_019 39

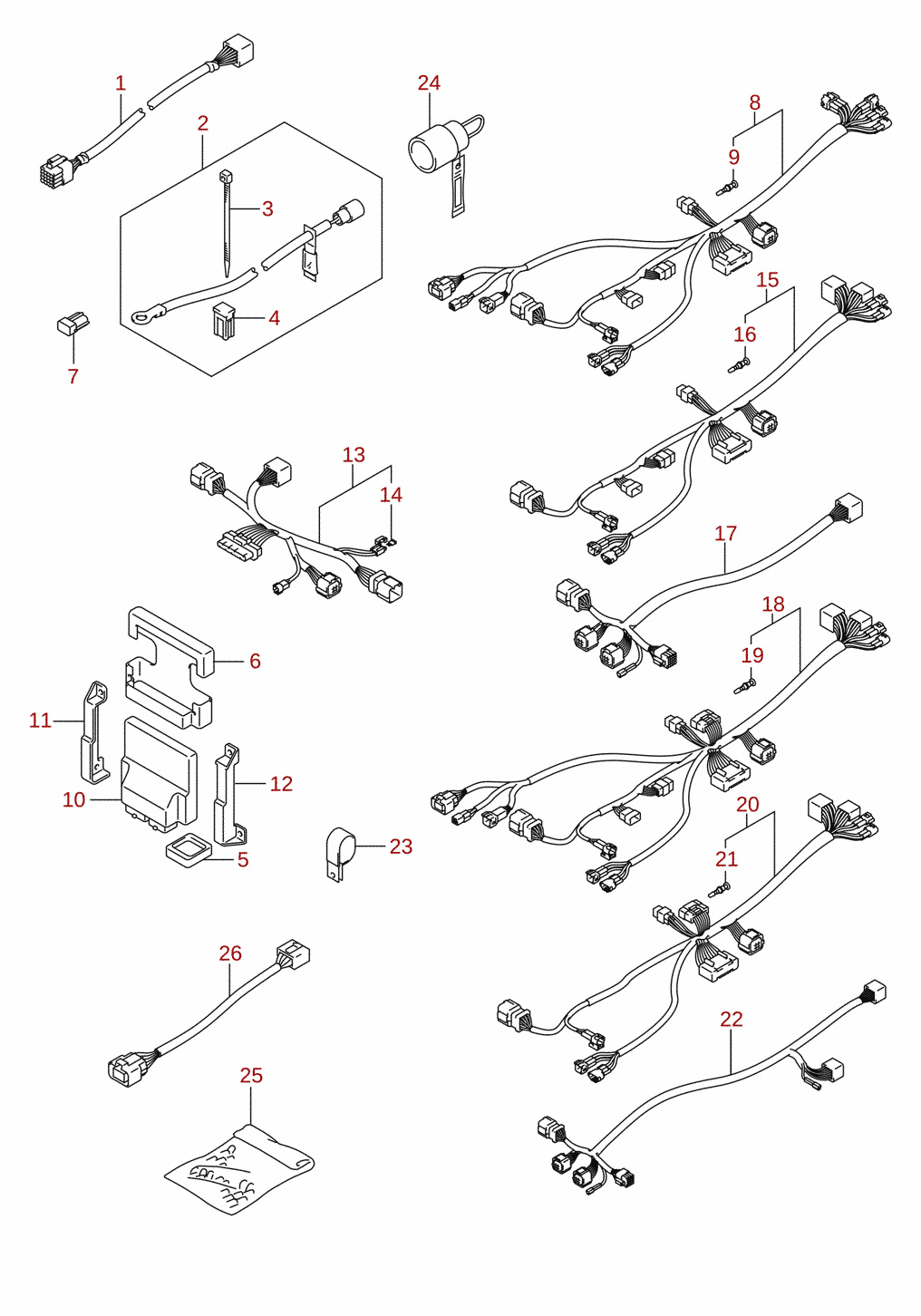

Harness (1) (optional)

Reference no. DF350A_E01_019 40

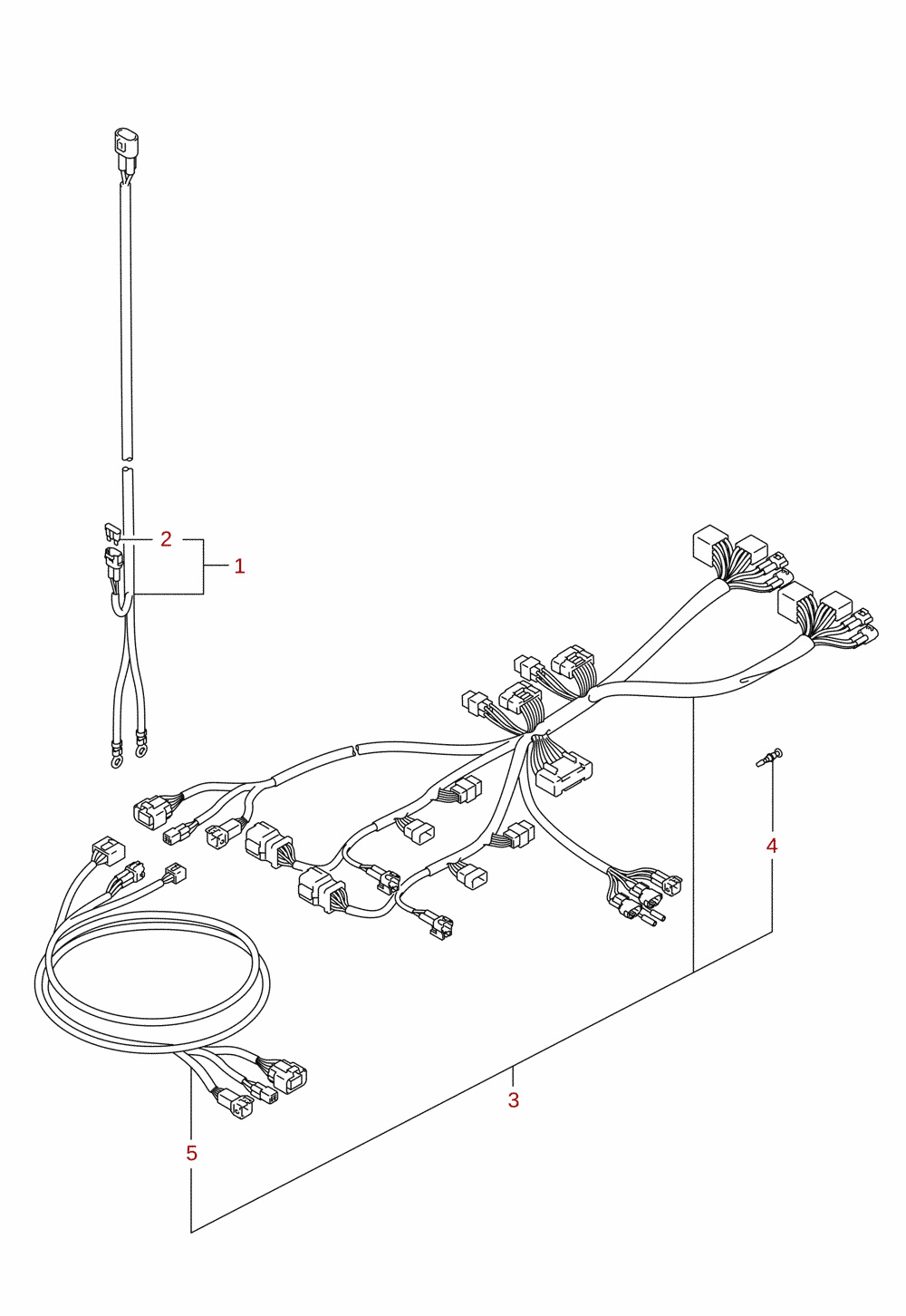

Harness (2) (optional)

Reference no. DF350A_E01_019 41

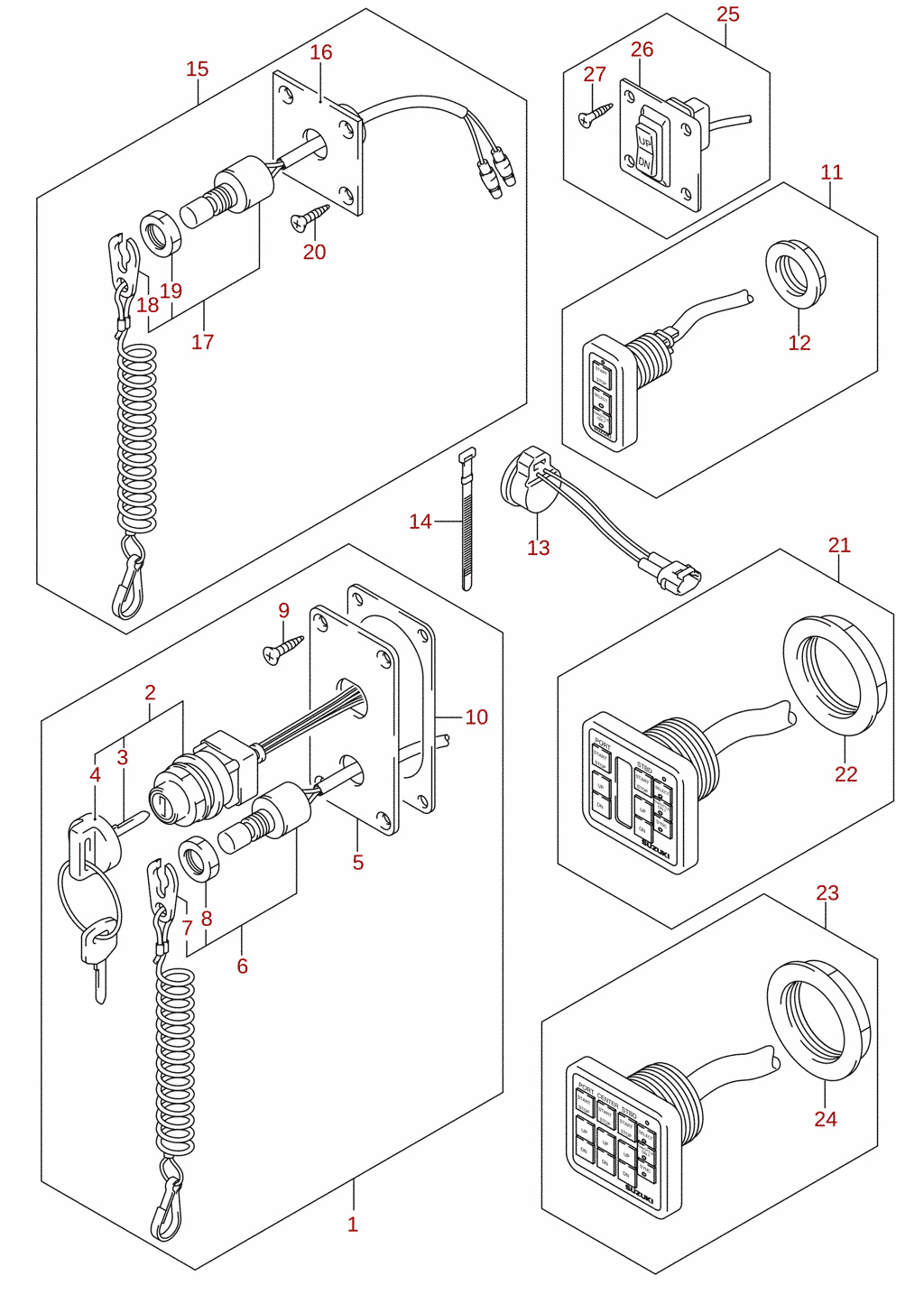

Switch (optional)

Reference no. DF350A_E01_019 42

Keyless start (optional)

Reference no. DF350A_E01_019 43

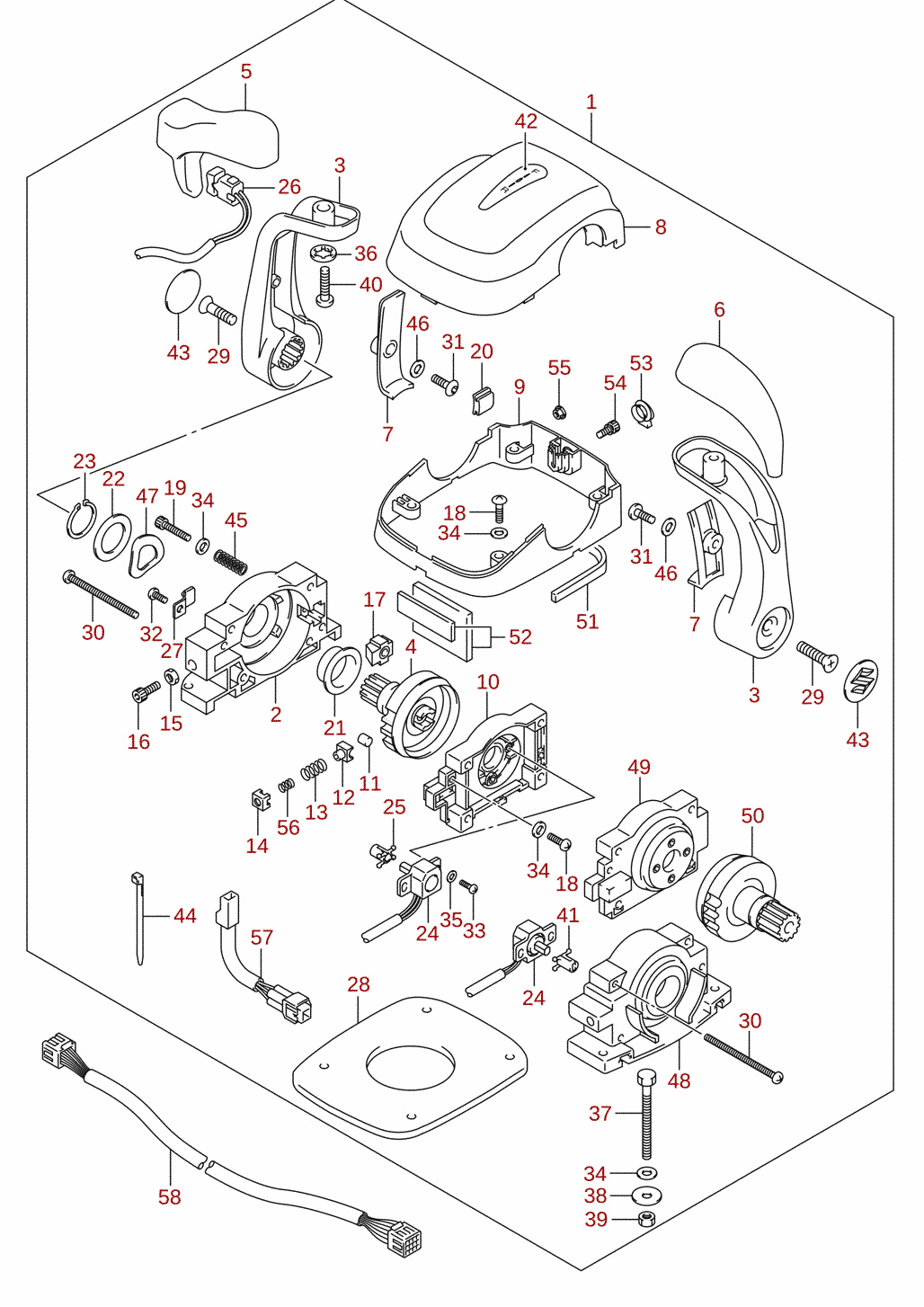

Remote control assembly dual (optional)

Reference no. DF350A_E01_019 44

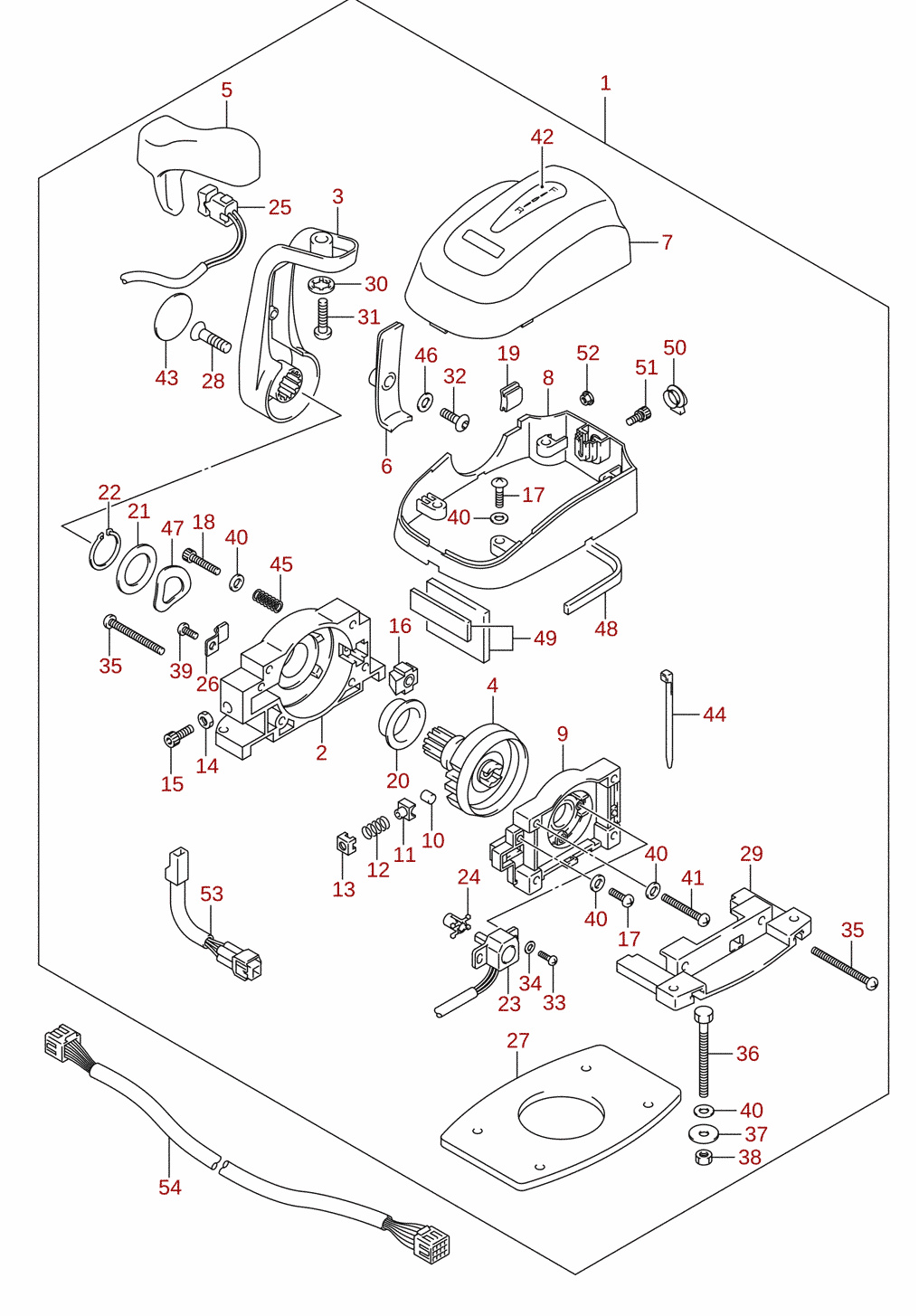

Remote control assembly single (optional)

Reference no. DF350A_E01_019 45

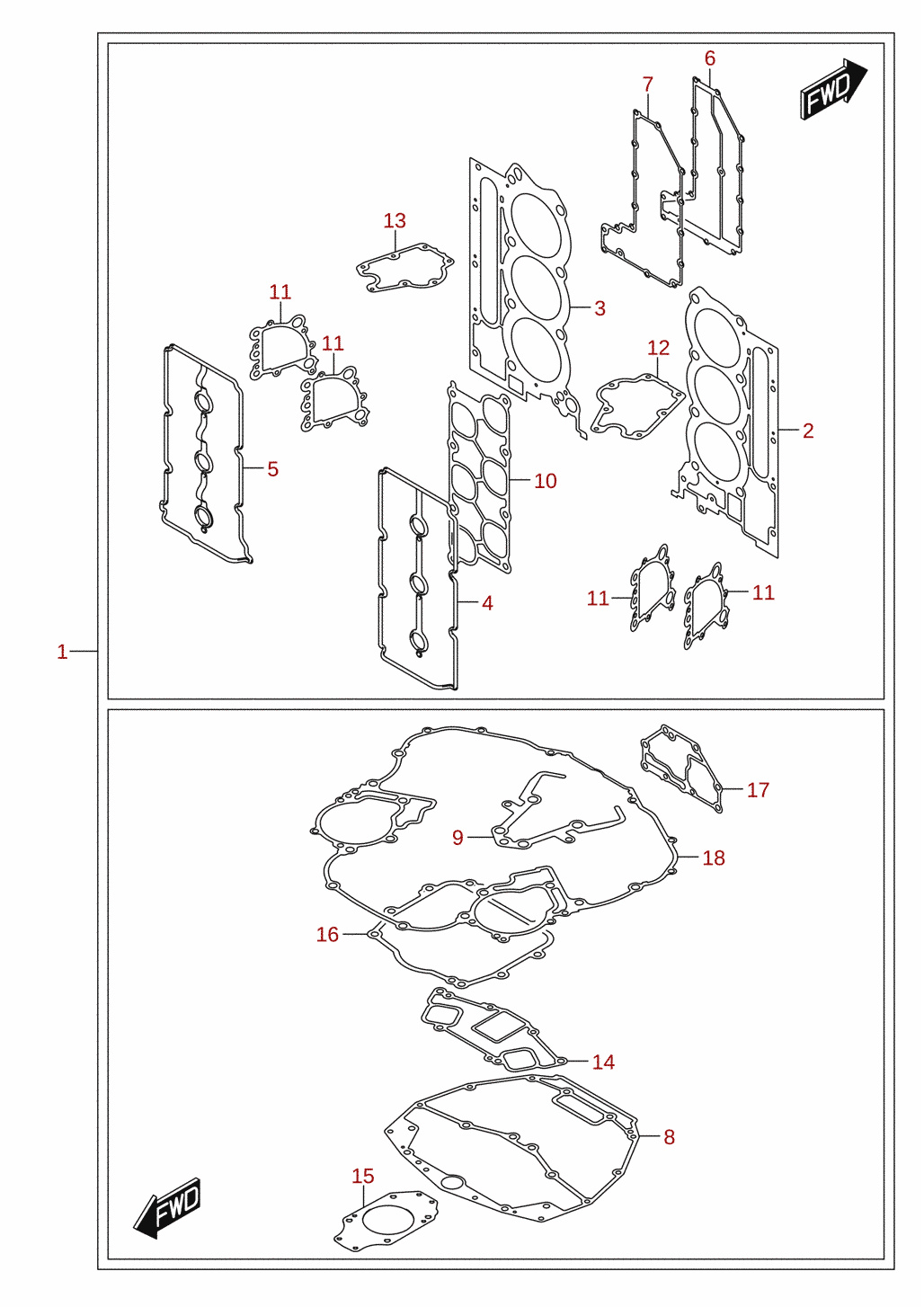

Gasket set (optional)

Reference no. DF350A_E01_019 46

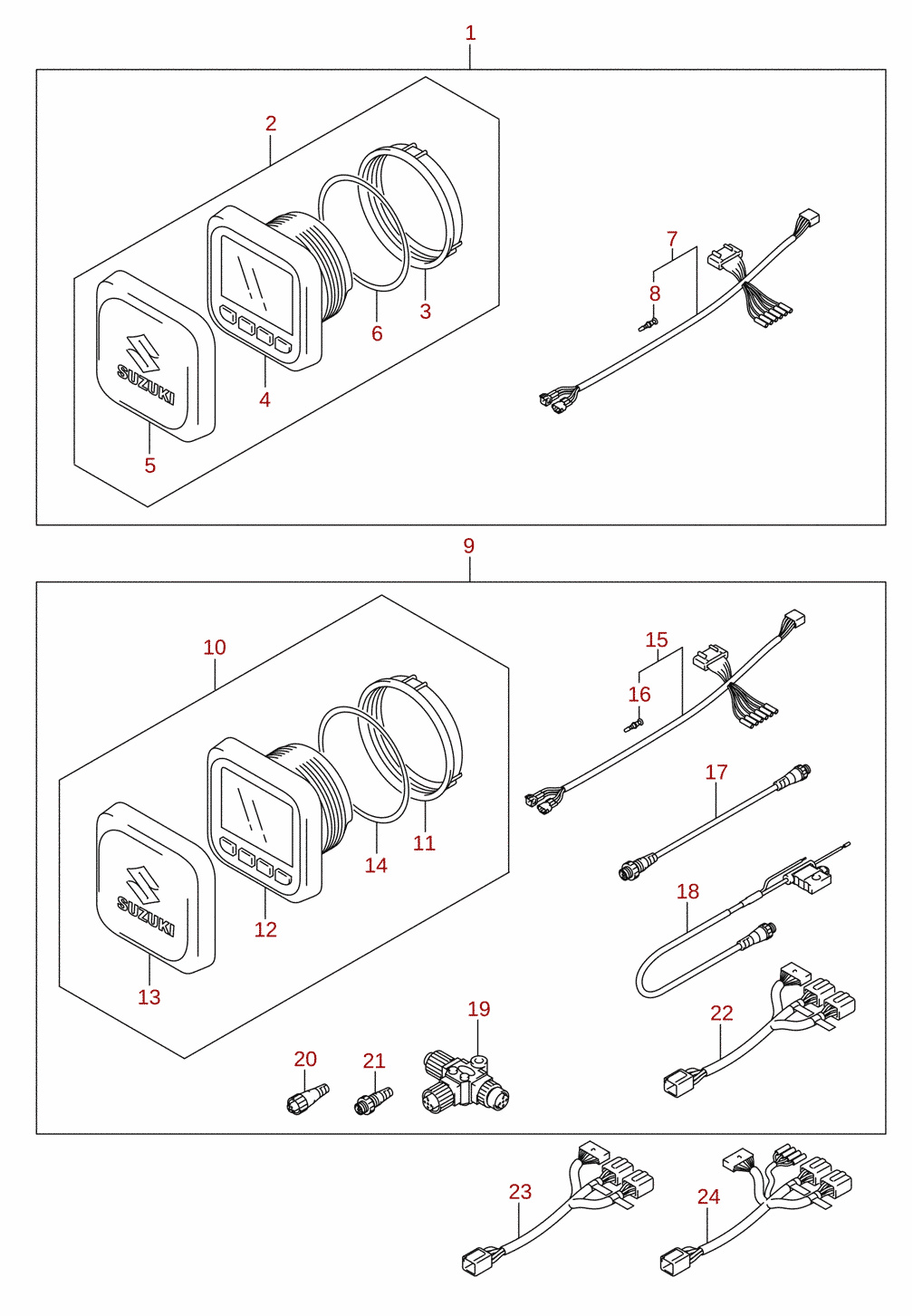

Multi function gauge (1) (optional)

Reference no. DF350A_E01_019 47

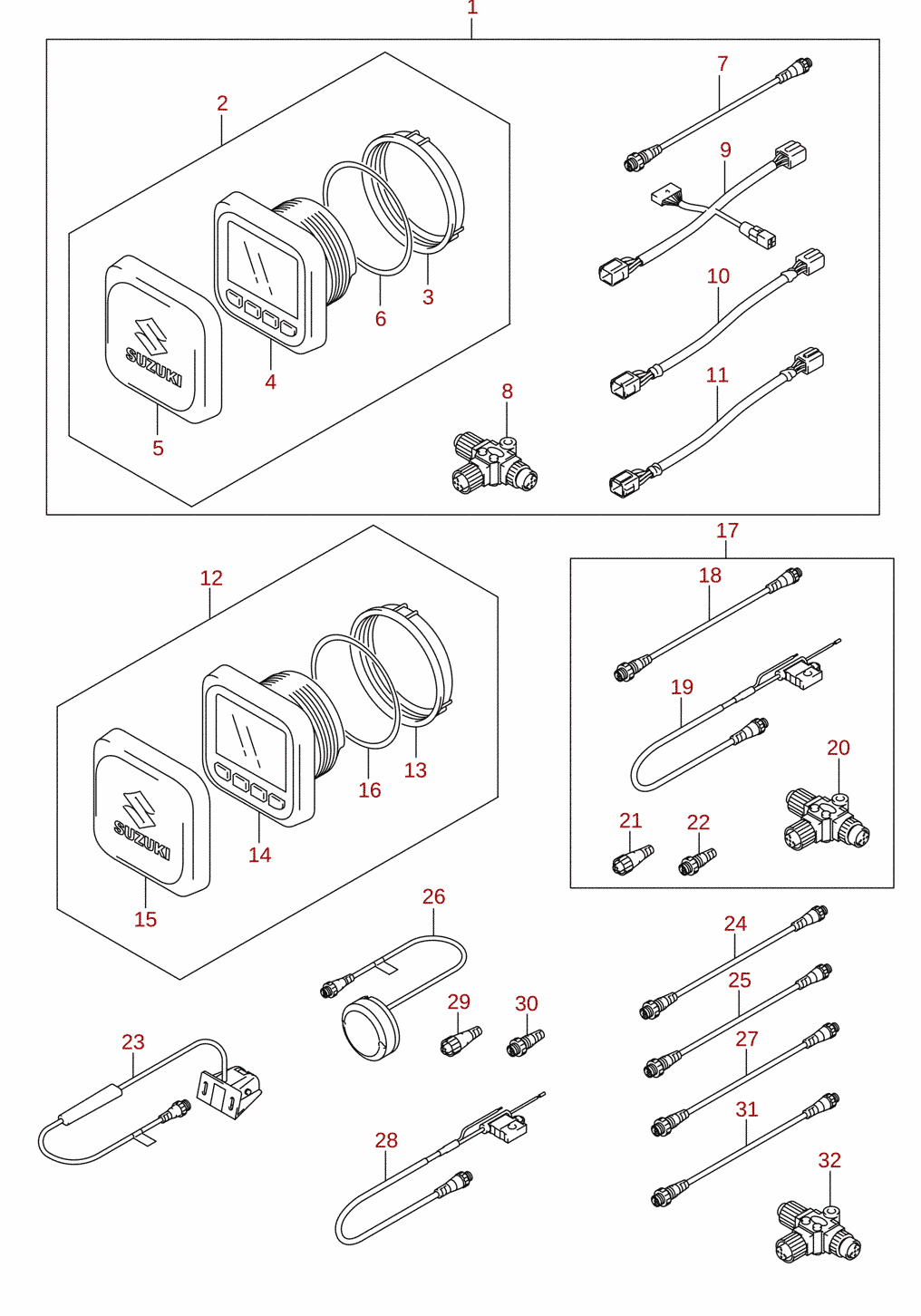

Multi function gauge (2) (optional)

Reference no. DF350A_E01_019 48
