Engine repair kit / in-frame kit for MerCruiser D254 4.2 litre 'IDI' 200 hp marine diesel engines.

Premium, genuine in-frame rebuild kit.

NOTE: Fits MerCruiser D254 4.2 ltr. VM 694HIM22 "98A" engine models with the following characteristics:

• 70 mm crankshaft rear bearing
• Mechanical in-direct fuel injection system ("IDI")
• Pre-heat glowplugs.

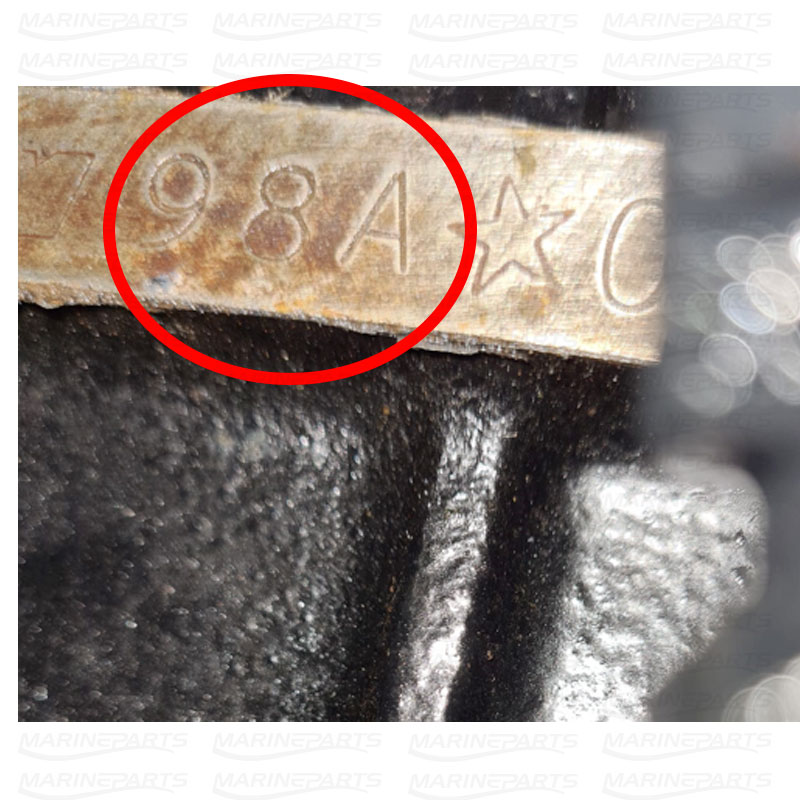

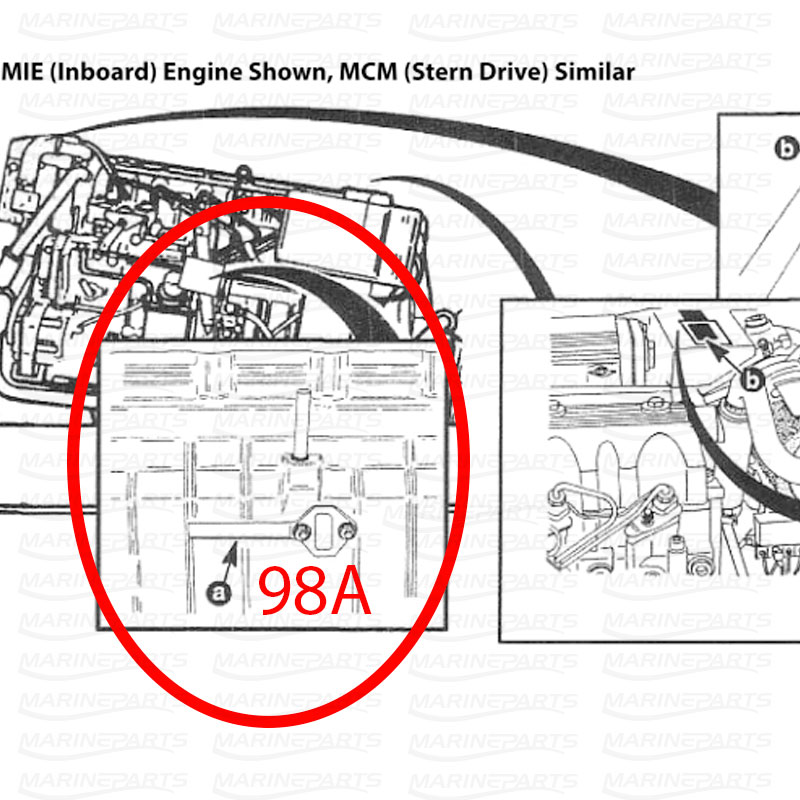

• The engine serial number stamped in the engine block should state "98A" (see image) for example *98A*12345

The kit includes the following components:

• Cylinder liner kit (liners, pistons, piston rings, piston pin, c-clip)
• Connecting rod bearing kit
• Main bearing kit
• Camshaft bushings
• De-carbonizing kit (head gasket kit)
• Conversion gasket kit (lower end gasket kit)

Standard-size bearings.

Please consult us with regards to compatibility, remember to provide serial number of the engine.

Complementary products:

• Workshop service manual: 806934
• Fuel feed pump: 15182003
• Injector sleeve: 21700009
• Camshaft bushings: 20302060 x3
• Camshaft bushing, rear: 20300233 x1
• Connecting rod bushings: 21712079 x6
• Connecting rod bolts : 21762142 x12
• Injector assembly: 15062038
• Turbo gasket kit: 11651333454KIT
• Turbo: 816791
• Thrust washers: 21652015 + 21652013
• Cylinder head bolt kit: 11121331675KIT
• Oil pump: 15212027
• Valve springs: 20462093 x12
• V-band clamp, turbo: 31612001
• Mounting grease tube "never-seez":
